Summary of Contents for Sradix HS-380VACI

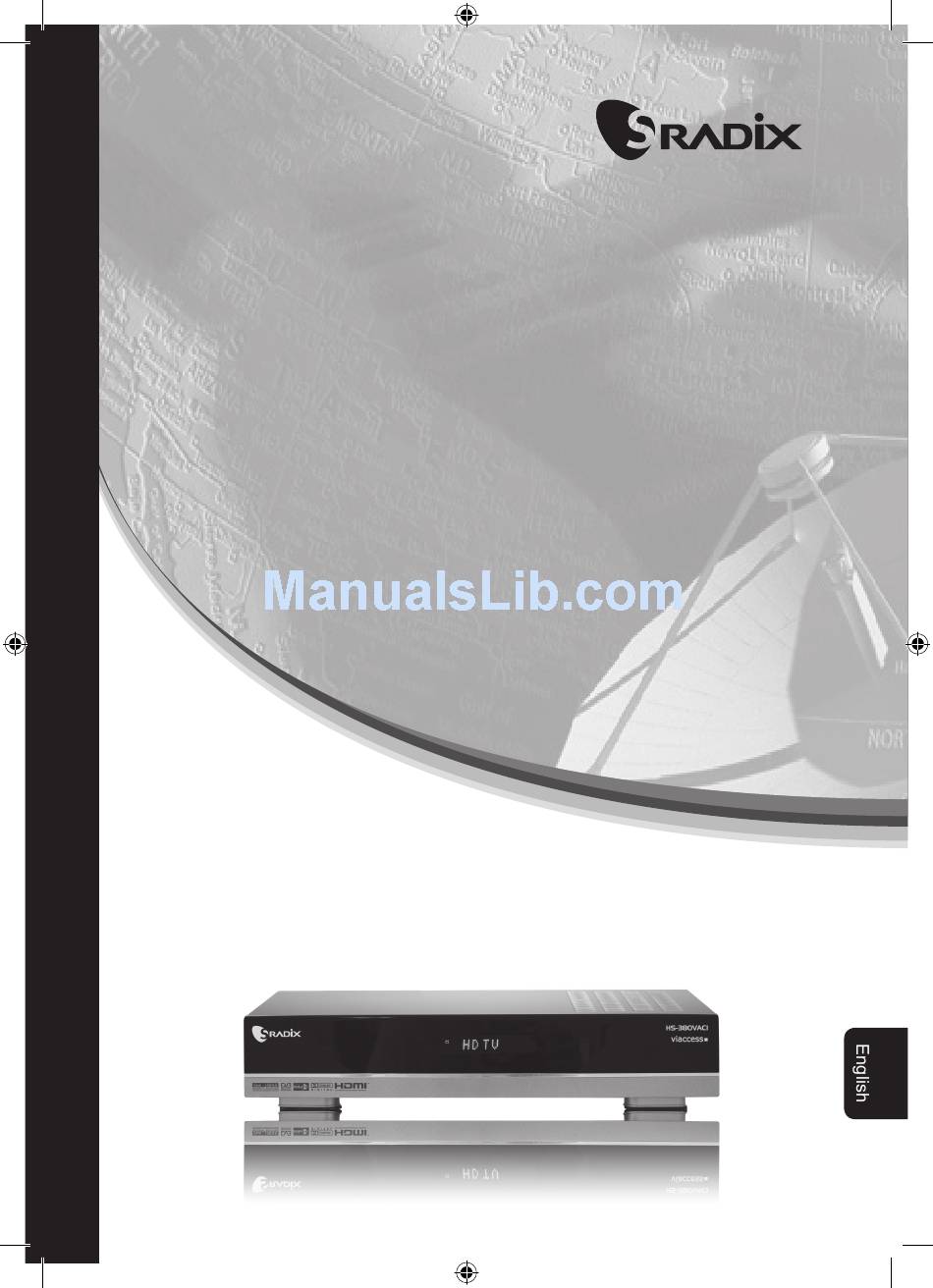

- Page 1 User’s Manual HS-380VACI Digital Satellite Receiver...
- Page 2 General Safety Information Safety Instructions This STB has been manufactured to meet international safety standards. Please read the following safety instructions carefully before you handle the STB. MAIN SUPPLY AC95-250V~,50/60Hz OVERLOADING Do not overload a wall outlet, extension cord or adapter as this may result in electric fire or shock.
-
Page 3: Correct Disposal Of This Product
General Safety Information LOCATION Keep the STB indoors and away from potential hazards, such as houseplants, rain and direct sunlight. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifier) that product heat. ... -
Page 4: Table Of Contents
Contents 5.3 System Setting ....... 33 Before Your Begin ......5 5.3.1 Language Settings ....33 1.1 General Features ......5 5.3.2 Video Settings ......33 1.2 Accessories ........5 5.3.3 Time Settings ......34 2.1 General Description of Your STB ..6 5.3.4 OSD Settings ...... -
Page 5: Before Your Begin
Before Your Begin 1.1 General Features ■ Reception of High definition and standard definition digital TV programme ■ Multiple output resolution modes: 1080i,720p,576p,576i ■ HDMI output ■ Dolby Digital audio output (down-mixing) ■ Supported H.264 ■ PCMCIA interface (2slots) according to DVB Common Interface standard ■... -
Page 6: General Description Of Your Stb
Before Your Begin 2.1 General Description of Your STB 2.1.1 Front Panel SMART CARD Slot: Insert smart card to the slot (Viaccess, Nagra, Conax, ...). CI Slot: Inserts CAM to the slot. DISPLAY: Display for Channel Name and etc. IR Sensor: Receives the IR commands from remote control unit. USB jack: Use to upgrade S/W with USB. -
Page 7: Rear Panel
Before Your Begin 2.1.2 Rear Panel 1. AC MAINS: Connect to a plug in the AC mains power cord. The input AC voltage range is 95V to 250V, 50/60Hz supply. 2. ON/OFF: Power On/Off. 3. RS-232C: Connect to PC. RS232 transfers data to the external computer or vice versa. -
Page 8: Remote Control Unit
Before Your Begin 2.1.3 Remote Control Unit 1. POWER ( ) button: Switches between operation and standby mode. 2. NUMERIC (0~9) button: Controls the numerical operation and especially changes channel directly. 3. Mosaic button: Select the multifeed service if multifeed is available. 4. - Page 9 ENG-9...
-
Page 10: Connections
Connections 3.1 Connecting Your STB <Digital TV with HDMI jack> <Normal TV> <Digital TV with <Satellite Receiver> Component (YPbPr) jack> 1. Location of the receiver ■ Install the receiver in horizontal position. ■ Do not place anything heavy stuff such as a TV on the receiver. ■... - Page 11 Connections ■ Method2: Connect the Component (YPbPr) cables from the COMPONENT OUT (YPbPr) on the rear of the receiver to the COMPONENT INPUT (YPbPr) jacks on the TV. In this case, connect audio cables between the L/R AUDIO OUT jacks on the receiver and the L/R AUDIO INPUT jacks on the TV. 4.
-
Page 12: Getting Started
Getting Started 4.1 Basic Operation Because Boot OTA Check is set to On by factory default, the message to check OTA pops up when you plug the power cord in or press the POWER button on the front of the product. Press OK button to check OTA. -
Page 13: Info Bar
Getting Started 4.1.3 Info Bar Channel information always appears for a specific period of time whenever you switch channels. General Information Press the Info (i) button; you can display general information of current channel such as Channel number and name, Current date and time, Signal Level and Quality. -
Page 14: Selecting The Teletext
Getting Started ■ Select Off from the subtitle languages list not to display subtitle from the screen. To return to viewing mode, press the Subt. (WHITE) button again or press the Exit button. Note: You can select a default subtitle language by selecting the Main menu →... -
Page 15: Selecting The Video Format (Resolution)
Getting Started 4.1.9 Selecting the Video Format (Resolution) You can select the video output appropriate to the connected TV. 1. Press the V-Format button. The resolution will be changed and the resolution window will disappear in about 2 seconds. 2. Each time you press the V-Format button, the resolution is changed in the following order: 1080i →... -
Page 16: Channel List
Getting Started 4.2 Channel List You can see the TV or Radio Channel List pressing the OK button while watching TV or listening to the Radio. Switch the channel list pressing the Radio ( ) button. The icon (€) behind the channel name symbolizes scrambled channel, and the ( ) icon behind the channel name symbolizes indicates a locked channel. -
Page 17: Programme Guide (Epg)
Getting Started 4.3 Programme Guide (EPG) EPG displays channel information such as channel titles, broadcast schedule, channel synopsis, and etc. This service depends on the service provider. 1. Press the EPG button while watching a TV channel or listening to a Radio channel. The EPG (Electronic Programme Guide) will appear. -
Page 18: Timer Reservation
Getting Started 4.4 Timer Reservation You can automatically reserve your desired channels by recording setting menu. You can book up to 10 timer events. 1. Press the GREEN (Timer) button. The message “Please set clock time first” appears, followed by the User Time Setting screen. Set user time according to the current time. -
Page 19: Finding A Channel
Getting Started 4.5 Finding a channel You can find your desired channel list easily. 1. Press the Find button. Found list and keyboard dialog appears. 2. The updated channel list appears whenever you enter the alphabet letter of the programme title one by one in order. -
Page 20: Menu Map
Getting Started 4.6.1 Menu Map Channel Manager Total List Parental Lock Access / Menu / Change Password Installation Auto Search Manual Search Antenna Setup Transponder Editor Delete All Channels Factory Reset System Setting Language Menu / Audio / Subtitle Video Video Output / TV Aspect Ratio / TV Display Format... -
Page 21: Main Menu
Main Menu 5.1 Channel Manager You can edit TV and Radio channels and the favorite channel group in this menu. ■ To access Channel Manager mode; 1. Press the Menu button. 2. Select Channel Manager using the Arrow (◄/►) buttons. 3. - Page 22 Main Menu Edit channels - Skip/Unskip You can skip a particular channel with the use of this function. The skipped channels can not be selected during the channel up or down. Use the direct numeric buttons to select the skipped channel. 1.
- Page 23 Main Menu Edit channels - Rename a channel (or Favorite channel list) You can change the channel name (or Favorite channel list name) as you like. 1. Select Rename using the Arrow (▲/▼) buttons, and then press the Arrow (►) button. 2.
-
Page 24: Parental Lock
Main Menu 5.1.2 Parental Lock ■ To access Parental Lock; 1. Press the Menu button. 2. Select Channel Manager using the Arrow (◄/►) buttons. 3. Select Parental Lock using the Arrow (▲/▼) buttons, and then press the OK button. Access Lock If you select On, you will have to enter the password every time you start the STB from standby. -
Page 25: Installation
Main Menu 5.2 Installation In the Installation menu, you can customize auto search, manual search, antenna setup, transponder editor, delete all channels, and factory reset. ■ To access Installation; 1. Press the Menu button. 2. Select Installation using the Arrow (◄/►) buttons. 5.2.1 Auto Search If you select the satellite to scan channel according to the antenna setting, your receiver can automatically scan the satellite without... - Page 26 Main Menu - Network: If you want to have all other transponder SAT-Receiver 1 SAT-Receiver 2 information, you need to Select network to On. If your antenna system is equipped with a so-called “Unicable” LNB you can operate more than one digital satellite receiver with one single antenna cable.
-
Page 27: Manual Search
Main Menu 6. After select satellites by OK button, press the RED button to start search. After auto searching completes, you can see TV and Radio channels in the list. ■ Please wait for the receiver to process all the channels, and note that the auto channel search procedure may take a few minutes. -
Page 28: Antenna Setup
Main Menu 5.2.3 Antenna Setup Antenna Setup Mode must be used when using two or more antennas and LNBs. Select DiSEqC 1.0, DiSEqC 1.2 and USALS using the Arrow (◄/►) buttons. Method1: Select DiSEqC (Digital Satellite Equipment Control) 1.0 DiSEqC 1.0 allows switching between up to 4 satellite sources. You can set antenna and LNB information for channel scan. - Page 29 Main Menu Notes: ■ To disable the movement limits, select Disable Limits and then press the OK button. ■ To position the antenna at the center, select Go to Reference and then press the OK button. ■ Once the limits are set, locate the reference satellite. ■...
- Page 30 Main Menu Method3: Select USALS (Universal Satellites Automatic Location System) It automatically creates a list of available satellites in a setup with a motorized dish. Input the value of latitude and longitude in which the dish-installer is placed. 1. Enter the user location longitude. Use numeric buttons to enter values.
-
Page 31: Transponder Editor
Main Menu 5.2.4 Transponder Editor You can edit the transponder settings. ■ To access Transponder Editor; Select Transponder Editor using the Arrow (▲/▼) buttons on the Installation menu, and then press the OK button. Deleting transponder information 1. Select the satellite you would like to delete transponder using the Arrow (▲/▼) buttons, and then press the OK button. -
Page 32: Delete All Channels
Main Menu 5.2.5 Delete All Channels You can delete all channels. 1. Select Delete All Channels using the Arrow (▲/▼) buttons on the Installation menu and press the OK button. System message dialog box appears asking you to confirm it. 2. -
Page 33: System Setting
Main Menu 5.3 System Setting 5.3.1 Language Settings You can set languages for Menu, Audio, and Subtitle. Press the Menu button. Select System Setting using the Arrow (◄/►) buttons on the main menu. 1. Select Language using the Arrow (▲/▼) buttons on the System Setting menu and press the OK button. -
Page 34: Time Settings
Main Menu 5.3.3 Time Settings You can set the current time automatically or manually. 1. Auto setting: Time is updated automatically by TDT. Set Time Zone, Summer Time. Select the country for Time Zone. ■ Time Zone: The local time will be automatically changed by this setting. -
Page 35: S/W Update
Main Menu 5.3.5 S/W Update You can download the software or channel data of your receiver through satellite when the new software or channel data is available for your system. During download, don’t turn off your receiver. In case the power is turned off, turned on your receiver again to complete the download. -
Page 36: Miscellaneous
Main Menu 5.3.6 Miscellaneous Radio Screen: Screen picture is displayed when you listen to the music at the Radio channel mode with set on. VFD Bright: Adjusts VFD brightness. Standby: Standby without Clock (< 3W). (Default – On) ENG-36... -
Page 37: Common Interface & Utility
Main Menu 5.4 Common Interface & Utility 5.4.1 Common Interface You can enjoy not only free-to-air services, but also scrambled services using the Conditional Access Modules (CAM). Types of common interface module and smart card differ depending on the service provider. If you want to use conditional access modules, contact your service provider or distributor. -
Page 38: Troubleshooting
Troubleshooting Digital communications involve the simultaneous transfer and processing of large amounts of data. Changing channels may take longer in comparison to analogue devices. Also, digital TV receivers are “close relatives” to personal computers, and their lifestyle is somehow similar. That means that it may also happen to a digital receiver that it “hangs up”... -
Page 39: Specifications
Specifications Tuner/Front-End Demodulator Video Decoding Parameters IF Input Frequency 950 ~ 2150MHz ISO/IEC 13818-2 MPEG-2 MP@ML & MP@HL IF Loop through 950 ~ 2150MHz output Part10, AVC High porfile MPEG-4 level 4.1 Input Impedance 75ohms Aspect Ratio 4:3, 16:9, Input Signal Level -65dbm ~ -25dbm Resolution Max.1920x1080i... - Page 40 Specifications Data Service Port Remote Control Unit Connector 9 Pin D-Male Type Type IR (Carrier Freq. 38KHz) Protocol RS-232 Asynchronous Battery 2 x 1.5V AAA Data Rate Max 115200bps Power, 0~9, Mute, Info, CH Up/Down, Left, Right, USB A type USB 2.0 Host V-Format, Radio, OK, Menu, Exit, EPG, TIMER,...
- Page 41 Memo ENG-41...
- Page 42 / www.sradix.de is a registered trademark of S Net Systems Inc. 8830293040L(REV.O)
