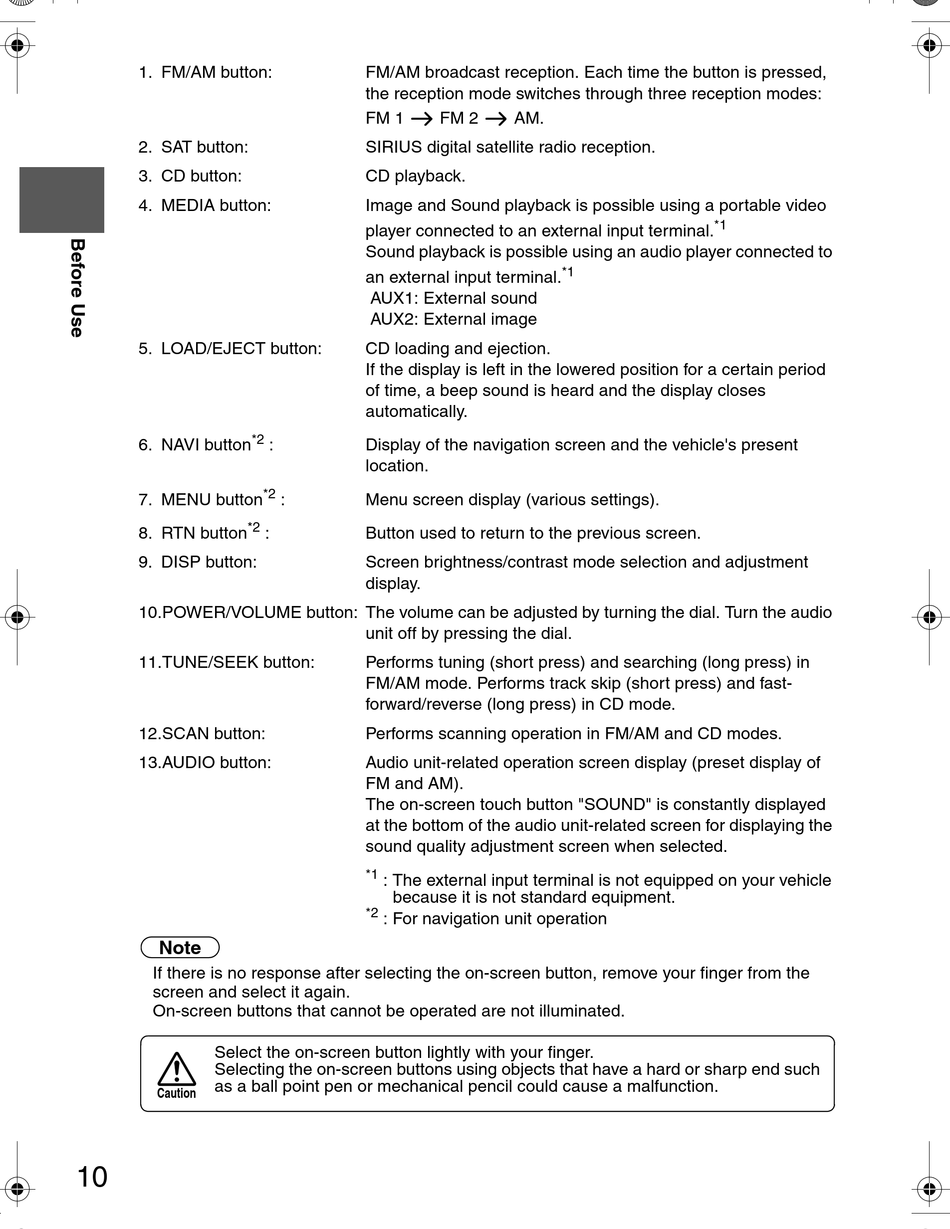

1. FM/AM button:
2. SAT button:
3. CD button:
4. MEDIA button:
5. LOAD/EJECT button:
6. NAVI button
7. MENU button
8. RTN button
9. DISP button:
10.POWER/VOLUME button: The volume can be adjusted by turning the dial. Turn the audio
11.TUNE/SEEK button:
12.SCAN button:
13.AUDIO button:
Note
lIf there is no response after selecting the on-screen button, remove your finger from the
screen and select it again.
lOn-screen buttons that cannot be operated are not illuminated.
Select the on-screen button lightly with your finger.
Selecting the on-screen buttons using objects that have a hard or sharp end such
as a ball point pen or mechanical pencil could cause a malfunction.
Caution
10
FM/AM broadcast reception. Each time the button is pressed,
the reception mode switches through three reception modes:
FM 1
SIRIUS digital satellite radio reception.
CD playback.
Image and Sound playback is possible using a portable video
player connected to an external input terminal.
Sound playback is possible using an audio player connected to
an external input terminal.
AUX1: External sound
AUX2: External image
CD loading and ejection.
If the display is left in the lowered position for a certain period
of time, a beep sound is heard and the display closes
automatically.
*2
:
Display of the navigation screen and the vehicle's present
location.
*2
:
Menu screen display (various settings).
*2
:
Button used to return to the previous screen.
Screen brightness/contrast mode selection and adjustment
display.
unit off by pressing the dial.
Performs tuning (short press) and searching (long press) in
FM/AM mode. Performs track skip (short press) and fast-
forward/reverse (long press) in CD mode.
Performs scanning operation in FM/AM and CD modes.
Audio unit-related operation screen display (preset display of
FM and AM).
The on-screen touch button "SOUND" is constantly displayed
at the bottom of the audio unit-related screen for displaying the
sound quality adjustment screen when selected.
*1
: The external input terminal is not equipped on your vehicle
because it is not standard equipment.
*2
: For navigation unit operation
FM 2
AM.
*1
*1
