Pride Mobility Maxima Owner's Manual

Maxima
Hide thumbs Also See for Maxima:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

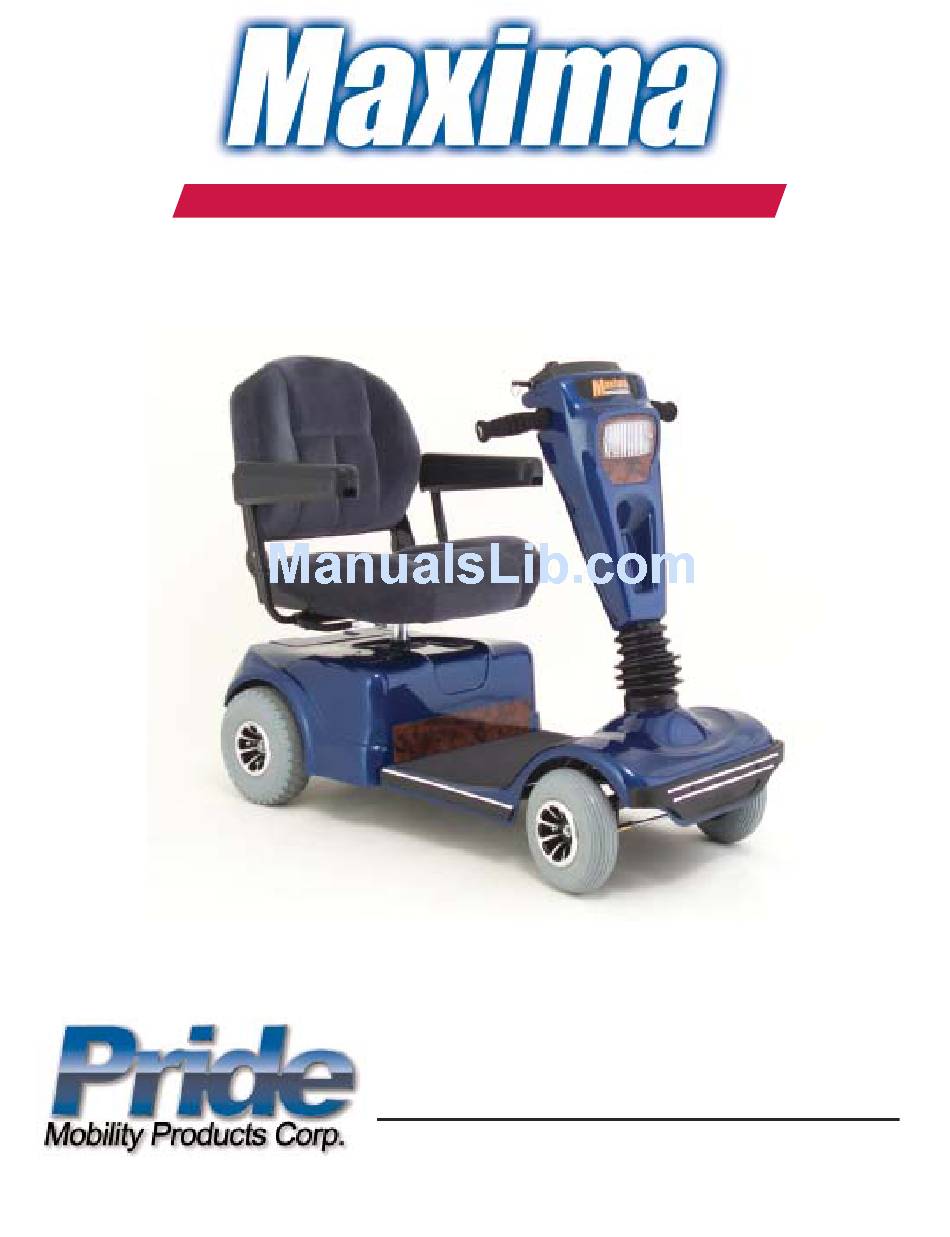

Owner's Manual
The Ultimate In Style & Performance
®
Exeter, PA
St. Catharines, ON
1-800-800-8586
www.pridemobility.com

Advertisement

Table of Contents
loading

Related Manuals for Pride Mobility Maxima

Summary of Contents for Pride Mobility Maxima

  • Page 1 Owner’s Manual The Ultimate In Style & Performance ® Exeter, PA St. Catharines, ON 1-800-800-8586 www.pridemobility.com...
  • Page 2 WARNING! Failure to heed the warnings in this owner’s manual may result in personal injury. CAUTION! Failure to heed the cautions in this owner’s manual may result in damage to your scooter. Copyright © 2002 Pride Mobility Products Corp. INFMANU1743/REV C/OCTOBER 2002 Maxima...

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION......................... 4 SAFETY ............................6 III. EMI/RFI ............................15 IV. SPECIFICATIONS ........................17 YOUR MAXIMA ......................... 19 VI. BATTERIES AND CHARGING .................... 23 VII. OPERATION ..........................27 VIII. COMFORT ADJUSTMENTS ....................29 IX. DISASSEMBLY AND ASSEMBLY ..................32 OPTIONAL ACCESSORIES ....................

  • Page 4: Introduction

    I N T R O D U C T I O N Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Pride Scooter. Your scooter design combines the most advanced state-of-the-art components with modern, attractive styling.

  • Page 5: I. Introduction

    Quick Reference Information: Scooter Model:________________________________________________________________________ Serial Number:__________________________________________________________________________ Purchase Date:________________________________________________________________________ NOTE: If you ever lose or misplace your warranty card or this owner’s manual, call or write to us and we will be glad to send you a new one immediately. Maxima...
  • Page 6 However, under no circumstances should you modify, add, remove, or disable any feature, part, or function of your scooter. WARNING! Do not modify your scooter in any way not authorized by Pride. Unauthorized modifica- tions may result in personal injury and/or damage to your scooter. Maxima...

  • Page 7: Ii. Safety

    When driving down a ramp, keep the scooter’s speed adjustment set to the slowest speed setting to ensure a safely controlled descent. See V. “Your Maxima.” n Avoid sudden stops and starts.
  • Page 8 These tests were conducted with the Maxima’s seat in the highest position and adjusted backward on the seat base to its farthest rearward position. Use this information as a guideline. Your Maxima’s ability to travel up inclines is affected by your weight, your scooter’s speed, your angle of approach to the incline, and your scooter setup.
  • Page 9 WARNING! When cornering sharply, reduce your speed. When using your scooter at higher speeds, do not corner sharply. This greatly reduces the possibility of a tip or fall. To avoid personal injury or property damage, always exercise common sense when cornering. Maxima...
  • Page 10 WARNING! Do not attempt to have your scooter climb or descend an obstacle that is inordinately high. Serious personal injury and/or damage may result. WARNING! Do not attempt to have your scooter proceed backwards down any step, curb, or other obstacle. This may cause the scooter to tip and cause personal injury. Maxima...

  • Page 11: Safety

    Your scooter is equipped with a manual freewheel lever, that when pulled up, allows the scooter to be pushed. For more information about how to place your scooter into and out of freewheel mode, see V. “Your Maxima.” WARNING! Do not use your scooter in freewheel mode without an attendant present. Personal injury may result.
  • Page 12 WARNING! If you anticipate being seated in a stationary position for an extended period of time, turn off the power. This will prevent unexpected motion from inadvertent throttle control lever contact. Failure to do so may result in personal injury. Maxima...

  • Page 13: Positioning Belts

    Power down your scooter. See VII. “Operation.” n Ensure that your scooter is not in freewheel mode. See V. “Your Maxima.” n Make certain that the seat is locked into place and the key is removed from the key switch.

  • Page 14: Removable Parts

    WARNING! Do not operate your scooter while you are under the influence of alcohol, as this may impair your ability to drive safely. REMOVABLE PARTS WARNING! Do not attempt to lift or move a scooter by any of its removable parts. Personal injury and damage to the scooter may result. Maxima...
  • Page 15 EMI/RFI. This resistance is measured in volts per meter (V/m). A higher resistance level offers greater protection against EMI/RFI. In other words, an electric scooter with a high resistance level is less likely to be affected by a strong radio source than is an electric scooter with a low resistance level. Maxima...

  • Page 16: Iii. Emi/Rfi

    If unintended motion or unintended brake release occurs, turn off your scooter (by removing key) as soon as it is safe to do so. If my scooter moves unintentionally, where should I report the incident? Call our headquarters at 1-800-800-8586 to report the incident. Maxima...
  • Page 17 S P E C I F I C A T I O N S 8 "- 12 " 18.5" - 22.5" " 1 4.5 " FIGURE 5. MAXIMA DIMENSIONS 48 " 47 " 20 " 16" 43 " 54" 24"- 28"...

  • Page 18: Specifications

    25.0 lbs. ea. (12V, 32 AH) Ground Clearance 4.5 in. Optional Accessories Cane/crutch holder, walker holder, rearview mirror, cup holder, rear basket (square), oxygen holder, power seat assembly, front bumper, rear bumper, front basket, fully directional light package, safety flag Maxima...
  • Page 19 CONTROL CONSOLE ASSEMBLY The control console assembly houses all of the controls you need to drive your Maxima, including the key, the key switch, the speed adjustment dial, the throttle control lever, the battery condition meter, the horn button, and the light switch.

  • Page 20: Your Maxima

    Use your right thumb to push the right side of the lever to disengage your Maxima’s brakes and move forward. n Release the lever and allow your Maxima to come to a complete stop before pushing the other side of the lever to move in reverse.

  • Page 21: Onboard Battery Charger

    Maxima. See figures 8 and 9. Refer to IX. “Disassembly and Assembly” for instructions on removing the rear shroud.

  • Page 22: Main Circuit Breaker

    Main Circuit Breaker When the voltage in your Maxima’s batteries becomes low or your Maxima is heavily strained because of exces- sive loads or steep inclines, the main circuit breaker may trip to protect your Maxima’s motor and electronics from damage.

  • Page 23: Charging Your Batteries

    B A T T E R I E S A N D C H A R G I N G Your Maxima is equipped with two long-lasting, 12-volt, deep-cycle batteries that are sealed and maintenance free. They are recharged by an onboard 3-amp charging system designed for ease of use and convenience.

  • Page 24: Vi. Batteries And Charging

    “full day” of service. We recommend that you charge your Maxima’s batteries for 8 to 14 hours after daily use. n If you use your Maxima once a week or less, charge its batteries at least once a week for 12 to 14 hours at a time.
  • Page 25 What type and size of battery should I use? We recommend deep-cycle batteries that are sealed and maintenance free. Both sealed lead-acid and gel cell are deep-cycle batteries that are similar in performance in your Maxima. Do not use wet-cell batteries, which have removable caps.
  • Page 26 2. Operate your new Maxima in familiar and safe areas. Drive slowly at first, and do not travel too far from your home or familiar surroundings until you have become accustomed to your Maxima’s controls and have prop- erly broken in your scooter’s batteries.
  • Page 27 1. Make certain that the key is removed from the key switch. WARNING! Never attempt to get on or get off of your Maxima without first removing the key from the key switch. Removing the key prevents the Maxima from moving if accidental contact with the throttle control lever is made.

  • Page 28: Vii. Operation

    5. Carefully and safely get out of the seat and stand to the side of your Maxima. 6. You may, if you wish, leave the seat facing to the side to facilitate boarding your Maxima the next time you are going to operate it.

  • Page 29: Comfort Adjustments

    FIGURE 13. TILLER ADJUSTMENT SEAT HEIGHT ADJUSTMENT The seat can be repositioned to one of five different heights. 1. Remove the seat from your Maxima. See IX. “Dis- SEAT PEDESTAL assembly and Assembly.” BALL DETENT PIN 2.

  • Page 30: Armrest Height Adjustment

    8. Repeat for the other armrest. ARMREST WIDTH ADJUSTMENT The armrest width of your Maxima can be adjusted inward or outward. 1. Loosen the armrest adjustment knobs at the back of the seat frame. See figure 16. 2. Slide the armrests in or out to the desired width.
  • Page 31 C O M F O R T A D J U S T M E N T S POWER SEAT ACTUATOR (OPTIONAL) SEAT ACTUATOR Your Maxima may be equipped with a power seat actua- tor which raises and lowers the seat automatically. See figure 17.

  • Page 32: Disassembly And Assembly

    2. Coil the cord and store it in the rear compartment. 3. Push down on the seat lock lever to unlock the seat and lift the seat up and off of the Maxima. See figure 18. 4. Gently lift the rear shroud off of the Maxima. See figure 19.

  • Page 33: Optional Accessories

    A C C E S S O R I E S For information concerning these accessories, contact your authorized Pride provider. DOUBLE CANE/CRUTCH HOLDER OXYGEN TANK HOLDER SINGLE CANE/CRUTCH HOLDER WALKER HOLDER SAFETY FLAG FOREARM CRUTCH HOLDER FRONT BASKET REAR BUMPER REAR BASKET CUP HOLDER Maxima...

  • Page 34: Basic Troubleshooting

    FIGURE 21. FRONT-TO-REAR HARNESS What if the motor runs but my Maxima does not move? Your Maxima was probably left in freewheel mode. When the manual freewheel lever is pulled up, the brakes are disengaged and all power to the transaxle is cut.

  • Page 35: Care And Maintenance

    C A R E A N D M A I N T E N A N C E Your Maxima requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you may schedule inspection and maintenance at your authorized Pride provider.
  • Page 36 Tires and tire tubes (wear items and not warranted) n Upholstery and seating (wear items and not warranted) n Repairs and/or modifications made to any part of the Maxima without specific and prior consent from Pride n Circumstances beyond the control of Pride...

  • Page 37: Xiii. Warranty

    This is the exclusive remedy. Liabilities for consequential damages under any and all warranties are excluded. Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion of limitation of incidental or consequential damages. So, the above limitation or exclusion may not apply to you. Maxima...

This manual is also suitable for:

Maxima sc-400hdMaxima sc-440hd
