Endura DVR5100 Series Specifications

PRODUCT SPECIFICATION

DVR5100 Series Digital Video Recorder
4/8/16 CAMERA INPUTS, 250 GB-1.5 TB STORAGE, ENDURA ENABLED

Product Features

• 4, 8, or 16 Video Inputs
• Embedded Linux ® Operating System
• Record Video at up to 480/400 ips (NTSC/PAL) at CIF, 2CIF, or 4CIF
Resolution, Programmable on a Per-Input Basis
• MPEG4-Based Compression Optimized for Surveillance
Requirements
• Continuous, Scheduled, Motion, Alarm and/or Event Recording
• Up to 1.5 TB of Internal Storage Including EnduraStor
• DVR Operation from Front Panel Controls, USB Keyboard, KBD5000,
or Remote Client
• DVR Configuration and Programming Through Standard USB
Keyboard and Mouse, Front Panel Controls, KBD5000, or Remote
Client
• Operating System on Compact Flash and Engineered Hard Drive
Cooling System for Enhanced Reliability
• Remote Client Application for Live Monitoring of One or More
Cameras, Full Search and Playback, Remote Export of Video, and
Remote Administration and Configuration
KBD5000
C1695 / REVISED 7-07
™
Optimization
REMOTE CLIENT
NETWORK

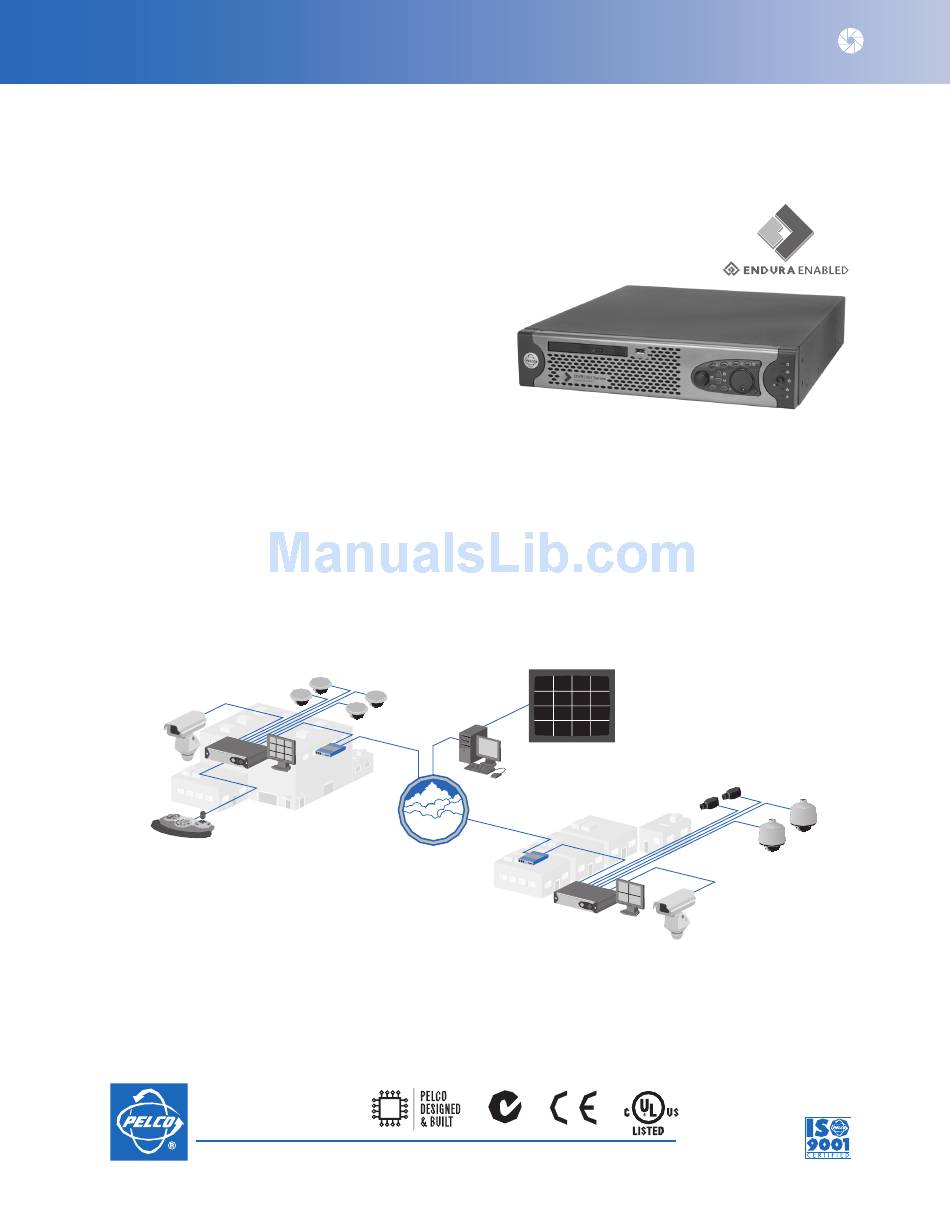

IMPORTANT NOTE: PLEASE READ. The network implementation is shown as a general
representation only and is not intended to show a detailed network topology. Your actual network
will differ, requiring changes or perhaps additional network equipment to accommodate the system
as illustrated. Please contact your local Pelco representative to discuss your specific requirements.
As shown above, one DVR5100 Remote Client application can access one DVR at a time. Each
DVR5100 can support up to five simultaneous remote client connections.
• Digital Video Authentication
• PTZ Control Using Coaxitron ® , Pelco D, or Pelco P Protocols
• Full System Diagnostics Monitoring and Logging
• Single Button Export for Fast, Intuitive Video Export
16 CAMERA VIEWS
control site
™
International Standards
Organization Registered Firm;
ISO 9001 Quality System
