Summary of Contents for AMX APEX Destiny 6100

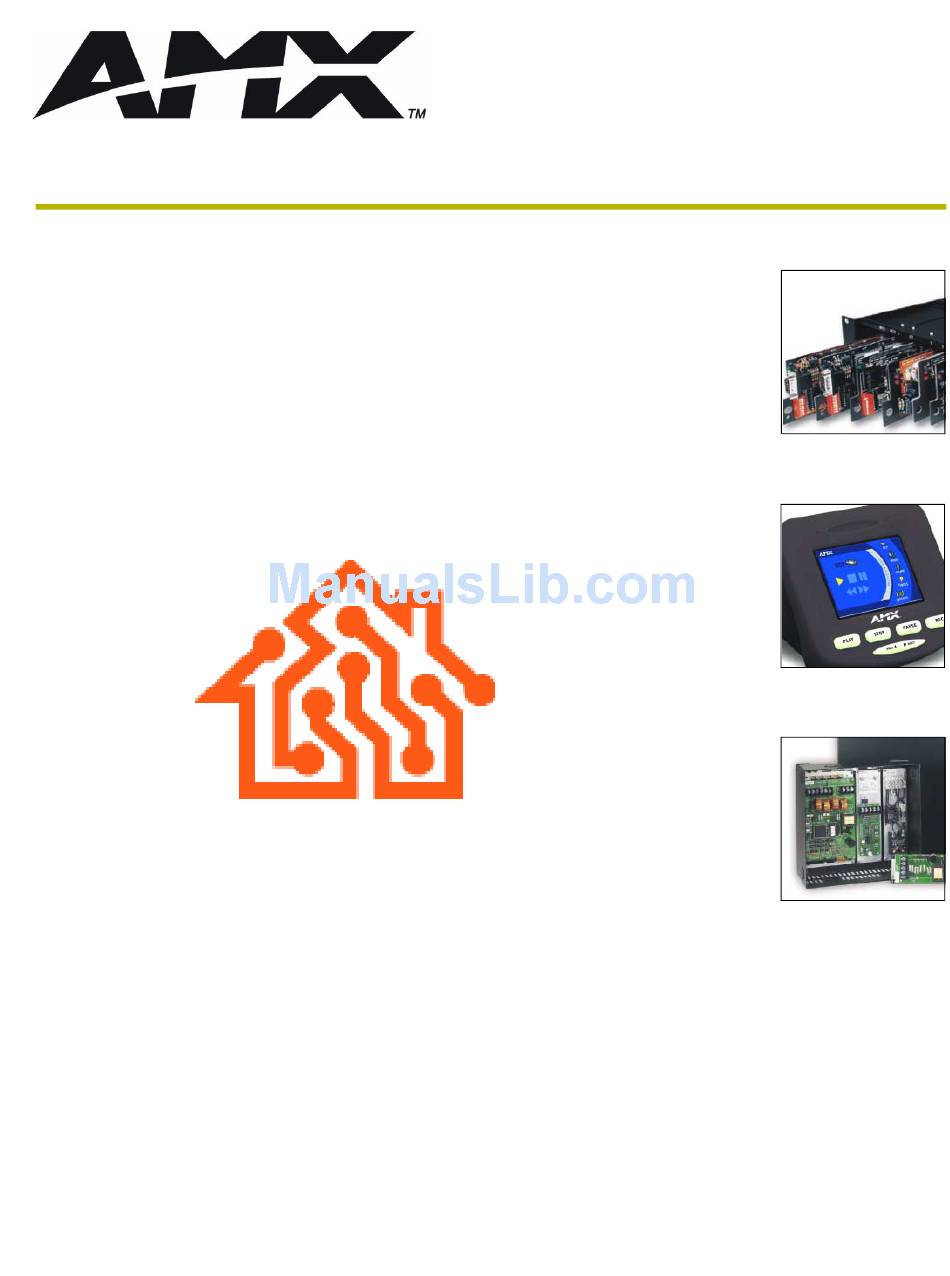

  • Page 1 instruction manual APEX Destiny 6100 Alarm Panel L a n d m a r k P r o d u c ts...
  • Page 2 This warranty extends only to products purchased directly from AMX Corporation or an Authorized AMX Dealer. AMX Corporation is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX Corporation is not liable for any claim made by a third party or by an AMX Dealer for a third party.
  • Page 3: Table Of Contents

    Product Information...............1 The PhastLink Interface PhastLink Interface Communications Installation and Wiring............3 PhastLink Cable Information Connecting to a Cardframe or Hub Building a double 120-ohm terminator: Programming.................7 Programming Options Events Commands Conditionals Menus Troubleshooting..............13 APEX Destiny 6100 Alarm Panel Table of Contents...
  • Page 4 Table of Contents APEX Destiny 6100 Alarm Panel...
  • Page 5: Product Information

    Product Information The PhastLink Interface The PhastLink interface allows the APEX Destiny 6100 Alarm Panel to function as a fully integrated device in a PHAST Landmark™ system. This level of integration allows drag-and-drop programming of device features in Landmark Designer software, active data display on system keypads, and ease of installation and use.
  • Page 6 Product Information APEX Destiny 6100 Alarm Panel...
  • Page 7: Installation And Wiring

    Installation and Wiring Warning Before connecting and configuring the PhastLink interface, you must install, program, and test the APEX Destiny 6100 Alarm Panel according to the DANGEROUS VOLTAGE! To reduce the risk of serious manufacturer's instructions. injury or death, turn all power Turn on the power to the APEX panel.
  • Page 8: Phastlink Cable Information

    PhastLink uses a standard 10Base-T connection (i.e. Category 5 wire and RJ-45 connectors). The wire should be connected in the standard manner, as shown in the following figure. If a consistent color code is used, wiring problems will be minimized. Installation and Wiring APEX Destiny 6100 Alarm Panel...
  • Page 9: Connecting To A Cardframe Or Hub

    Install a 120-ohm resistor (1/4-watt or larger) between pins 1 and 2 of an RJ-45 connector. Install a 120-ohm resistor (1/4-watt or larger) between pins 7 and 8 of the same RJ-45 connector. APEX Destiny 6100 Alarm Panel Installation and Wiring...
  • Page 10 When connecting PHAST keypads that will be used as intercoms, the Microphone Hub taps off the intercom audio signal carried on the PhastLink cable from that keypad. PhastLink devices cannot be wired in a star configuration. Installation and Wiring APEX Destiny 6100 Alarm Panel...
  • Page 11: Programming

    Programming This is only a general outline of the steps used in Landmark Designer to configure and program the APEX Destiny 6100 Alarm Panel as a Landmark system device. Refer to the Landmark online help for more detailed instructions. Start the Landmark Designer program and open the appropriate project file.
  • Page 12 Programming Options sub-section for details. Make any keypad or touchpanel menu programming changes associated with the APEX devices, then test any changes from the Control tab or from another interface device, such as a keypad or touchpanel. Programming APEX Destiny 6100 Alarm Panel...
  • Page 13: Programming Options

    Programming Options The APEX Destiny 6100 Landmark module support the following programming Note features: The Apex module does not support any variables. Events The Apex module supports the following events in the Programming window. The events are categorized into three different classes, Zone, System and Arm Status.
  • Page 14: Conditionals

    AC Status state; all other system states would remain unaffected). Menus Using the menu Autogenerating function in Landmark Designer will produce the following menu items for PHAST DMS and IMS keypads. These items emulate a corresponding keypress on the APEX keypad. Programming APEX Destiny 6100 Alarm Panel...
  • Page 15 Apex keypad 9 key Apex: A Apex keypad Arm key Apex: H Apex keypad Home key Apex: Fire Apex keypad Fire key Apex: Panic Apex keypad Panic key Apex: Emergency Apex keypad Emergency key APEX Destiny 6100 Alarm Panel Programming...
  • Page 16 Programming APEX Destiny 6100 Alarm Panel...
  • Page 17: Troubleshooting

    • Check the Network Assignments tab in the Landmark Designer software and make sure the APEX Destiny 6100 Alarm Panel has been properly identified and logically connected. The yellow LEDs on the APEX PhastLink Board do not flash when data is sent to or from the APEX panel.
  • Page 18 AMX reserves the right to alter specifications without notice at any time. brussels • dallas • los angeles • mexico city • philadelphia • shanghai • singapore • tampa • toronto • york 3000 research drive, richardson, TX 75082 USA • 469.624.8000 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993...
