Summary of Contents for AudioEngine D1
-
Page 1: Setup Guide
Setup Guide www.audioengineusa.com Premium 24-bit DAC Premium 24-bit DAC... -
Page 2: Table Of Contents
Contents Introduction Page 3 Package Contents Page 3 Cleaning Page 3 Features Page 4 Overview Page 4 Quick Setup Page 6 Troubleshooting Page 8 Specifications Page 9 Contact Us Page 10 About Audioengine Page 10... - Page 3 ÉLECTIQUE, NE RETIREZ PAS LE COUVERCLE (OU DO NOT REMOVE COVER (OR BACK.) L’ARRIÈRE.) IL NE SE TROUVE ÀL’INTÉRIEURAUCUNE NO USER-SERVICABLE PARTS INSIDE. PIÉCE POUVANT ÊTRE RÉPARÉE PAR L’USAGER. REFER SERVICING TO QUALIFIED PERSONNEL S’ADRESSER ÀUN REÉPARATEUR COMÉTENT. D1 setup guide...
-
Page 4: Introduction
• Setup Guide Cleaning Your D1 components are not water-resistant, so it’s important that they should be kept free of moisture. You should clean only with a dry cloth or tissue and no liquid cleaners or solvents should be used. -
Page 5: Features

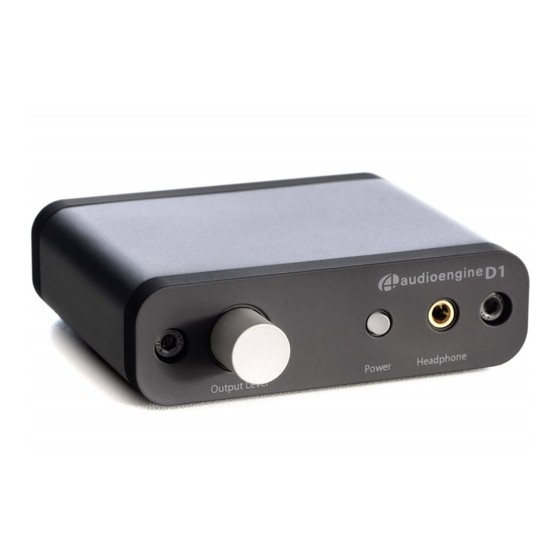

• USB-powered • Stream bit-perfect 24/96 HD audio with low jitter • Based on high-performance AK4396 DAC Overview The D1 24-bit DAC is a simple yet powerful digital-to-analog converter, with performance Power Headphone Output Level and features usually found only in much more expensive DACs. - Page 6 The D1 can process digital audio at any bit depth up to 24 bits, and any sample rate up to 192KHz. The D1 USB input can accept a USB audio stream from your computer or other USB source device. The D1 optical input can accept optical (PCM stereo) streams from any optical (TOSLINK) source, such as TVs, Apple TV®, DVD/BluRay players, CD...
-
Page 7: Quick Setup
For PC, the D1 should be recognized automatically. For Mac, under System Preferences/Sound, select “Audioengine D1” Step 2 –- connect the analog output of your D1 to any audio input of your active speakers, stereo, etc. For advanced setup tips visit: audioengineusa.com... - Page 8 Headphones USB Audio Input Headphone Output Headphone USB Input Headphones Computer D1 DAC D1 DAC Audioengine D1 - Config B Optical Source A5+ Powered Speakers Blu-Ray/DVD/CD Player Analog Audio Output Optical Audio Input Analog Input Optical Output Optical Input Analog Output...
-
Page 9: Troubleshooting
Troubleshooting • I have connected my D1 as shown in the manual, but there is no music output. 1. Check to see that the power light is lit. If not, try another USB output on your computer. 2. Ensure that D1 is selected as your output device under Control Panel (PC) or System Preferences/Audio (Mac). -
Page 10: Specifications
Specifications Electrical Full Scale output 2.0V RMS Frequency Response 10 Hz - 25 kHz, +/- 0.5db S/N Ratio (DC to 20 kHz) >110 dB THD+N (1 kHz FS 96 kS/s) <0.0025% Interface Input Data Rate up to 192KS/s Input Bit Depth up to 24 bits type 1.1 or above Power Requirements... -
Page 11: Contact Us
United States: (877) 853-4447 About Audioengine Audioengine designs and builds innovative audio products with all your music in mind. Great sound, simple but elegant designs, high- quality materials, and truly useful features are what Audioengine is about. - Page 12 Information for Users on Disposal of Old Equipment [European Union] This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the Attention: recycling in accordance with your national legislation.
- Page 13 Audioengine, Ltd. support@audioengineusa.com www.audioengineusa.com © 2011 Audioengine Corp. All Rights Reserved. Copyright Notice Audioengine and Audioengine D1 are trademarks of Audioengine Ltd.
