Winegard TR-6018 Setup Instructions

In most receivers, the setup is done through the "Repeat Satellite Setup" option in your receiver menu.
The following instructions are based on a D12 receiver. If your receiver differs from the options shown,
you may need to consult your receiver manual. To access the "Repeat Satellite Setup" option, go through
these steps. The wording and display used in your receiver may differ slightly.
1
3
5
depending on the wording used in your receiver. Press
Continue.
7
Signal Strength to get to the Signal Meter.

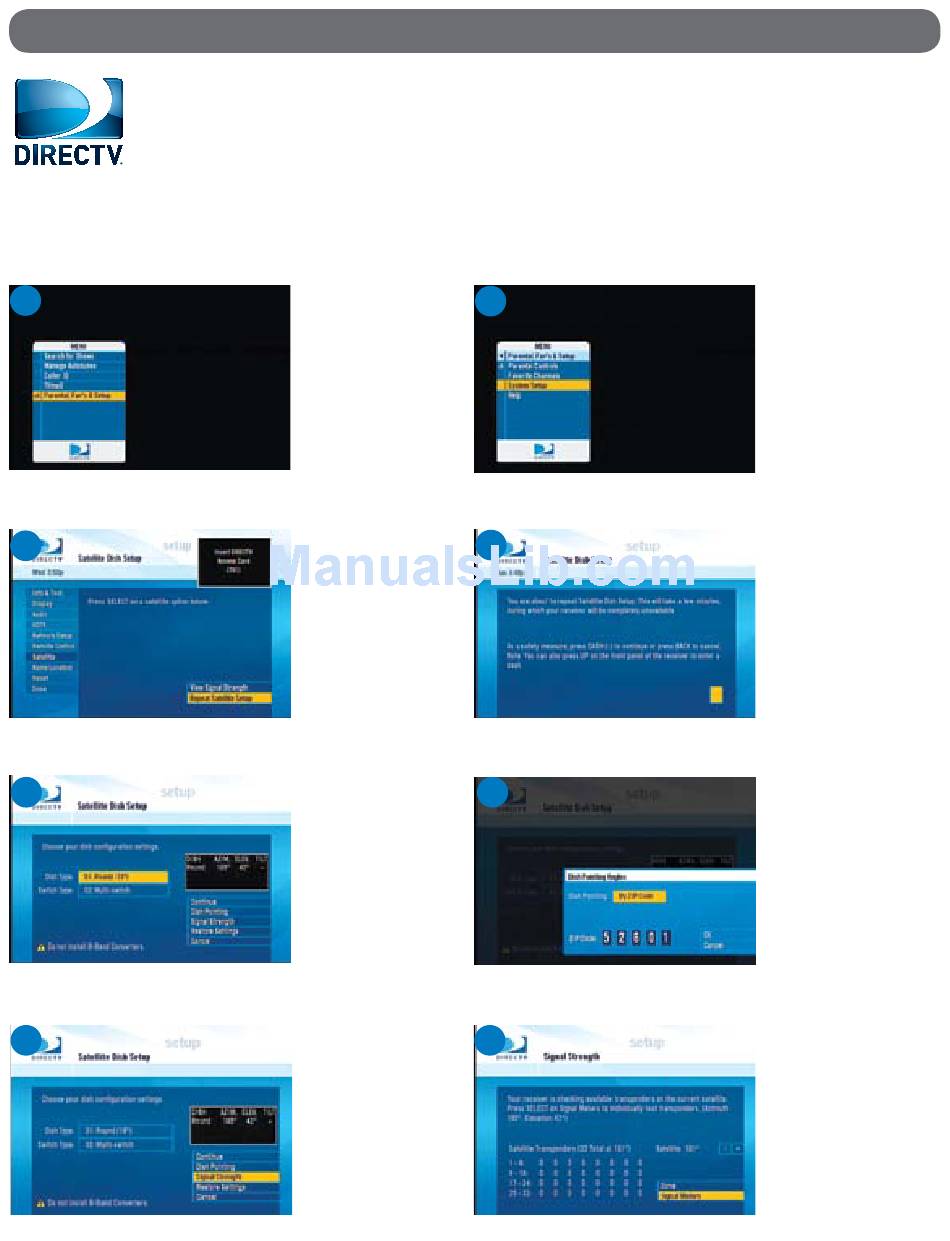

DIRECTV Receiver Setup for TR-6018
®
For Help, Call 1-800-788-4417
Press Menu on
your remote,
and then select
Parental, Fav's &
Setup.
In your receiver
Menu, you will
need to identify
the Satellite
Menu. The
Satellite Menu
will have an
option for
Satellite Setup.
If Switch Type
displays "SWM"
or if given the
option of
selecting a Switch
Type, select
Multiswitch.
Then, set the Dish
Type for Round,
18", Single LNB,
or 1 SATELLITE,
In the box, it now
gives you an
AZIM (Azimuth
Angle) and ELEV
(Elevation Angle).
These are the
pointing angles
you will need
when you go to
point the dish.
Now select
2
4
6
8
Select System Setup.
You may be
required to press
the DASH (-)
before proceeding
(underneath #7 on
the remote).
Then, select the
Dish Pointing
option. Enter
the Zip Code
for your current
location. Then,
press OK.
Select Signal
Meters.
