Page 1: Operators Manual

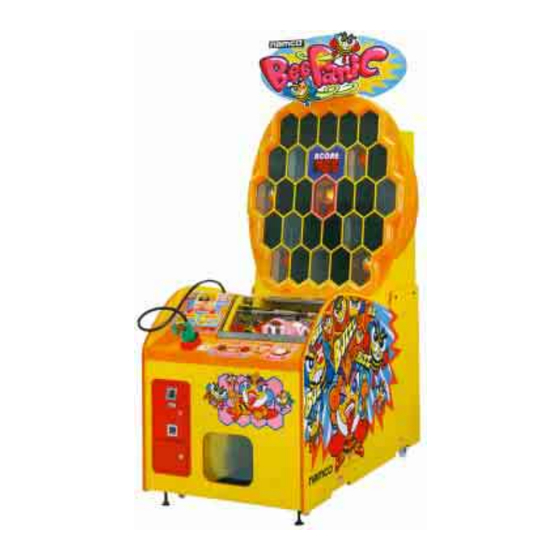

BEE PANIC OPERATORS MANUAL T IS THE RESPONSIBILITY OF THE OPERATOR TO MAINTAIN CUSTOMER SAFETY AT ALL TIMES AND IT IS IMPERATIVE THAT THE DETAILS SET OUT IN THIS MANUAL ARE FOLLOWED PRECISELY Issue 1 Part No. 90500135... -
Page 2: Table Of Contents
Contents OPERATORS MANUAL ........................1 GENERAL SAFETY CONSIDERATIONS ..................4 ALLGEMEINE SICHERHEITSHINWEISE ..................6 GENERELLE SIKKERHEDSOVERVEJELSER ................8 CONSIDERACIONES GENERALES DE SEGURIDAD.............10 CONSIGNES GENERALES DE SECURITE ................12 Ε ΕΤΑΣΗ ΓΕΝΙΚΗΣ ΑΣΦΑΛΕΙΑΣ ....................14 CONSIDERAZIONI GENERALI SULLA SICUREZZA ..............16 VANLIGE SIKKERHETSTILTAK ....................18 ALGEMENE VEILIGHEIDSOVERWEGINGEN ................20 AVISOS DE PERIGO ........................22 ALLMÄNNA SÄKERHETSBEAKTANDEN ..................24 YLEISET TURVALLISUUNÄKÖKODAT ..................26... - Page 3 8. MAINTENANCE ........................53 8-1 General Cleaning ......................55 8-1-1 Cleaning the Hood ....................55 8-1-2 Cleaning the Target Panel ..................55 8-1-3 Cleaning the Gun Lens ....................55 8-1-4 Cleaning the Fibre Optic Cable ................56 8-2 Error Messages ......................58 8-3 Removing the Target Assemblies ..................60 8-4 Removing the Target PC Board ..................62 8-5 Removing the Target Assy 7-Segment PC Board ............63 8-5 Removing the Target Assy Lamps ................64...
-
Page 4: General Safety Considerations
No part of this publication may be reproduced by any mechanical, photographic or electronic process, or in the form of phonographic recording, nor may it be stored in a retrieval system, transmitted or otherwise copied for private use, without permission from NAMCO EUROPE LIMITED. While the information contained in this manual is given in good faith and was accurate at the time of printing, NAMCO EUROPE LIMITED reserve the right to make changes and alterations without notice. - Page 5 NOTES ON INSTALLATION 1m90cm or more l l l l l NEVER turn the power to the machine ON until installation has been 50cm or more 50cm or more completed. l l l l l In order to prevent possible electric shocks, be sure that the equipment is connected to the mains with a securely connected earthed plug.
-
Page 6: Allgemeine Sicherheitshinweise
Dieses Dokument darf in keiner Weise vervielfältigt werden. Jegliche Tonaufnahmen sowie die Speicherung auf Datenträger (Suchsysteme), die Weitergabe oder sonstiges Kopieren für den gewerblichen und privaten Gebrauch sind untersagt und bedürfen der vorherigen Genehmigung durch NAMCO EUROPE LIMITED. Die informationen in diesem Handbuch entsprechen den Tatsachen bei Drucklegung. NAMCO EUROPE LIMITED behält sich jedoch das Recht zu Änderungen ohne vorherige Bekanntgabe vor. - Page 7 HINWEISE ZUR AUFSTELLUNG 1m90cm or more 50cm or more 50cm or more l l l l l NIEMALS das Gerät einschalten bevor die Aufstellung völlig abgeschlossen ist. l l l l l Zur Vermeidung von Elektroschlägen muß das Gerät mit einem ordnungsgemäß...
-
Page 8: Generelle Sikkerhedsovervejelser
Denne udgivelse må ikke reproduceres af nogen som helst mekanisk, fotografisk eller elektrornisk proces eller i form af indspilning, den må heller ikke lagres i et eftersøgningssystem transmitteres eller kopieres til nogen form for offentlig benyttelse uden tilladelse fra Namco Europe Limited. Da informationerne i denne manual er givet med god tro og var korrekt på... - Page 9 PUNKTER OM INSTALLATION 1m90cm or more 50cm or more 50cm or more l l l l l Tænd aldrig for strømmen til maskinen før installering er fuldført. l l l l l For at undgå mulige elektriske stød sikres, at maskinen er forbundet til hovedstrømmen med sikkert monterede jordstik.
-
Page 10: Consideraciones Generales De Seguridad
No se permite la reproducción total ni parcial de esta publicación por ningún medio mecánico, fotográfico o electrónico, grabaciones fonográficas, ni su almacenamiento informático, su transmisión o su copia, ya sea para uso público o privado, sin permiso de NAMCO EUROPE LIMITED. Si bien la información contenida en este manual se da de buena fe y es correcta en el momento de su impresión, NAMCO EUROPE LIMITED se reserva el derecho de hacer cambios y alteraciones sin previo aviso. - Page 11 NOTAS DE INSTALACIÓN. 1m90cm or more 50cm or more 50cm or more l l l l l JAMÁS ENCIENDA la máquina antes de haber completado la instalación. l l l l l Para evitar posibles descargas eléctricas, asegúrese de que la máquina está...
-
Page 12: Consignes Generales De Securite
Aucun élément de cette publication ne sera reproduit, ni par procédé mécanique, photographique ou électronique, ni par un moyen d’enregistement phonographique. Ces informations ne seront ni stockées grâce à un procédé de récupération, ni transmises ou autrement copiées pour un usage publique ou privé, sans l’autorisation de NAMCO EUROPE LIMITED. Malgré... - Page 13 NOTES D’INSTALLATION 1m90cm or more 50cm or more 50cm or more l l l l l NE JAMAIS mettre le jeu en marche avant que l’installation ne soit complétement effectuée. l l l l l Afin de prévenir une éventuelle électrocution, s’assurer que la machine est connectée au réseau avec une prise de terre reliée selon les normes de sécurité.
-
Page 14: Ε Εταση Γενικησ Ασφαλειασ
Κανένα μέρ ς αυτής της έκδ σης δεν μπ ρεί να αναπαρα θεί με π ι δήπ τε μη ανικ ,φωτ γραφικ ή ηλεκτρ νικ μέσ , ή με μ ρφή φωνητικής η γράφησης και ύτε να απ θηκευτεί με επαν ρθωτικ σύστημα , να μεταδ θεί ή να αντιγραφεί για δημ σια ή ιδιωτική ρήση , ωρίς... - Page 15 1m90cm or more 50cm or more 50cm or more ΣΗΜΕΙΩΣΕΙΣ ΓΙΑ ΤΗΝ ΕΓΚΑΤΑΣΤΑΣΗ l l l l l Π ΤΕ να μην αν ει τ μη νημα ε ν δεν ει λ κληρωθε η εγκατ σταση. l l l l l Για...
-
Page 16: Considerazioni Generali Sulla Sicurezza
Nessuna parte di questa pubblicazione può essere riprodotta con processo meccanico, fotografico o lettronico, nè sotto forma di registrazione fonografica, nò può essere memorizzata in un sistema di salvataggio, trasmessa o in altro modo copiata per uso pubblico o privato, senza l’autorizzazione di NAMCO EUROPE LIMITED. Le informazioni contnute in questo manuale sono state date in buona fede ed erano accurate al momento della pubblicazione. - Page 17 NOTES D’INSTALLATION 1m90cm or more l l l l l 50cm or more 50cm or more NON ACCENDERE MAI la macchina finchè l’installazione non è stata completata. l l l l l Allo scopo di prevenire possibili scosse elettriche, la macchina deve essere obbligatoriamente collegata alla rete con un connettore messo a terra con connessioni sicure.
-
Page 18: Vanlige Sikkerhetstiltak
Ingen del av denne utgivelsen må reproduseres av noen mekaniske, fotografiske elle elektroniske prosesser, eller i form av fotografiske opptak, og ikke kan det lagres i et gjenvinnbart system, sendt eler kopiert for offentlig eller privat bruk, uten tillatelse fra NAMCO EUROPE LIMITED. - Page 19 MERKNADER VED INSTALLASJON 1m90cm or more 50cm or more 50cm or more l l l l l Slå ALDRI på maskinens strømforsyning før installasjonen er fullført. l l l l l For å forhindre eventuelle elektriske sjokk, forsikre deg om at maskinen er koplet til et strømnett med ordentlig jording.
-
Page 20: Algemene Veiligheidsoverwegingen
Niets uit deze publikatie mag worden gereproduceerd door enig mechanisch, fotografisch of electronisch proces, of in de vorm van een fonografische opname, noch mag het opgeslagen worden in een retrieval systeem, doorgezonden of anderszins gekopieerd voor publiek of privégebruik, zonder toestemming van Namco Europe Limited. Ofschoon de informatie in deze handleiding in goed vertrouwen is gegeven en nauwkeurig was ten tijde van het drukken, houdt Namco zich het recht voor om veranderingen en aanpassingen te maken zonder bericht. - Page 21 Opmerkingen aangaande Installatie 1m90cm or more 50cm or more 50cm or more l l l l l Sluit de machine nooit aan op de stroomtoevoer totdat de installatie is voltooid. l l l l l Om mogelijke electrische schokken te voorkomen, dient ervoor gezorgd te worden dat de machine middels een goed vastzittende aardstekker op het lichtnet is aangesloten.
-
Page 22: Avisos De Perigo
Nenhuma parte desta publicacão poderá ser reproduzida por processos mecanográficos, fotográficos, electrónicos ou ainda sob a forma de gravacão sonora nem tão pouco poderá ser gravada através de sistemas informáticos transmissiveis ou de outra forma copiados para uso publico ou privado sem autorização expressa da NAMCO EUROPA LIMITADA. A informação contida neste manual foi fornecida de boa fé, sendo rigorosa na altura da sua publicação. - Page 23 NOTAS SOBRE A INSTALAÇÃO 1m90cm or more l l l l l NUNCA ligar a maquina sem que a instalação esteja 50cm or more 50cm or more completamente finalizada. l l l l l Afim de evitar possiveis choques electricos, certifique-se que a maquina está...
-
Page 24: Allmänna Säkerhetsbeaktanden
Ingen del av denna publikation får reproduceras, varken fotografiskt, elektroniskt eller i någon form av ljudinspelning. Det får inte heller lagras i något återvinningssystem, översändas eller på annat sätt kopieras för offentlig eller privat användning, utan tillstånd från NAMCO EUROPE LIMITED. Eftersom informationen i denna manual lämnas ut i god tro och var korrekt när den trycktes, reserverar sig NAMCO EUROPE LIMITED för ändringar. - Page 25 ATT BEAKTA VID INSTALLATION 1m90cm or more l l l l l Sätt aldrig på strömmen på maskinen innan installationen är klar. 50cm or more 50cm or more l l l l l För att förhindra elektriska chocker, försäkra dig om att maskinen kopplas till strömförsörjning med jordad kontakt l l l l l För att undvika skador av spelets rörelser, försäkra dig om att det...
-
Page 26: Yleiset Turvallisuunäkökodat
Tästä julkaisusta ei saa ottaa missään muodossa kopioita yksityis- tai julkiseen käyttöön ilman NAMCO EUROPE LIMITED:in lupaa. Tässä ohjekirjassa olevat tiedot pitävät julkaisuhetkellä paikkansa. NAMCO EUROPE LIMITED:illä on kuitenkin oikeus muutoksiin ilman erillistä ilmoitusta. Tämä laite on valmistettu EC direktiivien mukaisesti. Se on testattu ja todettu noudattavan seuraavia direktiivejä: 89/336/EEC ja 72/23/EEC (EN55014-1, EN55014-2 ja EN 60335-2-82 standardit). - Page 27 ASENNUSHUOMIOITA 1m90cm or more 50cm or more 50cm or more l l l l l Älä koskaan kytke laitetta päälle ennen kuin asennus on suoritettu loppuun. l l l l l Tämän laitteen virtalähde on kytkettävä maadoitetulla johdolla maadoitettuun pistorasiaan, jotta sähköiskun vaaraa ei olisi. l l l l l Varmista, että...
-
Page 28: Specifications
1. SPECIFICATIONS POWER SUPPLY:- 230v / 400watts AC AMBIENT OPERATING +5°C to +25°C TEMPERATURE COIN ACCEPTOR:- Mars CashFlow - 1 Channel DIMENSIONS:- Assembled 900(w) x 1590(d) x 2240(h) Lower Cabinet 800(w) x 1520(d) x 970(h) Upper Cabinet 900(w) 440(d) x 1100(h) WEIGHT Assembled 140kg... -
Page 29: Main Components
2. MAIN COMPONENTS Target Assemblies 7 -segment score displays Signboard Assy Target Assy 9 Target Target Assy 8 Assy 10 Target Target Target Panel Assy 6 Assy 7 Target Target Assy 4 Assy 5 Target Target Assy 3 Assy 1 Payout Payout Payout... -
Page 30: How To Play
3. HOW TO PLAY This is a gun shooting prize dispensing game. A player uses the gun to battle with ten bees. Each time the player shoots a bee in the display panel, the points indicated below that bee are added to the player’s score. The game can dispense two types or normal prize and one type of special prize. -
Page 31: Moving The Machine
4. MOVING THE MACHINE This equipment is fitted with castors to make it easier to move. Take care when moving the equipment on an inclined floor. The overall height of this equipment is 2240mm. Take care of any overhead obstructions. (e.g. Light Fittings, Electric Cables etc.) Separating the Cabinet The Upper Cabinet weighs approx. - Page 32 Slowly tilt the Upper Cabinet backwards, while supporting the edge of the Upper Cabinet on the Lower Cabinet. Upper Cabinet Assy When the Upper Cabinet is level, remove the Upper Cabinet. Upper Cabinet Assy Lower Cabinet Assy Page 32...
-
Page 33: Installation
5. INSTALLATION This machine is designed for INDOOR USE ONLY. Do not install in the following places. Outdoors Direct Sunlight, places with excessive humidity or dust, places where there is water leakage, near air-conditioning or heating equipment, places with excessive heat or cold temperature. Places where it would be in the way of emergency exits or fire extinguishing equipment. - Page 34 CETTE MACHINE EST DESTINEE UNIQUEMENT A UN USAGE INTERIEUR NE PAS INSTALLER LA MACHINE DANS LES ENDROITS SUIVANTS A l’extérieur. Directement exposée au soleil, aux endroits excessivement humides ou poussiéreux, aux endroits où il y a des risques de fuite d’eau, près de ventilateurs ou source de chaleur, aux endroits très chauds ou froids.
- Page 35 DEZE MACHINE IS ALLEEN VOOR GEBRUIK BINNENSHUIS ONTWORPEN INSTALLEER DE MACHINE NIET OP DE VOLGENDE PLAATSEN Buiten In direct zonlicht, op plaatsen met een zeer hoge vochtigheidsgraad of met veel stof, op plaatsen waar een waterlek is, dichtbij airco’s of verwarmingsapparatuur, op plaatsen met een zeer hoge of koude temperatuur.
-
Page 36: Notes On Installation
Notes on Installation l l l l l WARNING • NEVER turn the power to the machine ON until installation has been completed. l l l l l WARNING • In order to prevent possible electric shocks, be sure that the machine is connected to the mains with a securely connected earthed plug. -
Page 37: Assembling The Backboard
Assembling the Backboard Assemble the Logo Panel by following the diagrams below. Backboard Double-sided adhesive tape Page 37... -
Page 38: Assembling The Logo Panel
Assembling the Logo Panel Logo Panel Attaching the Logo Panel and Backboard Backboard Signboard Assy Logo panel Upper Cabinet Assy Page 38... -
Page 39: Prizes
6. PRIZES After pushing a prize item forward, the prize dispensing sensors check whether the prize item has been dispensed at the prize outlet, so prizes can be hung on the Payout Assemblies at intervals to suit the prizes. To prevent two or more prizes being dispensed due to a prize dispensing sensor malfunction, there is a setting for activating a prize dispense error if a prize dispense has not been detected after a certain number of dispensing operations. - Page 40 Special Prize Items (for the right handed Payout Assembly viewed from the front.) Weight: 300g or less per item Each payout assembly can hold prize items totalling 3kg in weight. Size: Maximum: 200mm(l) x 200mm(w) x 200mm(h) Minimum: 10mm(l) x 50mm(w) x 50mm(h) 50mm 250mm 50mm...
-
Page 41: Preparing Prize Items
Preparing Prize Items The game uses prizes with hanging strings. When using prizes without strings, use a nylon string as a loop to hang prizes. The string length and dimension of each prize, including the string, must be as specified below. String length 30 to 50mm or more... - Page 42 Hang the Prizes on each Payout Assembly. Payout Assemblies for Normal prize items Payout Assembly for Special prize items Close and lock the Cover. Do not squeeze prize items too closely on the Payout Assemblies. Space prize items to prevent them from pushing each other. If the hanging interval of prizes is large, and the prize has not been dispensed within the set number of dispensing operations, a “no prize item”...
-
Page 43: Adjustments
7. ADJUSTMENTS Adjustment or maintenance on this machine should be carried out by qualified personnel only. Einstellungen und Wartung des Gerätes dürfen nur von dafür qualifiziertem Fachpersonal vorgenommen werden. Justeringer eller vedligehold af denne maskine bør kun udføres af kvalificeret personale. Los ajustes y el mantenimiento de esta máquina deben ser realizados sólo por personal cualificado. -
Page 44: Adjustment Switches
Adjustment Switches The Adjustment switches are located inside the coin door. Service Switch. Press this switch to obtain game credits without incrementing the play meter. Test Switch Slide the test switch ON to enter test mode. Test mode allows testing and the changing of game settings. (Refer to section 7- 2 "Test Mode"... -
Page 45: Test Mode
Test Mode Open the coin door and slide the test switch “ON”. The 7-segment display indicates the name of the current Test. Each time the Select switch is pressed the test steps through in the following order. (1) Output Test (2) Input Test (I c c c c c (3) Dispensing Operation Counter (p... -
Page 46: Input Test
7-2-2 Input Test c c c c c When this test is selected, the following switches and sensors can be checked. To discontinue this test and step to the next test press the Select switch. • Each time a credit signal is sent from the CashFlow, a sound is produced and the number shown on the 7-segment display of Target Assy 6 increments by one from “00”... -
Page 47: Payout Motor Test
7-2-5 Payout Motor Test c c c c c This Test allows the checking of the Payout Motors and Payout Sensors. To discontinue this test and step to the next test press the Select switch. • While this Test is selected, the Selection switches 1 and 2 and the Challenge switch are illuminated. -
Page 48: Using The Setting Modes
Using the Setting Modes Open the coin door and slide the test switch “ON” while pressing the Select switch. The 7-segment display indicates the name of the current Adjustment Mode. Each time the Select switch is pressed the test steps through in the following order. Game Price Setting ( c c c c c Play Time Setting (... -
Page 49: Game Price Setting
7-3-1 Game Price Setting This item sets the number of credit signals from the CashFlow required for 1 game. Use Select switch 1 or 2 to change the setting value. When in Free Game Mode, a free game can be started by pulling the trigger of the gun during the attract mode. -
Page 50: Continued Game Play Time Setting
(c c c c c 7-3-4 Continued Game Play Time Setting n n n n n This item sets the number of plays provided for 1 continued game. Use Select switch 1 or 2 to change the setting value. 7-3-5 Normal Stage Difficulty Setting (n n n n n ) This item sets the difficulty level of the normal stage game. -
Page 51: Attract Sound Setting
(a a a a a ) 7-3-7 Attract Sound Setting This item sets the sound ON or OFF during the attract mode. Use Select switch 1 or 2 to change the setting value. (pe pe pe pe pe) 7-3-8 No Prize Item Error Setting This item sets the number of prize forwarding operations of the prize dispense motor that can occur, without detecting a prize being dispensed, before the no prize error is activated. -
Page 52: Payout Assy Error Setting
(pa pa pa pa pa) 7-3-10 Payout Assy Error Setting This setting disables the use of Payout Assy 1 or 2. If a Payout Assy malfunctions, disabling a Payout Assy allows temporary operation of the game. The prize items on the disabled Payout Assy cannot be selected. Ensure that any faulty Payout Assy is replaced as soon as possible. -
Page 53: Maintenance
8. MAINTENANCE Adjustment or maintenance on this machine should be carried out by qualified personnel only. Ensure that the POWER to the machine is turned OFF before commencing any maintenance work. (Trouble shooting, service or repairs etc.) Einstellungen und Wartung des Gerätes dürfen nur von dafür qualifiziertem Fachpersonal vorgenommen werden. - Page 54 Aanpassingen of onderhoud aan deze machine dient alleen uitgevoerd te worden door bekwaam personeel. Zorg ervoor dat de machine UITgeschakeld is voordat er enig onderhoudswerk wordt verricht (troubleshooting, reparaties etc.) Afinações ou manutenção nesta maquina, deverão ser efectuadas sómente por pessoal qualificado. Certifique-se que a maquina se encontra desligada sempre que iniciar qualquer tipo de trabalho de manutenção.
-
Page 55: General Cleaning
General Cleaning 8-1-1 Cleaning the Hood NEVER use any organic solvents, as solvents may cause irreparable damage. Clean both the inside and outside of the hood using a cloth dampened with water or mild detergent. Wipe with a dry cloth to remove any detergent or water from the surfaces. 8-1-2 Cleaning the Target Panel NEVER use any organic solvents, as solvents may cause irreparable damage. -
Page 56: Cleaning The Fibre Optic Cable
8-1-4 Cleaning the Fibre Optic Cable l l l l l The Xenon Assy will remain hot and have areas of high voltage even though the equipment has been turned OFF, and there is the possibility of burns or electric shock. - Page 57 Never use any solvent products to clean the Fibre Optic Cable as the solvent may cause irreparable damage. • Clean the end of the Fibre-Optic Cable regularly. If the end of the Fibre-Optic Cable becomes dirty, the Target Assys may not detect the light emitted from the Gun Assy, and fail to register a hit correctly.
-
Page 58: Error Messages
Error Messages When an error is generated, the 7-segment score display indicates an error number, and the game makes an announcement repeatedly to call service personnel. An error can be cancelled by turning the power Off and back ON, or by opening the service door and operating the Test switch ON and OFF. - Page 59 Error Motor Location 7-Segment Score Display Payout Motor 1 Error Left Payout Motor 2 Error Centre Payout Motor 3 Error Right Error Motor Location 7-Segment Score Display Prize Sensor 1 Error Left (lengthwise sensor) Prize Sensor 2 Error Centre (lengthwise sensor) Prize Sensor 3 Error Right (lengthwise sensor) Prize Sensor 4 Error...
-
Page 60: Removing The Target Assemblies
Removing the Target Assemblies Remove the Upper Rear Door. When removing the The Target Assemblies at either end, remove 3off pozi head screws (M5x12) and remove the Side Cover, then remove 2off cap screws (M5x12) to remove the Guard. Cap screw (M5x12) Pozi head screw (M5x12) Side Cover Target Assy... - Page 61 Remove 2off cap screw (M4x10) and remove the Target Assy. Target Assy Cap screws (M4x10) Reassemble in reverse order. Page 61...
-
Page 62: Removing The Target Pc Board
Removing the Target PC Board Remove the Target Assy. (see 8-3 page 60) Remove the Target PC Board by gently pressing the Latch Hooks outwards, and lifting the Target PC Board clear. Target PC Board Target Assy Latch Hooks Reassemble in reverse order. Note: When refitting the Target PC Board, align the pins with the holes in the PC Board, and ensure that the Latch Hooks engage over the PC Board to prevent damage to the light receiving sensor. -
Page 63: Removing The Target Assy 7-Segment Pc Board
Removing the Target Assy 7-Segment PC Board Remove the Target Assy. (see 8-3 page 60) Remove 4off pozi head self-tapping screws (M4x10) and separate the Target Assy. Remove the 7-Segment PC Board. Pozi head Target PC Board Pozi head self tapping screw self tapping screw (M4X10) (M4X10) -
Page 64: Removing The Target Assy Lamps
Removing the Target Assy Lamps Remove the Lamp Base by pressing down on the latch and tilting the Lamp Base forwards. Lamp Base Latch Lamp Holders Remove the lamp by unscrewing it from the Lamp Holder. Lamp (White) Lamp (Red) Latch must be Lamp Base positioned at the top... -
Page 65: Removing The 7-Segment Score Pc Board
Removing the 7-Segment Score PC Board Remove the Upper Rear Door. Disconnect the connector. Remove 4off cap screws (M4x10) and remove the 7-Segment Score PC Board. Connector 7-Segment Score PC Board Cap screws (M4x10) Reassemble in reverse order. Note: To prevent serious electrical damage to the game ensure that the connector is re-fitted the correct way round. -
Page 66: Replacing The Fluorescent Lamp Or Starter
Replacing the Fluorescent Lamp or Starter Open the Hood. Replace the Fluorescent Lamp or Starter. Fluorescent Lamp (15 watt) Starter Close and lock the Hood. Page 66... -
Page 67: Replacing The Main Pc Board
Replacing the Main PC Board PC Boards can be easily damaged by static electricity. To prevent static damage, service personel should touch an earthed metal part of the game to discharge any static they may have built up before touching the PC Board. Remove the lower rear door. -
Page 68: Replacing The Drive Pc Board
Replacing the Drive PC Board PC Boards can be easily damaged by static electricity. To prevent static damage, service personel should touch an earthed metal part of the game to discharge any static they may have built up before touching the PC Board. Remove the lower rear door. -
Page 69: Removing The Play Panel
8-10 Removing the Play Panel Open the Hood, and remove the Fluorescent Lamp. (For safety and to prevent damage to the Fluorescent Lamp). Remove 3off security screw (M5x12), 2off security screw (M5x20) and 2off whizz nuts (M6). Security screw (M5x20) Play Panel Whizz nut (M6) Security screw (M5x12) -
Page 70: Replacing The Play Panel Switches
8-11 Replacing the Play Panel Switches Remove the Play Panel. (see 8-10 page 69) Remove the switch and lamp assy by pulling it straight out from the switch body. Play Panel Select Sw1 Select Sw2 Challenge Sw Switch / Lamp Assy Select Sw1 : Green Select Sw2... -
Page 71: Replacing The Prize Sensors
8-12 Replacing the Prize Sensors 8-12-1 Lengthwise Front Remove the Play Panel. (see 8-10 page 69) Cap screw (M4x16) Connectors (4-pin) Sensor Bracket (B) Remove 2off cap screw (M4x16) Disconnect the 3 connectors, and detach the Sensor Bracket (B) Hex nut (M3) Flat washer (M3) Prize Sensor (with 4-pin connector) -
Page 72: Lengthwise Rear
8-12-2 Lengthwise Rear Remove 3off cap screws (M4x16). Disconnect the 3 connectors, and detach the Sensor Bracket (A). Cap screw (M4x16) Sensor Bracket (A) Cap screws (M4x16) Connectors (2-pin) Remove 1off cap screw (M3x12), flat washer (M3) and hex nut (M3) from the Sensor. -
Page 73: Widthwise
8-12-3 Widthwise Remove 2off cap screws (M4x10). Disconnect the 3 connectors, and remove the Sensor Bracket. Remove 1off cap screw (M3x12), flat washer (M3), hex nut (M3) from the Sensor. Replace the Sensor. Sensor Bracket Prize Sensors Cap screw (M4x10) Hex nut (M3) Cap screw (M3x12) Flat washer (M3) -
Page 74: Payout Assemblies
8-13 Payout Assemblies 8-13-1 Removing the Payout Assy Remove the Upper Rear Door. Disconnect the 2 connectors and disconnect the Earth connector. Loosen 1off cap screw (M5x12) located under the Payout Assy. Remove 2off cap screws (M5x12) located on both sides of the Payout Assy. Cap screws (M5x12) Connector Earth connector... -
Page 75: Replacing The Payout Sensor
8-13-2 Replacing the Payout Sensor Remove the Payout Assy. (see 8-13-1 page 74) Remove 1off pozi button head screw (M3x8), with flat washer, and replace the Payout Sensor. Pozi button head screw (M3x8) (with flat washer) Payout Sensor Reassemble in reverse order. Page 75... -
Page 76: Replacing The Payout Motor
8-13-3 Replacing the Payout Motor Remove the Payout Assy. (see 8-13-1 page 74) Remove 2off cap screws (M4x10) and detach the Guide Base. Payout Motor Guide Base Cap screw (M4x10) Loosen 1off double point screw (M4x8). Remove 4off cap screws (M4x10) and remove the Payout Motor. Double point screw Payout Motor (M4x8) -
Page 77: Gun Assembly
8-14 Gun Assembly 8-14-1 Removing the Gun Assy Remove the Play Panel. (see 8-10 page 69) Remove 2off cap screws (M4X6) and remove the Xenon Assy Cover. Cover Xenon Assy Cap screw (M4x6) Remove the Fibre-Optic Cable from the holder. Fibre-Optic Cable Holder Xenon PC Board... - Page 78 Remove 4off security screws (M5x20), disconnect the connector, and remove the Gun Assy. Security screws (M5x20) Gun Assy Connector Reassemble in reverse order. Note: In order to ensure the correct light output from the gun Assy, the fibre-optic should be fitted as close as possible to the Xenon Tube. When installing the fibre optic, be careful not to touch the Xenon tube with your fingers or hands.
-
Page 79: Replacing The Gun Switch, Trigger And Lens
8-14-2 Replacing the Gun Switch, Trigger and Lens Remove 7off cap screws (M3x8) and remove Gun Body (R). The grip is permanently fixed to the gun body (R). Gun Body (R) Cap Screws (M3x8) Grip Disconnect the two Fast-On terminals from the Trigger Switch. Lens Gun Switch (Black) - Page 80 Replace the Gun Switch, Trigger or Lens and reassemble in reverse order. Note: If the Fibre Optic Holder has come off, re-attach it by aligning the marking on the Fibre Optic Holder with the marking on the Gun Body (L). Install the Lens so that the convex (curved) surface is facing outward.
-
Page 81: Replacing The Gun Harness
8-14-3 Replacing the Gun Harness Remove the Gun Assy. (see 8-14-1 page 77) Remove 2off cap screws (M3x6) that hold the Harness Guide in place, and detach the Harness Guide from the Pipe Bracket. Remove 1off pozi button head screw (M5x20) and hex nut (M5). Remove the Pipe Clip, Pipe Bracket and O-ring. - Page 82 Disconnect the 2off Fast-on terminals from the Gun Switch After removing the Gun Switch and Trigger, remove 1off self tapping screw (M3x8) and detach the Gun Bracket. Remove the flange nut (M3) to remove the Pipe Clip and Sleeve. 10. Separate the Fibre Holder into two parts, and remove them from the Fibre-Optic. Remove the Gun Harness Assy together with the O-ring, Fibre-Optic and Flexible Hose.
-
Page 83: Xenon Assembly
8-15 Xenon Assembly l l l l l The Xenon Assy will remain hot and have areas of high voltage even though the equipment has been tuned OFF, and there is the possibility of burns or electric shock. Be careful not to touch these areas. Das Xenon assy nach Ausschalten des Gerätes noch heiß... -
Page 84: Replacing The Xenon Pc Board
8-15-1 Replacing the Xenon PC Board PC Boards can be easily damaged by static electricity. To prevent static damage, service personnel should touch an earthed metal part of the game to discharge any static they may have built up before touching the PC Board. Remove the Play Panel. - Page 85 Disconnect the connector. Using needle nosed pliers, squeeze the locking tabs of the locking supports, one at a time, to release the PC Board. Remove the Xenon PC Board. Locking Supports Xenon PC Board How to disengage locking supports PC Board Locking Support Needle-Nosed Stopper...
-
Page 86: Replacing The Xenon Drive Pc Board
8-15-2 Replacing the Xenon Drive PC Board PC Boards can be easily damaged by static electricity. To prevent static damage, service personel should touch an earthed metal part of the game to discharge any static they may have built up before touching the PC Board. When installing the fibre optic, be careful not to touch the Xenon tube with your fingers or hands. -
Page 87: Removing The Xenon Fan And Filter
8-15-3 Removing the Xenon Fan and Filter Remove 2off cap screws (M4x6) and remove the Filter Bracket. Xenon Assy Filter Cap screw (M4x6) Filter Bracket Remove the Filter from inside the Filter Bracket. Disconnect the connector, remove 4off pozi head screws (M4x35), with spring and toothed lock washers, and remove the Xenon Fan Xenon Assy Connector... -
Page 88: Parts
9. PARTS Upper Cabinet Assy c i t 9 " " y Page 88... -
Page 89: Target Assy
Target Assy Target (A) Target (B) Target (C) Target (D) - f l r r i i n i i n i Page 89... -
Page 90: Lower Cabinet Assy (1)
11 10 Main Main PC Board PC Board Drive Drive PC Board PC Board Fork Here Fork Here 22 23 on opposite side) - Page 91 r r i r r i r r i Page 91...
-
Page 92: Lower Cabinet Assy (2)
43 44 45 Main Main PC Board PC Board Driver Driver PC Board PC Board 35 34 32 Fork Here Fork Here Fork Here Fork Here NAMCO LIMITED... - Page 93 c t i t t i " 8 u l l c t i ) l l u l l c t i t t i s t i t t i s t i F " " e Page 93...
-
Page 94: Payout Assy
Payout Assy t i l Page 94... -
Page 95: Gun Assy
Gun Assy 10 19 l e l c t i Page 95... -
Page 96: Mains-In Assy
Mains-In Assy t l i... -
Page 97: Coin Door
Coin Door PRIZE COUNTER SERVICE TEST SELECT MIN. MAX. VOLUME c t i d i l c t i... - Page 98 9-9 Xenon Assy t l i t l i t l i t s i Page 98...
- Page 99 10. SCHEMATICS 10-1 Lower Cabinet Photo-sensor Photo-sensor Wht/Grn Wht/Grn Wht/Grn Wht/Grn (Red) Wht/Red Wht/Red (Red) Wht/Brn Wht/Blu Wht/Blu Wht/Blu (Blk) Wht/Blk (Wht) Wht/Org Wht/Vio Wht/Vio Wht/Vio Wht/Blk (Blk) Lt Blu Wht/Yel Wht/Grn Illuminated Photo-sensor Photo-sensor switch Grn/Yel Wht/Red Grn/Yel (Red) Wht/Red (Red) Wht/Blu...
- Page 100 10-2 Upper Cabinet Target Target Target Target Target Wht/Brn Wht/Org Wht/Blk Wht/Brn Wht/Red Wht/Org Wht/Yel Wht/Yel Wht/Grn Wht/Blu Wht/Vio Wht/Gry Wht/Yel Wht/Brn Wht/Org Lt Blu Wht/Gry Wht/Vio Wht/Blu Wht/Grn Lt Blu Lt Blu Wht/Gry Wht/Vio Wht/Blk Wht/Brn Wht/Red Wht/Org Wht/Yel Wht/Grn Wht/Blu Target...
- Page 101 Copies of Namco Game Manuals can be downloaded from our website: www.namco.co.uk under Components Distribution For all Parts or Technical Support contact: Brent Electronic, Namco House, Units 7-8, Acton Park Estate, The Vale, London. W3 7QE www.namco.co.uk For Technical Support, Warranty and Advance Replacement Parts:- +44 (0) 20 8324 6120 For Consumable Parts:-...
