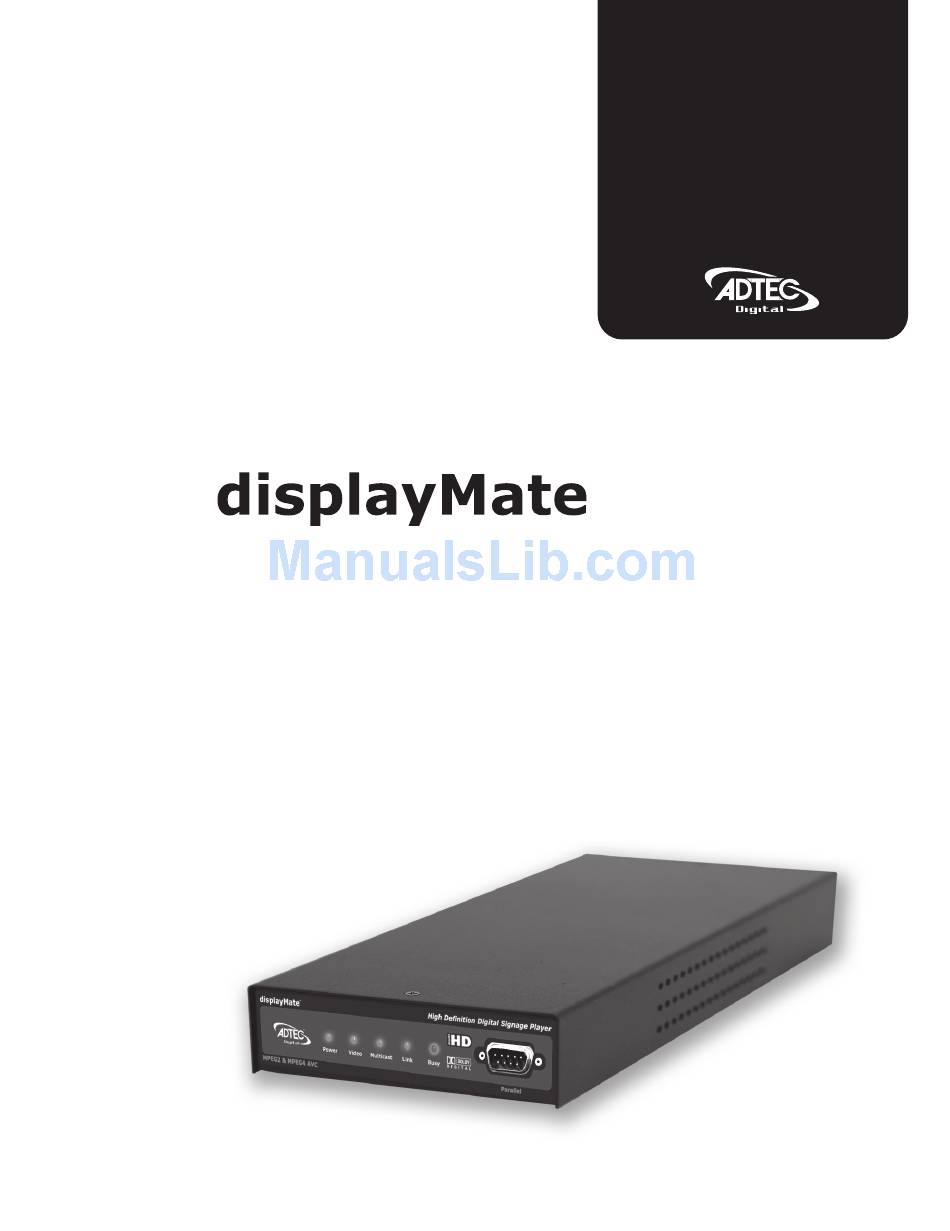

Page 1: Quick Start Guide
Inside: - Product Intro - Getting Started Digital Signage Player Quick Start Guide purely digital c r e a t e . m o v e . p l a y . s ave. - Page 2 480i up to full HD 1080i. • Control Playout: The displayMate includes a built in command interface and scheduler that can play a list of files and loop indefinitely or be triggered from external control systems from the parallel or serial ports.
-
Page 3: System Requirements
Holds 3 displayMates, power supplies and provides cable ties slots (PN: w/Hardware: 200-024-1AKIT) displayEnvelope: Mounts 1 displayMate and power supply to the rear of a VESA 100 mm or 200 mm compatible display. (PN: 200-087-1AKIT) What's Included displayMate HD Digital Signage Player displayMateX (X based on flash size) - Page 4 Specifications subject to change without written notice. © 2007 Adtec Digital. displayMate™ and mediaControl™ are trademarks of Adtec Digital. Other product and company names may be trademarks or registered trademarks of their respective companies. This information may not, in whole or in part, be copied, photocopied, reproduced and translated, or reduced to any electronic medium or machine-readable form without prior consent in writing from Adtec Digital.
-
Page 5: Front Panel
*** Chapter 2 - Getting Started *** Front Panel Name Description Power Red - Power on Video Off - No Video Green - video present Yellow - unstable video Multicast Off - not receiving multicast Green - Decoding multicast stream Link Off - no link detected Green - link active... - Page 6 Your player should be placed on your local network and will use the default IP address of 192.168.10.48 Software mediaControl is the control application for Adtec players and servers. It offers list and schedule building as well as file management and player control. On the following page is an overview of the mediaControl application.
-
Page 7: Navigation Panel
Installer icon. The wizard will take you through the installation process. After installation, the launch icon for the application can be found on the dock and in the Applications/Adtec/bin/ folder. You will need to restart your MAC. For Linux: The mediaControl software can be installed on Linux as well. - Page 8 DisplayMate > GettingStarted History: r6 - 21 Sep 2007 - 04:25:20 - AmyPichardo Copyright © by the contributing authors. All material on this collaboration platform is the property of the contributing authors. Ideas, requests, problems regarding Adtec TWiki? Send feedback...
-
Page 9: Telnet Connection
If your terminal kit is connected to the COM 1 port on the back of the displayMate, your Baud rate is 115200 and you will have access to diagnostic information. - Page 10 To view the API documentation, place your player on the LAN and point any web browser to the ipa of the box. ex. http://192.168.10.48 You will be able to click on the link for ADTEC API and view the API commands available for your product. Attachment Action Size...
- Page 11 www.adtecinc.com Corporate Headquarters & Domestic Sales USA 408 Russell Street Nashville, TN 37206 USA Tel.615.256.6619 Fax.615.256.6593 sales@adtecinc.com International Sales 2231-3 Corporate Square Blvd. Jacksonville, FL 32216-1921 USA Tel. 904.394.0389 Fax. 904.421.0684 intlsales@adtecinc.com Technical Support Tel.615.256.6619 Fax.615.256.6593 www.adtecinc.com/support support@adtecinc.com...
