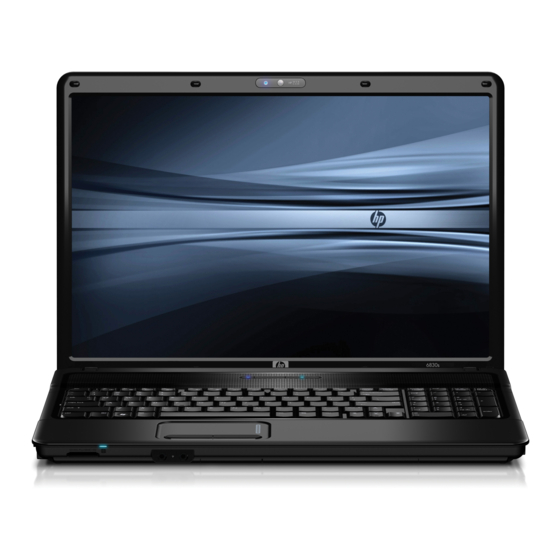

HP Compaq 6830s Quickspecs

Notebook pc
Hide thumbs Also See for Compaq 6830s:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Quickspecs
QuickSpecs
Overview
1. WLAN antennas
2. Optional VGA webcam
3. Optional webcam light
4. Wireless on/off button with LED indicator
5. Power button with LED indicator
6. Stereo speakers
7. Kensington Lock slot
8. Optical drive
DA - 13057
Worldwide QuickSpecs — Version 2 — 7.15.2008
HP Compaq 6830s Notebook PC
HP recommends Windows Vista
9.
(2) USB 2.0 ports
10. Touchpad with scroll zone
11. Stereo microphone in
12. Integrated microphone
13. Stereo headphone/line out
14. Hard drive activity LED indicator
15. Media Card Reader
®
Business
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP Compaq 6830s

Summary of Contents for HP Compaq 6830s

  • Page 1 10. Touchpad with scroll zone 11. Stereo microphone in 12. Integrated microphone 13. Stereo headphone/line out 14. Hard drive activity LED indicator 15. Media Card Reader Worldwide QuickSpecs — Version 2 — 7.15.2008 HP Compaq 6830s Notebook PC ® Business Page 1...
  • Page 2 4. Power Connector 1. Battery release latches 2. WLAN module compartment (select models) 3. Hard drive bay DA - 13057 HP Compaq 6830s Notebook PC 5. RJ-45/Ethernet port 6. (2) USB 2.0 ports 7. ExpressCard/54 slot 4. Memory module compartment 5.
  • Page 3 Optional integrated VGA webcam Up to 250 GB 5400 rpm or 120 GB 7200 rpm user-removable hard drive with HP 3D DriveGuard protection Up to 8 GB of 667 MHz or 800 MHz DDR2 SDRAM supported, dual channel memory support...

  • Page 4: Standard Features

    * Indicates dedicated video memory and shared system memory. Either 128MB or 256MB dedicated video memory, depending on model. DA - 13057 HP Compaq 6830s Notebook PC Genuine Windows Vista Business 32* Genuine Windows Vista Home Basic 32* Genuine Windows Vista Home Premium 32* (limited availability) Genuine Windows Vista Business 32 downgrade to Genuine Windows XP †...
  • Page 5 Maximum Dual-channel NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux.
  • Page 6 * Memory Stick Duo Adapters are required and sold separately. Inserting a Memory Stick Duo Card directly into your notebook could damage the memory card and/or notebook. DA - 13057 HP Compaq 6830s Notebook PC Integrated support for 802.11a, b, g, and n draft Up to 300 mbps data rate Integrated support for 802.11 a, b and g...
  • Page 7 Stereo microphone in Optional VGA webcam DA - 13057 HP Compaq 6830s Notebook PC 120 GB 7200 rpm SMART SATA Hard Drive The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive. Uses three-axis digital motion detection with intelligent sensitivity to help protect the hard drive during normal use from shock and vibration.

  • Page 8: Hp Protecttools Security Manager

    First update included. Subscription required for updates thereafter. HP Recovery Manager Each unit is shipped with HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted.
  • Page 9 External 90-watt Smart AC adapter 6-foot (1.8-meter) power cord included; total length including external AC adapter is 12 feet (3.66 meter) HP Fast * HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. Battery Primary battery...
  • Page 10 HP 2 GB (DDR2 800 MHz) SODIMM HP 4 GB (DDR2 800 MHz) SODIMM Storage HP Notebooks USB Diskette Drive HP Primary SATA 250 GB 5400 rpm Hard Drive Power HP 90W Smart AC Adapter HP 90W Smart Auto Adapter...

  • Page 11: Memory Upgrades

    NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux.

  • Page 12: Internal Storage Device

    120 GB 5400 rpm SMART SATA Hard Drive 120 GB 7200 rpm SMART SATA Hard Drive DA - 13057 HP Compaq 6830s Notebook PC Drive Bay Fixed optical drive bay Fixed optical drive bay Fixed optical drive bay Fixed optical drive bay...

  • Page 13: Technical Specifications

    Altitude (unpressurized) Industry Standard Certifications For accessibility information on HP products, please visit: http://www.hp.com/accessibility. DA - 13057 HP Compaq 6830s Notebook PC 1.27 in (at front) x 15.6 in x 11.22 in 32.3 mm (at front) x 396 mm x 285 mm Starting at 6.5 lb (2.95 kg)
  • Page 14 Cells/Type Energy Temperature Battery Re-Charge TimeSystem in OFF mode or DA - 13057 HP Compaq 6830s Notebook PC 5.00 x 1.97 x 1.1 in (12.7 x 5.0 x 2.9 cm) 0.82 lb (370 g) 100 to 240 VAC Input Efficiency...
  • Page 15 Surface Treatment Contrast Ratio Refresh Rate Brightness Pixel Resolution Backlight Viewing Angle DA - 13057 HP Compaq 6830s Notebook PC 14.5 x 9.0 in (36.7 x 22.9 cm) 17.0 in (43.2 cm) Anti-glare 300:1 typical 60 Hz 200 nit typical Pitch 0.255 mm...
  • Page 16 Rotational Speed Logical Blocks Operating Temperature41° to 140° F (5° to 60° C) [case temp] Features DA - 13057 HP Compaq 6830s Notebook PC 14.5 x 9.0 in (36.7 x 22.9 cm) 17.0 in (43.2 cm) Anti-glare 300:1 typical 60 Hz...
  • Page 17 Rotational Speed Logical Blocks Operating Temperature41° to 140° F (5° to 60° C) [case temp] Features DA - 13057 HP Compaq 6830s Notebook PC 0.22 lb (101 g) 250 GB 0.37 in (9.5 mm) 2.75 in (70 mm) ATA-7 / SATA 2.5...
  • Page 18 Supported Media (read) CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED Supported Media (write)None Max Media Capacity (read) Transport DA - 13057 HP Compaq 6830s Notebook PC 0.22 lb (101 g) 120 GB 0.37 in (9.5 mm) 2.75 in (70 mm) ATA-7 / SATA 2.5...
  • Page 19 Supported Media (write)CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM, LightScribe Max Media Capacity (read) Max Media Capacity (write) Transport DA - 13057 HP Compaq 6830s Notebook PC Random <110 ms CD (typical) <130 ms DVD (typical) Up to 3,600 KB/s 8X DVD Up to 10,800 KB/s...
  • Page 20 Touch-Sensitive Volume Controls Full Duplex Microphone In Headphone/Line Out Integrated Microphone Yes DA - 13057 HP Compaq 6830s Notebook PC Random <190 ms CD-ROM (typical) <180 ms DVD-ROM (typical) <230 ms BD-ROM (typical) Up to 2400 KB/s 8X DVD-ROM Up to 10800 KB/s...
  • Page 21 Support Approvals/ Certifications Data Mode CapabilitiesV.92 data Fax Mode Capabilities TIA/EIA-578-B (Class 1) DA - 13057 HP Compaq 6830s Notebook PC 20 Hz – 20 kHz >85 dB -110 dB 8 kHz – 48kHz 16, 20 or 24-bit 16 or 20-bit...
  • Page 22 15 dBm Idle associated: 350 mW Idle unassociated: 350 mW Transmit: 2.0 W (max) Receive: 1.5 W (max) ACPI compliant power management 802.11 compliant power saving mode Worldwide QuickSpecs — Version 2 — 7.15.2008 HP Compaq 6830s Notebook PC Page 22...

  • Page 23: Configuration Utility

    Wireless LAN Standards IEEE 802.11a Interoperability DA - 13057 HP Compaq 6830s Notebook PC 54 Mbps: -72 dBm, 11 Mbps: -85 dBm , 1 Mbps: -95 dBm High efficiency dual band antenna with spatial diversity, mounted in the display enclosure 802.11 a –...

  • Page 24: Power Consumption

    0.013 lb (6 g) 0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm) Worldwide QuickSpecs — Version 2 — 7.15.2008 HP Compaq 6830s Notebook PC 600 feet – Outdoor Open Area 150 feet – Indoor, Office environment 1200 feet –...
  • Page 25 Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Worldwide QuickSpecs — Version 2 — 7.15.2008 HP Compaq 6830s Notebook PC 32° to 176° F (0° to 80° C) –40° to 176° F (–40° to 80° C)
  • Page 26 Humidity Altitude Configuration Utility LED Activity DA - 13057 HP Compaq 6830s Notebook PC Version 4) with Microsoft Windows Vista and XP only. Multinational support with frequency bands and channels compliant to local regulations. Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) IEEE 802.11 compliant roaming between access points...
  • Page 27 Receive: 1.5 W (max) ACPI compliant power management 802.11 compliant power saving mode 54 Mbps: -72 dBm, 11 Mbps: -85 dBm , 1 Mbps: -95 dBm Worldwide QuickSpecs — Version 2 — 7.15.2008 HP Compaq 6830s Notebook PC Page 27...

  • Page 28: Antenna Type

    Wireless LAN Standards IEEE 802.11a 802.11a/b/g/draft-n WiFi Adapter Interoperability DA - 13057 HP Compaq 6830s Notebook PC High efficiency dual band antenna with spatial diversity, mounted in the display enclosure 802.11 a – Typical 600 feet – Outdoor Open Area (@6 Mbps) 150 feet –...
  • Page 29 802.11 g – Typical (@1 Mbps) PCI-Express MiniCard Worldwide QuickSpecs — Version 2 — 7.15.2008 HP Compaq 6830s Notebook PC 600 feet – Outdoor Open Area 150 feet – Indoor, Office environment 1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment 1200 feet –...
  • Page 30 Transmit Power Receiver Sensitivity Power Consumption Antenna DA - 13057 HP Compaq 6830s Notebook PC 0.026 lb (12 g) 0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm) 3.3v +/- 10% Operating 14° to 149° F (–10° to 65° C) Non-operating –40°...
  • Page 31 Bluetooth Profiles Supported * indicates the profile is also supported by Microsoft Windows XP SP2 DA - 13057 HP Compaq 6830s Notebook PC Up 33 ft (10 m) USB 2.0 compliant Microsoft Windows Plug and Play compliant Microsoft Windows XP Professional and Home...
  • Page 32 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
