ARX UniMIX Specifications

Uni
MIX
MULTI CHANNEL TRANSFORMER
ISOLATED AV/PODCAST MIXER
These days, more and more educational in-
stitutions such as colleges, universities and
high schools are expected to provide down-
loadable recordings - podcasts - of lectures
and classes, for students to access at all
times on the local area network. These re-
cordings are typically taken from the class-
room/lecture theatre sound system and
saved to a computer in real time.
Problem 1: Getting the correct level is
hard, given that the level requirements are
different to those of speakers.
Problem 2: Maintaining a steady input level
to the computer requires continual moni-
toring to prevent digital overload.

The Solution

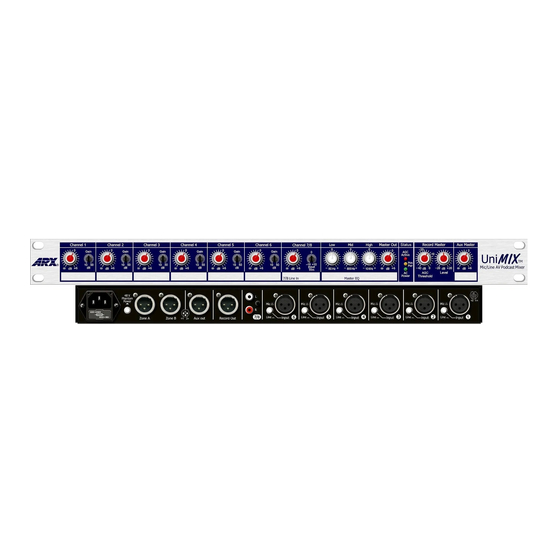

UniMIX
Introducing the new
Six Balanced XLR Mic / Line input chan-
nels with individual level controls, plus a
dedicated stereo RCA jack Line In chan-
nel.
Each Mic/Line input has infinity to +6dB of
Level available on the front panel, as well
as a 10 to 50dB Input Gain control. The
stereo Line Input channel has a –10 to
+10dB Level Trim control, to allow accu-
rate matching of any line level signals.
On the rear panel, each of the 6 electroni-
cally balanced Mic inputs can be switched to
Line via individual switches.
Multiple Masters
For the room system, the UniMIX has 2 Bal-
anced XLR outputs, with 3 way EQ and its
own Master Level control.
™
The Recording Outputs are stereo balanced
jacks, transformer isolated to prevent
ground loops and associated noise.
Automatic Gain Control
The Recording Master also has its own Au-
tomatic Gain Control circuitry. Specially tai-
lored parameters ensure that levels remain
constant, irrespective of Mic placement and
user technique.
The result is a consistent level for the re-
cording, removing the need for fulltime mon-
itoring and the risk of overloading and dis-
tortion.
The final Master control feeds the main sig-
nal to a transformer isolated Balanced XLR
Auxiliary Output. This can be used for fu-
ture expansion, remote monitoring or for
feeding a wireless transmitter or other de-
from ARX:
vice.
Global Phantom Power is available on all
Microphone inputs with a rear panel switch
with associated front panel status LED.
Wide Dynamic Range
Internally, careful attention to the signal path
design, using precision components found
in high-end mixing consoles, has resulted
in a unit with very wide dynamic range. The
UniMIX has enough headroom to cope with
the hottest line signal, and better than digi-
tal noise specifications
Universal AC Power
AC power range is a universal 100 to 120V
or 220 to 240V AC, and is connected to the
unit via a standard three pin IEC connector,
with built-in fuse and voltage change switch.
Hand made in Australia!
™
