PHASELINER UV7i Instruction Manual page 7

UV7i

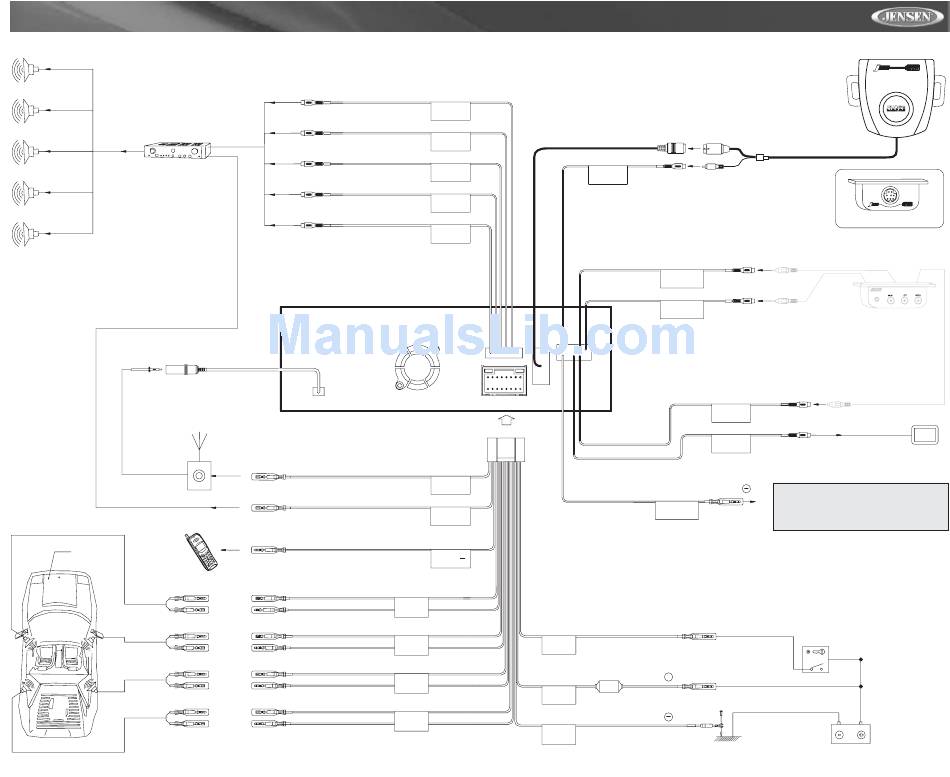

WIRING DIAGRAM
External Power Amplifier
Antenna Jack
Antenna
Car Phone
Car
BLUE
RED
WHITE
RED
WHITE
Auto antenna control (connect to antenna
control lead & power supply of antenna
amplifier)
External power amplifier control
Mute (leave open if not connected)
FRONT L+
FRONT L-
FRONT R+
FRONT R-
REAR R+
REAR R-
REAR L+
REAR L-
SUB.W
FRONT R
FRONT L
REAR R
REAR L
Harness Cord
BLUE
ANT.CONT
BLUE/WHITE
P.CONT
BROWN
MUTE
WHITE +
WHITE/BLACK -
FRONT L
RED
GREY +
GREY/BLACK -
FRONT R ACC
PURPLE +
PURPLE/BLACK - YELLOW
REAR R
BATT
GREEN +
GREEN/BLACK - BLACK
REAR L
GND
3
VIDEO INPUT
YELLOW
WHITE
AUX IN/L
RED
AUX IN/R
AUX IN VIDEO
REAR VIDEO
OUT 1
PARKING BRAKE
PINK
PRK SW
ACC
BATTERY +
FUSE(10A)
BATTERY
Ground
LINK
TO HEAD UNIT
jLink II
LINK
jLINK II FRONT VIEW
3 3
iAUX
AUDIO VIDEO INPUT
3.5mm
3.5mm
(Sold Separately)
YELLOW
Rear Video 1
YELLOW
NOTE: Please refer to
"Parking Brake Sequence"
on page 10.
Ignition Switch
Battery
