Kinetik KIPS12-45 Owner's Manual

Intelligent power supply / charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

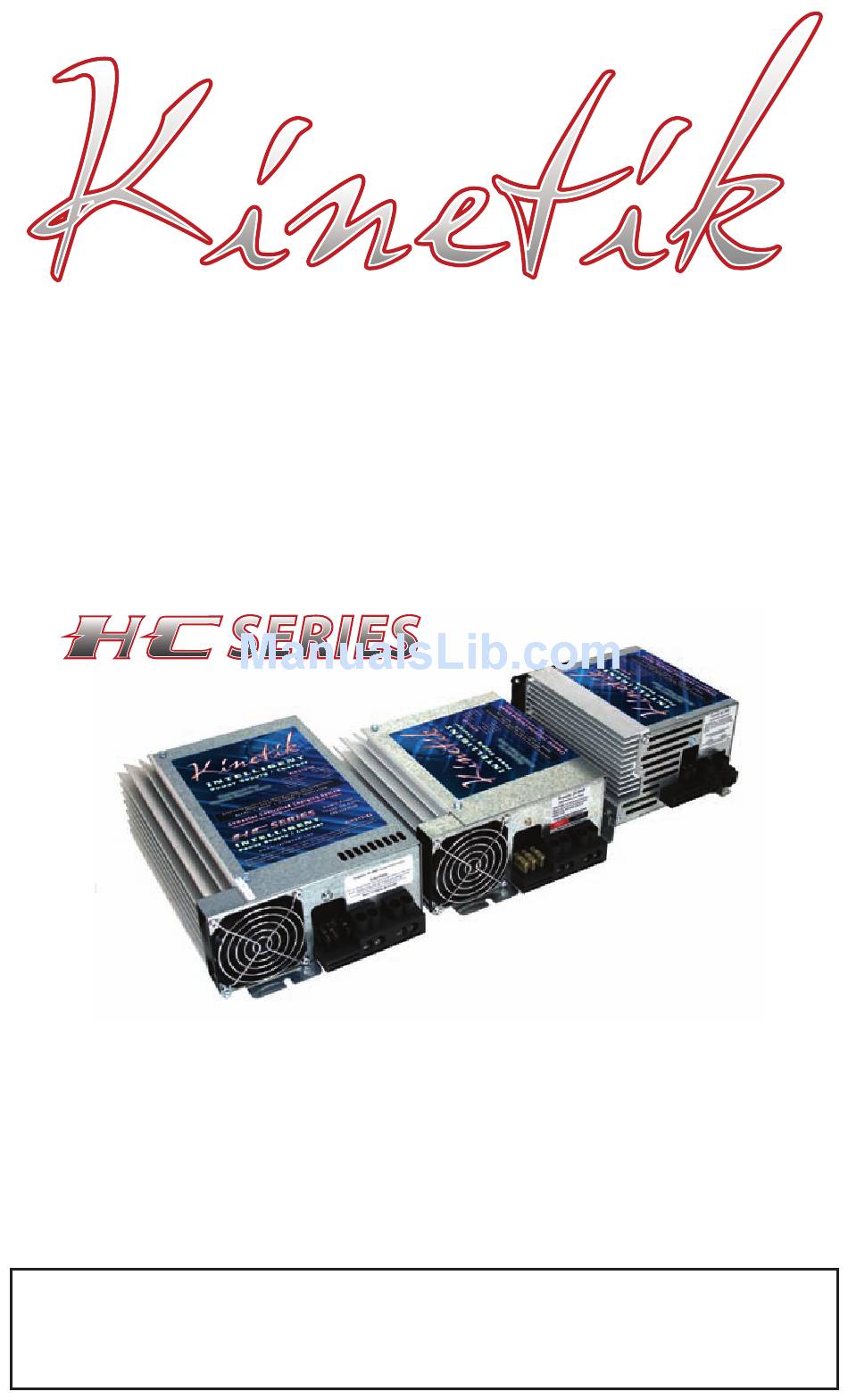

INTELLIGENT
Power Supply / Charger

OWNERS MANUAL

KIPS12-45
KIPS12-60
KIPS12-80
Computer Controlled Charging System
The Intelligent way to charge and maintain your vehicle's battery.
45 AMP • 60 AMP • 80 AMP
Constantly monitors the battery voltage and automatically
selects one of four operating modes:
NORMAL • BOOST • STORAGE • DESULFATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KIPS12-45 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kinetik KIPS12-45

  • Page 1: Owners Manual

    INTELLIGENT Power Supply / Charger OWNERS MANUAL KIPS12-45 KIPS12-60 KIPS12-80 Computer Controlled Charging System The Intelligent way to charge and maintain your vehicle’s battery. 45 AMP • 60 AMP • 80 AMP Constantly monitors the battery voltage and automatically selects one of four operating modes:...
  • Page 2 FEATURES INTELLIGENT CHARGING The Kinetik Intelligent Power Converter is the intelligent way to charge your Kinetik battery. The built-in microprocessor constantly monitors the battery voltage then automatically adjusts the converter output voltage to provide the proper charging voltage for fast recharges and long-term maintenance.

  • Page 3: General Information

    GENERAL INFORMATION Kinetik Intelligent 120 VAC to 12 VDC Power Converters are state-of-the-art electronic converters / battery chargers. Their compact size and quiet operation gives greater flexibility in selecting the mounting locaiton for either OEM installa- tion or after market replacement.

  • Page 4: General Operation

    The full rated load is available for load, battery charging or both. When functioning as a regulated battery charger, the Kinetik converters have a nominal voltage output of 13.6 VDC. The system was designed to sense voltage on the battery and automatically selects one of 4 operating modes (normal, boost, storage and desulfation/equalization) to provide the correct charge level to the batteries.

  • Page 5: Installation Instructions

    NOTICE: Kinetik Intelligent Power Converters are not designed for zero clear- ance compartments. Unobstructed ventilation is required. ATTENTION 1.

  • Page 6: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE PROBLEM POSSIBLE CAUSES ACTION 1. No Output 120 VAC supply not con- Connect power supply nected Check AC distribution panel for proper operation External Fuses Blown Check for Reverse Polarity Replace Fuses with same type and rating Short Circuit Trace Circuits for possible fault...

  • Page 7: Input/Output Specifications

    INPUT/OUTPUT SPECIFICATIONS KINETIK KIPS12-45 KINETIK KIPS12-60 Input: 105-130 VAC 60 Hz 725 Watts Input: 105-130 VAC 60 Hz 1000 Watts Output: 13.6 VDC, 45 Amps Output: 13.6 VDC, 60 Amps Dimensions: 4.5H x 8.625L x 7.25W Dimensions: 3.6H x 9.15L x 9W Weight: 5.8lbs...
  • Page 8 Upon determation that a warranty claim exists (a defect in material or workmanship occur- ring under normal use and service,) the power converter shall be shipped postage prepaid to Kinetik together with proof of purchase. The power converter will be repaired or replaced and returned postage prepaid.

This manual is also suitable for:

Kips12-60Kips12-80
