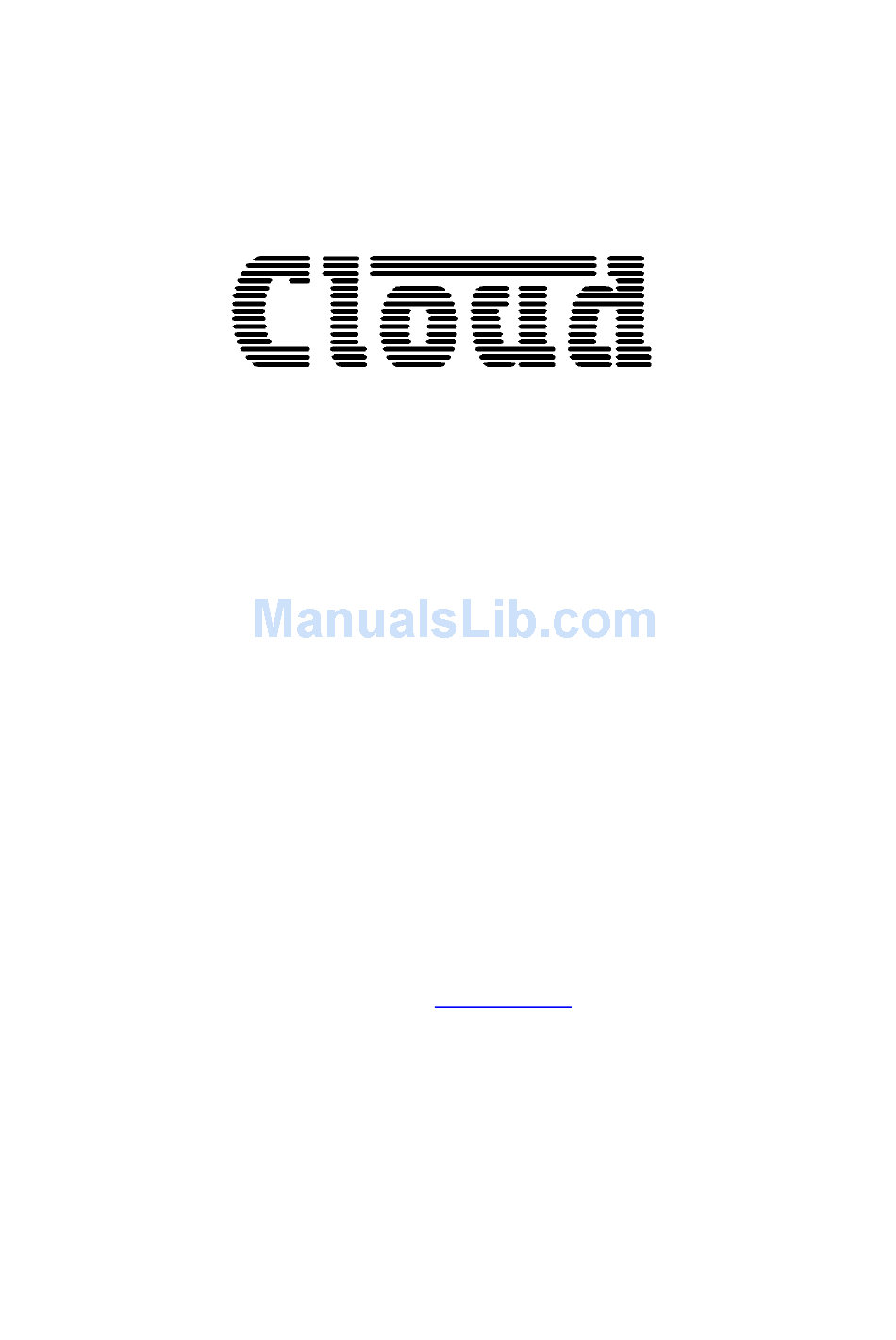

- Page 1 CX335 Installation and Operation Manual V3.0 Cloud Electronics Limited 140 Staniforth Road, Sheffield, S9 3HF England Tel + 44 (0) 114 244 7051 Fax + 44 (0) 114 242 5462 E-mail info@cloud.co.uk Web site http://www.cloud.co.uk...
-
Page 2: Table Of Contents
CX335: Installation and Operation Manual Page 1 CX335 STEREO COMPRESSOR LIMITER Installation and Operation Manual CONTENTS Section Page ..................3 Safety Notes ..................3 ‘Quick Start’ ............3 Soft Knee, Normal Envelope ............4 Hard Knee, Normal Envelope .................5 Intelligent Limiting .............5 Soft Knee, Slow Envelope ............6... -
Page 3: Section Page
Page 2 CX335: Installation and Operation Manual CONTENTS (Cont..) Section Page ..............12 Gain Reduction Meter ............12 Output Level Meter Displays ..................12 Operation ..............13 Technical Specification ..............13 General Specification 15-07-02 V3... -
Page 4: Safety Notes
CX335: Installation and Operation Manual Page 3 Safety Notes • Do not expose the unit to water or moisture • Do not expose the unit to naked flames. • Do not block or restrict any air vent • Do not operate the unit in ambient temperatures above 35 •... -
Page 5: Hard Knee, Normal Envelope
The ‘Peak’ control operates independently from the compressor/limiter section of the CX335. It has the advantage of allowing the user to directly set an absolute limit on the maximum output level, however it has the disadvantage of not sounding as transparent as the compressor. -
Page 6: Intelligent Limiting
20:1 or higher if you require compression and limiting. With normal programme level running through the CX335, rotate the gain control so that the output level on the left and right channel VU meters measures about the same in bypass mode as it does with the compressor operational. -
Page 7: Hard Knee, Slow Envelope
'Instant-attack' peak limiter, accurate and informative metering, and remote control of the compressor side chain. The CX335 may be used in either balanced or unbalanced systems with no internal re- configuring. Because the CX335 compressor offers a choice of traditional hard-knee, ratio style compression or soft-knee compression, it is equally adept at creative work and unobtrusive level control. -
Page 8: Installation
Another feature of the CX335 is a highly effective peak limiter that allows the user to set an absolute output level that can never be exceeded. This facility is extremely valuable for speaker driver protection. -
Page 9: Compressors And Limiters Explained
Page 8 CX335: Installation and Operation Manual VIEW INSIDE CX335 SHOWING POSITION OF VOLTAGE SELECTION LINKS FIT ONE FIT TWO TRANSFORMER TRANSFORMER LINK FOR LINKS FOR 220/240 110/120 VOLTS VOLTS OPERATION OPERATION 1: Disconnect the unit from the mains. 2: Using a number 2 size pozidrive screwdriver, remove the six self-tapping screws retaining the top panel of the unit. -
Page 10: What Is Hard-Knee And Soft-Knee
Soft-knee gradually changes the ratio as the signal rises above the threshold setting. On the CX335 this change takes place for as much as 10dBs, so the selected ratio is only reached once the signal is 10dB above the threshold setting. This changing ratio is far more musical and disguises the fact that any manipulation of the dynamic range is taking place. -
Page 11: Gain Requirements
This compressor limiter section should not be confused with the Peak limiter in the CX335. This is intended to be used as a system failsafe for any high peaks that are still quite high even after some compression has occurred. -
Page 12: Knee Switch
CX335: Installation and Operation Manual Page 11 threshold for periods of a second or more. If this switch is depressed it is strongly advised that the peak limiter should be used as an additional tool to restrain very loud and quick dynamic peaks. - Page 13 The integral soft-knee feature of the CX335 renders these effects far less pronounced, but this factor should still be taken into consideration when setting up. Although, with the CX335 a higher compression ratio may be used than that of conventional compressors without compromising the sound quality.
-
Page 14: Technical Specifications
CX335: Installation and Operation Manual Page 13 and set the ratio to its lowest setting of 1.2:1 although we do not recommend using the peak limiter without the support of the compressor section. Technical Specifications INPUT IMPEDANCE 10kΩ MAXIMUM INPUT LEVEL... - Page 15 Only reassemble the unit using bolts/screws identical to the original parts. In the interest of continuing improvements Cloud Electronics Limited reserves the right to alter specifications without prior notice. Cloud Electronics Limited 140 Staniforth Road Sheffield S9 3HF England Telephone +44 (0) 114 244 7051 Fax +44 (0) 114 242 5462 E-mail: Info@cloud.co.uk...
