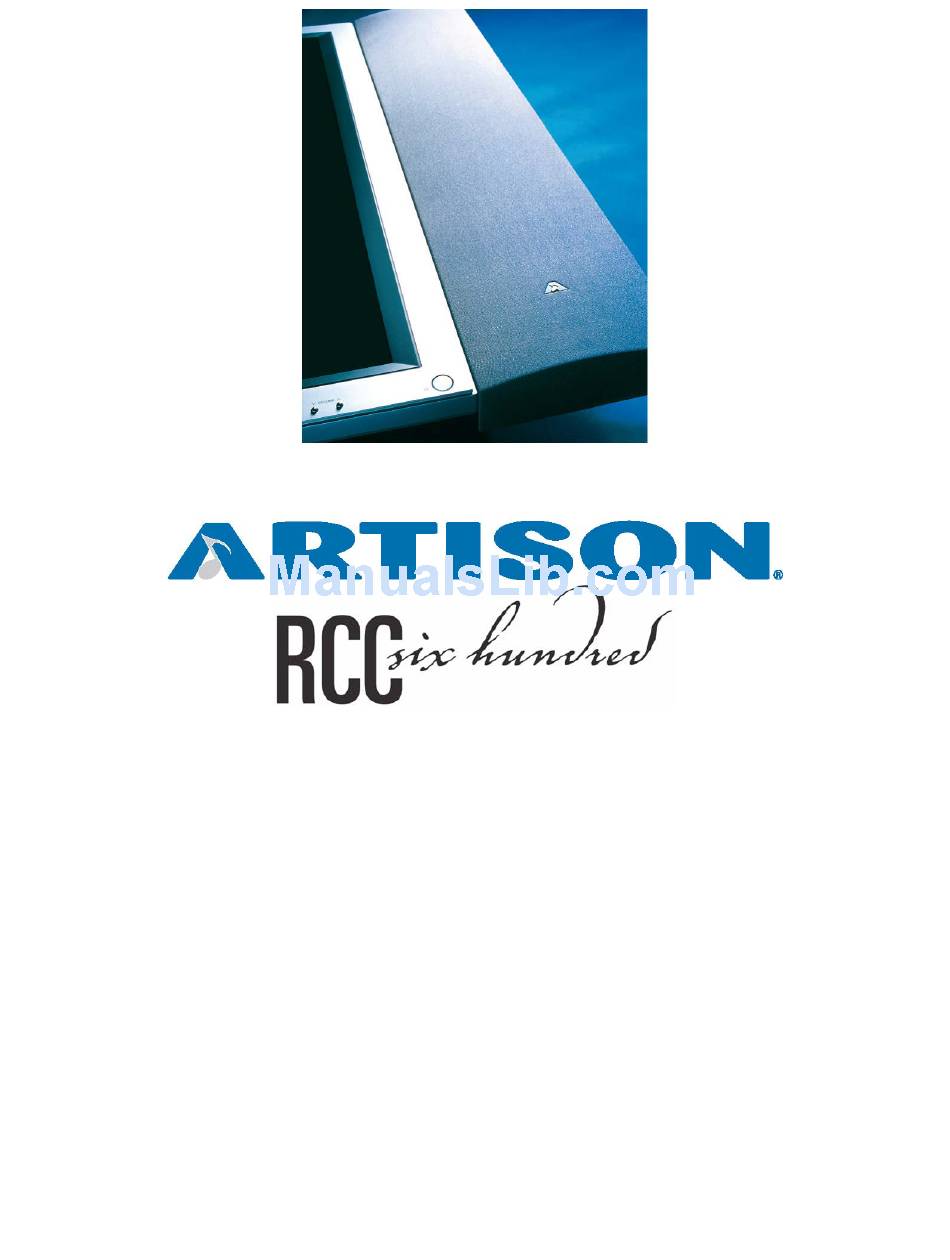

Page 1: Installation Guide
INSTALLATION GUIDE RCC600-SM Subwoofer Module RCC600-SA Subwoofer Amplifier... - Page 3 INTRODUCTION The following information will guide you through the installation and setup of your Artison RCC 600 Subwoofer Module and RCC 600 Subwoofer Amplifier. Your RCC600-SM carton should contain the following: 1 .
- Page 4 VOID your Warranty. The minimum mounting depth for the RCC600-SM is 3¾” (95.5 mm), i.e. a 2x4 stud is 3½” deep add ¼”, ½” or ⅝” thick drywall and the RCC600-SM will fit. The maximum drywall thickness the RCC600-SM can be mounted in is 1.3125”...
- Page 5 Allen Head wrench. 6. The grille for the RCC600-SM is held in place by magnets. Simply position the grille on the front of the module into the recessed area. See Figure 2. 7. Remove the paint-shield from the front of the RCC600-SM after the installation has been...
- Page 6 FIGURE 1 FIGURE 2...
- Page 7 IR codes. The remote included with your unit can be downloaded into a learning remote or HEX Codes are available on the Artison Web site. The Front Panel of the RCC600-SA has an IR Receiver and there is a second hard wired feed thru jack that can be connected to an integrated control system on the rear panel.
- Page 8 RCC600-SA FRONT PANEL CONTROLS GAIN – The position of this knob controls the overall gain (volume) of the subwoofer. Press this button in and it will spring out into a rotating knob, press it back in to hide it. The front panel gain control will become the master gain control until the remote is used.
-
Page 9: Audio Outputs
AUDIO OUTPUTS 1. Connect the speaker wires to the Binding Posts. NOTE: Red is Positive and Black is Negative. 2. Use either Bare Speaker Wire Ends or Banana Plugs to terminate the speaker wire. AUDIO INPUTS 1. Connect to either the Balanced Female XLR or Unbalanced Female RCA Inputs. NOTE: Both inputs have been calibrated to the same sensitivity level. -
Page 10: Power Modes
CLOSED BOX – The RCC 600 Subwoofer Module is installed in an Artison Pre-Build Box. IMPORTANT: In an installation of two RCC600-SM’s that are being powered by one RCC600-SA, both Subwoofer Modules need to be in either Pre-Build Boxes or be in Infinite Baffles. - Page 11 The ARMC program was designed to send a series of tones thru the RCC600-SM and then analyze the system response at the microphone position. The program then reduces the level of the frequency bands that have energy peaks caused by the room modes.
- Page 12 Be sure that the amplifier has adequate ventilation. If the situation continues to exist contact Artison. 4. Calibrate Button – Place the supplied microphone in the desired listening position and plug it into the AUTO EQ MIC input jack. Press the button for a few seconds to initiate...
-
Page 13: Limited Warranty
Department), 774 Mays Blvd., Suite 10-183, Incline Village, NV 89451. We will promptly advise you of what action to take. We may direct you to an authorized Artison Service Center or ask you to send your speaker to the factory for repair. You will need to present the original bill of sale to establish the date of purchase.
