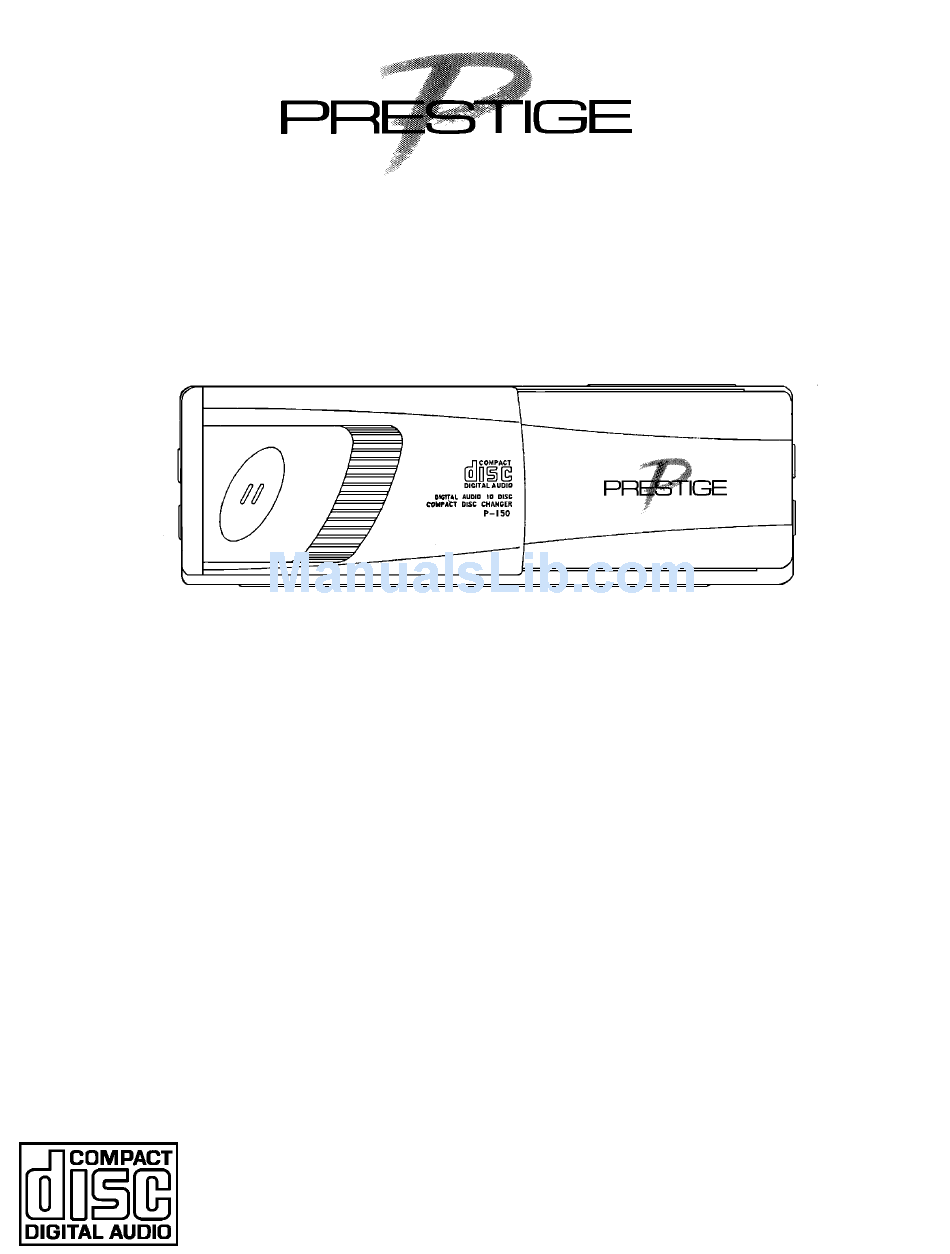

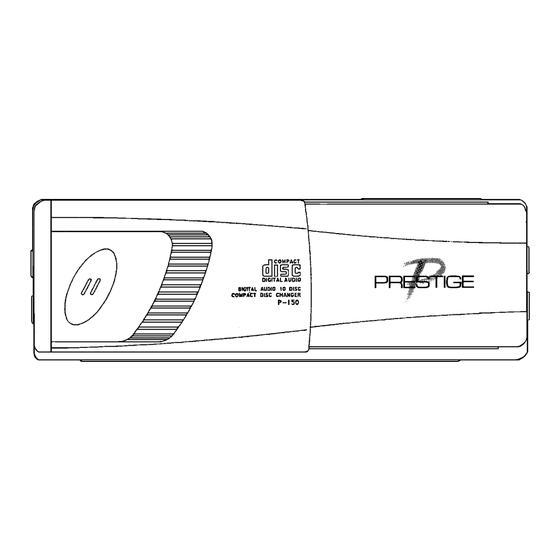

  • Page 1 AUDIOVOX INSTALLATION MANUAL COMPACT DISC CHANGER SYSTEM MODEL P-150...

  • Page 2: Packing List

    PACKING LIST MAIN UNIT Changer INSTALLATION PARTS Bracket (L) Bracket (R) Hexagonal bolt with washer 5 Meter Din Cable (M5 x 10) 1 pc. 1 pc. 4 pcs. 1 pc. Self-tapping screw Seals (A) Seals (B) (M5 x 12) 4 pcs. 1 pc.
  • Page 3 BEFORE INSTALLING THE UNIT Transport Lock Screws The mechanism in the CD changer is "locked" into place during shipment by the transport screws. Be sure to remove the screws prior to installation. Caution After removing the transport lock screws, place the supplied seals (A) over the screw holes.
  • Page 4 INSTALLATION The unit can be installed horizontally, vertically or at a 45° angle. The position of the built-in anti-vibration springs (left and right side), must correspond to the mounting position chosen. If the springs are not set correctly for the type of installation chosen, the anti-vibration compensation will not be effective and vibration may cause the disc to skip.
  • Page 5 PROCEDURE FOR VERTICAL INSTALLATION Note If the anti-vibration spring position has been changed and verified for vertical mounting (as shown on page 3), start with step 2. Set the 4 anti-vibration springs to position "V". Attach bracket (L) and bracket (R) to each side of the unit, using the hexagonal bolts with washer base (M5 x 8).
  • Page 6 PROCEDURE FOR 45° ANGLE INSTALLATION Note If the anti-vibration spring position has been changed and verified for 45° angle mounting (as shown on page 3), start with step 2. Set the 4 anti-vibration springs to position "45°". Attach bracket (L) and bracket (R) to each side of the unit, using the hexagonal bolts with washer base (M5 x 8).
  • Page 7 VEHICLE WIRING Mating 8-pin DIN socket on rear of compatible radio chassis (see note 1 below). Car Stereo with CD Changer Controls CD changer NOTE: 1. Check with your Prestige car audio dealer to be sure your stereo is directly compatible with this CD changer.
  • Page 8 © 1997 AUDIOVOX CORP., HAUPPAUGE, N.Y Printed in Korea Form No. 128-5203...
