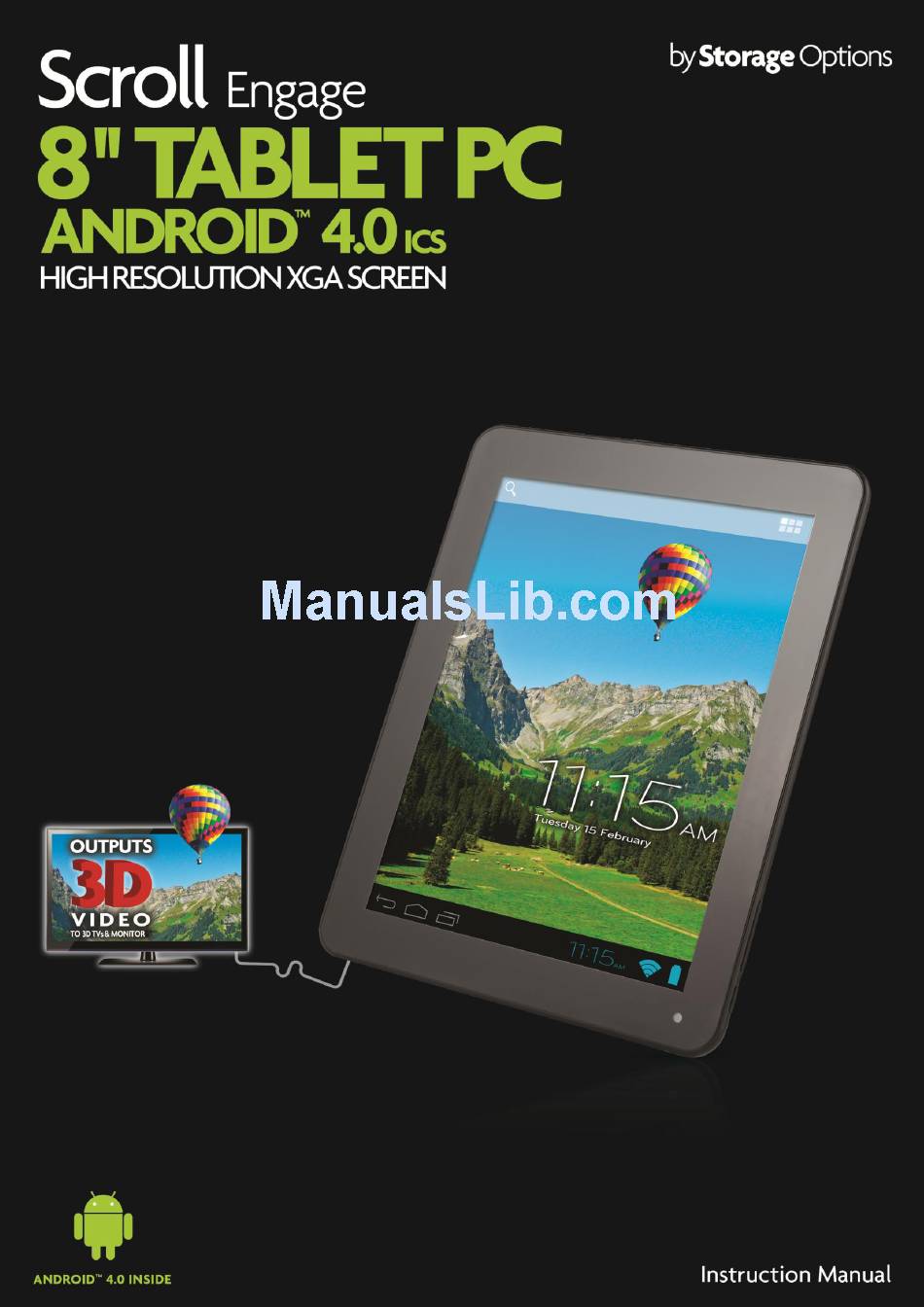

Storage Options Scroll Engage Manual

8" tablet pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Storage Options Scroll Engage

Summary of Contents for Storage Options Scroll Engage

  • Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER. NO USER SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of non- insulated “dangerous voltage”...
  • Page 3 IMPORTANT SAFEGUARD All lead-free products offered by the company comply with the requirements of the European law of the Restriction of Hazardous Substances (RoHS) directive, which means our manufacturing processes and products are strictly “lead-free” and without the hazardous substances cited in the directive. The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product’s end-of-life.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS QUICK START GUIDE OVERVIEW CONVENTIONS USED IN THIS MANUAL PURPOSE OF THIS MANUAL PACKAGE CONTENTS BASIC OPERATION 6.1 – Buttons & Connections 6.2 – Power On / Off 6.3 – Using The Touch Screen 6.4 – Unlock The Screen 6.5 –...
  • Page 5 TABLE OF CONTENTS (CONTINUED) WEB BROWSER VIDEO PLAYBACK 14.1 – Playback On Scroll 14.2 – Play 3D Content On Your HDTV 7DIGITAL MUSIC SERVICE WILD TANGENT GAMES SERVICE BUILT-IN CAMERAS MEMORY EXPANSION WITH MICRO SD CARD CONNECT TO A COMPUTER PRODUCT SPECIFICATION...

  • Page 6: Quick Start Guide

    As a powerful media player the Scroll Engage can support rich, Flash based content, all major video and eBook formats, 3D gaming and much more. The sleek, lightweight design is perfect for use on the move and with a 1024 x 768 high resolution XGA screen you can view your content anywhere in high quality.

  • Page 7: Conventions Used In This Manual

    Important cautions and warnings are highlighted in red. PURPOSE OF THIS MANUAL This manual is intended to give you a quick overview of the Scroll Engage hardware and very basic functionality of the Android 4.0 operating system. It does not feature in-depth instructions for Android 4.0.

  • Page 8: Basic Operation

    BASIC OPERATION The Scroll Engage has five physical buttons. Most other control is performed via the touch screen. 6.1 – BUTTONS & CONNECTIONS PHYSICAL BUTTON LABEL USAGE DESCRIPTION Power Hold Hold to power on / off the tablet Escape Short press...

  • Page 9: Power On / Off

    6.4 – UNLOCK THE SCREEN Scroll Engage operates in a similar manner to a touch-screen mobile phone. When it is first powered on, the Android operating system will boot, then you will be presented with a locked screen.

  • Page 10: Charge The Battery

    CHARGE THE BATTERY It is recommended to fully charge Scroll Engage overnight before first use. This will help prolong the useful life of the built-in battery. To charge the battery:  Insert the mains charger plug into the 5V DC socket (located to the left of the HDMI socket) on Scroll Engage.

  • Page 11: Home Screen

    HOME SCREEN The Home screen will look similar to the picture below. It is actually five screens, each of which can have a different layout of icons. To switch between screens, simply slide your finger left or right across the display. The status bar and navigation buttons are always visible, no matter which Home screen you are currently viewing.

  • Page 12: Display Orientation

    Some applications will lock screen orientation. Normal rotation functionality will resume once the NOTE application is closed. Automatic screen rotation can be switched off, which is useful if you would prefer to use Scroll Engage exclusively in landscape mode. To switch off automatic rotation: 1.

  • Page 13: Settings Menu

    SETTINGS MENU The Settings menu allows you to adjust Scroll Engage’s system configuration. To change settings: 1. Touch the Settings menu icon on the Applications menu. The Settings menu will open. 2. Glide your finger up or down the left side of the screen to scroll through the list of available categories.

  • Page 14: Network Connectivity

    The vast majority of applications support some kind of networking / Internet functionality. There are two ways to connect to the Internet using Scroll Engage; either through your wireless router (access point) or by plugging in a 3G network dongle.

  • Page 15: Connect To A 3G Network

    If your 3G dongle has a full-size USB connection, you will need to use the supplied Micro USB On-The-Go (OTG) cable to adapt it for use with Scroll Engage. Plug your 3G dongle into the large socket on the OTG cable, then plug the OTG cable into the USB Host port on Scroll Engage.

  • Page 16: Applications

    APPLICATIONS Scroll Engage supports a wide variety of applications. A small selection is pre-installed on the tablet and available from the applications menu, but many more can be downloaded from various websites. 12.1 – THE APPLICATIONS MENU To open the Applications menu, touch the icon at the top right of the Home screen.

  • Page 17: Applications & Widgets

    Widgets:  Widgets give enhanced functionality to Scroll Engage’s desktop by providing live updates such as news headlines, e-mail notifications, current time, and more.  Some widgets are preinstalled, and others are installed along with their application counterparts.

  • Page 18: Pre-Loaded Applications

    12.5 – PRE-LOADED APPLICATIONS Scroll Engage has several applications which are pre-loaded onto the internal memory. You will need to install them before you can use them. To install the preloaded applications: 1. From the applications menu, touch the “Scroll Apps” icon. “Easy Installer” will load and a list of preloaded apps will appear on screen.

  • Page 19: Add A Shortcut To The Desktop

    12.8 – ADD A SHORTCUT TO THE DESKTOP You can add shortcuts onto the desktop for quick access to your favourite applications. Shortcuts can be placed anywhere on the desktop grid, so you can organise them in whichever manner you like. To place a shortcut on the desktop: 1.

  • Page 20: Web Browser

    WEB BROWSER Scroll Engage has a built-in browser which can be used to browse the World Wide Web, in the same way you would use a browser on a desktop computer or laptop. To use the browser: 1. Touch the “Browser” icon on the Applications menu. The browser will open.

  • Page 21: Video Playback

    VIDEO PLAYBACK Scroll Engage is a powerful portable media player. The “Gallery” application can play video and display photos that are stored on either internal memory or a Micro SD card. To use the Gallery: 1. Touch the “Gallery” icon on the Applications menu. The Gallery application will open.

  • Page 22: Play 3D Content On Your Hdtv

    3. Scroll Engage will automatically detect the HDMI connection and display an image on your TV screen. Scroll Engage supports 3D video playback on a compatible 3D HDTV. Simply play your 3D video in the same way you would play 2D video, and on your 3D HDTV select the appropriate 3D mode (left/right or top/bottom, see examples below).

  • Page 23: 7Digital Music Service

    7digital is a digital music content delivery and management application. With over 17 million tracks available in MP3 format from all major labels, 7digital has something for everyone. The 7digital application is pre-loaded on Scroll Engage. See section “12.5 – Pre-Loaded Applications” (page 18) for instructions on how to install.

  • Page 24: Wild Tangent Games Service

    WILD TANGENT GAMES SERVICE WildTangent provides a gaming service for Scroll Engage where users can trial, rent or own top games, based on WildCoins. WildCoins are a digital currency which can be purchased in packs or as a subscription. Users can also play for free in exchange for viewing an advert from a brand advertiser.

  • Page 25: Built-In Cameras

    BUILT-IN CAMERAS The Camera application lets you take photographs and record video clips using the built-in cameras.  Launch the “Camera” application from the Applications menu by touching the Camera icon:  Touch to switch between the front and rear cameras. ...

  • Page 26: Memory Expansion With Micro Sd Card

    The best way to use a Micro SD card is to treat it as media storage; transfer media files (videos, music and photos) from your computer to your Micro SD card in the usual manner, then insert it into Scroll Engage as shown: To insert and use a Micro SD card: 1.

  • Page 27: Connect To A Computer

    Scroll Engage can be connected to a computer running Microsoft Windows for file transfer via USB cable. To connect to a computer: 1. Using the supplied USB cable, plug the micro USB connector into Scroll Engage’s USB socket, and plug the full-size USB plug into an available USB socket on your computer.

  • Page 28: Product Specification

    PRODUCT SPECIFICATION Scroll Engage Hardware Unit Size (mm): 200 x 153 x 10 Unit Weight: 395g CPU: Cortex 1.2GHz GPU: Dual Mali 400 graphics processor RAM: 1 GB Built-in Storage: 8 GB Storage Expansion: Micro SD card, up to 32 GB Display: 8”...
  • Page 29 NOTES...
  • Page 30 NOTES...
  • Page 31 NOTES...
