Summary of Contents for Talos Security WASPIR01

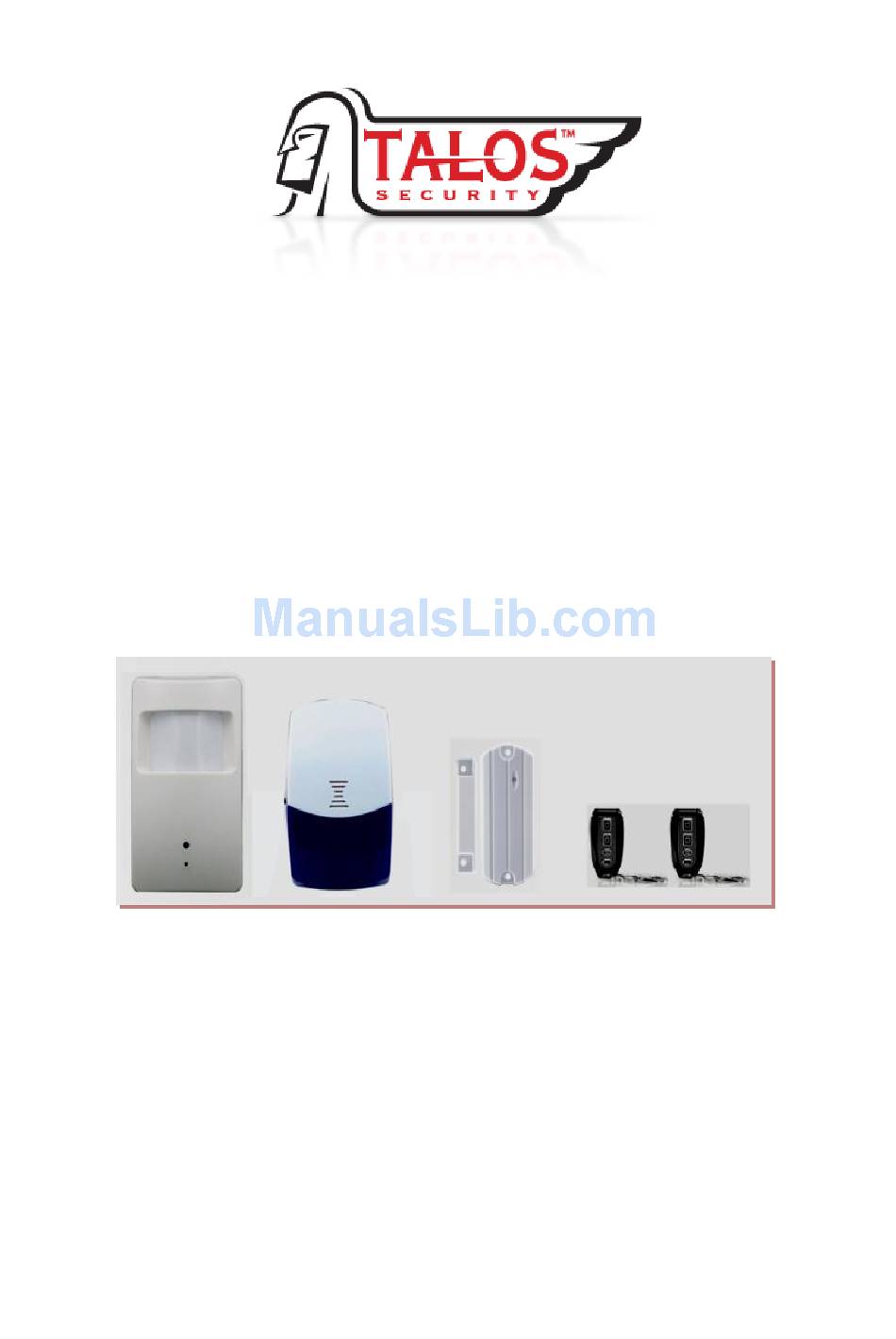

- Page 1 Talos Security WASPIR01 Wireless DVR PIR Alarm System...
-
Page 2: Table Of Contents
CONTENTS Introduction ------------------------------------------------------------------------------ Features------------------------------------------------------------------------------------------3 III. Product Overview-----------------------------------------------------------------------------4 Technical parameters-----------------------------------------------------------------------4 Recommended Scan------------------------------------------------------------------------4 Time and date set up------------------------------------------------------------------------5 Installation--------------------------------------------------------------------------------------5 Turn on and Start:----------------------------------------------------------------------------5 Arm operation---------------------------------------------------------------------------------5 Disarm operation-----------------------------------------------------------------------------5 Automatic recording-------------------------------------------------------------------------5 Emergency Alarm-----------------------------------------------------------------------------5 Recording Indication------------------------------------------------------------------------5 Playback of recorded video---------------------------------------------------------------6 Adding wireless accessories-------------------------------------------------------------6 Removing wireless accessories---------------------------------------------------------6 Wireless Remote Controller----------------------------------------------------------------6 Features------------------------------------------------------------------------------------------6 Technical Parameters------------------------------------------------------------------------6... -
Page 3: I. Introduction
I. Introduction: This product is suitable to work with alarm system .It’s a new hi-tech product which can automatically take and save audios and videos of the area where alarm events occur. Helpful for evidence obtain. It has a wide application range such as home, office, hotel, market place, store, villa, museum and warehouse etc. -
Page 4: Iii. Product Overview
III. Product Overview: 1. Technical parameters: ● Power Input：100~240VAC 50HZ/60HZ ● Backup Battery：3.7V rechargeable Lithium battery ● PIR Detector：Wide-Angle 100°8 * 8 m ● Static Current：< 60mA Working Current：< 110mA ● Wireless Frequency：433/860MHz（optional） ● Backup Battery Working Time：≤ 3 Hours ●... -
Page 5: Installation
4. Installation: Fix the attached bracket on the proper position of the wall. (1.8~2.5M height from the floor is suggested). Connect the Output terminal to the power input port of the motion sensor, put the motion sensor onto the mounting bracket and adjust the tilt for proper detecting and recording angle. 5. -
Page 6: Adding Wireless Accessories
1. When reviewing video files no other operation can be performed. 2. Install a supported video player, such as Storm Player, Kmplayer, Mplayer etc…. 3. You will need to set the time according to the instructions every time before you remove the alarm from the computer. -
Page 7: V. Wireless Door Magnetic Sensor
V. Wireless Door Magnetic Sensor 1. Features 1.1 Monitoring any door and window condition 1.2 Emitting alarm signal to alarm host once the door and window was open. 2. Technical Parameters ： 2.1 Working Power: alkalinity 12V 23A battery 2.2 Emitting distance: ≥ 150m 2.3 Battery life: ≤... -
Page 8: Vii. Cautions
4.3 Press the emitting button on the back of PIR/DVR detector twice consecutively. 4.4 The siren will flash 5 times if the connection is successful. 4.5 If the connection fails, please repeat above steps. 5. Cancel connection from alarm host 5.1 Keep pressing the study button for 5 seconds then release.
