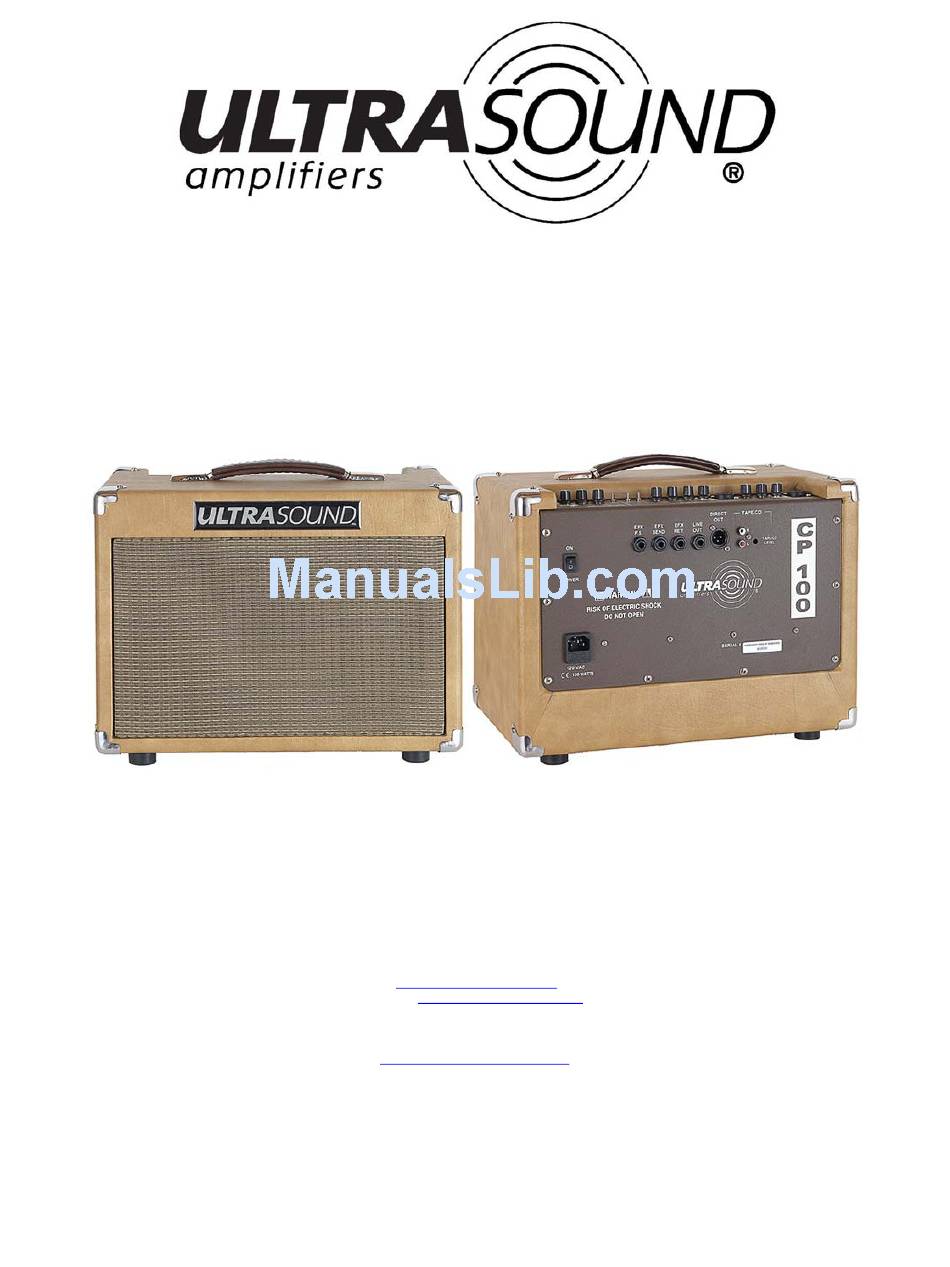

CP-100
OPERATING GUIDE
ULTRASOUND AMPLIFIERS
2150 Delavan Drive, STE # 11
WEST DES MOINES, IA 50265
PHONE: 515-282-1650
FAX: 515-282-1680
www.UltraSoundAmps.com
E-MAIL:
Info@UltraSoundAmps.com
CUSTOMER / TECHNICAL SUPPORT:
E-MAIL:
Support@UltraSoundAmps.com
TOLL FREE 1-888-993-5091

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Ultrasound CP-100

Summary of Contents for Ultrasound CP-100

  • Page 1 CP-100 OPERATING GUIDE ULTRASOUND AMPLIFIERS 2150 Delavan Drive, STE # 11 WEST DES MOINES, IA 50265 PHONE: 515-282-1650 FAX: 515-282-1680 www.UltraSoundAmps.com E-MAIL: Info@UltraSoundAmps.com CUSTOMER / TECHNICAL SUPPORT: E-MAIL: Support@UltraSoundAmps.com TOLL FREE 1-888-993-5091...
  • Page 2 CP-100 FRONT PANEL CHANNEL-1 INPUT-1: This combo input is designed for both MIC level (XLR) (XLR input provides Phantom power**) or Instrument level (¼”) signals. (The ¼” TRS input jack is suited for equipment such as high-impedance microphones, Tip/Ring/Sleeve keyboards and drum machines. It accepts both balanced and unbalanced inputs) (Channel-1 is designed as a generic “flat response”...
  • Page 3 CP-100 BACK PANEL AC INPUT: Connect the female end of the AC line cord here. Connect the male plug to a suitable source of line voltage. Refer to the voltage information on the back of the amplifier for its voltage and current requirements. This connector also acts as the main fuse holder and includes a compartment for a spare fuse.
  • Page 4 CP-100 SPECIFICATIONS: • Input Impedance: CH-1 – 22K (Instrument) CH-2 - 1 Meg (Instrument) CH-1& 2 – 2.2K (MIC) Sensitivity: 150MV to 6V • EQ: (Active) Bass: +/- 12db @ 150HZ Treble: +/- 12db @ 5kHZ • Shape +5db @ 3kHZ...
  • Page 5 Digital EFX Program List 1. Room 3: Warm room reverb. 2. Plate 1: Classic plate reverb. 3. Bypass: No Effect 4. Rotary Speaker: Rotary speaker emulation. 5. Chorus/Room 1: Chorus with reverb. 6. Chorus/Room 2: Auto-wah guitar effect with reverb. 7.

  • Page 6: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electric products, basic cautions should always be followed, including the following: 1. Read all safety and operating instructions before using this product. 2. All safety and operating instructions should be retained for future reference. 3.
