CyberPower CPS175SU User Manual

AC Mobile Power Inverter
CPS175SU User Guide
Important Safety Information
Before installing and using the CyberPower CPS175SU Mobile
Power Inverter please read and follow these safety instructions:
• Do not operate the CPS175SU near flammable materials, fumes, or
gases.
• Always use the inverter where there is adequate ventilation. Do not
obstruct the ventilation slots.
• Never immerse the unit in water.
• Proper cooling is essential when operating the inverter. Refrain
from placing the inverter near the vehicle's heat vent, or in direct
sunlight.
• Always turn the inverter off when not in use by removing it from the
DC accessory socket.
• Check the warning labels on battery chargers or adapters before
connecting them to the inverter. Do not connect battery chargers or
adapters with warnings about using with inverters.
Package Contents
• AC Mobile Power Inverter
• Product Registration Card
• User Guide

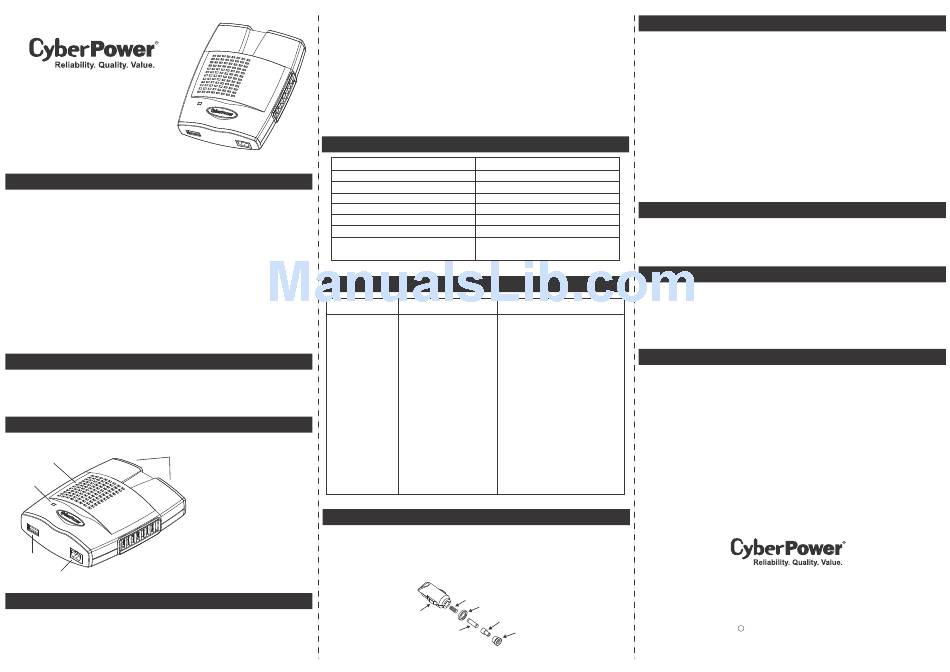

Product Features
1
5
4
3
2
Operating and Storage Tips
Operating Tips
The inverter should only be operated under the following conditions:
• Dry - Do not allow water or other liquids to come into contact with
the inverter.
• Moderate Temperature - Ambient air temperature should be between
32 o F - 86 o F (0
• Free Air Flow - Keep the inverter's ventilation slots unobstructed to
ensure air flow to the unit. Do not place any items on or over the
inverter during operation. The unit will shut down if it overheats.
Storage Tips
• Proper storage temperature range is 50
• Store and use the inverter in a cool and dry environment.
• Avoid exposing the inverter to heating elements, direct sunlight, or
high humidity.
Specifications
Input Voltage
Output Peak Power
Output Continuous Power
Output Voltage
Output Frequency
USB Voltage
Output Waveform
Protection Features
Troubleshooting
Problem
No AC output power
Fuse Replacement
1. 120V AC outlet 1. Unplug the inverter from the DC power outlet.
2. Unscrew the contact retainer at the end of the power plug.
2. 12VDC Inlet
3. Replace the 15 amp fuse.
3. USB charging port
4. Reassemble unit by reversing the instructions above.
4. Power LED
5. Cooling Fan
o C - 30 o C). Keep the inverter out of direct sunlight.
F - 85 F (10 C - 28
o o o
10.5 to 15.5 volts
175 Watts
150 Watts
120 Volts
60 Hz
5Vdc
Simulated Sine Wave
Low Voltage, Overheat,
Overload, Short Circuit
Possible Cause Suggested Solutions
Poor contact with DC power Ensure the inverter is securely
outlet. plugged into vehicle's DC power
outlet. Replace the DC power outlet if
necessary.
Automotive electrical Turn the vehicle ignition to the
system requires ignition to "Accessory" position.
be on.
Car's DC power outlet fuse Check the vehicle fuse panel and
is blown. replace the damaged fuse.
Over-heating. Allow inverter to cool. Ensure that
there is adequate ventilation around
the unit and load does not exceed the
unit's Continuous Power rating (see
specifications).
Vehicle's battery voltage is Unplug the inverter and start the
below 10.5 volts. vehicle to charge the battery.
Vehicle's battery input Check your vehicle's user guide for
voltage is higher than 15.5 troubleshooting.
volts.
Inverter is overloaded. Ensure load does not exceed the
unit's Continuous Power rating (see
specifications).
Spring
Ring
12V power plug
Contact Pin
15A Fuse
Contact Retainer
Limited Warranty
CyberPower warrants this CPS175SU (the "Inverter") to be free from material and
manufacturing defects for two years. If a defect results in product failure during its normal
use, CyberPower's sole responsibility is to repair or replace (at its sole option) the Inverter.
The foregoing Limited Warranty is the consumer's sole and exclusive remedy and excludes
any incidental or consequential damages. Some States do not allow the exclusion or
limitation of incidental and consequential damages, so certain of the above limitations or
exclusions may not apply to you (the Consumer). This limited warranty gives the Consumer
C)
o
specific legal rights and the Consumer may have other rights, which vary from State to State.
To make a Limited Warranty claim:
1. Pack and ship the Inverter to CyberPower at 4241 12
55379.
2. Clearly indicate on the outside of the packaging that this is a "WARRANTY RETURN"
3. Clearly include your name and address (a) on the outside packaging and (b) on a sheet
of paper enclosed in the box with the Inverter that is being returned.
4. You MUST prepay all shipping costs and you are responsible for packaging and
shipment.
CAUTION: Any changes or modifications not expressly approved by the guarantee of this
device could void the user's authority to operate the equipment.
This Warranty is provided by:
Cyber Power Systems (USA), Inc.
4241 12th Avenue East, Suite 400, Shakopee, MN 55379, U.S.A.
Product Registration
Thank you for purchasing a CyberPower product. Prompt product registration entitles
coverage under the Limited Warranty and Connected Equipment Guarantee, and also allows
the opportunity to be notified of product enhancements, upgrades, and other
announcements.
Registration is quick and easy at www.cpsww.com/register
Technical Support
Feel free to contact our Tech Support department with installation, troubleshooting, or
general product questions.
CyberPower Technical Support
Phone: 1-877-297-6937
Email: tech@cpsww.com
Web: www.CPSww.com
Mail: 4241 12th Avenue E, Suite 400 Shakopee, MN 55379
Hours of Operation: Monday – Friday, 8:00am – 5:00pm (CST)
Legal notices (FCC Part 15)
This equipment has been tested and found to comply with the limits for a Class B Digital
Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
(1) Reorient or relocate the receiving antenna. (2) Increase the separation between the
equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected. (4) Consult the dealer or an experienced radio/TV
technician for help. Any special accessories needed for compliance must be specified in
the instruction.
CAUTION: A shielded-type power cord is required in order to meet FCC emission limits and
also to prevent interference to the nearby radio and television reception. It is essential that
only the supplied power cord be used. Use only shielded cables to connect I/O devices to
this equipment.
