IMPORTANT INFORMATION REQUIRED BY THE FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1)this device may not cause harmful interference; and (2) this device must accept
any interference received, including interference that may cause undesirable operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation .
This equipment generates.uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio elevation
reception, which can be determined by turning the equipment off and on. The user is encouraged
to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
* Consult the dealer or an experienced radio/TV technician for help.
PDF created with FinePrint pdfFactory trial version
http://www.pdffactory.com

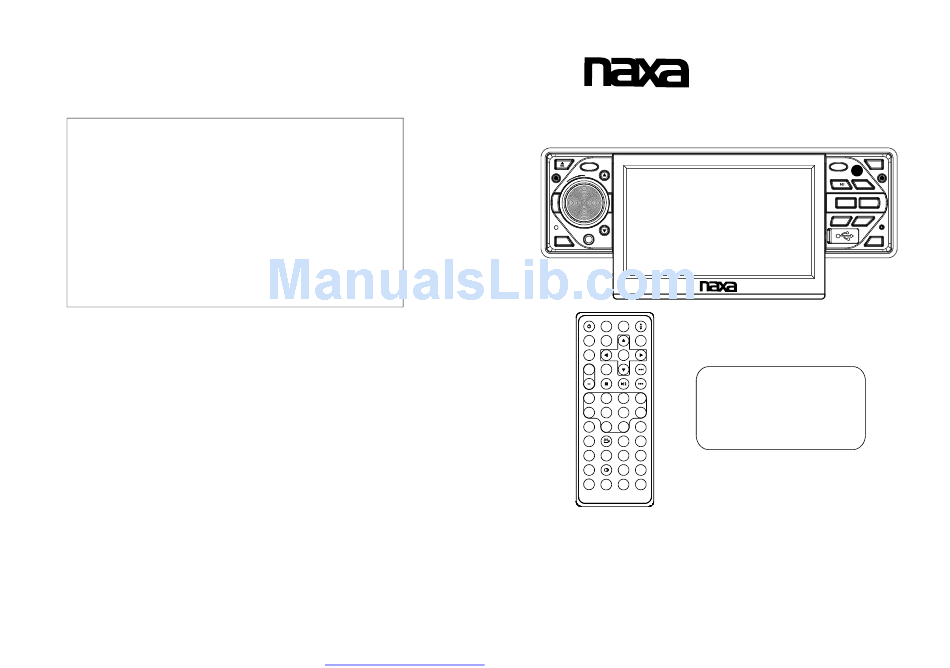

INSTRUCTION MANUAL
BND
UP
VOL
+
_
EQ
M
O
D
4.3" TFT
SEL
MUTE
DN
PWR
AUX
PWR
P/N
EQ
BAND
MU
MODE
MENU
SEL
0K
+
SETUP
Fully Compatible to These
1
2
3
4
-10
+10
Formats of Files:DVD,MP4,
5
6
7
8
9
0/10
10+
CLK
VCD,JPEG,MP3,WMA,CD.
SLOW_FWD
ST
LOC
SEARCH
APS
ZOOM
INT
RPT
RDM
AUDIO
TITLE/PBC
SUBTITLE
A-B
PROG
OSD
LOUD
STEP
"
4.3
Touch Screen LCD Display
Motorized Slide Down Full Detachable
PLL Electronic Tuning Stereo, AM/FM Radio,
Multimedia Player with Aux-in Jack
Remark: Any information subject to change without further notice
NCD-687
NCD-687
ANG
APS
1/
2/INT
CLK
3/RPT
4/RDM
5/-10
6/+10
USB
RESET
REL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NCD-687 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Naxa NCD-687

Summary of Contents for Naxa NCD-687

  • Page 1 NCD-687 INSTRUCTION MANUAL IMPORTANT INFORMATION REQUIRED BY THE FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference; and (2) this device must accept any interference received, including interference that may cause undesirable operation.
  • Page 2 PRECAUTION WARNING: TO REDUCE THE CAUTION RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE RISK OF ELECTRIC SHOCK THIS APPLIANCE TO RAIN OR DO NOT OPEN MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

  • Page 3: Table Of Contents

    Contents 6. Specification 1. Before Operation...................3 1.1 Glossary....................3 General Specification 1.2 Precautions....................3 1.3 Maintenance and Cleaning of Discs............4 Power Supply Requirement..........DC 12V 1.4 Battery Information of the Remote Control..........4 Maximum Power Output....4 x 25W(measured at DC 14.4 V) 1.5 The Remote Control Description...............5 Dimensions(w x h x d)...........178 x 50 x 167mm 1.6 Description of the Face and Top Side of the Front Panel......6...

  • Page 4: Before Operation

    5. The Trouble Shooting 1. Before Operation Please read the user ’s manual carefully before usi ng the DVD player. If you have any troubles in using this player, try to solve the problems by the suggestions mentioned below. If you can 1.1 Glossary not remove the trouble af ter using all the suggestions, please contact the company or the technical service center authorized by us.

  • Page 5: Maintenance And Cleaning Of Discs

    1.3 Maintenance and Cleaning of Discs Disc Maintenance The Region Code 1. To keep the disc clean, andle the disc by its edge, do not touch the disc surface of the play side. Q: Not begin to playback but to display REGION ERROR after inserting disc into 2.

  • Page 6: The Remote Control Description

    1.5 The Remote Control Description It is for adjusting the hue of the video output. 1. TILT BUTTON SATURATION It is for adjusting the saturation of the video output. 2. MENU BUTTON SHARPNESS It is for adjusting the sharpness of the video output. 3.

  • Page 7: Description Of The Face And Top Side Of The Front Panel

    1.6 Description of the Face and Top Side of the Front Panel 4.24.2 LANGUAGE SETUP NCD-687 2/INT 3/RPT 4/RDM 4.3" TFT 5/-10 6/+10 M UTE R ESET OSD LANGUAGE This item is for selecting the language of the SYSTEM MENU and all operating prompt interface displayed during playback.

  • Page 8: Description Of The Rear Cabinet

    1.9 Description of the Rear Cabinet WHITE YELLOW BLACK BLACK Rear View Camera For the DVD System Menu, there are 6 setup pages in all. They display as follows: Audio Aux-In BLACK BLACK Video Aux-In BLACK BLACK AM/FM Antenna YELLOW 4.24.1 SYSTEM SETUP Reversal line White Ground(-)/Park Break(Green)

  • Page 9: Unit Installation

    3. During JPEG playback, press one of the >/</^/v buttons to change the angle of viewing picture that is displaying as follows: 1.11 UNIT INSTALLATION >: 90 deg cw; <: 90deg ccw; ^:UP<-->DOWN; v: LEFT<-->RIGHT During JPEG playback, press the PROG button to change the mode of refresh picture. During JPEG playback, press the STOP button to stop playing and return to the root menu.

  • Page 10: Common Operation

    4.20 Program Playback 2. Common Operation It allows you to enter the order in which you want some chapters/tracks in 1. To turn on/off the unit DVD/VCD/MP3/WMA/CD to play. In power off mode, press the POWER button to turn on the unit. 1 During playback, press the PROG button to enter a program interface as In power on mode, long press the POWER button on the front panel or briefly press follows:...

  • Page 11: Radio Operation

    11.To do general setup ZOOMx2,ZOOMx3,ZOOMx4,ZOOMx1/2,ZOOMx1/3,ZOOMx1/4,ZOOM OFF. To do general setup, first pop up Mode Menu as in item 2, Press one of the ^/v/>/< buttons to select the area you want to enlarge. then tap the icon in the Mode M enu to pop up GENERAL SETUP interface as right.

  • Page 12: Disc, Usb And Mmc/Sd Card Operation

    4.11 Playback in Scan Mode finishing a circle of scanning , it will resume broadcasting on the M1.(It can store 3x6 1. In the state of VCD(PBC OFF)/CD playing, press the INT button to play stations for FM and 2x6 stations for AM in all) the previous 15 seconds part of each track on the disc.
  • Page 13 To play files in a USB or Card, insert the USB or Card During slow forward, press the PLAY button to resume normal playback. into the USB jack or Card Slot, then it will automati- The function is only for video. cally play.

  • Page 14: Pause Playback

    4.2 Pause Playback Press the direction buttons to select your desired title, and then press the OK or PLAY button to open the root menu of the selected title. In the state of DVD/VCD/CD/MP3/WMA playing, press the PAUSE button on IR remote controller to pause the playback, press the PLAY Press the direction buttons to select your desired chapter, finally press the button to resume normal playback.
