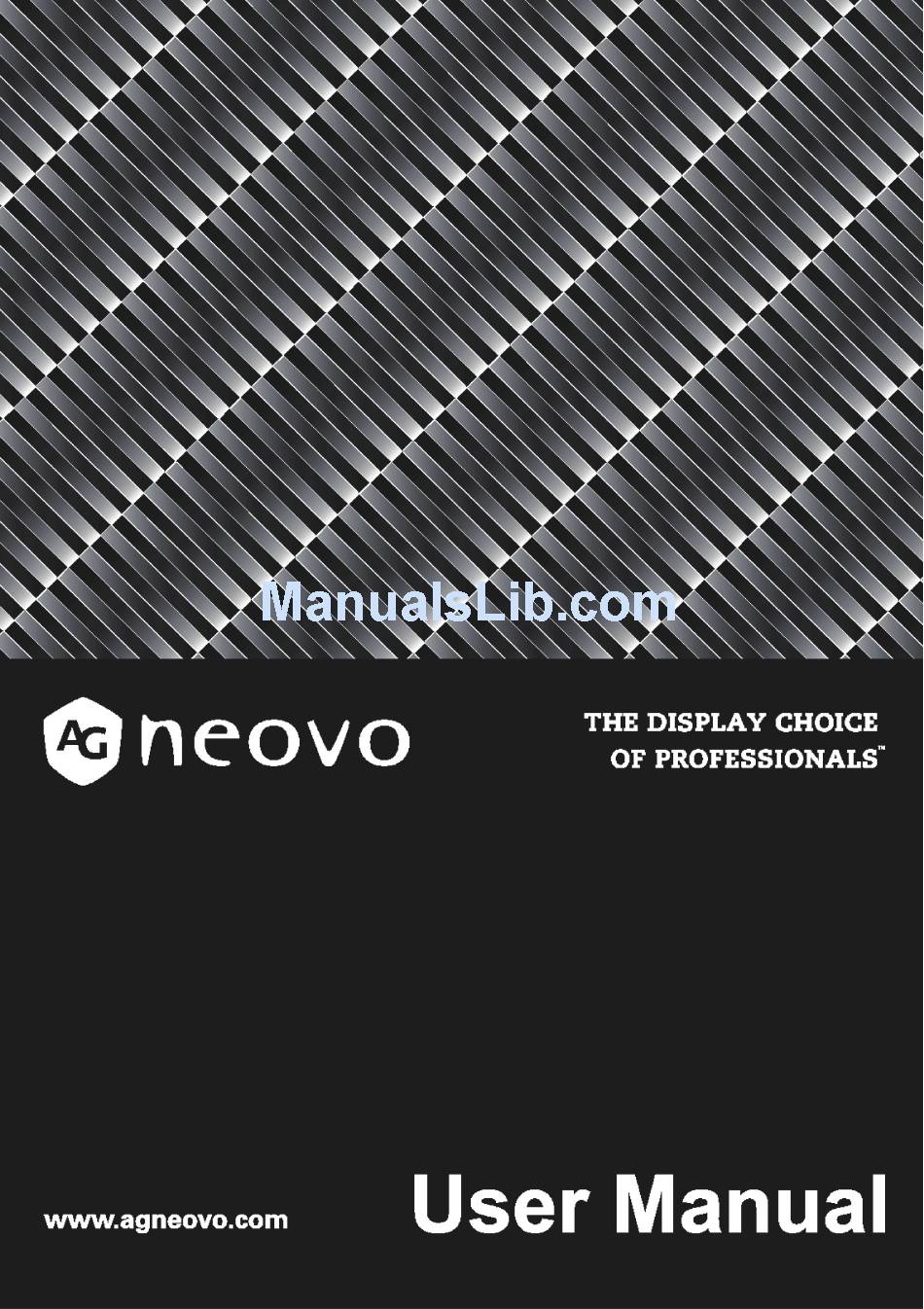

  • Page 1 TX-32 & TX-42 Touch LED-Backlit Display...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents Safety warnings and precautions......5 Important safety instructions ....... 7 Notes on the LCD panel of this display......7 Safety notice for remote control ........8 Battery safety notice ............ 8 Package contents ..........10 Optional accessory ............
  • Page 4 Table of Contents Sound menu .............. 39 Screen menu ............. 40 Setting menu ............. 43 Product information........... 46 Specifications ............. 46 Dimensions ..............48 Supported input signal resolution....... 50 Supported PAP input signal combination ....52 Troubleshooting ..........53...

  • Page 5: Safety Warnings And Precautions

    Safety warnings and precautions Safety warnings and precautions THIS EQUIPMENT MUST BE GROUNDED To ensure safe operation, the three- pin plug must be inserted only into a standard three-pin power outlet which is effectively grounded through normal household wiring. The lightning flash with arrowhead Extension cords used with the symbol, within an equilateral triangle, equipment must have three cores...
  • Page 6 Safety warnings and precautions • To prevent personal injuries, mounting the display or installing desktop stands is required before use.

  • Page 7: Important Safety Instructions

    Important safety instructions Important safety instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

  • Page 8: Safety Notice For Remote Control

    Important safety instructions or green) or unlit. This is a technical limitation of the LCD technology and is not a defect. • LCD screens, like plasma (PDP) and conventional CRT (Cathode Ray Tube) screens, are also susceptible to 'screen burn-in' or 'image retention' which can be found on the screen as visible fixed lines and shades.
  • Page 9 Important safety instructions • There may be local restrictions on the disposal or recycling of batteries. Consult your local regulations or waste disposal provider.

  • Page 10: Package Contents

    (if possible) for future transport of the display. • Do not leave plastic bags within reach of young children or babies. Optional accessory In addition to the items that come with the standard package, the following optional accessory is also available separately: TX-32 TX-42 Desktop stand...

  • Page 11: Setting Up The Display

    Setting up the display Setting up the display Mounting the display You can install the display on a vertical surface with a suitable wall mounting bracket or on a horizontal surface with the optional desktop stands. Please pay attention to the following notes during installation: •...

  • Page 12: Installing The Optional Desktop Stands

    Make sure that the size of the cloth is larger than the display. 2. Gently lay the display on the cloth with the LCD screen facing down. 3. Place the desktop stands on the (TX-32) display as illustrated. 4. Use the screws and a suitable screwdriver to secure the stands on the display.

  • Page 13: Parts Of The Display And Their Functions

    Parts of the display and their functions Parts of the display and their functions Front/Rear panel Name Description • Receives command signals from the remote control. Remote control sensor • Detects ambient lighting conditions around the display / Ambient light sensor / and adjusts screen brightness automatically when the Power indicator Ambient Light Sensor function is activated.
  • Page 14 Parts of the display and their functions Power indicator Indicates the power status of the display: - Lights up green when the power is turned on. - Lights up red when the display is turned off. - Lights up red when the display is in Power Save High mode.

  • Page 15: Input/Output Terminals

    Parts of the display and their functions Input/output terminals RS-232C-OUT RS-232C-IN 10 11 12 Name Description RJ-45 Connects to the RJ-45 port on your Ethernet or router. RS232C IN/OUT For external control and multi-display operation. • RS232C IN: receives control signals from a computer or another display.
  • Page 16 Parts of the display and their functions AUDIO IN Receives audio signals from an external device (such as a (AUDIO1) computer). AUDIO IN Receives audio signals from an external device (such as a (AUDIO2) VCR or DVD player). AUDIO OUT (R/L) Outputs audio signals to an external device.

  • Page 17: Remote Control

    Parts of the display and their functions Remote control INFO Shows the current input source and resolution. Numeric buttons (1-9) /Input source buttons • Performs as numeric buttons when the OSD menu is on. • Performs as input source buttons when the OSD menu is off.

  • Page 18: Using The Remote Control

    Parts of the display and their functions Using the remote control Installing remote control batteries 1. Open the remote control battery compartment cover. 2. Insert the supplied batteries ensuring that the positive and negative marked battery terminals match the (+) and (-) marks in the battery compartment.

  • Page 19: Connection

    Connection Connection Connecting audio/video signals Pay attention to the following notes when you connect cables: • Please turn off all devices. • Familiarize yourself with the audio/video ports on the display and the devices you want to use. Be aware that incorrect connections may adversely affect picture quality.

  • Page 20: Connecting The Digital Input

    Connection Connecting the digital input 1. Connect the DVI-IN/DISPLAY PORT/HDMI-1/HDMI-2/SDI jack on the display to the DVI-D/DisplayPort/HDMI output jack on a computer or equipment using a DVI-D/DisplayPort/HDMI/SDI or a DVI-D to HDMI conversion cable. 2. If needed, connect the computer’s audio output jack to the AUDIO IN (AUDIO1) jack on the display using a suitable audio cable.

  • Page 21: Connecting The Ypbpr Component Video Input

    Connection Connecting the YPbPr component video input 1. Connect the VIDEO IN (YPbPr) jacks on the display to the component output jacks on an A/V device (such as a VCR or DVD player) using a component video cable. 2. Connect the DVD player’s audio output jacks to the AUDIO IN (AUDIO2) jacks on the display using a suitable audio cable.
  • Page 22 Connection Connecting the AV and S-Video inputs 1. Connect the VIDEO IN (S-VIDEO) or AV IN jack on the display to the output jack on an A/V device (such as a VCR) using an appropriate video cable. 2. Connect the VCR’s audio output jacks to the AUDIO IN jacks on the display using a suitable audio cable.

  • Page 23: Connecting External Speakers

    Connection Connecting external speakers The built-in amplifier on the display allows you to output audio signals through external speakers. Connect external speakers to the SPEAKERS (R/L) jacks on the display. RS-232C-OUT RS-232C-IN External speakers You can use the remote control or the control panel on the display to adjust the volume.

  • Page 24: Connecting Multiple Displays

    Connection Connecting multiple displays You can connect multiple displays serially (daisy chain) to a computer for management. The number of displays you can connect serially depends on the resolution of the input signal you use. Additional display RS-232C-OUT RS-232C-IN RS-232C D-Sub (15- cable cable...

  • Page 25: Connecting The Touch Module

    Connection Connecting the touch module Connect the USB cable on the display to a computer. The touch module supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer.

  • Page 26: Connecting Power

    Connection Connecting power 1. Plug one end of the power cord into the AC IN jack on the display and the other end into an appropriate power outlet (if the outlet is switched, turn on the switch). 2. Press the power switch to turn on the main power. •...

  • Page 27: Using The Touch Screen (For Touch Model Only)

    Using the Touch Screen (for Touch Model Only) Using the Touch Screen (for Touch Model Only) You can use the optical touch screen to control your operating system. The touch screen can emulate basic mouse functions and supports multi-touch functions for Windows 7*.
  • Page 28 Using the Touch Screen (for Touch Model Only) OS functions Gesture actions Drag Drag one finger left or right. For Windows Vista and Windows 7 Selection Drag one finger left or right. Pan up / Pan down / Quickly drag your finger (Flick) in a desired direction. Back / Forward Multi-touch functions For Windows 7 - Home Premium, Professional, Enterprise and Ultimate versions...
  • Page 29 Using the Touch Screen (for Touch Model Only) OS functions Gesture actions Zoom Move two fingers apart or toward each other. Supported by specific • Move two fingers in opposing directions. applications • Use one finger to pivot around another. Supported by specific Tap two fingers simultaneously.
  • Page 30 Using the Touch Screen (for Touch Model Only) Gesture Description For Windows 8 Press and hold to learn This touch interaction causes detailed information or teaching visuals (for example, a tooltip or context menu) to be displayed without a commitment to an action. Anything displayed this way should not prevent users from panning if they begin sliding their finger.
  • Page 31 Using the Touch Screen (for Touch Model Only) Gesture Description Swipe from edge for app commands App commands are revealed by swiping from the bottom or top edge of the screen. Use the AppBar to display app commands. Swipe from edge for system commands Swiping from the right edge of the screen reveals the charms which contain system commands.

  • Page 32: Calibrating The Touch Screen (For Touch Model Only)

    Using the Touch Screen (for Touch Model Only) Calibrating the Touch Screen (for Touch Model Only) • The function described in this section only applies to Windows operating systems. • Ensure that you have installed the USB cable on the display to a computer. You can calibrate the touch screen to use it more efficiently.

  • Page 33: Basic Operations

    Basic operations Basic operations Turning the display on or off To turn on or off the display, press the power button on the display’s control panel or on the remote control. • The display’s standby mode still consumes power. To completely cut off power supply, disconnect the power cord from the power outlet.

  • Page 34: Network Connection

    Network connection Network connection Connecting to a LAN To set the display to connect to a local area network: 1. Connect a RJ45 cable to the corresponding ports on the display and your LAN switch or router. 2. Enter the OSD menu Setting > Control Setting. Select LAN. 3.

  • Page 35: The Osd (On-Screen Display) Menu

    The OSD (On-Screen Display) menu The OSD (On-Screen Display) menu OSD menu overview Menu name Options/functions page • Picture Mode • Backlight • Contrast • Brightness • Chroma Picture • Phase • Sharpness • Color Temp. • Noise Reduction • Film Mode •...
  • Page 36 The OSD (On-Screen Display) menu • Language • Schedule • Power Save • Control Setting • Network Settings Setting • Set Monitor ID • HDMI Control • Advanced • Information • All Reset Some options are only available when a certain input signal source is selected.

  • Page 37: Operations In The Osd Menu

    The OSD (On-Screen Display) menu Operations in the OSD menu Using the control panel buttons Using the remote control 1. Press MENU to open the OSD 1. Press MENU to open the OSD menu. menu. ENTER VIDEO SOURCE 2. In the OSD menu, press  or  to 2.

  • Page 38: Picture Menu

    The OSD (On-Screen Display) menu Picture menu Picture Picture Mode Standard Backlight Contrast Brightness Chroma Phase Sharpness Color Temp. Cool Noise Reduction Film Mode Auto Reset :Move :Exit :Enter EXIT ENTER Name Description Picture Mode Sets the display mode. Backlight Adjusts the backlight intensity for the screen.

  • Page 39: Sound Menu

    The OSD (On-Screen Display) menu Sound menu Sound Sound Mode Standard Treble Bass Balance Center Surround Speaker Internal Audio Source Audio1 Reset :Move :Exit :Enter EXIT ENTER Name Description Sound Mode Adjusts the sound output from the speakers. Dynamic: Enhances treble and bass. Standard: Flat settings.

  • Page 40: Screen Menu

    The OSD (On-Screen Display) menu Screen menu Screen PAP Setting Display Wall Aspect Full Adjust Screen Freeze Touch Feature :Move :Exit :Enter EXIT ENTER Name Description PAP Setting • PAP: Turns on or off the PIP (Picture in Picture) and PBP (Picture by Picture) functions.
  • Page 41 The OSD (On-Screen Display) menu Aspect Sets the picture’s aspect ratio. • Wide Zoom: Enlarges to fill screen with minimum distortion. • Zoom: Enlarges the picture, keeping the same aspect ratio. • Full: Enlarges the picture horizontally to fill the screen when the picture source is 4:3 (Standard definition).
  • Page 42 The OSD (On-Screen Display) menu Aspect For PC signal input (continued) Real Full 1 Full 2 Adjust Screen • Auto Adjustment: Sets whether to optimize image display for each VGA input. • Phase: Adjusts the phase of the VGA input image. •...

  • Page 43: Setting Menu

    The OSD (On-Screen Display) menu Setting menu Setting Language English Schedule Power Save High Control Setting RS-232C Network Settings Set Monitor ID HDMI Control Advanced Information All Reset :Move :Exit :Enter EXIT ENTER Name Description Language Sets your preferred language for the OSD menu. Schedule •...
  • Page 44 The OSD (On-Screen Display) menu Control • RS-232C/LAN: Sets a terminal to control the display. Setting • IR Passthrough: Select it when multiple displays are connected via RS-232C cables. - Primary: Designate the display as the primary unit for remote control operation.
  • Page 45 The OSD (On-Screen Display) menu Advanced • Auto Search: Automatically detects available input sources. • Auto Adjustment: Automatically optimizes image display for the VGA input. • Overscan: Turns the overscan function on or off. • RGB Signal: Sets the type of signal for a piece of video equipment or PC connected to the HDMI of the display •...

  • Page 46: Product Information

    Product information Product information Specifications Item Specifications TX-32 TX-42 Active area (H x V mm) 698.4 x 392.85 927.94 x 521.96 Pixel pitch (mm) 0.3637 x 0.3637 0.4833 x 0.4833 Native resolution 1920 x 1080 (pixels) Brightness (cd/m LCD panel...
  • Page 47 Product information Operating Temperature 0 - 40 C, 32 - 104 Operating Humidity 10 - 90% (without condensation) Environment Storage Temperature -20 - 60 C, 4 - 140 Storage Humidity 10 - 95% (without condensation) Display Orientation Landscape/Portrait 38.8/17.6 62.39/28.3 Weight (lbs/kg) (Approximately) (Approximately)

  • Page 48: Dimensions

    Product information Dimensions • TX-32 Unit: mm...
  • Page 49 Product information • TX-42 478.35 Unit: mm...

  • Page 50: Supported Input Signal Resolution

    Product information Supported input signal resolution Input source Resolution Display S-Video YPbPr HDMI Port 640 x 480 @ 60Hz 640 x 480 @ 72Hz 640 x 480 @ 75Hz 720 x 400 @ 70Hz 800 x 600 @ 60Hz 800 x 600 @ 75Hz 1024 x 768 @ 60Hz 1024 x 768 @ 75Hz 1280 x 768 @ 60Hz...
  • Page 51 Product information 1080i (50Hz) 1080i (60Hz) 1080p (50Hz) 1080p (60Hz) • : supported • Blank: not supported...

  • Page 52: Supported Pap Input Signal Combination

    Product information Supported PAP input signal combination Main/Left picture signal source Display S-Video YPbPr HDMI Port S-Video YPbPr Sub/ Right picture signal HDMI source Display Port...

  • Page 53: Troubleshooting

    Troubleshooting Troubleshooting Problem Solution No picture Check the following: • Is the display turned on? Check the power indicator of the display. • Is the signal source device turned on? Turn on the device and try again. • Are there any loose cable connections? Make sure that all cables are connected firmly.
  • Page 54 Troubleshooting The remote control • Have you locked the remote control function? Unlock does not work the function and try again. • Check for incorrect battery orientation. • Check for dead batteries. • Check your distance and angle from the display. •...
