  • Page 1 AITech ProA/V Media Extender Mini User Manual...
  • Page 2: Package Contents

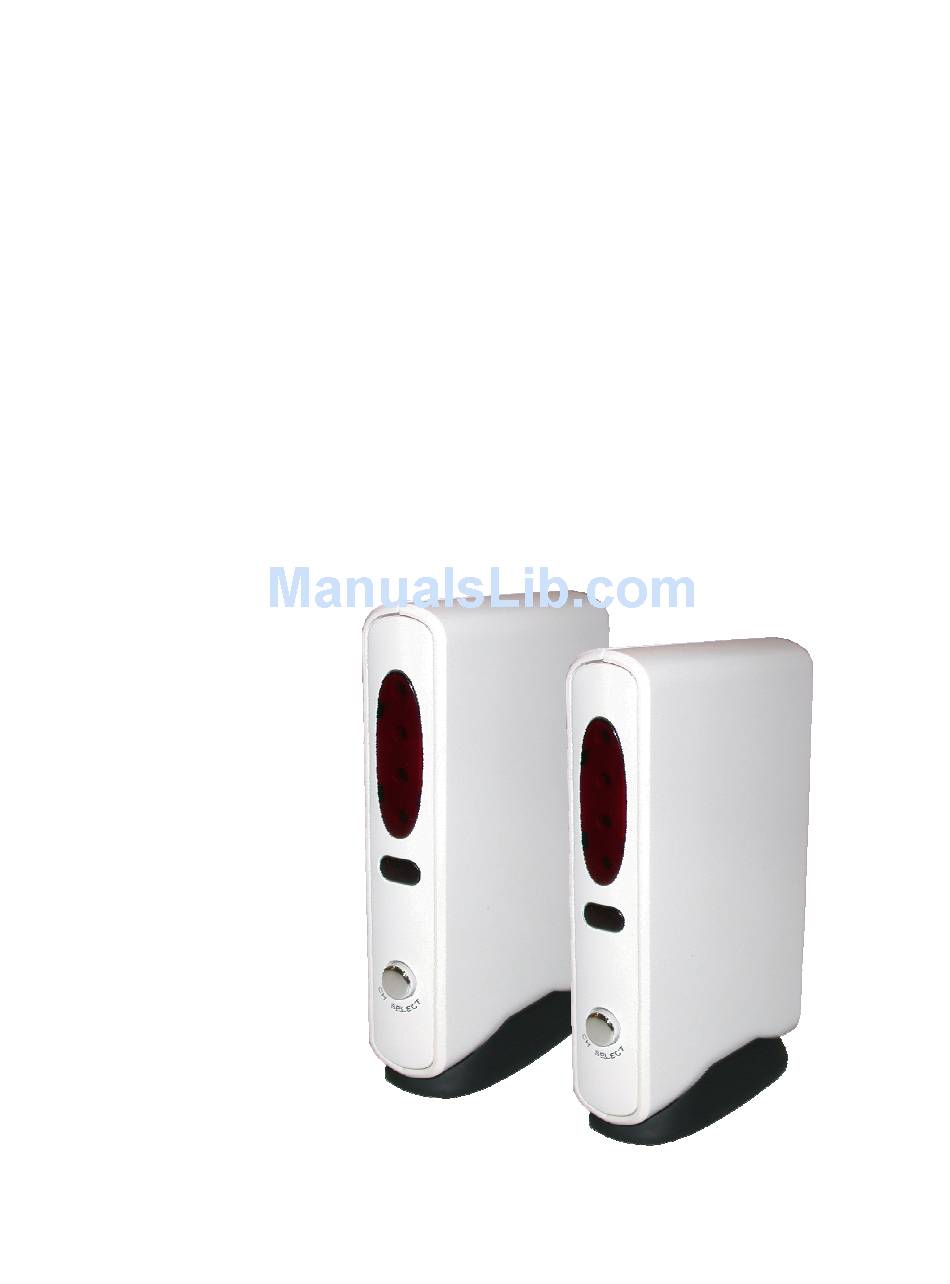

    Package Contents • Transmitter x 1 • Receiver x 1 • Infrared (IR) eye cable x 1 • Remote antenna x 1 • Audio/Video cable x 2 • Power adaptors (DC6V) x 2 • User manual x 1 Note: The transmitter and the receiver look very similar. You can find “transmitter”...
  • Page 3: Setting Up The Transmitter

    Fig. 2 Receiver/Transmitter Fig. 3 Transmitter Receiver Setting Up Before you make the connection: • Set the channel by pressing the select button on the front of the transmitter and the receiver to the same channel. 1. Setting up the Transmitter Connect the Transmitter to an A/V Component A/V Connection Connect the mini-plug of the provided A/V cables to the A/V jack on the...
  • Page 4 jacks of the A/V component labeled LINE OUT. See Fig. 4. Fig. 4 A/V Cable VIDEO AUDIO Transmitter Satellite receiver/DVD/VCD RF Connection – for A/V Component without Spare A/V Output Jacks If your A/V component has only one set of A/V output jacks, and you want to use it with a nearby TV, connect coaxial cable from the signal OUT port on the A/V component to the VHF/UHF IN port on your TV.
  • Page 5: Setting Up The Receiver

    Note 1: On a NTSC system, the connector on the A/V equipment is an RCA jack. Connect the yellow plug to the jack labeled VIDEO, the red plug to the jack labeled AUDIO RIGHT and the white plug to the jack labeled AUDIO LEFT.
  • Page 6 Fig. 7 VIDEO AUDIO IN A/V Cable Receiver RF Connection – for TV without A/V Input Jacks If there is no A/V input jacks on your TV, you will need to get an RF modulator (available at your local electronics store) to make the connection between TV and receiver.
  • Page 7 Fig. 9 Receiver A/V Cable RF OUT VHF/UHF VIDEO AUDIO IN A/V Component Note 1: Connect the yellow plug to the jack labeled VIDEO, the red plug to the jack labeled AUDIO RIGHT and the white plug to the jack labeled AUDIO LEFT.
  • Page 8: Other Applications

    the other end into the rear of the receiver. See Fig. 11. b. Turn on the receiver. The LED on the front of the unit should light Fig. 11 POW ER ON-OFF Wall Outlet Receiver Other Applications Using Remote Control The Wireless A/V Sender gives you the ability to control A/V components from another room using your existing remote control device.
  • Page 9: Specifications

    Transmitter IR Eye Receiver Remote Control 2. Position the receiver so that your remote control signal can strike the IR window on the front of the receiver. Set the remote antenna on the receiver straight. Do not bend the remote antenna. 3.
  • Page 10: Troubleshooting

    Trouble Shooting If you are not getting any signal at all • Check that the transmitter and receiver are properly connected to the A/V components from which you want to send/receive the A/V signal. • Make sure the transmitter and the receiver are turned on. •...
  • Page 11 • Do not drop, knock, or shake it. Rough handling can break internal circuit boards. • Do not use harsh chemicals, cleaning solvents, or strong detergents when cleaning. • Operate this product using only the power supply included with it. •...
