  • Page 1: User Manual

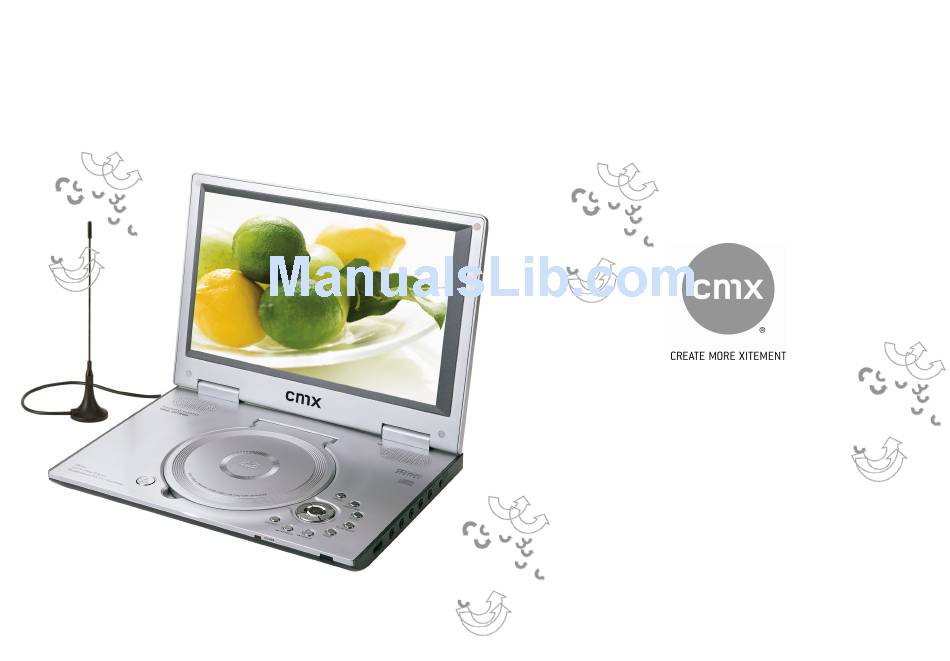

    USER MANUAL PDT 4102 PORTABLE DVD-PLAYER...
  • Page 2 First of all thank you very much, that you have decided for the cmx® PDT 4102! Please read all information’s carefully before you start running the cmx® PDT 4102. Our company reserves the right to improve the product. That changes to specifications and design, also without notice.

  • Page 3: Table Of Contents

    3.3.1. Charging accumulator ......................17 4. INCLUDED IN DELIVERY ......................19 5. USE OF REMOTE CONTROL ......................20 6. CONNECTORS ..........................24 6.1. P ..........................24 OWER SUPPLY 6.2. H ............................. 24 EADPHONE Version 2 cmx® PDT 4102 Page 3 from 53...
  • Page 4 ANUAL 9.3. T ............................32 ELETEXT 9.4. E (EPG) ....................32 LECTRONIC PROGRAM GUIDE 9.4.1. Reserve channel ........................33 9.5. M ..........................33 OVE CHANNEL 9.6. A ..........................34 DJUST CHANNEL Version 2 cmx® PDT 4102 Page 4 from 53...
  • Page 5 REFERENCE 11.5. P ............................. 45 ASSWORD 12. TECHNICAL DATA’S ........................46 12.1. S ........................ 46 UPPORTED DISC FORMATS 12.2. S ..........................48 PECIFICATIONS 13. TROUBLESHOOTING ........................50 14. GLOSSARY ..........................52 Version 2 cmx® PDT 4102 Page 5 from 53...

  • Page 6: Safety Instructions

    The lightning flash is alerting the user of The exclamation mark alerts the user of dangerous high voltage that may be of important user and maintenance sufficient magnitude to constitute a risk of instructions. electric shock. Version 2 cmx® PDT 4102 Page 6 from 53...
  • Page 7 Do not put any heavy Do not use the player under Do not use a damaged cable. Do not touch the cable with objects on the player. Humid conditions. wet handy Version 2 cmx® PDT 4102 Page 7 from 53...
  • Page 8 Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, on the user manual or on the packaging materials. Version 2 cmx® PDT 4102 Page 8 from 53...
  • Page 9 User of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by macrovision Corporation. Reverse engineering or disassembly is prohibited. Serial number Version 2 cmx® PDT 4102 Page 9 from 53...
  • Page 10 You should record requested information here and retain this guide as a permanent record of your purchase Model __________________________________ Serial number __________________________________ Date of purchase __________________________________ Version 2 cmx® PDT 4102 Page 10 from 53...

  • Page 11: Features

    2. Features The PDT 4102 features the following characteristics: Compatible with different AV file formats: Video: MPEG1 (VCD) / MPEG2 (DVD) / MPEG4 (avi and mp4-file extensions) Audio: WMA / CD-Audio / HDCD / MP3 Photo: JPEG Picture CD Supports burned media...
  • Page 12 Note: Dolby and the double D-Symbol are brands of Dolby Laboratories. Manufactured under the license of Dolby Laboratories. Dolby Laboratories Inc. – all rights reserved. Version 2 cmx® PDT 4102 Page 12 from 53...

  • Page 13: Control Elements

    4. “ ”, “ ”, “ ”, “ ” 5. switch AV on/off 6. “ ”, “TTX” “ ”, “EPG” “ ” “ ”, Scan 10. Setup 11. Source 12. Mode Version 2 cmx® PDT 4102 Page 13 from 53...

  • Page 14: Button Function Remote Control

    9. REPEAT / DEL 23. SKIP – 10. TV / RADIO 24. SKIP + 11. PRO / EPG / PROT 12. DISPLAY 26. MUTE 27. GO TO / FAV 14. SOURCE Version 2 cmx® PDT 4102 Page 14 from 53...

  • Page 15: First Steps - Remote Control

    Point the remote at the IR receiver on the device (reach 5 m at 60 ° angle in both directions). Do not drop the remote control. The remote control must not get wet. Do not disassemble the remote control. Do not expose the IR sensor to direct sunlight. Version 2 cmx® PDT 4102 Page 15 from 53...

  • Page 16: First Steps - Accumulator

    Match the hooks of the battery into the holes on the bottom of the player. Combine the battery to push up until you can hear the click sound. Slide the battery lock to the location of Version 2 cmx® PDT 4102 Page 16 from 53...

  • Page 17: Charging Accumulator

    When the player is power on, the charging is slow. When the player is power off, the charging is fast. When charging the control light is lighting red. Is the charging finished the control light lights green. Version 2 cmx® PDT 4102 Page 17 from 53...
  • Page 18 Note A slow charging mode is approximate 20 hours. A fast charging mode is approximate 5 hours. Version 2 cmx® PDT 4102 Page 18 from 53...

  • Page 19: Included In Delivery

    4. Included in delivery accumulator audio/video cable car adaptor user manual infrared remote control adaptor rod antenna stereo earphones carrying bag Version 2 cmx® PDT 4102 Page 19 from 53...

  • Page 20: Use Of Remote Control

    ANGLE / TXT to open the videotext. TITLE During DVD playback, press TITLE to see the DVD title menu or to play the first title. Note Not every disc supports this function. ENTER Version 2 cmx® PDT 4102 Page 20 from 53...
  • Page 21 / FAV During DVD, CD or VCD playback, press / FAV to start the rapid rewind. During DVB-T playback, press / FAV to play the favourite channels. Version 2 cmx® PDT 4102 Page 21 from 53...
  • Page 22 Press to start or temporarily stop the playback. Press to stop playback. MODE With MODE you can select the TFT menu to setting brightness, contrast etc. Version 2 cmx® PDT 4102 Page 22 from 53...
  • Page 23 During DVB-T playback, press / PROT to select the channel protection. MUTE With MUTE you can mute the sound. GO TO With GO TO call a chapter, title or time to play on. Version 2 cmx® PDT 4102 Page 23 from 53...

  • Page 24: Connectors

    To connect the headphones insert the cable into socket on the right side of the unit. When the plug of a headphone is inserted into this jack, the built-in speakers will automatically be disabled. When the headphone is disconnected, the speakers will be re-activated. Version 2 cmx® PDT 4102 Page 24 from 53...

  • Page 25: Antenna

    6.5. USB 1.1 This unit is equipped with a USB socket which can accept and play MP3 and image files stored on standard USB flash drives. (also known as “USB stick). Version 2 cmx® PDT 4102 Page 25 from 53...

  • Page 26: Basic Operations

    Once an audio CD is inserted it will be played automatically. Its playback information will be show on screen, such as chapter elapse time. Sampling frequency: 8 to 48 kHz – MP3 / 32 to 48 kHz – WMA Version 2 cmx® PDT 4102 Page 26 from 53...

  • Page 27: Jpeg

    Picture must be less than 2 megapixels. Max. Resolution 2760 x 2048. The total number on the disc should be less than 650. 7.4. Program playback This function is not for JPEG- and MP3 files. Version 2 cmx® PDT 4102 Page 27 from 53...
  • Page 28 STOP button on the program menu. Note Program can be activated only when a disc is in the DVD player. When the program menu appears, the setup menu setting is forbidden. Version 2 cmx® PDT 4102 Page 28 from 53...

  • Page 29: Memory Card And Usb Playback

    SD / MMC / MS into card reader Press SOURCE (on the device or on the remote) to get the desired source. With the navigation buttons, you can now select the file, which played. Version 2 cmx® PDT 4102 Page 29 from 53...

  • Page 30: Dvb-T

    9. DVB-T Direct digital TV enjoyment with PDT 4102 via the built-in DVB-T module. 9.1. Auto Scan Repeatedly press the SOURCE button (on the device or on the remote control) until DVB-T is selected. Press PBC / SCAN on the remote control.

  • Page 31: Manual Scan

    The unit will save all digital TV stations and list them below found channels. Note Press PBC / SCAN key to exit manual scan page and start to play program. Version 2 cmx® PDT 4102 Page 31 from 53...

  • Page 32: Teletext

    The EPG menu is used to look at what is being broadcast on a TV channel later in the day. To access the EPG menu, press PRO/EPG on the remote control. Go to program and press ENTER to access the information. Version 2 cmx® PDT 4102 Page 32 from 53...

  • Page 33: Reserve Channel

    With the option channel move you set the order of the programs and settings in the channel list. Press SETUP. Go to DVB-T page. Highlight a channel to move and press ENTER. With you got to the channel and than select this one with ENTER. Version 2 cmx® PDT 4102 Page 33 from 53...

  • Page 34: Adjust Channel

    Press SETUP. Go to DVB-T page. 9.6.1. Favourites With /FAV you fix a favourite channel. Red symbols choose in addition, which indicates that this channel is added to the favourites. Version 2 cmx® PDT 4102 Page 34 from 53...

  • Page 35: Delete

    Here you can protect channels. With /PROT you protect a channel. Enter the pin code (factory setting 1369) and confirm with OK. A yellow symbol chooses in addition, which indicates that this channel is protected. Version 2 cmx® PDT 4102 Page 35 from 53...
  • Page 36 Note If you want to select the protected channel in the program list, so you must entered the password. Version 2 cmx® PDT 4102 Page 36 from 53...

  • Page 37: Dvd Player

    CD instead of inserting it into the compartment, by placing one finger at the middle of disc (center spindle) and the other at the edge of the disc and gentle pulling upwards. Version 2 cmx® PDT 4102 Page 37 from 53...

  • Page 38: Setup Menu

    4:3 LETTERBOX – Displays complete picture – picture with black bars on top and button. 16:9 – wide screen Note Not all DVDs support complete picture mode that is why the disk overrides the setting. Version 2 cmx® PDT 4102 Page 38 from 53...
  • Page 39 OFF – Angle mark deactivated. OSD language Here you can select the menu language. Note If the language selected is not available on the disc, the disc’s default language will be used instead. Version 2 cmx® PDT 4102 Page 39 from 53...
  • Page 40 (e.g. phone ringing and footsteps), while subtitles do not. Before you select this function, please ensure that the disc contains closed captions information and your TV set also has this function. Version 2 cmx® PDT 4102 Page 40 from 53...

  • Page 41: Analogue Audio Settings

    11.2. Analogue audio settings LT/RT – Choose this setting for cinema sound, if your disc is recorded in Dolby Digital Pro Logic. STEREO – Choose this setting for normal stereo sound. Version 2 cmx® PDT 4102 Page 41 from 53...

  • Page 42: Dolby Digital

    MIX-MONO – Both speakers plays the mixed channel spoor. Dynamic To optimize the dynamic sound output high volume outputs are softened. 11.4. Preference Some preference features can be selected only during no disc condition or stop mode. Version 2 cmx® PDT 4102 Page 42 from 53...
  • Page 43 PAL – Select for TV with PAL signal system. Playback Control only for VCD Activate/deactivate the PBC function. Audio Set the disc audio language. Subtitle Set the disc subtitle language. Disc Menu Set the disc menu language. Parental Version 2 cmx® PDT 4102 Page 43 from 53...
  • Page 44 7 NC17 – No children under age 17, not recommended viewing for children under age 8 ADULT – Should be viewed only by adults due to graphic sexual material, violence or language. Version 2 cmx® PDT 4102 Page 44 from 53...

  • Page 45: Password

    OFF - It will play all discs. Note The password is 1369. Default This function will reset all options. 11.5. Password Here you can activate or deactivate the password and you can chance the password. Version 2 cmx® PDT 4102 Page 45 from 53...

  • Page 46: Technical Data's

    12 cm 45 Min. digital video MPEG1 12 cm 74 Min. digital audio 8 cm 20 Min. digital video 12 cm / 8 cm 74 Min. / 20 Min. digital audio Version 2 cmx® PDT 4102 Page 46 from 53...
  • Page 47 HD-CD 12 cm 74 Min. digital audio digital audio JPEG 12 cm 600 Min. digital freeze image Version 2 cmx® PDT 4102 Page 47 from 53...

  • Page 48: Specifications

    20 Hz – 20 kHz +/- 1 dB Signal to noise ratio > 80 dB – only analogue output 2 headphone outputs audio/video in- and output Connectors coaxial digital audio output antenna input Version 2 cmx® PDT 4102 Page 48 from 53...
  • Page 49 0 ~ + 45 Grad / 65 ± 20 % humidity Work circumstances operation: 20 ~ + 65 Grad / 65 ± 20 % humidity Dimensions 260 x 30 x 182 mm Version 2 cmx® PDT 4102 Page 49 from 53...

  • Page 50: Troubleshooting

    Ensure that a compatible format is in the player. The disc may be dirty ort he disc is wrong installed. Remote control isn’t work Check the batteries are installed with the correct polarities. Ensure that the batteries aren’t empty. Version 2 cmx® PDT 4102 Page 50 from 53...
  • Page 51 If you are not able to solve the problem with the above list, please contact your dealer or cmx® service team. Please do not open appliance by yourself! Version 2 cmx® PDT 4102 Page 51 from 53...

  • Page 52: Glossary

    MPEG4 MPEG4 is a standard, mainly for the compression of audio and video digital data. MPEG4 contains many features of MPEG1 and MPEG2 as well as of other similar standards. Version 2 cmx® PDT 4102 Page 52 from 53...

  • Page 53: Version 2 Cmx® Pdt 4102 Page 3 From

    U.S. DVDs). European TV standard PAL mean Phase Alternation Line, 625 lines (576 visible) and 50 Hz updating rate. Explains the way how video information (brightness, colour) are being transmitted. Version 2 cmx® PDT 4102 Page 53 from 53...
