Summary of Contents for Enlight EN-7230 Series

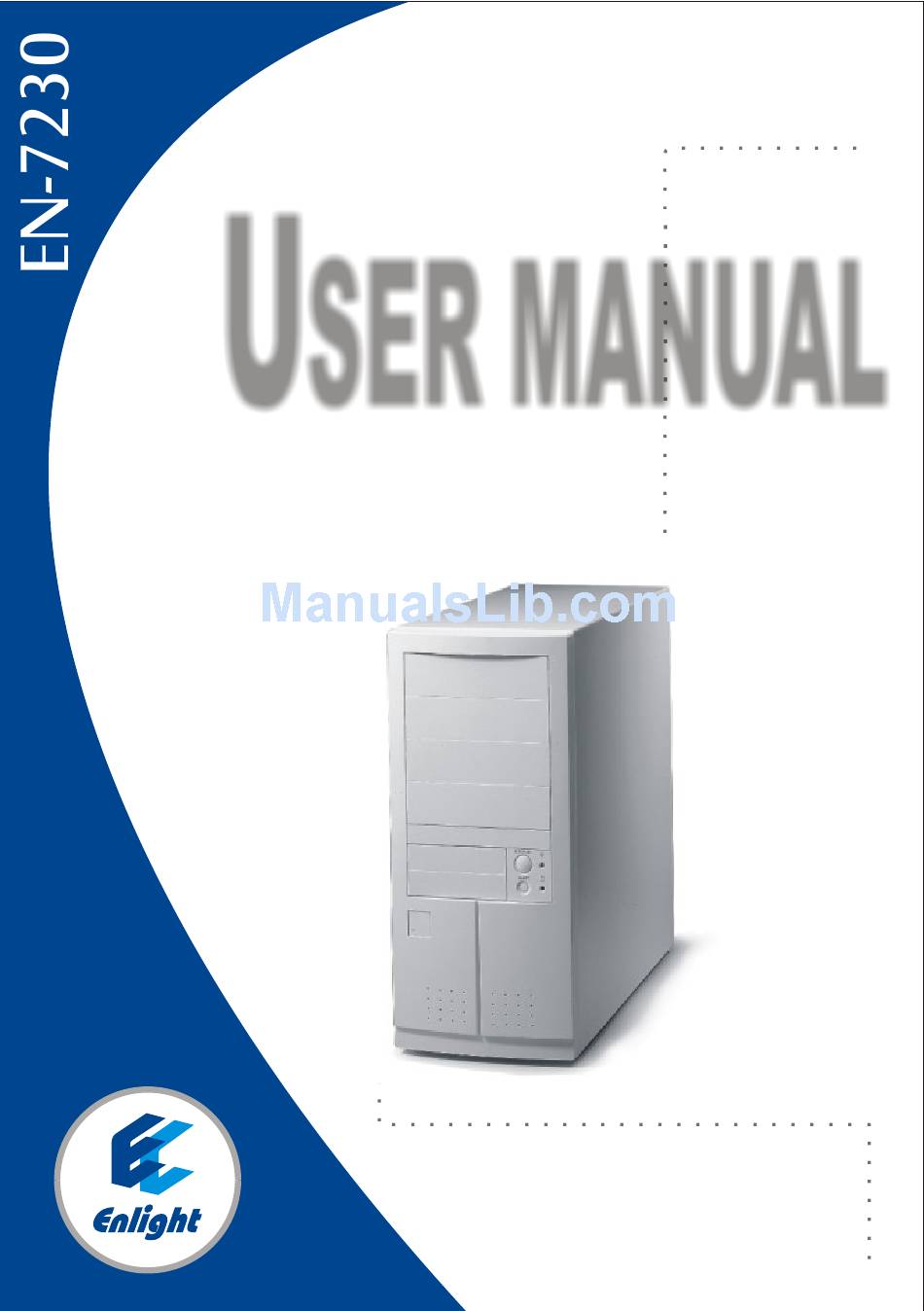

- Page 1 SER MANUAL...
- Page 2 Series EN-7230 ***Important-First please check your model number before proceeding. The user manual is set up to correspond to the model number and installation will vary depending on the model. Required tools: Phillips head screwdriver, pliers ***(Photos shown may vary according to model number) Place case on edge of table.
- Page 3 Remove fan housing by using thumbs to unfasten clips and place fan in housing (Fig 5). Snap fan housing back into the chassis. Connect fan and speaker wiring to M/B as instructed in M/B user manual (After M/B is installed!). Fig:5 Install 3.5"...
- Page 4 **Depending on M/B, you might have To remove drive cassette** A. Identify if M/B is AT, ATX or microATX. B. Place chassis on its side with electronic Bay in view (Fig. 9) C. Using your choice of standoffs or stakes to fasten M/B, prepare and screw into Fig:9 mounting plate.
- Page 5 Three pc. Cover Reinstall top cover making sure to line up tabs on back (Fig.12). Then install side panels by placing on rail guides (Fig.13), and sliding towards back of chassis. Use hex screws to fasten side panels in place. Fig:12 Fig:13 One pc.
- Page 6 Snap into place, starting with top snaps. Make sure tabs at top of bezel are in place in holes at top of chassis, then push lower half of bezel into place Fig:15...
- Page 7 Option 3.5"HDD...
- Page 8 Part List EN-7230 SERIES P/N:36110341 PART NAME 3213698 SUPPORT BRACKET 3213665 5.25”DRIVE BRACKET 3213643 CHASSIS 5207667 ADAPTER BRACKET(BABY AT,ATX) 3214577 ADAPTER PLATE 3213676 M/B MOUNTING PLATE 5208089 3.5”DRIVE BRACKET 3213654 COVER 3131445 CARD GUIDE BRACKET(A.B.S) 5103794 BEZEL(7230 ONLY) 5404613 CONTROL CONNECTOR(A)
