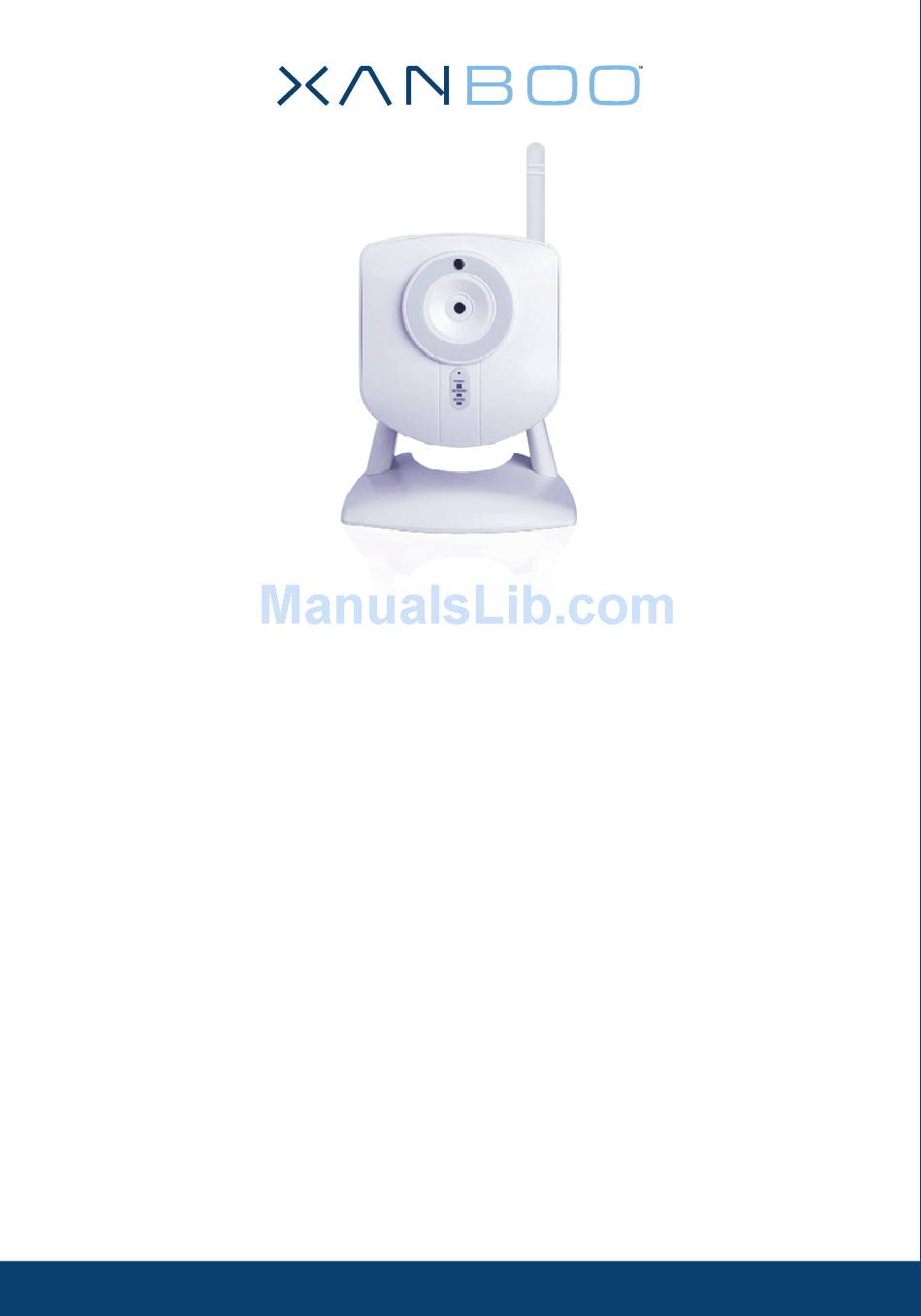

RC8021 FIXED IP CAMERA (WIRELESS)
TECHNICAL SPECIFICATIONS ///
Our plug-and-play RC8021 Wireless Fixed-Position Indoor Network Surveillance IP Camera connects
wirelessly to your Gateway. Connect up to 10 of these remotely accessible cameras to view live real-time
video of your home or business via your web-enabled mobile phone or pc, from anywhere, anytime.
CIF Resolution (320 x 240) at 30 Frames-per-second
■
Supports MPEG-4 and M-JPEG Dual Video Streaming
■
Supports Mobile Phone Live Video
■
Image Sensor:
Lens:
Effective Range:
Resolution Support:
Frequency:
Modulation:
Standard:
Encryptions:
Typical Range Indoors:
Min. Illumination:
Power Adapter:
Power:
Camera Size:
CMOS, 1/4" VGA Resolution
F2.0 Fixed Focus
0.2M to Infinity
320x240, 160x120
2.4~2.4835GHz, DSSS
FSK +/- 100 KHz
IEEE 802.11b and 802.11g
WEP 64 Bits/128 Bits, WPA-PSK
150 Feet
3.0 Lux
5V/1A, 100/240 VAC
10dBm
1.4"D x 3.5"W x 3.8"H (36mm x 90mm x 96mm)
www.xanboo.com
Advertisement
Table of Contents
Summary of Contents for Xanboo RC8021
- Page 1 RC8021 FIXED IP CAMERA (WIRELESS) TECHNICAL SPECIFICATIONS /// Our plug-and-play RC8021 Wireless Fixed-Position Indoor Network Surveillance IP Camera connects wirelessly to your Gateway. Connect up to 10 of these remotely accessible cameras to view live real-time video of your home or business via your web-enabled mobile phone or pc, from anywhere, anytime.
- Page 2 Pan Range: 126°(Left 63º ~ Right 63º) + 57º View Angle Tilt Range: 64°(Up 28º ~ Down 36º) + 57º View Angle Digital Zoom Min. Illumination: 1.0 Lux Camera Size: 3.1”D x 3.8”W x 5.7”H (78mm x 96mm x 146mm) www.xanboo.com...
