Summary of Contents for Zoostorm 3305-1111
-
Page 1: Chapter 1 Basics

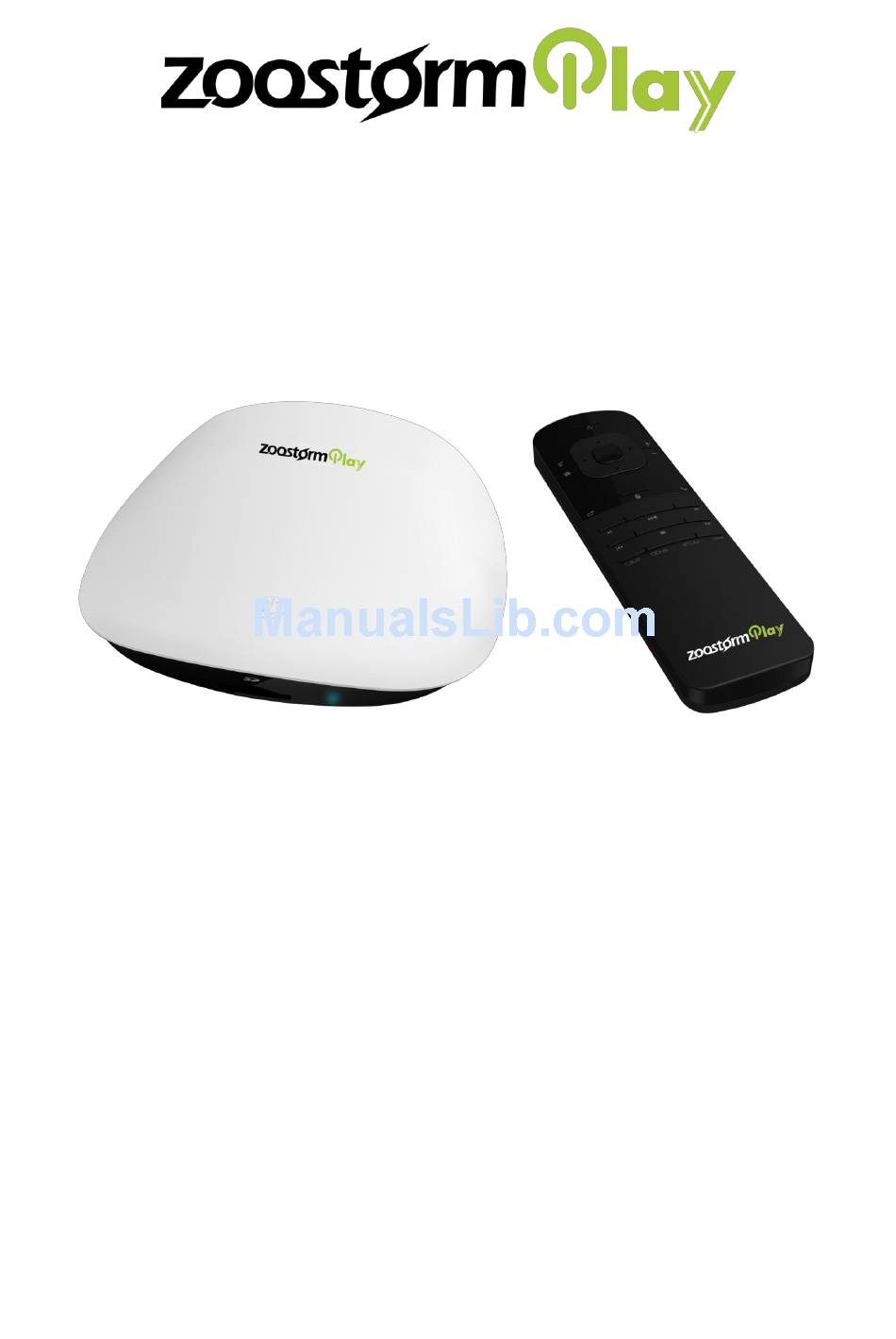

User Manual Product no: 3305-1111... -
Page 2: Fcc Information And Copyright
7. Only use attachments/ accessories specified by the manufacturer. 8. Unplug this apparatus during lightning storms or unused for long periods of time. 9. Refer all servicing to qualified Zoostorm service personnel. Accessories ... -
Page 3: Table Of Contents
Index FCC INFORMATION AND COPYRIGHT………………………………………………...……………... 2 SAFETY PRECAUTIONS………………………………………………………………………..……….. 2 ACCESSORIES………………………………………………………………………………..………….. . 2 INDEX………………………………………………………………………….………………….………..3 CHAPTER 1 BASICS……………………………………………………………………………………….1 ……………………………………………………………………………………...4 ARTS AND ONTROL …………………………………………………………………………………………5 EMOTE ONTROL …………………………………………………………………………………………….7 OWER SUPPLY ……………………………………………………………………………………………...7 ONNECTIONS ………………………………………………………………………………..7 RANSFERRING ONTENTS …………………………………………………………………………………………..8 OME SCREEN ……………………………………………………………………………………………. ….. 9 AIN MENU …………………………………………………………………………………………………... -
Page 4: Parts And Control

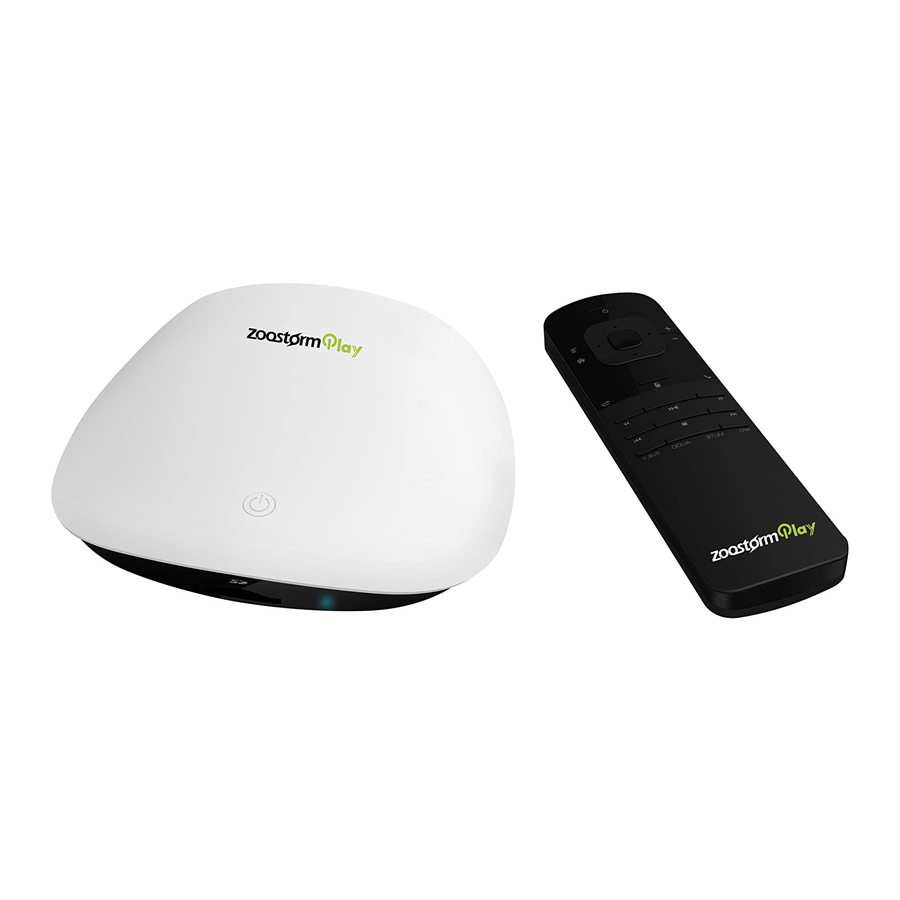

Zoostorm Play is an Android based smart TV box. It supports HDTV, network connectivity and third party software. A variety of Apps is now available from the Google Play Store. Parts and Control 1. DC in jack – for connecting power cable to power adapter. -
Page 5: Remote Control
Remote Control 1．Standby button – press to go to standby/ Power on 2．Directional buttons – press to move the cursor left/ right/ up/ down 3. Wireless mouse key – press to confirm the selection of mouse 4. Volume button – press to increase or decrease the volume. 5. - Page 6 2. Take out the two “AAA” size batteries. 3. Insert two new “AAA” size batteries in the correct orientation. Note: you can also use the Zoostorm Play with a wireless mouse and keyboard (not included) for faster operation and better control.
-
Page 7: Power Supply
Power supply Using the AC adapter The supplied 5V/2A adapter operates on AC 100-240V, 50/60HZ. Connect the AC adapter to DC-in jack, and then plug the AC adapter into AC outlet. *While the AC adapter is connected and the unit is on standby, power will still be consumed. Connections Connecting to HDTV using HDMI cable (Recommended) 1. -
Page 8: Home Screen
To remove the SD card, push the card again until it clicks. When a SD card is inserted in or ejected from the TV box, it may take few seconds for the TV box to update the content. Please avoid inserting or ejecting SD card when other operations are running as this may cause the TV Box to stop responding. -
Page 9: Main Menu
Main menu All application icons are in the App draw. On home screen, press the four boxes at the top right to open the App draw. Press an icon on the screen to open the desired application. Press to return to home screen. -
Page 10: Onscreen Keyboard
Onscreen keyboard Use the onscreen keyboard to enter text, such as web addresses. Press on the text field to bring up the keyboard. Uppercase key Backspace key Numeric/ punctuation/ symbol key Web browser View a webpage From Home screen or Main menu, press Browser icon to open web browser. ... -
Page 11: Watching Videos
Using the option menu Press Settings to display the browser option menu. Press on the desired item to use webpage viewing control. Watching Videos Playing videos From the Home screen click on the File Browser icon > Video Player icon to open videos that can be played. -
Page 12: Playing Music
Zoostorm Play supports subtitle of sub, ssa, srt, lrc format, encoded in UTF8 format. The file name of the subtitle must be identical to that of the video file. The subtitle will be loaded automatically during video playback. - Page 13 Playing songs 1. From Home screen, press Music icon to enter music library. 2. Press on a desired tab to enter song list. 3. Press the Directional-up/down button to scroll the song list. 4. Press the desired songs to start playing. Note: If you want to exit music mode, press to pause, then press Return button or Controlling Song Playback...
-
Page 14: Viewing Photos
Viewing photos From the App Draw, press Gallery to view photos. Thumbnail View displays the catalog as a table of thumbnail images in adjustable sizes. Press the Directional-up/ down button to scroll the photo list. Press the desired photo to full screen view. ... -
Page 15: File Explorer
View the previous / next photo. Press Directional-right/ left button Share the photo with your friends Press Rotate the photo left/ right Press Crop and Edit the photo Press Set the photo as wallpaper Press Delete the photo Press To use more control (view photo information, set slideshow mode) Press Zoom in or zoom out... -
Page 16: Managing Third Party Applications
3. Press Delete to delete the file/folder. Managing third party applications Zoostorm Play supports third party applications (such as Game applications, etc.); you can install or uninstall applications for the system manually or by using the Google Play Store. 1. Download and install the application. -
Page 17: Chapter 3 Settings
If more than one previously used network is in range, Zoostorm Play joins the one last used. When Zoostorm Play is connected to a Wi-Fi network, the Wi-Fi icon at the top of the screen shows connection strength. Tap More to use more wireless network control including Ethernet network setting, PPPOE settings. -
Page 18: Language & Input
TV display is not in full screen size Please check the display settings. If problems persist; please consult the Zoostorm Service & Support Team on 0844 800 6183 or E- mail support@zoostorm.co.uk... -
Page 19: Chapter 5 Appendix
Upgrading firmware 1. Put the firmware issued by the manufacturer to store in SD card. 2. Follow the manufacturer’s instructions to create a SD card containing the firmware. 3. Insert the SD card into the TV box before you power it on. Then reboot to automatically update and the status indicator will blink in red. -
Page 20: Disposal And Recycling Information
Zoostorm Standard Warranty What this Warranty Covers Zoostorm warrants that each hardware product that you purchase is free from defects in materials and workmanship under normal use during the warranty period. The warranty period for the product starts on the original date of delivery to the customer for a period of 12 months. - Page 21 Only unaltered Zoostorm products and parts are eligible for replacement. The replacement product or part provided by Zoostorm may not be new, but it will be in good working order and at least functionally equivalent to the original product or part. The replacement product or part shall be warranted for the balance of the period remaining on the original product.
- Page 22 Limitation of Liability Zoostorm is only responsible for loss or damage to your product while it is: 1) In our possession; or 2) In transit in those cases where we are responsible for the transportation. Zoostorm is not responsible for any data including confidential, proprietary, or personal data contained in/on the product.
