Faraday MPC-1500 Plus Owner's Manual

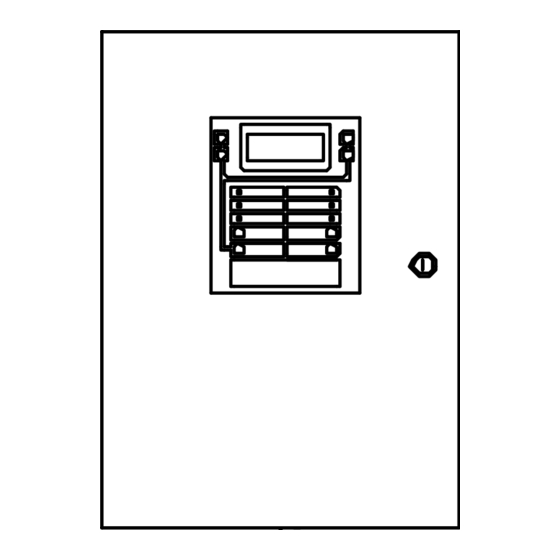

Mpc-1500 plus fire alarm system control unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Faraday, LLC / 805 South Maumee Street / Tecumseh, Michigan 49286
Phone 517-423-2111
Copyright © 2001 Faraday, LLC, All Rights Reserved
MPC-1500 Plus
Fire Alarm System Control Unit
Owner's Manual
12530-120 / 12530-240
12540-120 / 12540-240
Fax 517-423-2320
Plus
P/N 447203
Issue I
7/2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPC-1500 Plus and is the answer not in the manual?

Questions and answers

Summary of Contents for Faraday MPC-1500 Plus

  • Page 1 Fire Alarm System Control Unit Owner’s Manual 12530-120 / 12530-240 12540-120 / 12540-240 P/N 447203 Issue I 7/2001 Faraday, LLC / 805 South Maumee Street / Tecumseh, Michigan 49286 Phone 517-423-2111 Fax 517-423-2320 Copyright © 2001 Faraday, LLC, All Rights Reserved...

  • Page 2: Table Of Contents

    Network Interface Board....................II-4 Auxiliary Power Supplies ....................II-4 ADDRESSABLE DEVICES ....................II-5 Faraday Addressable Detectors ..................II-5 Other Faraday Addressable Devices ................II-5 System Sensor Addressable/Analog Sensors ..............II-5 Other System Sensor Addressable Devices ..............II-6 PROCESSOR CONTROLLED OUTPUT ZONES..............II-6 Output Sounding Patterns ....................II-6 Control of Audible Silencing.....................II-6...
  • Page 3 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L Environmental.........................II-9 Primary Supply .......................II-9 Secondary and Trouble Power Supply................II-9 Auxiliary Power Outputs ....................II-9 Addressable Device Circuits ....................II-9 Notification Appliance Circuits..................
  • Page 4 Addressable Device Circuit Wire Selection Guide............VIII-2 BATTERY SIZE CALCULATIONS ..................VIII-3 APPENDIX-B: COMPATIBLE DEVICES ................IX-1 DEVICES FOR ADDRESSABLE DEVICE CIRCUITS ............IX-1 Faraday Addressable Modules ..................IX-1 Faraday Addressable Detectors ..................IX-1 Faraday Bases ......................IX-1 Faraday Accessories ..................... IX-1 System Sensor Addressable/Analog Sensors ..............
  • Page 5 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L Waterflow Switches ....................... IX-3 Supervisory Switches ....................IX-4 Contact Type Heat Detectors ..................IX-4 UL Compatible Two -Wire (Circuit Powered) Smoke & Heat Detectors ......IX-5 UL Compatible Four-Wire (Separately Powered) Smoke Detectors ........

  • Page 6: Introduction

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L I. INTRODUCTION CONTROL UNIT LIMITATIONS This control unit may not show an alarm condition without compatible initiating devices (smoke detectors, etc.) and notification devices (horn, lights, etc.) connected to it.

  • Page 7: Installation And Warranty Information

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L INSTALLATION AND WARRANTY INFORMATION Warranty Information: Faraday, LLC (the Manufacturer) provides a limited warranty to the original purchaser of this product. The original purchaser is the party to whom the manufacturer issued its sales order, generally the manufacturer's distribution.

  • Page 8: Preface

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L PREFACE Along with the use of this instruction manual, the appropriate following standards and the manufacturer's instructions for initiating and notification devices should be used to install and maintain a functioning fire alarm signaling system.
  • Page 9 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L This page is intentionally blank. P/N 447203 Issue I...

  • Page 10: Descriptions

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L II. DESCRIPTIONS SYSTEM DESCRIPTION The 12530/12540 is an advanced modular fire alarm control unit. It features addressable/analog detection, programming, and memory capability.

  • Page 11: Minimum Control Unit Configuration

    There is also a system coder capable of zone coded operation. All of the NACs are power limited and can be wired for Class B (Style Y) operation or Class A (Style Z) operation with the Faraday 12504 Class A Adapter. RS485 Communications Circuit The control unit has a RS485 Communications Circuit that will drive up to 16 remote LCD annunciators and 8 Serial Relay Units and Serial Annunciator Units on the RS485 communication line.

  • Page 12: Optional Control Unit Configuration

    The Faraday 12503 Conventional Expansion Board provides four initiating device circuits. The IDCs can be wired for Class B (Style B) operation or Class A (Style D) operation with the Faraday 12401A Class A Adapter. Up to two 12503 boards may be used.

  • Page 13: Battery Sets

    C contacts. The control unit can address up to 8 Serial Relay Units and/or Serial Annunciator Units. Faraday 12408 auxiliary power supplies will be required to power units beyond the control unit capability. Serial Annunciator Unit and Serial Annunciator Extender The Faraday 12509 includes a processor board and an annunciator driver board.

  • Page 14: Addressable Devices

    No response • Incorrect response Other Faraday Addressable Devices Heat Detectors Addressable heat sensing detectors may be intermixed on the circuit for locations where heat sensing may be the most effective detection mode. The heat detectors may be programmed, through the control unit, for rate of rise operation.

  • Page 15: Other System Sensor Addressable Devices

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L • Status • Current % obscuration for smoke sensors Operator Alerts The control unit can trigger an alarm or trouble automatically on the occurrence of a number of conditions of the sensor devices.

  • Page 16: Event History

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L EVENT HISTORY The control unit includes a non-volatile memory recording up to 2000 system events. Identified alarm, trouble, supervisory trouble, and other significant events will be recorded along with the date and time of occurrence, and can be inspected by operating front panel push buttons.

  • Page 17: General Design Features

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L GENERAL DESIGN FEATURES Environmental All hardware is suitable for use in an interior or protected location. Power Limiting The city tie circuitry is not power limited when programmed for Local Energy or Shunt operation.

  • Page 18: General Specifications

    • Voltage: 24 VDC nominal • Maximum Current (shorted): 0.25A • Maximum wire loop resistance: 20 ohms/line Faraday Addressable Devices: • Two Style 4 or 6 circuits • Expandable to four Style 4 or 6 circuits with optional boards •...

  • Page 19: Notification Appliance Circuits

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L Notification Appliance Circuits • Four Class B, Style Y circuits Convertible to Class A, Style Z circuits with optional adapter •...

  • Page 20: Rs232 Printer Output

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L RS232 Printer Output • Power limited • Not supervised • Voltage Range: -15 VDC to +15 VDC •...
  • Page 21 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L This page is intentionally blank. P/N 447203 Issue I II-12...

  • Page 22: Control Unit Operation

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L III. CONTROL UNIT OPERATION OPERATION INSTRUCTIONS A. Standby Condition In normal standby operation, the green AC POWER ON LED should be illuminated and no other indicator operating.

  • Page 23: Trouble Condition

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L When the alarm condition has been corrected, return the system to standby operation by pressing the SYSTEM RESET button.

  • Page 24: Additional Operating Procedures

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L ADDITIONAL OPERATING PROCEDURES In addition to the basic fire alarm instructions above, several features are included to facilitate maintenance and increase the versatility of the system.

  • Page 25: History

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L G. History The last 2000 system events are time-tagged and recorded for review in the user level event history. This history is available to anyone with the user security key, but may be erased only at the maintenance security level.

  • Page 26: 12530/12540 Operating Instructions

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L 12530/12540 OPERATING INSTRUCTIONS Alarm Operation In case of alarm, the System Alarm LED flashes, LCD will display alarm conditions and the panel buzzer sounds.

  • Page 27: 12506 Operating Instructions

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L 12506 OPERATING INSTRUCTIONS Alarm Operation In case of alarm, the System Alarm LED flashes, LCD will display alarm conditions and the buzzer sounds.

  • Page 28: Control Unit Installation

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L IV. CONTROL UNIT INSTALLATION PARTS SUPPLIED 446658, 446659 or 446660 Back-box Assembly (red, white or black) or 446662, 446663 or 446664 Back-box Assembly, Extended (red, white or black) 413656, 413657 or 413658 Door Assembly (red, white or black) or 413324, 413325 or 413326 Door Assembly, Extended (red, white or black)

  • Page 29: Surface Mounting Instructions - 12530

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L A. Surface Mounting Instructions - 12530 To mount the enclosure: 1. Mount the enclosure at a convenient height for viewing indicators and operating switches. 2.

  • Page 30: Surface Mounting Instructions - 12540

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L B. Surface Mounting Instructions - 12540 To mount the enclosure: 1. Mount the enclosure at a convenient height for viewing indicators and operating switches. 2.

  • Page 31: Semi-Flush Mounting Instructions - 12530

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L C. Semi-Flush Mounting Instructions - 12530 To mount the enclosure: 1. Mount the enclosure at a convenient height for viewing indicators, and operating switches. 2.

  • Page 32: Semi-Flush Mounting Instructions - 12540

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L D. Semi-Flush Mounting Instructions - 12540 To mount the enclosure: 1. Mount the enclosure at a convenient height for viewing indicators, and operating switches. 2.

  • Page 33: Knock-Outs

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L E. Knock-Outs 1. Prepare the enclosure for electrical wiring, break out the appropriate conduit entry points. Note the wiring diagram requirements for non-power limited and power limited wiring separation.

  • Page 34: Loop Driver Board Installation

    G. Loop Driver Board Installation 1. Set jumpers J1-J5 to the “F” position for Faraday or to “S” for System Sensor addressable devices. 2. Using four Plastic Spacers (P/N 943165), attach the Loop Driver Board (P/N 413765) to the Main Termination Board.

  • Page 35: Transformer Mounting

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L H. Transformer Mounting 1. Place Ground Wire Assembly (P/N 413394) on top left transformer mounting stud as shown. 2.

  • Page 36: Front Plate Assembly

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L I. Front Plate Assembly 1. Secure Main Logic Board (P/N 413764) to Plate Assembly using six #6-32x1/4” screws (P/N29529- 11).

  • Page 37: Front Plate Mounting

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L J. Front Plate Mounting 1. Secure the Front Plate Assembly to Door Assembly using four #6-32 keps nuts (P/N 18965). 2.

  • Page 38: Door Assembly

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L K. Door Assembly 1. Place the Door Assembly onto hinges of the Back-box Assembly. 2. Plug the Cable Assembly (P/N 446052) into connector P8 of the Main Termination Board and to connector P5 of the Main Logic Board.

  • Page 39: Powering The Control Unit

    Place the batteries in the space provided in the bottom of the back-box. If larger than 10 AH battery set is required, a separate enclosure must be used. The Faraday 14050 may be used for battery sets 18 AH and smaller. The Faraday BE-1S may be used for battery sets 38 AH and smaller.

  • Page 40: System Wiring

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L V. SYSTEM WIRING Basic system wiring and detector siting must be in accordance with NFPA 72 or other instructions from the appropriate local authority.

  • Page 41: Wiring Separation

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L WIRING SEPARATION All high voltage and non-power limited wiring must be kept separate from power limited wiring. A ¼” separation must be maintained, with high voltage and non-power limited wiring running in separate conduit openings from power limited wiring.

  • Page 42: Primary And Secondary Power Wiring

    Terminal Terminal Male Male Female 9-Pin 25-Pin 9-Pin Settings: 4800 bps, 8 data bits, 1 stop bit, no parity Faraday RPR-100 Control Board Serial Board Serial Board DIP Switch Settings Switch Bank 1 Switch Bank 2 SW-1 ON-Language (Unlashed 0)

  • Page 43: Auxiliary Power Output Wiring

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L AUXILIARY POWER OUTPUT WIRING The right-hand edge of the main termination board provides for resettable and non-resettable auxiliary power connections.

  • Page 44: City Tie And Status Relays Wiring

    At the right hand side of the main board the terminal blocks are used for the connection of notification appliances. Four individual NACs marked A through D are provided and the polarity shown is when the NAC is activated. 4.7K 1/2W Faraday P/N 10812 Notification Appliance Circuit Style Y, Class B Superv ised, Power Limited See Owner’s Manual for...

  • Page 45: Rs485 Communications Circuit

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L RS485 COMMUNICATIONS CIRCUIT The RS485 communication circuit can address up to 16 standard annunciators and/or 8 remote processors to drive graphic annunciation or relay modules.

  • Page 46: Addressable Device Circuit

    The basic configuration of the 12530/12540 control unit includes two addressable device circuits. The control unit can be programmed for operation with Faraday or System Sensor addressable devices. These are polled by the control unit every few seconds and input or output functions communicated to determine device status or function.
  • Page 47 BRANCH(ES) OF LOOP CIRCUIT Note: Faraday Addressable Devices: Detectors, Monitor Modules, or Control Modules up to a maximum of 60 devices per addressable device circuit. Maximum of 20 devices per Isolator Module. Maximum of 12 Isolator Modules per addressable device circuit.
  • Page 48 SUPERVISED, POWER LIMITED Note: Faraday Addressable Devices: Detectors, Monitor Modules, or Control Modules up to a maximum of 60 devices per addressable device circuit. Maximum of 20 devices between Isolator Modules. Maximum of 12 Isolator Modules per addressable device circuit.
  • Page 49 ISOLATOR MODULES WITH WIRING ENCLOSED IN Note: CLOSED NIPPLED CONDUIT. Faraday Addressable Devices: Not applicable to Style 7 wiring. System Sensor Addressable Devices: Sensors, Monitor Modules, or Control Modules up to a maximum of 99 Sensors and 99 Modules per addressable device circuit. Maximum of 1 device between Isolator Modules. When using the 9298 or 9299 Isolator Base, it will be wired in place of a 9160 and the addressable sensor shown in the wiring above (one 9160 Isolator is required per sensor with an isolator base).

  • Page 50: Addressable/Analog Sensors

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L Addressable/Analog Sensors Each sensor uses a sensor address between 01 and 99 on an addressable device circuit. The device is regularly scanned by the control unit and checked for its current sensor status.
  • Page 51 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L 9155, 9156 or 9181 Addressable/Analog Bases The 9155 or 9181 (System Sensor B501B or B501) base is a standard design for use with an addressable/analog sensor.
  • Page 52 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L Typical Base Wiring Diagram (9155, 9181 & 9189) Optional Faraday 9180 Remote Alarm LED (System Sensor RA400Z) Faraday 9155, 9181 or 9189 BASE: (System Sensor B501B, B501 or B210LP) To Next Addressable...
  • Page 53 The 9297 (System Sensor B524RB) is designed for use with an addressable/analog sensor and provides an alarm relay contact. The 9296 (System Sensor B224RB) is used with Low Profile sensors. Faraday 9296 or 9297 BASE: (System Sensor B524RB or B224RB)
  • Page 54 Faraday PM6849 EOL relay (System Sensor A77-716B) 24VDC Power Supply (See Note 4) 47K EOL Resistor Optional Faraday 9180 Remote Alarm LED Supplied with unit (System Sensor RA400Z) Faraday 9161 Duct Housing: (System Sensor DH500AC/DC) To Next From Addressable Addressable...
  • Page 55 9180 remote alarm LED unit. The 9167 remote test station may be used, if separate power is supplied. TYPICAL WIRING DIAGRAM FOR A 9179 DUCT HOUSING FOR ADDRESSABLE/ANALOG SENSOR Optional Faraday 9180 Remote Alarm LED: (System Sensor RA400Z) Faraday 9179 Duct Housing: (System Sensor DH500)

  • Page 56: Addressable Modules

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L Addressable Modules Zone Monitor Module (9157) The 9157 (System Sensor M500MB) monitor module provides (1) Style "B" (2-wire) initiating circuit or (1) Style "D"...
  • Page 57 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L CONFIGURATION OF 9157 MONITOR MODULE TYPICAL CONVENTIONAL STYLE “B” (“2-WIRE”) CONTACT DEVICE INITIATING CIRCUIT Faraday 9157 Monitor Module: Supervised (System Sensor M500MB)
  • Page 58 TYPICAL WIRING DIAGRAM FOR CONVENTIONAL “4-WIRE” (SEPARATELY POWERED) SMOKE DETECTORS STYLE “B” (“2-WIRE”) Supervised Power limited See NFPA 72 for maximum quantity Faraday 9157 Monitor Module: of devices per initiating device circuit. (System Sensor M500MB) From Addressable Device Circuit To Next...
  • Page 59 TYPICAL WIRING DIAGRAM FOR CONVENTIONAL “4-WIRE” (SEPARATELY POWERED) SMOKE DETECTORS STYLE “D” (“4-WIRE”) Supervised See NFPA 72 for maximum quantity Power limited of devices per initiating device circuit. Faraday 9157 Monitor Module: (System Sensor M500MB) From Addressable Device Circuit To Next Addressable...
  • Page 60 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L Device Monitor Module (9158) ("Mini-Monitor") The 9158 (System Sensor M501M) addressable mini-monitor module provides a Style "B" (2-wire) initiating circuit for normally open dry contact fire alarm and supervisory (tamper) devices.
  • Page 61 TYPICAL CONVENTIONAL STYLE “B” (“2-WIRE”) INITIATING CIRCUIT Supervised Power limited To Next From Addressable Addressable Device Circuit Device Faraday 9157 Monitor Module: (System Sensor M501M) Supervised Power limited 47K EOL Resistor Supplied with unit See NFPA 72 for maximum quantity of devices per initiating device circuit.
  • Page 62 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L Interface Module (9191) The 9191 (System Sensor M502M) addressable Interface Module allows the addressable device circuit to interface and monitor two-wire conventional smoke detectors.
  • Page 63 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L CONFIGURATION OF 9191 MONITOR MODULE TYPICAL CONVENTIONAL STYLE “B” (“2-WIRE”) CONTACT DEVICE INITIATING CIRCUIT Faraday 9191 Monitor Module: Supervised (System Sensor M502M)
  • Page 64 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L Control Module (9159) The 9159 (System Sensor M500CH) addressable control module provides (1) Style "Y" (2-Wire") polarity reversal notification appliance circuit or (1) "4-Wire"...
  • Page 65 Supervised Power limited From Addressable Device Circuit 47K EOL Resistor Supplied with unit Supervised Power limited Faraday 9159 Control Module: See NFPA 72 for maximum quantity (System Sensor M500CH) of devices per initiating device circuit. 24VDC Supervised Power Power limited...
  • Page 66 CONFIGURATION OF 9159 CONTROL MODULE TYPICAL CONVENTIONAL STYLE “Z” (“4-WIRE”) NOTIFICATION APPLIANCE CIRCUIT Supervised Power limited From Addressable Device Circuit Faraday 9159 Control Module: See NFPA 72 for maximum quantity (System Sensor M500CH) of devices per initiating device circuit. Supervised 24VDC...
  • Page 67 CONFIGURATION OF 9159 CONTROL MODULE TYPICAL DRY FORM “C” CONTACT OUTPUT From Addressable Device Circuit Not supervised Break tabs Common Normally closed Normally open Faraday 9159 Control Module: (System Sensor M500CH) Not supervised To Next Addressable Break tabs Common Device Normally closed...
  • Page 68 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L Isolator Module (9160) The 9180 (System Sensor M500X) addressable device circuit isolator module provides the circuitry to automatically open and thus "isolate"...
  • Page 69 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L This page is intentionally blank. P/N 447203 Issue I V-30...

  • Page 70: Programming The Control Unit

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L VI. PROGRAMMING THE CONTROL UNIT MAIN TERMINATION BOARD JUMPERS Factory setting is shown. P12 – Processor Failure Relay Contact Type •...

  • Page 71: Main Logic Board Jumpers

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L WJ1 & WJ2 – NAC 3 & 4 External Power Input (cut both jumpers if auxiliary power supply is used) MAIN LOGIC BOARD JUMPERS Factory setting is shown.

  • Page 72: Loop/Signal Expansion Jumpers

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L LOOP/SIGNAL EXPANSION JUMPERS Factory setting is shown. P1 – Loop Board • Not Installed • • Installed P50 –...

  • Page 73: Remote Lcd Annunciator Jumper

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L REMOTE LCD ANNUNCIATOR JUMPER WJ1 – External Power Input (cut jumper if auxiliary power supply is used) REMOTE LCD ANNUNCIATOR SWITCHES Switches are standard 4 -position DIP switches.

  • Page 74: Serial Relay Unit Switches

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L SERIAL RELAY UNIT SWITCHES Switches are standard 4 -position DIP switches. Slide the switches to the left for Off and to the right for On.

  • Page 75: Keypad Programming

    Customized programming of the 12530/12540 control unit may be accomplished through a keypad included in the control unit. A sixteen-key, telephone-style keypad mounts on the main logic board within the cabinet. The keypad may also be easily removed if desired. See the Faraday 447207 Programmer’s Manual for detailed information of system programming.

  • Page 76: Maintenance

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L VII. MAINTENANCE GENERAL • Device sensitivity may be read out and alarm thresholds controlled on a per-point basis, as well as setting overall percent obscuration and day/night variations.

  • Page 77: Quick Test

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L QUICK TEST CAUTION: If the control unit has remote connections to the Fire Department or other monitor, be sure to disable the remote signals and notify the remote monitoring station before performing test operations, since an off-normal condition will be indicated.

  • Page 78: Appendix-A: Reference Data

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L VIII. APPENDIX-A: REFERENCE DATA This appendix provides reference for the following topics: • Wire selection guides •...

  • Page 79: Notification Appliance Circuit Wire Selection Guide

    Wire size: 18AWG 16AWG 14AWG * 12AWG Wire length: 6150 9750 10,000 10,000 Cable length: 3075 4875 5,000 5,000 * The terminal blocks of Faraday addressable devices are rated for a maximum of 14AWG wire. P/N 447203 Issue I VIII-2...

  • Page 80: Battery Size Calculations

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L BATTERY SIZE CALCULATIONS Standby Current (A.) Alarm Current (A.) 12530/12540 Control Unit 0.260 0.400 12522 Loop Driver Standby 0.017 0.017...
  • Page 81 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L Standby Current (A.) Alarm Current (A.) 4-wire Smoke Detectors Catalog # Quantity X Current (A.) Standby Alarm Standby Alarm...

  • Page 82: Appendix-B: Compatible Devices

    Remote LED Annunciator, Single Gang Mounting 8853, 8840 Notes: Faraday devices, detectors and modules, up to a maximum of 60 devices may be used per addressable device circuit. For specific wiring and installation information, read the instructions provided with each device.

  • Page 83: System Sensor Addressable/Analog Sensors

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L System Sensor Addressable/Analog Sensors Faraday System Description Compatible Base Cat. No. Sensor P/N 8406 2251T Photoelectric Sensor w/Thermal - Low...

  • Page 84: Devices For Initiating Device Circuits

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L DEVICES FOR INITIATING DEVICE CIRCUITS Manual Stations Faraday Mfg. Cat. No. Faraday, LLC F1GT 17-450334-35 F1GGT 17-450334-38 F1GHT...

  • Page 85: Supervisory Switches

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L Supervisory Switches Faraday Mfg. Cat. No. System Sensor PM6623 OSY2 PM6624 PIBV2 PM6781 EPS40-1 PM6782 EPS40-2 Notes: Any UL Listed contact type supervisory switch with compatible contact ratings is acceptable.

  • Page 86: Ul Compatible Two-Wire (Circuit Powered) Smoke & Heat Detectors

    55000-153 45681-230 9274 w/9262 55000-152 w/45681-220 0-30 0.057mA 55000-152 45681-220 9274 w/9265 55000-152 w/45681-230 0-30 0.089mA 55000-152 45681-230 Faraday, LLC 8842 w/8853 8842 w/8853 0-27 0.110mA 8842 8853 8842 w/8853 (5) 0-13 0.220mA 8842 8853 8842 w/8853 8843 w/8853 8843 w/8853 0-27 0.110mA...

  • Page 87: Ul Compatible Four-Wire (Separately Powered) Smoke Detectors

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L UL Compatible Four-Wire (Separately Powered) Smoke Detectors Faraday Mfg. Detector w/Base Maximum Maximum Notes Detector Standby...

  • Page 88: Devices For Notification Appliance Circuits

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L DEVICES FOR NOTIFICATION APPLIANCE CIRCUITS Notification Appliances Faraday Description Audible Audible Strobe Strobe Catalog Voltage Current...
  • Page 89 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L Faraday Description Audible Audible Strobe Strobe Catalog Voltage Current Voltage Current Number (Volts) (Amps) (Volts) (Amps)
  • Page 90 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L Faraday Description Audible Audible Strobe Strobe Catalog Voltage Current Voltage Current Number (Volts) (Amps) (Volts) (Amps)

  • Page 91: Accessory Devices

    Cat. No. xxxx-Y = Sync Strobe Light (UL1971 75cd) Cat. No. xxxx-L = Strobe Light (UL1971 110cd) Cat. No. xxxx-Z = Sync Strobe Light (UL1971 110cd) Accessory Devices Faraday Mfg. Part Number Description Cat. No. Faraday, LLC R711-1 711-1 Polarized Auxiliary Relay MEP-100 15050 Mini-Evac Control Unit RSE-100...

  • Page 92: Devices For Auxiliary Power Outputs

    Door Holder 9554 DH-24120GC1 Door Holder 9555 DH-24120GC2 Door Holder Relays Faraday Mfg. Part Number Description Cat. No. Faraday, LLC R711-1 711-1 Remote Relay Unit Air Products & Controls R712-1 MR-101/C Remote Relay Unit R712-2 MR-201/C Remote Relay Unit R712-4...
  • Page 93 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L This page is intentionally blank. P/N 447203 Issue I IX-12...

  • Page 94: Appendix-C: Troubleshooting

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L X. APPENDIX-C: TROUBLESHOOTING TROUBLESHOOTING INDICATORS Indicator Location Description Main Termination Board City Tie - Indicates open circuit or local energy box needs reset. Main Termination Board Monitor - Indicates auxiliary power supply monitor circuit open.

  • Page 95: System Troubles

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L B. System Troubles ENTRY INDICATES AC Trouble AC input low or off AddrLp l DBLSHT Double short trouble on addressable loop l AddrLp l OPEN Open circuit trouble on addressable loop l AddrLp l SHORT...

  • Page 96: System Events

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L C. System Events ENTRY INDICATES/NOTES Alarm Silenced MAIN, LCDxx shown on bottom line All AV Ctrs Clr All AV counters cleared AutoProgram Run Auto programming function run...
  • Page 97 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L This page is intentionally blank. P/N 447203 Issue I...

  • Page 98: Appendix-D: Installation Instructions

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L XI. APPENDIX-D: INSTALLATION INSTRUCTIONS This Appendix provides installation instructions for the following option modules and accessories: •...
  • Page 99 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L This page is intentionally blank. P/N 447203 Issue I XI-2...
  • Page 100 Loop/Signal Expansion Module P/N 12505. This module is an interface between the Main Logic Board processor and the Faraday addressable devices or System Sensor analog/addressable devices. The 12522 Loop Driver Board sends serial communications and receives data from the addressable devices.
  • Page 101 Conventional Powerlimited Expansion Optional External 24VDC nominal input for NACs 1&2, 3 Amp. Max. Board Faraday Use Faraday 12408 Auxiliary Power Supply P/N 10812 O U T Supervised, Powerlimited 4.7K 1/2W P 1 0 N A C Cut Jumpers WJ1 & WJ2 to enable...
  • Page 102 Main Termination Board Class A Adapter Main Termination Board NOTES: Units to be installed in accordance with all local electrical codes. Terminal block will accept a maximum of #12 AWG wiring. FARADAY, LLC 446993 ISSUE I REV. A PAGE 1 OF 1...
  • Page 103 Loop #4 electrical codes. Style 4 or 6/7 Style 4 or 6/7 Terminal block will accept a maximum of #12 AWG wiring. See Owners Manual for compatible devices. FARADAY, LLC 446994 ISSUE I REV. A PAGE 1 OF 1...
  • Page 104 The lamp test operation is also enabled by the keyswitch, but the function is limited to the annunciator. The annunciator mounts to a horizontally mounted 6-gang box, 2” deep minimum. The Faraday 12411 Surface Backbox may be used for surface mounting. PARTS SUPPLIED Step 1.) Installation is to be done by qualified personnel...
  • Page 105 The following table shows the dip switch settings for proper addressing of the 12506 remotes. SW-9 Address Switch 1 Switch 2 Switch 3 Switch 4 OFF ON 446983 ISSUE I REV. C PAGE 2 OF 2...
  • Page 106 Note: Enclosure must be UL Listed for Fire Protective 447073 Instruction Sheet Signaling Use (Faraday P/N 401403 Fire Alarm Accessory Enclosure). Step 4.) Attach conduit and run wires as required. Step 5.) Set processor board dip switch for proper 12508 PARTS SUPPLIED remote address (1- 8).
  • Page 107 Cable for power (+ & -) and Twisted pair Cable for data (X+ & X-) to next remote or 120 ohm termination resistor (Faraday P/N 942664) on the last remote. TB3 allows for connection to an external regulated and power limited 24VDC power...
  • Page 108 Note: Enclosure must be UL Listed for Fire Protective 447074 Instruction Sheet Signaling Use (Faraday P/N 401403 Fire Alarm Accessory Enclosure). Step 4.) Attach conduit and run wires as required. Step 5.) Set processor board dip switch for proper 12510 PARTS SUPPLIED remote address (1- 8).
  • Page 109 Cable for power (+ & -) and Twisted pair Cable for data (X+ & X-) to next remote or 120 ohm termination resistor (Faraday P/N 942664) on the last remote. TB3 allows for connection to an external regulated and power limited 24VDC power supply, listed for fire protective signaling use.
  • Page 110 Note: Use knock - outs A, E, K or M for power- limited connections to the fire alarm control unit. 401403 SEMI-FLUSH MOUNTING WITH 401404 SEMI-FLUSH TRIM 401403 DIMENSIONS FARADAY, LLC 447138 ISSUE I REV. A PAGE 1 OF 2...
  • Page 111 SAMPLE LAYOUT FOR RELAY UNITS SAMPLE LAYOUT FOR ANNUNCIATOR UNITS 447138 ISSUE I REV. A PAGE 2 OF 2...
  • Page 112 P1 to P5 Step 7.) Apply power to system. P2 to P6 on MTB on MTB Step 8.) Check for proper operation of functions. Serial Isolation Board FARADAY, LLC 447065 ISSUE I REV. A PAGE 1 OF 1...
  • Page 113 Maint Level>>Disable/Enable>Outputs>DACT >Enabled NOTE: See Programmer’s Manual (P/N 447081 for 12500 or 447207 for 12530/12540) for more details on programming. Step 11.) Check for proper operation of functions. FARADAY, LLC 447153 ISSUE I REV. A PAGE 1 OF 4...
  • Page 114 413699 WIRING Telephone Line Connection Ratings: Faraday P/N 447109 Non-Power Limited Cable Assembly Supervised for open or shorted circuit. Voltage: 24VDC nominal Ringer Equivalence: 0.4B Telephone Line #1 Connection from TELCO 8-PIN GREEN RING RJ31X MODULAR JACK GREY Optional Output to telephone...
  • Page 115 413699 EVENT CODES Event Type SIA DCS Ademco 3/1 * 4/2 ** (8 or 20) Contact ID 1400HZ or 2300HZ 1400HZ or 2300HZ Fire Alarm FA tuvw 1 110 00 xyz Sprinkler Alarm SA tuvw 1 113 00 xyz Fire Alarm Restore FH tuvw 3 110 00 xyz Sprinkler Alarm Restore...
  • Page 116 This equipment contains no customer or user serviceable parts. This device may not be used on public coin or party line services. Changes or modifications not expressly approved by Faraday, LLC could void your authority to operate this equipment.
  • Page 117 Units to be installed in accordance with all local electrical codes. Terminal block will accept a maximum of #12 AWG wiring. See Owners Manual for ratings and compatible devices. FARADAY, LLC 447062 ISSUE I REV. A PAGE 1 OF 1...
  • Page 118 Attach to Stud in Backbox with #6-32 Keps Nut NOTES: Units to be installed in accordance with all local electrical codes. Terminal block will accept a maximum of #14 AWG wiring. FARADAY, LLC 446062 ISSUE I REV. B PAGE 1 OF 1...
  • Page 119 Box 14 3/8" 6" Door 14 3/4" 12408 SEMI-FLUSH MOUNTING 3 1/2" Max. Box 10" 17 1/2" Door 10 9/32" 13 7/8" NOTE: See box dimensions at left for opening size. FARADAY, LLC 446066 ISSUE I Rev. C PAGE 1 OF 6...
  • Page 120 1504-G1 Door Holder 1505-002 1505-G1 Door Holder 1508-002 1508-G1 Door Holder 1509-002 1509-G1 Door Holder Relays Faraday Cat. No. Mfg Part Number Description Faraday, LLC. R711-1 711-1 Remote Relay Unit Air Products & Controls R712-1 MR-101/C Remote Relay Unit R712-2...
  • Page 121 Four-Wire (Separately Powered) Smoke & Heat Detectors Faraday Mfg Detector w/Base Maximum Maximum Detector Standby Alarm Notes w/Base Current Current Air Products & Controls 9269 RW-2W-NA 0.081mA 115mA Must use EOL Relay 9270 RW-2W-PA 0.110mA 115mA Must use EOL Relay...
  • Page 122 Catalog Description Audible Audible Strobe Strobe Number Voltage Current Voltage Current 2705-M (*2) WP Sync Strobe Light 20-31VDC 0.059A 2705-Z (*2) WP Sync Strobe Light 20-31VDC 0.249A 2820 (*2) Sync Electronic Horn 20-31VDC 0.030A 2821 (*2) Sync Electronic Horn 20-31VDC 0.030A 2824-M (*3) Sync Electronic Horn w/Sync Strobe...
  • Page 123 Catalog Description Audible Audible Strobe Strobe Number Voltage Current Voltage Current 5398-T (*2) Electronic Chime w/Sync Strobe 21-30VDC 0.020A 20-31VDC 0.154A 5398-Y (*2) Electronic Chime w/Sync Strobe 21-30VDC 0.020A 20-31VDC 0.170A 5398-Z (*2) Electronic Chime w/Sync Strobe 21-30VDC 0.020A 20-31VDC 0.249A 5405 Sync Control Unit...
  • Page 124 Cat. No. xxxx-L = Strobe Light (UL1971 110cd) Cat. No. xxxx-Z = Sync Strobe Light (UL1971 110cd) Compatible Accessory Devices Order No. Mfg Part Number Description Notes: Faraday The accessory devices listed above may be R711-1 711-1 Polarized Auxiliary Relay wired to activate from the notification MEP-100...
  • Page 125 See DC-100 / DC-101 Installation Manual P/N AC LOSS HOURS=6-12 for Central Station Service 445833 for further installation details. 15 for Remote Station Service Step 10.) Check for proper operation of functions. FARADAY, LLC 446060 ISSUE I REV. B PAGE 1 OF 2...

  • Page 126: Appendix-E: Glossary

    1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L XII. APPENDIX-E: GLOSSARY Alarm Signal. A signal indicating an emergency requiring immediate action, such as an alarm for fire from a manual station, a waterflow alarm, or an automatic smoke detector.
  • Page 127 1 2 5 3 0 / 1 2 5 4 0 O W N E R ' S M A N U A L Initiating Device Circuit (IDC). A circuit to which initiating devices are connected. Labeled. Equipment or materials to which have been attached a label, symbol, or other identifying mark of an organization acceptable to the authority having jurisdiction and concerned with product evaluation, that maintains periodic inspection of the production of such labeled equipment or materials.

This manual is also suitable for:

12530-12012530-24012540-12012540-240

Table of Contents
