Summary of Contents for Face F1600TX

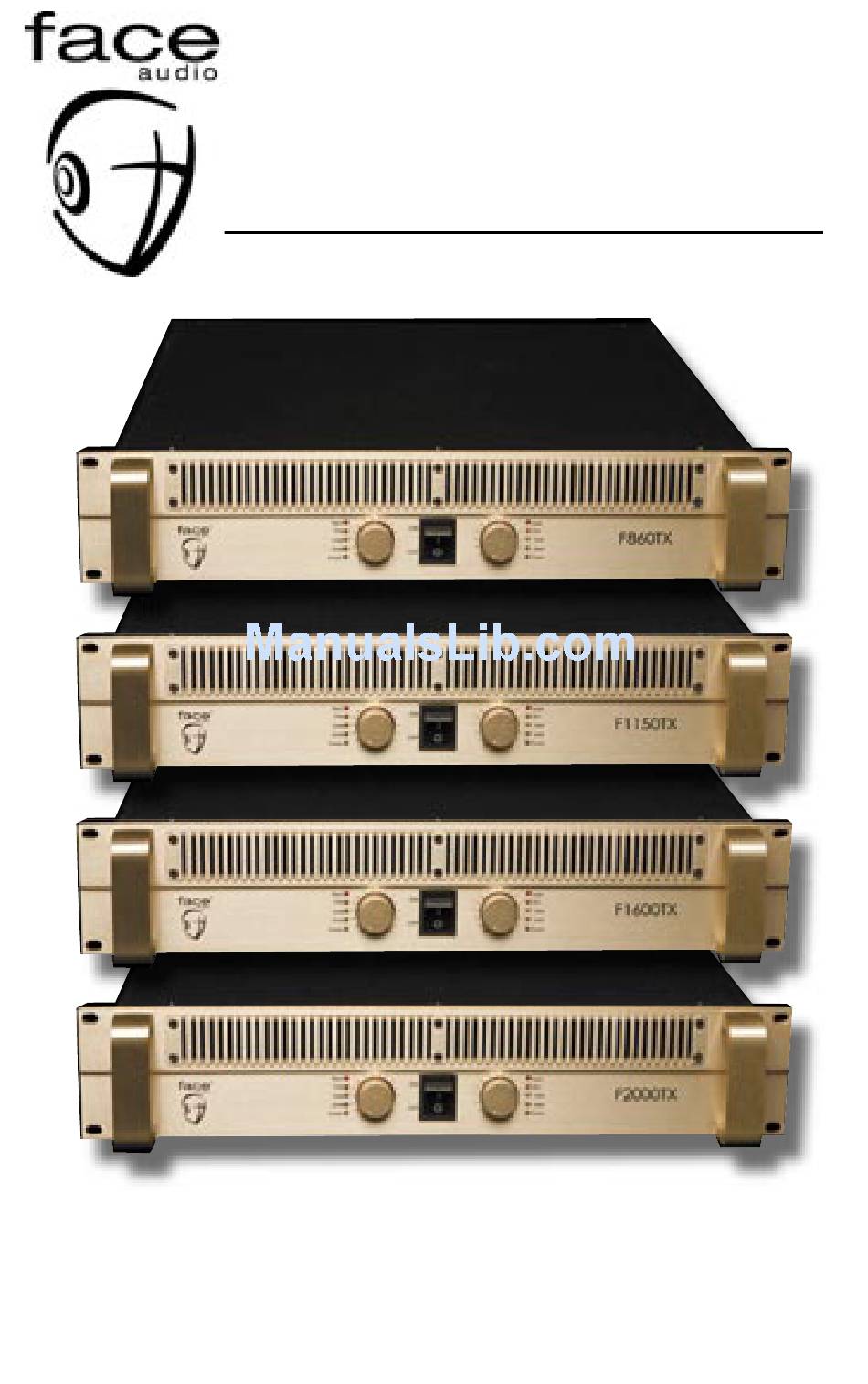

- Page 1 ® Owner’s Manual Titanium Extra Series Amplifi ers F860TX • F1150TX • F1600TX • F2000TX 8675 South Sandy Parkway Building 110 Sandy, Utah 84070 Toll Free (877) 525-1163 • www.faceaudio.com...
-
Page 2: Table Of Contents
Table of Contents Precautions & Warnings………………………………………………………1 Owners Manual…………………...…………………………………1 Safety Precautions…………………..……………………………...1 Voltage…………………………………………………………2 Shock Hazard…………………..……………………………………2 Connectors & Cables……………..……………………………………2 Speaker/ Driver Damage……………………………………………2 Interference………………………………………………………..3 Mounting……………………………………………………………3 Introduction……………………………………………………………………4 Key Features...………………………………………………………..4 Front/Rear View………………………………………………………………5 Switches / Indicators / Controls……………………………………………6 Mode Select Switch………………………...…………………………6 Fault LED….……………………………….…………………………6 Clip LED………………………………………………………………6 Signal LEDs……...……………………………………………………6 Power LED…………..…………………………………………………6 Input Attenuators………..…………………………………………6 Protection Features……………………………………………………………7... -
Page 3: Precautions & Warnings
Keep this manual for future reference. Each Face Audio® amplifi er is inspected before leaving the factory and should arrive dam- age-free. However, in the event damage did occur in transit notify the shipping company and point-of-purchase immediately. -
Page 4: Voltage
Turning the gain controls all the way down before power- ing-up the amplifi er is recommended to prevent speaker damage. Face Audio® will not be responsible for damaged speakers. If you are unsure about the capacity of your speakers please consult your speaker manufacturer. -
Page 5: Interference
Mounting: All Face Audio® amplifi ers will mount in a standard 19” rack, 4 front panel mounting holes are provided for this. (Figure A.) Your amplifi er uses a forced-air cooling system to maintain a low operating temperature. Air is drawn in through the front by a blower that is placed in the rear of the unit, (Figure B.) do not cover the front or rear of the device as this may cause it... -
Page 6: Introduction

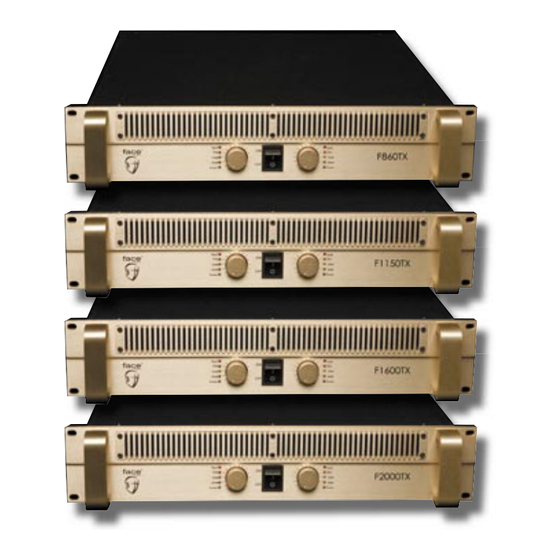

Introduction The Titanium Extra Series Amplifi ers are rugged dual-fan cooled, 2-channel, 2-RU amps providing high-value performance and power in a strong, compact chassis. The Titanium Extra Series comprises four models: the F860TX, F1150TX, F1600TX, and F2000TX. Fault Fault F2000TX... -
Page 7: Front/Rear View
Front/Rear View Fault Fault F2000TX Clip Clip Signal Signal Active 1. Cooling Vents 2. Indicator LEDs: Fault, Clip, -10dB, -30dB, Power. (Channel A) 3. Gain Control (Channel A) 4. Power Switch 5. Gain Control (Channel B) 6. Indicator LEDs: Fault, Clip, -10dB, -30dB, Power. (Channel B) 7. -
Page 8: Switches / Indicators / Controls
Switches / Indicators / Controls Mode Select Switch: The rear panel is equipped with a “mode select switch” which enables the user to switch between bridged, parallel and stereo modes. For more details please refer to the section on Bridge/Parallel/Stereo Operation. Do not operate the mode select switch while the amplifi... -
Page 9: Protection Features
Face Audio® will not be responsible for damaged speakers. Limiter: Face Audio® amplifi ers come with built in limiters to prevent inadvertent damage to it or equipment attached to it by less experienced users. -
Page 10: Connections
Connections Input Connections: Face Audio® amplifi ers come with built-in XLR inputs, depending on the model. XLR Connectors: The amplifi er’s built-in XLR connector pinout confi guration is as follows: 1. Pin 1 is ground (gnd). 2. Pin 2 is positive (+). -
Page 11: Stereo
Connections Stereo While the mode selector switch is in Stereo mode the amplifi er is a binaural ampli- fi er. Both input and output channels amplify independent of each other. To use stereo mode follow these steps: 1. Turn off the amplifi er. 2. -
Page 12: Parallel
Connections Parallel While the mode selector switch is in the Parallel position the input connectors for both channels are wired directly in parallel (Ch. A input will drive Ch. A & B output). The output volumes can still be controlled individually by adjusting the front dials as in normal operation. -
Page 13: Bridge Mono
Connections Bridge Mono Both amplifi er channels can be bridged together to make a very powerful single channel monaural amplifi er. When the mode switch is set to the “bridge” position the built in power amplifi ers operate in “push-pull” mode. The doubled output voltage from channel A and B appears on the positive (red) terminals on both channels. -
Page 14: Maintenance & Service
After the above variables have been eliminated as the root cause of the problem you should call Face Audio® for technical assistance at (801) 233-0740. We have trained staff available on weekdays from 9AM to 5PM MST. -
Page 15: Specifi Cations
(H X W X D) Net Weight 32 lb 37 lb 45 lb 53 lb Shipping Weight 39 lb 44 lb 51 lb 59 lb Note: Face Audio® is continually researching and developing, for this reason specifi cations may change without notice. -
Page 16: Hookup Diagrams
Hookup Diagrams Stereo Mix Monitors Outputs Mixer (Console) Fault Fault F2000TX Clip Clip Signal Signal Signal Signal Active Active Amplifi er Left Right ≥2Ω ≥2Ω ≥2Ω Parallel Mix Monitors Outputs Mixer (Console) Fault Fault F2000TX Clip Clip Signal Signal Signal Signal Active Active... -
Page 17: Stereo Bi-Amped Mix
Hookup Diagrams Stereo Bi-amped Mix Monitors Outputs Mixer (Console) Crossover Fault Fault Fault Fault F2000TX F2000TX Clip Clip Clip Clip Signal Signal Signal Signal Signal Signal Signal Signal Active Active Active Active Amplifi er Amplifi er (Highs) (Lows) ≥2Ω ≥2Ω Full Range Speakers ≥2Ω... -
Page 18: Bridge Mono
Hookup Diagrams Bridge Mono Mix See page 11 for more details. MON/AUX Outputs Fault Fault F2000TX Clip Clip Signal Signal Signal Signal Active Active Amplifi er (Lows) Mixer (Console) 8Ω 4Ω Subwoofer Use extreme caution when operating an amplifi er in bridged mode. Bridge Wiring (Bridge output) 8Ω... - Page 19 Contact Face Audio 8675 South Sandy Parkway Building 110 Sandy, Utah 84070-6426 Phone: (801) 233-0740 Fax: (801) 233-0741 Email: info@faceaudio.com www.faceaudio.com www.myspace.com/faceaudio...
- Page 20 Face Audio® LLC warrants to the original owner of any power amplifi er purchased at an Authorized Face Audio dealer in the United States and Canada, that it will be free from defects in material and workmanship for a period of fi ve (5) years from the date of purchase.
