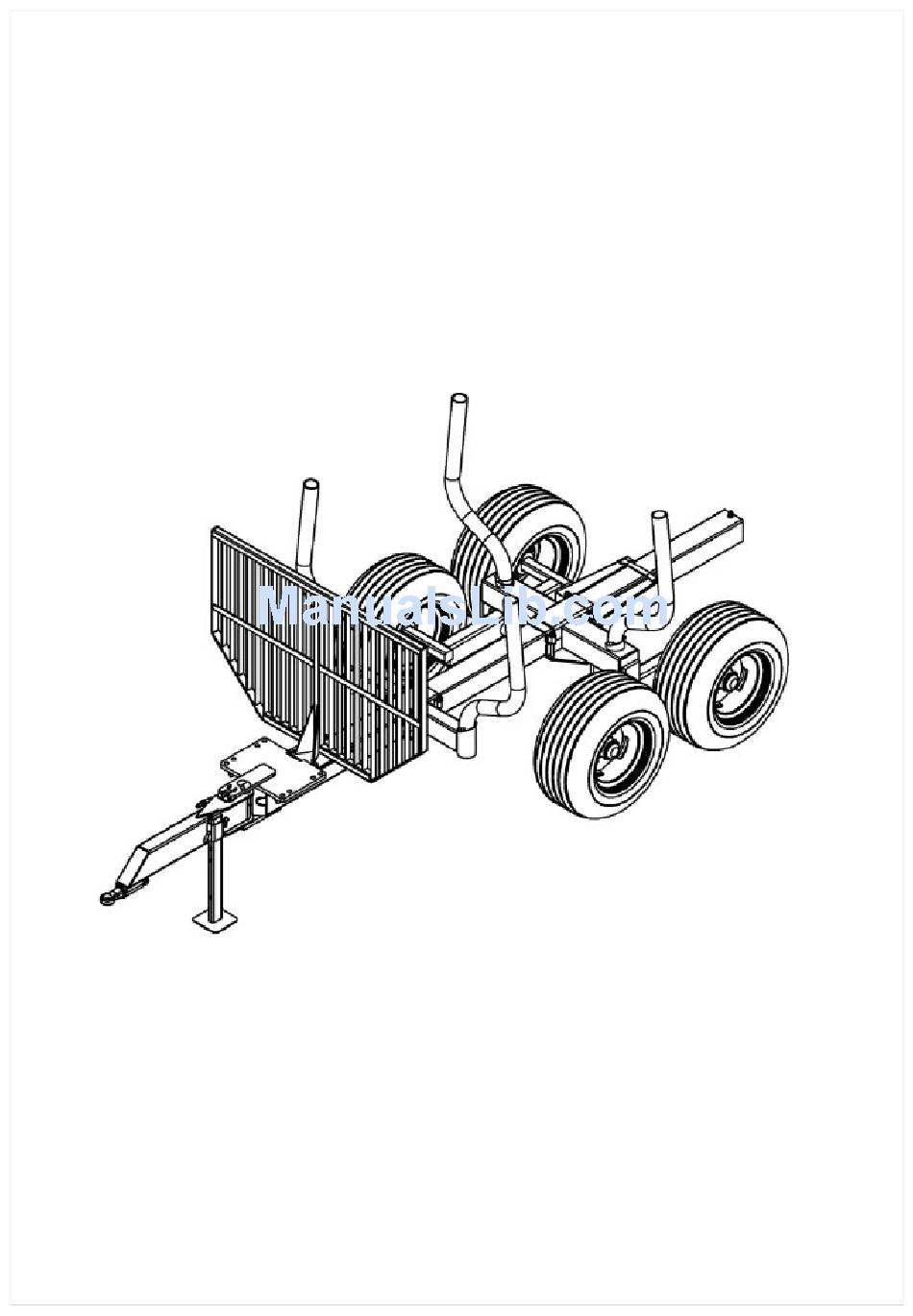

- Page 1 USER MANUAL FOREST TRAILER PALMS 81 Palmse Mehaanikakoda, Võsupere küla, Vihula vald, Lääne-Virumaa 45202, Estonia tel. +3723255375 fax +3723255378 e-mail: palms@palms.eu http://www.palms.eu...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ...................... 2 SAFETY........................3 BASIC COMPONENTS .................... 5 ACCESSORY ......................6 TECHNICAL DATA ....................7 HYDRAULIC SYSTEM ..................... 9 ASSEMBLY AND MOUNTING................. 9 OPERATING INSTRUCTIONS................10 STORAGE INSTRUCTIONS .................. 11 10. MAINTENANCE ..................... 12 11. SPARE PARTS ...................... 13 12. -
Page 3: Introduction
FOREST TRAILER PALMS 81 1. INTRODUCTION This manual gives you detailed overview about forest trailer Palms 81. Read the manual carefully before you start using this machine. The manual contains essential directions for efficient and safe use of forest trailer. These instructions should always be followed. This forest trailer is constructed to transport raw wood material from forest as well for transportation treated wood. -
Page 4: Safety
FOREST TRAILER PALMS 81 2. SAFETY General Read the manual carefully before you start using forest trailer. Use forest trailer only for purposes, what it is made for. Driver must have proper valid licence to drive tractor in connection with trailer and has sufficient training for that. Notice, avoid and prevent all potentially hazardous situations. - Page 5 FOREST TRAILER PALMS 81 Hydraulic system • Hydraulic system must be serviced by qualified and experienced hydraulics mechanic only • Continually inspect the condition of hydraulic system. Repair all safety en- dangering defects immediately • Before starting repair work or maintenance make sure, there is no pressure in hydraulic system •...
-
Page 6: Basic Components
FOREST TRAILER PALMS 81 3. BASIC COMPONENTS Figure 1. Basic components of Palms 81 forest trailer 1. Drawbar 2. Chassis 3. Safety screen 4. Bolsters 5. Boggie 6. Wheels, standard 11,5/80-11,3 Ver 1.00 EN © 2010 Palmse MK... -
Page 7: Accessory
FOREST TRAILER PALMS 81 4. ACCESSORY Brakes Figure 2. Brakes on on axle Figure 3. Brakes on two axles Frame extension and signal lights Figure 4. Frame extension Figure 5. Signal lights Ver 1.00 EN © 2010 Palmse MK... -
Page 8: Technical Data
FOREST TRAILER PALMS 81 5. TECHNICAL DATA Technical data Load capacity ≤40 km/h 8000 kg Axles 60x60-6 Chassis 160x160 Loading area 1,8 m2 Length of loading area, mm 3400 Total length, mm 5330 Clearance Brakes Width with standard wheels, mm 1920 Standard wheels 11,5/80-11,3... - Page 9 FOREST TRAILER PALMS 81 Dimensions Figure 6. Dimentions of Palms 81 forest trailer Ver 1.00 EN © 2010 Palmse MK...
-
Page 10: Hydraulic System
FOREST TRAILER PALMS 81 6. HYDRAULIC SYSTEM Connection Connect trailer’s hydraulic hoses to one of sections of tractor’s control valve. Be sure all connections are properly locked. Unlock drawbar by removing locking shaft. Using lever of control valve section, where you connected forest trailer’s hydraulic hoses, work carefully thru extreme positions of drawbar to both sides until turning cylinder is working smoothly. -
Page 11: Operating Instructions
FOREST TRAILER PALMS 81 OPERATING INSTRUCTIONS Connecting forest trailer to tractor Before you hook up trailer with tractor ensure, that: • tractor is enough powerful for this trailer • tractor’s hitch is in perfect working condition • trailer is on even ground and fixed with wheel chocks •... -
Page 12: Storage Instructions
FOREST TRAILER PALMS 81 9. STORAGE INSTRUCTIONS Always switch the pump off before disconnecting hydraulic hoses from tractor’s hydraulic system! • Clean forest trailer and if necessary, touch up any points, where paint has peeled off • Lubricate forest trailer thoroughly (see lubricating instructions) •... -
Page 13: Maintenance
FOREST TRAILER PALMS 81 10. MAINTENANCE 10.1 Lubrication Using the appropriate lubricants like Beacon EP2, Multipurpose GR Moly, Mobilux EP2, Mobil Grease MP Special, Energrease LS-EP2 or similar. Right lubricants guarantee troublefree operation of the machine. Figure 8. Lubrication points of Palms 81 forest trailer Interval, Lubrication point Lubricant... -
Page 14: Spare Parts
FOREST TRAILER PALMS 81 11. SPARE PARTS 11.1 Basic parts Figure 9. Spare parts of Palms 81 forest trailer Ver 1.00 EN © 2010 Palmse MK... - Page 15 FOREST TRAILER PALMS 81 Part № Part name 1080000101 Palms 81 frame with drawbar 1080000201 Palms 81 boggie bunk 1080000301 Palms 81 front safety barrier 1080000401 Palms 81 bunk 1080000501 Palms 81 boggie 2080000601 Palms 81 clamp 2080000701 Palms 81 boggie pin 2080000801 Palms 81 post 2112001001...
- Page 16 FOREST TRAILER PALMS 81 11.2 Hydraulic brakes on one(front) axle Figure 10. Brakes on front axle Part № Part name 11220101 Boggie 11220201 Boggie 11220301 hydraulic hose 1/4 - 1/4 L - 11220401 hydraulic hose 1/4 - 1/4 90 L - 11220501 1/4 T-union 11220601...
- Page 17 FOREST TRAILER PALMS 81 11.3 Hydraulic brakes on two(front and rear) axles Figure 11. Brakes on both axles Part № Part name 11230101 Boggie 11230201 Boggie 11230301 hydraulic hose 1/4 - 1/4 L - 11230401 hydraulic hose 1/4 - 1/4 90 L - 11230501 hydraulic hose 1/4 - 1/4 90 L - 11230601...
-
Page 18: Warranty
FOREST TRAILER PALMS 81 12. WARRANTY Product warranty is valid for one year starting from the date of delivery or issuing an invoice. Product warranty is valid only if: • all instructions in this manual were followed • during the maintenance original spare parts were used •...
