Summary of Contents for Neptune Bath
- Page 1 B a t h W h i r l p o o l M a s s - a i r A c t i v - a i r I n s t a l l a t i o n O p e r a t i o n M a i n t e n a n c e R e p a i r D o n o t d i s c a r d .
-
Page 2: Table Of Contents
Optional Bath Skirt installation ........Page 9... -
Page 3: Important Safety Instructions
• Make sure that the bath is the unit that you ordered and that its dimensions and drain-side correspond to your plans. • Never use the pump, piping or jets to lift or manipulate your... -
Page 4: Site Preparation
• Step 3: Using a pencil mark the wall studs directly under the lip of the deck (see fig. 2). If you intend to set the bath in a ensure that the bath is leveled properly and that no dirt can be sucked into the bath’s systems preventing possible damage. -
Page 5: Tiling Flange (Recessed Installation Of A Podium Style Bath)
Fig. 8 Fig. 9 Rotate • Step 9: If your bath is not equipped with an integral skirt the front wall should now be built. It is made from 2”x 3”s spaced Press this edge first 41cm (16”) on center (see fig. 6). Remember to leave... -
Page 6: Podium Installation
• Step 10: Lift the bath and set it into the podium. Make sure that it Cut out for drain / Provide support... -
Page 7: Plumbing Installation
• Step 12: (Mortar option only) Lift the bath and set it into the podi- • Step 4: Optional Bath light: The optional bath light is operated using an air switch. The switch can be mounted on the podium um. Level the bath longitudinally first, then across its width. Check, or directly on the deck of the bath. - Page 8 Fig. 17 MASS-AIR AND ACTIV-AIR ELECTRICAL FEED 12OV 60HZ 15A GFCI CANADA / EUROPE Junction box Blower White GFCI Black Green/Copper USA ONLY GFCI WHIRPOOL Sealed control unit No adjustments ELECTRICAL possible FEED 12OV 60HZ 15A GFCI CANADA / EUROPE Pump Junction box GFCI...
-
Page 9: Finishing Walls, Decks And Podiums

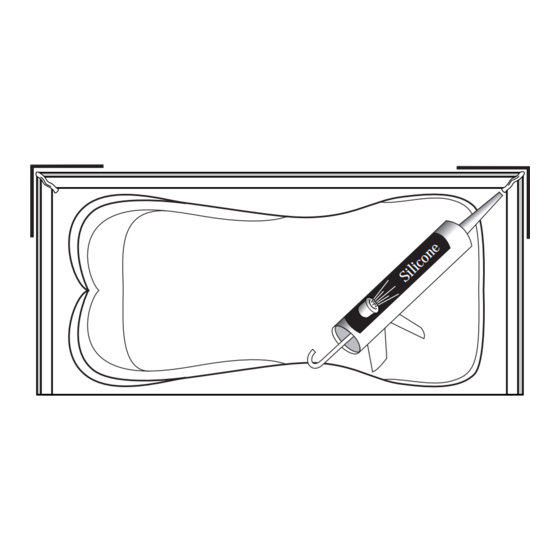

Ariane, Orphee and Venus baths. All skirts are relative to the bath lip on a podium or deck installation. designed shorter than the bath by a 1/2” on either side. This √ All 90 angles including those between the walls, the podium is to allow for removal of the skirt after the walls have been and the deck should be sealed with silicone caulk (see fig 21). -
Page 10: Fixed Height Skirts
Flush Flush • Step 4: Make sure that the skirt is level at the center of the bath and that it tucks behind the lip. Screw the apron to the base through the hole in the center of the apron (see fig. 29). -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS ON/OFF CONTROL ACTION PUMP DISPLAY Touch Pump starts LED: ON Touch Pump stops LED: OFF MASS-AIR & ACTIV-AIR CONTROL BOUTON ACTION BLOWER DISPLAY Touch Blower turns on at max. LED: ON The 20 minute run timer activates itself. Touch LED: OFF Touch and hold... -
Page 12: Combo Control
Air induction greatly increases the foaming effect of bath foams so care should be taken not to use too much when operating the whirlpool with the air valves open. -
Page 13: Maintenance
REPAIRS 1. Fill the bath with hot water 2 inches above the level of the jets. 2. Add 2-Cups of vinegar or 1/4 cup of dishwasher soap. 3. Run the whirlpool for approximately 5 minutes. -
Page 14: Troubleshooting
If the problem persists tap the jet heads with a spoon while the blower is running. • The air heater seems not To verify operation of the air heater, fill the bath to working level. Turn on the blower and let it run • to be functioning. -
Page 15: Hydro-Massage
The blower/heater sends thousands of tiny air-bubbles streaming through the bath and onto the skin. Although the heated air is very close in temperature to the water, the air cannot transfer its heat to the skin as quickly as the water can causing the body to have the same physiological reaction as if it has been splashed with alternating warm and cold droplets. -
Page 16: Aromatherapy
The passage of air through the water generated by these systems carries these volatile oils into the surrounding air enhancing their effect. Your daily bath will become a unique moment of relaxation when the pleasure of using your bath is combined with intoxicating scents. The stimulating effects of these oils can both activate your energy resources and invigorate your body, or relax and soothe tensions and ailments.
