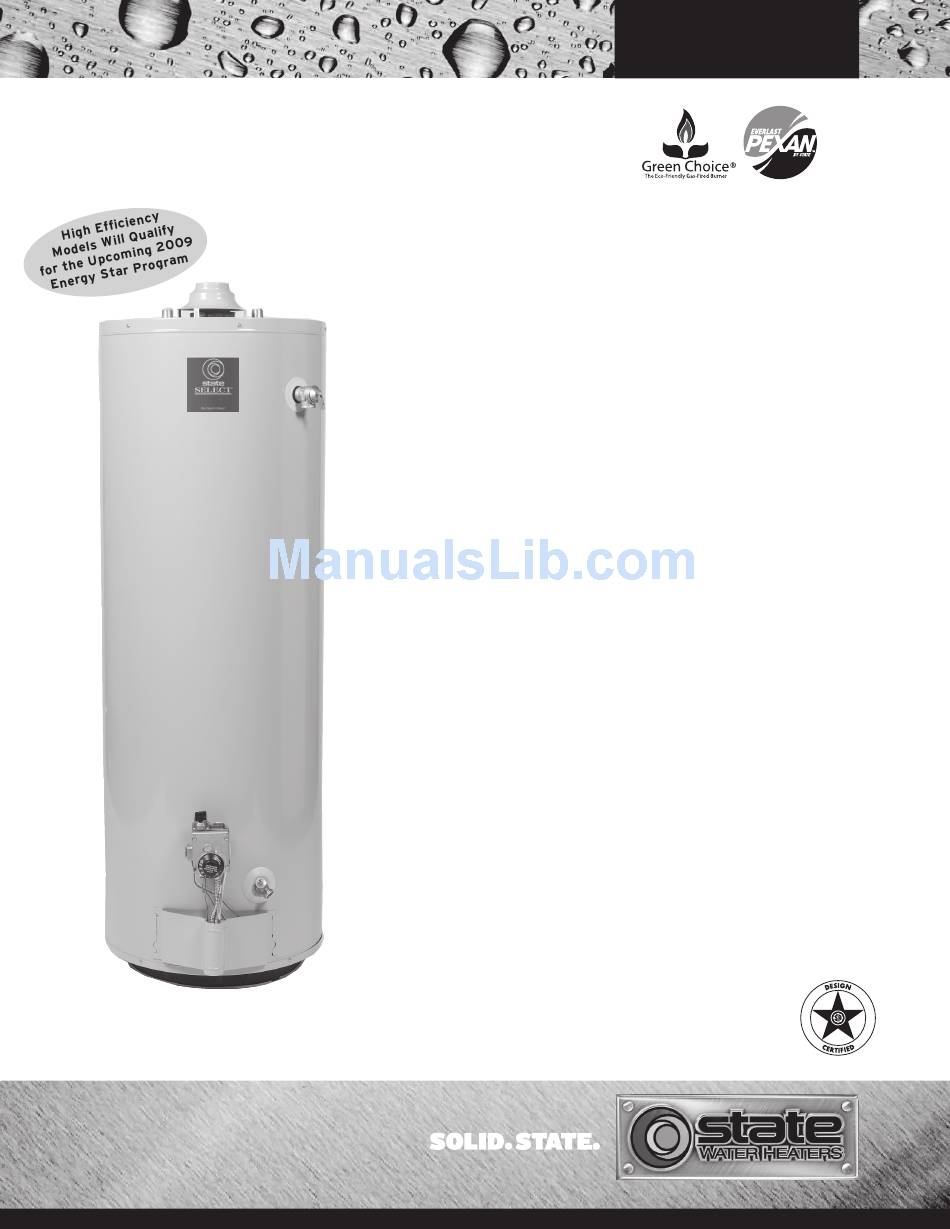

Residential Gas Water Heaters
200/201 Series shown
For more information on Select
®
contact:
State Water Heaters
500 Tennessee Waltz Parkway, Ashland City, TN 37015
800.365.0024 Toll-free USA
www.statewaterheaters.com
SRGSS02408
August 2008R
®
State Select
®
design, which meets the ANSI Z21.10.1-CSA 4.1 standards for
flammable vapor ignition resistance. Select water heaters are
available in a variety of heights which can accommodate situations
with limited installation space.

Diffuser Dip Tube

• Reduces lime and sediment buildup, maximizes hot water output
• Made from State PEXAN
long-term exposure to temperatures up to 400ºF
Green Choice
• Patented design reduces NOx emissions
• Complies with SCAQMD Rule 1121, Southern California and Texas Approved

Easy-to-Light Piezo Ignitor

• For fast "one-hand" pilot ignition

Glass-Lined Tank with Aluminum Anode Rod

• For long-lasting protection against rust and corrosion

Durable Brass Tamper-Resistant Drain Valve

CSA Certified and ASME Rated T&P Relief Valve
Design-Listed by CSA International
• Certified at 300 PSI test pressure and 150 PSI working pressure
• Listed according to ANSZ21.10.1-CSA 4.1 standards governing storage-type
water heaters
• Additional code compliance: UBC, CEC, SBCC, CABO, HUD, BOCA National
Codes and 2004 NAECA

FVIR Gas Water Heater Design

Simplifies Service
• Uses industry standard thermocouple
• Burner operation may be viewed through new enlarged sight glass

6-Year Limited Tank and Parts Warranty

Consult written warranty or contact State Water Heaters for
complete information
R E S I D E N T I A L
gas water heaters feature FVIR Gas Water Heater
, a cross-linked polymer that can withstand
®
Gas Burner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS6 40 YBRT and is the answer not in the manual?

Questions and answers

Summary of Contents for State Water Heaters GS6 40 YBRT

  • Page 1 R E S I D E N T I A L SELECT ® Residential Gas Water Heaters State Select ® gas water heaters feature FVIR Gas Water Heater design, which meets the ANSI Z21.10.1-CSA 4.1 standards for flammable vapor ignition resistance. Select water heaters are available in a variety of heights which can accommodate situations with limited installation space.
  • Page 2 When ordering Propane, change "Y" to "H" in model number (GS6 40 HBRT). Water Connections – 3/4" male on all models. When ordering top-mounted T&P Valve, add "G" to model number (GS6 40 YBRT G). External heat trap nipples are factory installed on all models.

This manual is also suitable for:

Select gs6 40 yoctGs6 50 ybpdt
