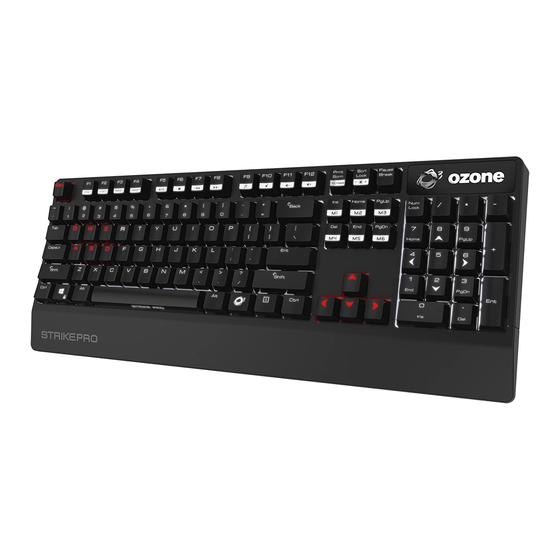

Ozone strike pro mechanical gaming keyboard user manual

Advertisement

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Strike Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ozone Strike Pro

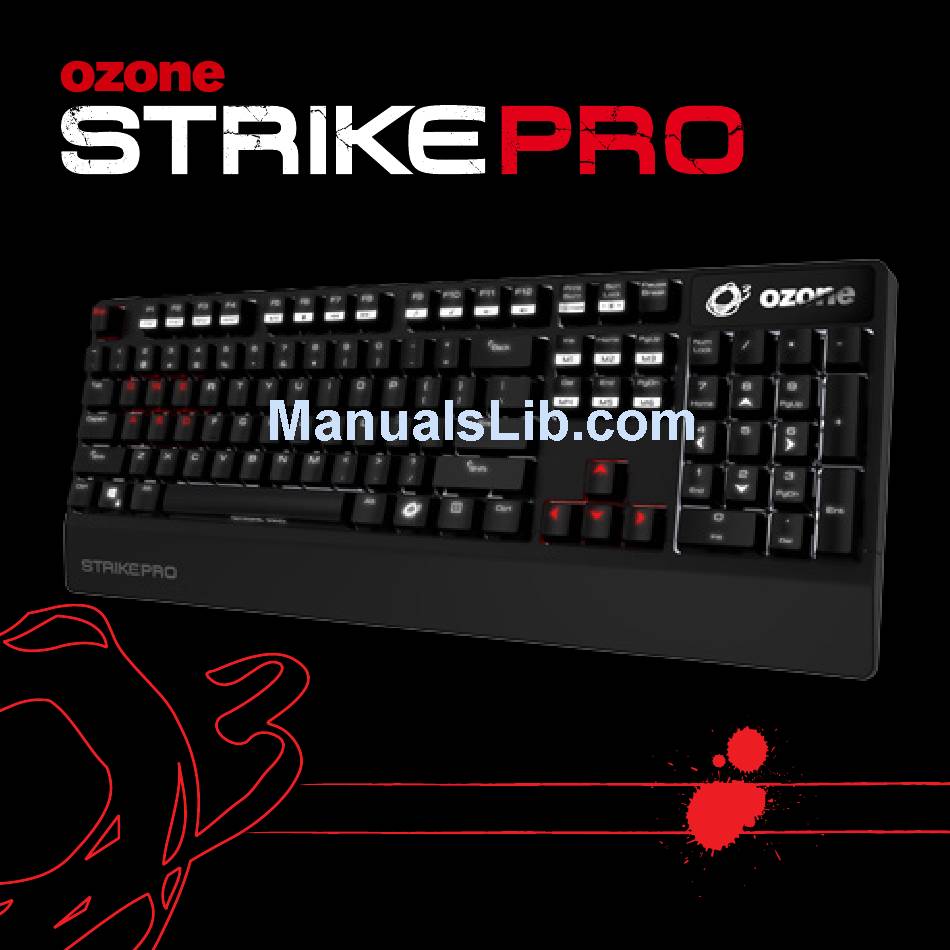

  • Page 1 USER MANUAL...
  • Page 2 Ozone Strike Pro. Add to this the fact that with this amazing keyboard you have a piece of modern art in your hands and you will know the answer to the question of what will your next keyboard be? Ozone Strike Pro, without a doubt.
  • Page 3 Special Back-lighting for Gaming Keys 6 Fully Macro-Able Keys Headphone Port Microphone Port USB Port...
  • Page 4: Key Functions

    KEY FUNCTIONS STRIKE Fully 104 MX Cherry Red switched Gaming Keyboard with back-lighting effects Adjust Keys effective time response in 7 speed transmissions: 1ms - 2ms - 4ms - 8ms - 12ms - 14ms - 16ms Reduces Speed Increases Speed Adjust Polling Rate: 125 Hz - 250 Hz - 500 Hz -1000 Hz Reduces Polling Rate...
  • Page 5 6th: Gaming Mode: Press + Prnt Scrn on keyboard to enter gaming mode. In gaming mode, Strike Pro will work under following conditions: Lit Prnt Scrn key Left Window Key Disabled M1 - M6 Macro keys Enabled + Left Window key to switch between...
  • Page 6 MX CHERRY AVAILABLE COLORS CHERRY RED KEY TYPE no tactile bump SWITCH TYPE....CHERRY MX RED CLICKY........NO TYPE........LINEAR SWITCH ACTUATION FORCE..45G TACTILE.......NO TRAVEL....2MM TO ACTUATION, 4MM TO BOTTOM CHERRY BLACK KEY TYPE SWITCH TYPE....CHERRY MX BLACK CLICKY........NO TYPE........LINEAR SWITCH ACTUATION FORCE..60G (40g - 80g overall) TACTILE.......NO TRAVEL....2MM TO ACTUATION, 4MM TO BOTTOM...
  • Page 7 YOU form the STRIKE PRO four most popular MX CHERRY switch colors – black, red, blue and brown. CHERRY BLUE KEY TYPE tactile bump SWITCH TYPE....CHERRY MX BLUE CLICKY........YES TACTILE.......YES, PRECISE...
  • Page 8: System Requirements

    INSTALLATION INSTRUCTIONS OS: Windows XP / Vista / 7 / 8. 1. Plug USB connector of STRIKE PRO to a USB port of your PC. 2. Insert the enclosed driver CD into your CD-ROM drive (or download the driver from www.ozonegaming.com/product/strike-pro/).
  • Page 10: Main Control

    KEYBOARD CONFIGURATION 1. MAIN CONTROL Exchange Key 1) In the “Main Control” section, click the key that you want to change (except special keys that are not configurable). 2) In the pop-up window, enter the desired new keys and click “OK”.
  • Page 11 3) Then click “APPLY” to complete the change. Ex. Key “J” is now marked in RED and will execute “K”.
  • Page 12: Macro Settings

    2. MACRO SETTINGS Macro is a series of keystrokes which can be assigned to a single key on the keyboard once its recorded. In the other words, it is a series of keystrokes, in which every key press, release, and delay is being recorded. The delay is the duration between the “press and release”...
  • Page 13 2) In the pop-up window, click “NEW” and give a personalized name to the macro, then start to create your macro. 3) Select the options of “Record Delays” and set the “Loop Times” from the right column if needed. 4) Click ”Start Record” type a series of keys desired and click “Stop Record” when finished.
  • Page 14: Windows Management

    MUL TIMEDIA HOTKEY 1) Select a macro key and click ”Multimedia” from the menu. 2) Select the desired function in the sub-menu and click “APPLY” to confirm the setting. WINDOWS MANAGEMENT 1) Select a macro key and click ”Windows” from the menu. 2) Select the desired function in the sub-menu and click “APPLY”...
  • Page 15 ASSIGN A SHORTCUT Single key punch to activate a combination of keys that are often used. 1) Select a macro key and click “Assign a Shortcut” from the menu. 2) Select and enter the desired combination of keys from the pop-up window and click “OK”...
  • Page 16: Advanced Settings

    STANDARD: RESET TO DEFAUL T KEY FUNCTION 1) Select a macro key and click ”Standard” from the menu, then click “APPLY” to confirm the setting. 3. Advanced SettingS In “Advanced Settings”, you can set the “Polling Rate”, disable “Windows Key”, adjust “Key Response Time”, and change LED “Back-light Intensity”.
  • Page 17 4. Gaming PrOfile SettingS Each configuration profile corresponds to a personalized keyboard setting. Therefore, you can create and save specific configuration profiles for certain games. The driver comes with 5 profiles: Profile#1~ Profile#5. The default path of the saved configurations is in the “Config” folder under the “Driver Installation Directory”, in which you can find 5 corresponding files for the 5 profiles on the main skin.
  • Page 18: Create Profile

    A. CREATE PROFILE 1) Click “Create Profile” to create your personalized PROFILE NAME and PATH to the GAME EXECUTABLE FILE (If you start the game the drive will automatically load the right game profile from one of the 5 slots.)
  • Page 19 1.1) Create your profile name in the column “PROFILE NAME”. 1.2) Click the folder symbol and select your path to the game executable file from the pop-up window. 2) Click “OK” to confirm the change. 3) Click “APPLY” to apply the change.
  • Page 20: Load Profile

    B. LOAD PROFILE 1) Click “Load Profile” to load previous settings of certain profiles. 2) Select the profile to be imported and click “OPEN” in the pop-up window. 3) Click “APPLY” to apply the changes.
  • Page 21: Save Profile

    C. SAVE PROFILE 1) Click “Save Profile” to save the settings to an assigned file. 2) Select the assigned route/file and click “SAVE” in the pop-up window. 3) Click “APPLY” to apply the changes.
  • Page 22 D. EDIT GAME PROFILE 1) Click “Edit Profile” to modify the personalized PROFILE NAME and PATH to the GAME EXECUTABLE FILE. 2) Click “OK” to confirm the changes. 3) Click “APPLY” to apply the changes.
  • Page 23: Reset To Default

    5. RESET TO DEFAUL T 1) Click “Reset” on the main skin. 2) Click “OK” on the pop-up window and reset to default.
  • Page 24 evolution It’s all about WWW.OZONEGAMING.COM...
