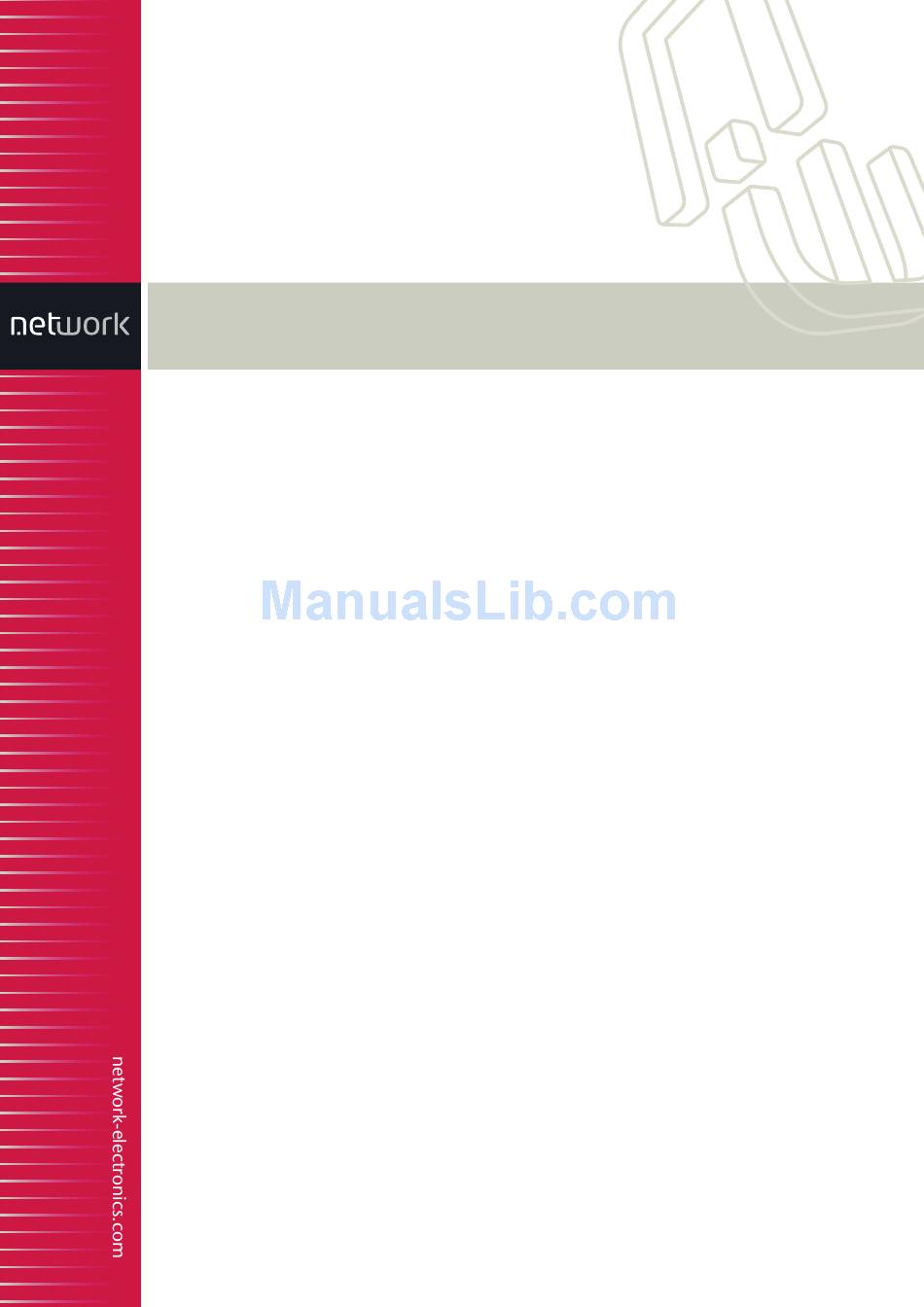

  • Page 1 Flashlink User Manual V0106Q Analogue Video Distributor -1x6 Quad Rev. 5...

  • Page 2: Revision History

    V0106Q Rev. 5 Network Electronics ASA Thorøya P.O. Box 1020 Sandefjord, Norway Phone: +47 33 48 99 99 Fax: +47 33 48 99 98 E-mail: support@network-electronics.com www.network-electronics.com Service Phone: +47 90 60 99 99 Revision history Current revision of this document is the uppermost in the table below.

  • Page 3: Table Of Contents

    2.1 Technical specifications ................5 2.2 Rear view.....................5 2.3 Power connection..................5 3 Connections ................7 3.1 Termination of video signals ................7 General environmental requirements for Network Electronics equipment ..................8 Product Warranty ................9 Materials Declaration and EFUP ............ 10 Materials declaration ..................10 Environmentally Friendly Use Period (EFUP).............10...

  • Page 4: Product Overview

    V0106Q Rev. 5 1 Product overview The V0106Q video distribution amplifier provides four separate 1 to 6 video distribution amplifiers in a single rack space ultra low profile enclosure. Looped inputs allow forming of different configurations. A high frequency (500MHz) and high performance video amplifier circuit in SMD technology...

  • Page 5: Specifications

    Tighten the screws to assure a proper contact. To connect mains to the desktop power supply you need a mains cord with IEC 320 connector. V0106Q is normally delivered with the desktop power model AC ±5V / 10W. Upon customer request, V0106Q can also be delivered with DC ±5V / 30W, which may be fed by a 36 - 72 VDC mains power source.
  • Page 6 V0106Q Rev. 5 V0106Q requires ±5V DC with a minimum current of 300mA. The following pin-out is used on the DB9 male power connector: Pin #1 Pin #2 Pin #6...

  • Page 7: Connections

    3.1 Termination of video signals It is not necessary to terminate unused video outputs. The looped outputs on the input section of the V0106Q must always be terminated. A 75 ohms termination plug is used direct on the V0106Q. To assure correct frequency response a precision termination plug with 0,1% tolerance must be used.

  • Page 8: General Environmental Requirements For Network Electronics Equipment

    V0106Q Rev. 5 General environmental requirements for Network Electronics equipment 1. The equipment will meet the guaranteed performance specification under the following environmental conditions: - Operating room temperature range: 0°C to 45°C - Operating relative humidity range: < 95% (non-condensing) 2.

  • Page 9: V0106Q Rev

    V0106Q Rev. 5 Product Warranty The warranty terms and conditions for the V0106Q follow the General Sales Conditions by Network Electronics ASA. These conditions are available on the company web site of Network Electronics ASA: www.network-electronics.com...

  • Page 10: Materials Declaration And Efup

    V0106Q Rev. 5 Materials Declaration and EFUP Materials declaration For product sold into China after 1st March 2007, we comply with the “Administrative Measure on the Control of Pollution by Electronic Information Products”. In the first stage of this legislation, content of six hazardous materials has to be declared.

  • Page 11: Recycling Information

    Network Electronics ASA’s Customer Support for assistance with recycling if this site does not show the information you require. Where it is not possible to return the product to Network Electronics ASA or its agents for recycling, the following general information may be of assistance: Before attempting disassembly, ensure the product is completely disconnected from power and signal connections.

  • Page 12: Ec Declaration Of Conformity

    EC Declaration of Conformity MANUFACTURER Network Electronics ASA P.B. 1020, N-3204 SANDEFJORD, Norway AUTHORISED REPRESENTATIVE Not applicable (Established within the EEA) MODEL NUMBER(S) V0106Q Analogue Video Equaliser Distributor – 1x6 QUAD DESCRIPTION DIRECTIVES this equipment complies with LVD 73/23/EEC EMC 89/336/EEC...
