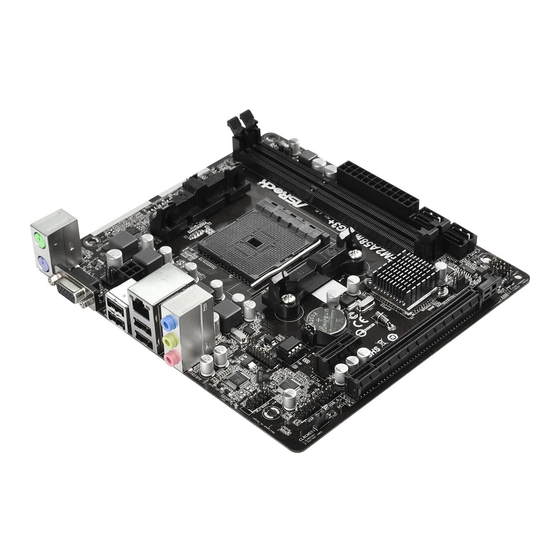

ASROCK FM2A58M-VG3+ User Manual

Motherboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

FM2A58M-VG3+
User Manual

Advertisement

Table of Contents
loading

Related Manuals for ASROCK FM2A58M-VG3+

Summary of Contents for ASROCK FM2A58M-VG3+

  • Page 1 FM2A58M-VG3+ User Manual...

  • Page 2: Copyright Notice

    (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

  • Page 3: Table Of Contents

    Contents 1. Introduction ..............1 Package Contents ..............1 1.2 Specifications ................2 Unique Features ................ 5 Motherboard Layout ..............9 I/O Panel .................. 11 2. Installation ..............13 Pre-installation Precautions ..............13 CPU Installation ................. 14 Installation of CPU Fan and Heatsink ........15 Installation of Memory Modules (DIMM) ........
  • Page 4 Security Screen ................. 55 Exit Screen ................56...

  • Page 5: Introduction

    ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com...

  • Page 6: Specifications

    Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec) - Supports Surge Protection (ASRock Full Spike Protection) - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111FR (see CAUTION 3) - Supports Wake-On-WAN...
  • Page 7 - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED...
  • Page 8 Certifications - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) * For detailed product information, please visit our website: http://www.asrock.com WARNING Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools.

  • Page 9: Unique Features

    OC Tweaker and a whole lot more. ASRock Instant Boot ASRock Instant Boot allows you to turn on your PC in just a few seconds, provides a much more efficient way to save energy, time, money, and improves system running speed for your sys- tem.
  • Page 10 Real-Time Analysis of Your Data: With the status window, you can easily recognize which data streams you are transferring currently. ASRock XFast RAM ASRock XFast RAM is included in A-Tuning. It fully utilizes the ® memory space that cannot be used under Windows 32-bit operating systems.
  • Page 11 S4/S5 state. ASRock Easy RAID Installer ASRock Easy RAID Installer can help you to copy the RAID driver from a support CD to your USB storage device. After copying the RAID driver to your USB storage device, please change “SATA Mode”...
  • Page 12 UEFI setup. AS- Rock Restart to UEFI technology is designed for those requiring frequent UEFI access. It is included in ASRock’s exclusive all- in-one A-Tuning tuning program that allows users to easily enter the UEFI automatically when turning on the PC next time.

  • Page 13: Motherboard Layout

    FM2A58M-VG3+ 1.4 Motherboard Layout CPU_FAN1 PWR_FAN1 USB 2.0 T: USB0 B: USB1 USB 2.0 T: USB2 B: USB3 CHA_FAN1 FM2A58M-VG3+ PCIE1 CLRCMOS1 CMOS A58 FCH BATTERY 64Mb (Bolton-D2) BIOS Chipset TPMS1 SPEAKER1 LPT1 USB_6_7 AUDIO PANEL 1 CODEC PLED PWRBTN USB_4_5 COM1 HDLED...
  • Page 14 No. Description ATX 12V Power Connector (ATX12V1) Power Fan Connector (PWR_FAN1) CPU Fan Connector (CPU_FAN1) 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1) ATX Power Connector (ATXPWR1) SATA2 Connector (SATA_3) SATA2 Connector (SATA_4) SATA2 Connector (SATA_1) SATA2 Connector (SATA_2) 10 Chassis Fan Connector (CHA_FAN1) Chassis Speaker Header (SPEAKER1) System Panel Header (PANEL1) Clear CMOS Jumper (CLRCMOS1)

  • Page 15: I/O Panel

    FM2A58M-VG3+ 1.5 I/O Panel No. Description No. Description PS/2 Mouse Port USB 2.0 Ports (USB_2_3) LAN RJ-45 Port* USB 2.0 Ports (USB_0_1) Line In (Light Blue) D-Sub Port Front Speaker (Lime)** PS/2 Keyboard Port Microphone (Pink)
  • Page 16 * There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indica- tions. ACT/LINK LED SPEED LED LAN Port Activity / Link LED Speed LED Status Description Status Description No Link 10Mbps connection Blinking Data Activity...

  • Page 17: Installation

    FM2A58M-VG3+ 2. Installation This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings. Before you install or remove any component, ensure that the power is switched off or the power cord is detached from the power supply.

  • Page 18: Cpu Installation

    2.1 CPU Installation Step 1. Unlock the socket by lifting the lever up to a 90 angle. Step 2. Position the CPU directly above the socket such that the CPU corner with the golden triangle matches the socket corner with a small triangle. Step 3.

  • Page 19: Installation Of Cpu Fan And Heatsink

    FM2A58M-VG3+ 2.2 Installation of CPU Fan and Heatsink After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dis- sipation.

  • Page 20: Installation Of Memory Modules (Dimm)

    2.3 Installation of Memory Modules (DIMM) This motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR3 DIMM pairs. 2.
  • Page 21 FM2A58M-VG3+...

  • Page 22: Expansion Slots (Pci And Pci Express Slots)

    2.4 Expansion Slots (PCI and PCI Express Slots) There is 1 PCI slot and 1 PCI Express slot on this motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documenta- tion of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 23: Jumpers Setup

    FM2A58M-VG3+ 2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”...

  • Page 24: Onboard Headers And Connectors

    2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! Serial ATA2 Connectors These four Serial ATA2 (SATA2) connectors support (SATA_1: see p.9, No.
  • Page 25 FM2A58M-VG3+ C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for HD audio panel only. You don’t need to connect them for AC’97 audio panel. E. To activate the front mic. ® For Windows 8.1 / 8.1 64-bit / 8 / 8 64-bit / 7 / 7 64-bit 64-bit OS: Go to the "FrontMic"...
  • Page 26 Chassis Speaker Header Please connect the chassis speaker to this header. (4-pin SPEAKER 1) (see p.9 No. 11) Chassis and Power Fan Connectors Please connect the fan cables to the fan connectors and (4-pin CHA_FAN1) match the black wire to the (see p.9 No.
  • Page 27 FM2A58M-VG3+ Serial port Header This COM1 header supports a serial port module. (9-pin COM1) (see p.9 No. 16) Chassis Intrusion Header This motherboard supports CASE OPEN detection feature (2-pin CI1) that detects if the chassis cover (see p.9, No. 20) has been removed.

  • Page 28: Dual Graphics Operation Guide

    2.7 AMD Dual Graphics Operation Guide This motherboard supports AMD Dual Graphics feature. AMD Dual Graphics brings multi-GPU performance capabilities by enabling an AMD A58 FCH (Bolton-D2) integrated graphics processor and a discrete graphics processor to operate simultaneously with combined output to a single display for blisteringly-fast frame ®...
  • Page 29 FM2A58M-VG3+ Step 7. You can also click “AMD VISION Engine Control Center” on your ® Windows taskbar to enter AMD VISION Engine Control Center. AMD VISION Engine Control Center Step 8. In AMD VISION Engine Control Center, please choose “Performance”. Click “AMD CrossFire ”. Step 9. Click “Enable CrossFire ” and click “Apply“ to save your change. Step 10. Reboot your system. Then you can freely enjoy the benefit of Dual Graphics feature. * Dual Graphics appearing here is a registered trademark of AMD Technologies Inc., and is used only for identification or explanation and to the owners’ benefit, without intent to infringe.

  • Page 30: Software And Utilities Operation

    3. Software and Utilities Operation 3.1 Installing Drivers The Support CD that comes with the motherboard contains necessary drivers and useful utilities that enhance the motherboard’s features. Running The Support CD To begin using the support CD, insert the CD into your CD-ROM drive. The CD automatically displays the Main Menu if “AUTORUN”...

  • Page 31: A-Tuning

    A-Tuning is ASRock’s multi purpose software suite with a new interface, more new features and improved utilities, including XFast RAM, Dehumidi- fier, Good Night LED, FAN-Tastic Tuning, OC Tweaker and a whole lot more. 3.2.1 Installing A-Tuning When you install the all-in-one driver to your system from ASRock’s support CD, A-Tuning will be auto-installed as well. After the installation, you will find the icon “A-Tuning“ on your desktop. Double-click the “A-Tuning“ icon, A-Tuning main menu will pop up.

  • Page 32: Fast Boot

    Tools Various tools and utilities. XFast RAM Boost the system’s performance and extend the HDD’s or SDD’s lifespan! Create a hidden partition, then assign which files should be stored in the RAM drive. Fast Boot Fast Boot minimizes your computer's boot time. Please note that Ultra Fast mode is only supported by Windows 8 and the VBIOS must support UEFI GOP if you are using an external graphics card. Schedule the starting and ending hours of Internet access granted to other users.

  • Page 33: System Info

    FM2A58M-VG3+ FAN-Tastic Tuning Configure up to five different fan speeds using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met. Dehumidifier Prevent motherboard damages due to dampness. Enable this function and configure the period of time until the computer powers on, and the duration of the dehumidifying process. OC Tweaker Configurations for overclocking the system. System Info View information about the system.
  • Page 34 Tech Service Contact Tech Service.

  • Page 35: Start8

    Install Start8, which is located in the folder at the following path of the Sup- , which is located in the folder at the following path of the Sup- port CD: \ ASRock Utility > Start8. 3.3.2 Configuring Start8 Style Select between the Windows 7 style and Windows 8 style Start Menu.
  • Page 36 Configure Configure provides configuration options, including icon sizes, which shortcuts you want Start Menu to display, quick access to recently used apps, the functionality of the power button, and more. Control...
  • Page 37 FM2A58M-VG3+ Control lets you configure what a click on the start button or a press on the Windows key does. Desktop Desktop allows you to disable the hot corners when you are working on the desktop. It also lets you choose whether or not the system boots directly into desktop mode and bypass the Metro user interface. About Displays information about Start8.

  • Page 38: Uefi Setup Utility

    4. UEFI SETUP UTILITY 4.1 Introduction ASRock Interactive UEFI is a blend of system configuration tools, cool sound ef- fects and stunning visuals. Not only will it make BIOS setup less difficult but also a lot more amusing. This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer.

  • Page 39: Navigation Keys

    FM2A58M-VG3+ 4.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Tab>...

  • Page 40: Oc Tweaker Screen

    4.3 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features. EZ OC Mode You can use this option to adjust EZ overclocking setting. Please note that overclocing may cause damage to your components and motherboard. It should be done at your own risk and expense.
  • Page 41 FM2A58M-VG3+ Processor Maximum Frequency It will display Processor Maximum Frequency for reference. Processor Maximum Voltage It will display Processor Maximum Voltage for reference. Multiplier/Voltage Change This item is set to [Auto] by default. If it is set to [Manual], you may adjust the value of Processor Frequency and Processor Voltage. However, it is recommended to keep the default value for system stability. Boost Frequency Multiplier For safety and system stability, it is not recommended to adjust the value of this item.
  • Page 42 DRAM Timing Control DRAM Slot Use this item to view SPD data. DRAM Timing Control Use this item to control DRAM timing. Power Down Enable Use this item to enable or disable DDR power down mode. Bank Interleaving Interleaving allows memory accesses to be spread out over banks on the same node, or accross nodes, decreasing access contention.

  • Page 43: Advanced Screen

    FM2A58M-VG3+ 4.4 Advanced Screen In this section, you may set the configurations for the following items: CPU Configu- ration, Nouth Bridge Configuration, South Bridge Configuration, Storage Configura- tion, Super IO Configuration, ACPI Configuration, USB Configuration and Trusted Computing. Setting wrong values in this section may cause the system to malfunction.

  • Page 44: Cpu Configuration

    4.4.1 CPU Configuration Core C6 Mode Use this item to enable or disable Core C6 mode. The default value is [Enabled]. Package C6 Mode This item appears only when you enable the item “Core C6 Mode”. Use this item to enable or disable Package C6 mode. The default value is [Dis- abled].

  • Page 45: North Bridge Configuration

    FM2A58M-VG3+ 4.4.2 North Bridge Configuration IOMMU This allows you to enable or disable IOMMU support. Primary Graphics Adapter This item will switch the PCI Bus scanning order while searching for video card. It allows you to select the type of Primary VGA in case of multiple video controllers.

  • Page 46: South Bridge Configuration

    4.4.3 South Bridge Configuration Onboard HD Audio Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio feature. If you select [Auto], the onboard HD Audio will be disabled when PCI Sound Card is plugged. Front Panel Select [Auto] or [Disabled] for the onboard HD Audio Front Panel. Onboard LAN This allows you to enable or disable the onboard LAN feature.

  • Page 47: Storage Configuration

    FM2A58M-VG3+ 4.4.4 Storage Configuration SATA Controller Use this item to enable or disable the “SATA Controller” feature. SATA Mode Use this item to adjust SATA Mode. The default value of this option is [AHCI Mode]. Configuration options: [AHCI Mode], [RAID Mode] and [IDE Mode]. AMD AHCI BIOS ROM Use this item to enable or disable AMD AHCI BIOS ROM. The default value of this option is [Disabled].

  • Page 48: Super Io Configuration

    4.4.5 Super IO Configuration Serial Port Use this item to enable or disable the onboard serial port. Serial Port Address Use this item to set the address for the onboard serial port. Configuration options: [3F8h / IRQ4] and [3E8h / IRQ4]. Parallel Port Enable or disable the Parallel port. Device Mode Select the device mode according to your connected device.

  • Page 49: Acpi Configuration

    FM2A58M-VG3+ 4.4.6 ACPI Configuration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature if the OS supports it. Check Ready Bit Enable to enter the operating system after S3 only when the hard disk is ready, this is recommended for better system stability.
  • Page 50 USB Keyboard/Remote Power On Use this item to enable or disable USB Keyboard/Remote to power on the system. USB Mouse Power On Use this item to enable or disable USB Mouse to power on the system. ACPI HPET table Use this item to enable or disable ACPI HPET Table. The default value is [Enabled].

  • Page 51: Usb Configuration

    FM2A58M-VG3+ 4.4.7 USB Configuration USB 2.0 Controller Use this item to enable or disable the use of USB 2.0 controller. Legacy USB Support Use this option to select legacy support for USB devices. There are four confi guration options: [Enabled], [Auto], [Disabled] and [UEFI Setup Only]. The default value is [Enabled]. Please refer to below descriptions for the details of these four options: [Enabled] - Enables support for legacy USB.

  • Page 52: Trusted Computing

    4.4.8 Trusted Computing Security Device Support Enable to activate Trusted Platform Module (TPM) security for your hard disk drives.

  • Page 53: Tool

    OMG, guest accounts without permission to modify the system time are required. UEFI Tech Service Contact ASRock Tech Service if you are having trouble with your PC. Please setup network configuration before using UEFI Tech Service. Easy RAID Installer Easy RAID Installer helps you to copy the RAID driver from the support CD to your USB storage device.
  • Page 54 UEFI file to your USB flash drive, floppy disk or hard drive and launch this tool, then you can update your UEFI only in a few clicks without preparing an additional floppy diskette or other complicated flash utility. Please be noted that the USB flash drive or hard drive must use FAT32/16/12 file system. If you execute Instant Flash utility, the utility will show the UEFI files and their respective information. Select the proper UEFI file to up- date your UEFI, and reboot your system after the UEFI update process is completed.
  • Page 55 FM2A58M-VG3+ Dehumidifier Duration This allows users to configure the duration of the dehumidifying process before it returns to S4/S5 state. Dehumidifier CPU Fan Setting Use this setting to configure CPU fan speed while “Dehumidifier” is en- abled. Would you like to save current setting user defaults? In this option, you are allowed to load and save three user defaults according to your own requirements.

  • Page 56: Hardware Health Event Monitoring Screen

    4.6 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. CPU Fan 1 Setting This allows you to set the CPU fan 1 speed. Confi guration options: [Full On] and [Automatic Mode].

  • Page 57: Boot Screen

    FM2A58M-VG3+ 4.7 Boot Screen In this section, it will display the available devices on your system for you to config- ure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer’s boot time. There are three con- figuration options: [Disabled], [Fast] and [Ultra Fast]. The default value is [Disabled]. Please refer to below descriptions for the details of these three options: [Disabled] - Disable Fast Boot.
  • Page 58 Option ROM Messages [Force BIOS] - The third-party ROM messages will be forced to display during the bootsequence. [Keep Current] - The third-party ROM messages will be displayed only if the third-partymanufacturer had set the add-on device to do so. Boot Failure Guard Enable or disable the feature of Boot Failure Guard.

  • Page 59: Security Screen

    FM2A58M-VG3+ 4.8 Security Screen In this section, you may set or change the supervisor/user password for the system. For the user password, you may also clear it. Secure Boot ® Enable to support Windows 8 Secure Boot.

  • Page 60: Exit Screen

    4.9 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard changes and exit setup?”...

  • Page 61: Contact Information

    FM2A58M-VG3+ Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp...
