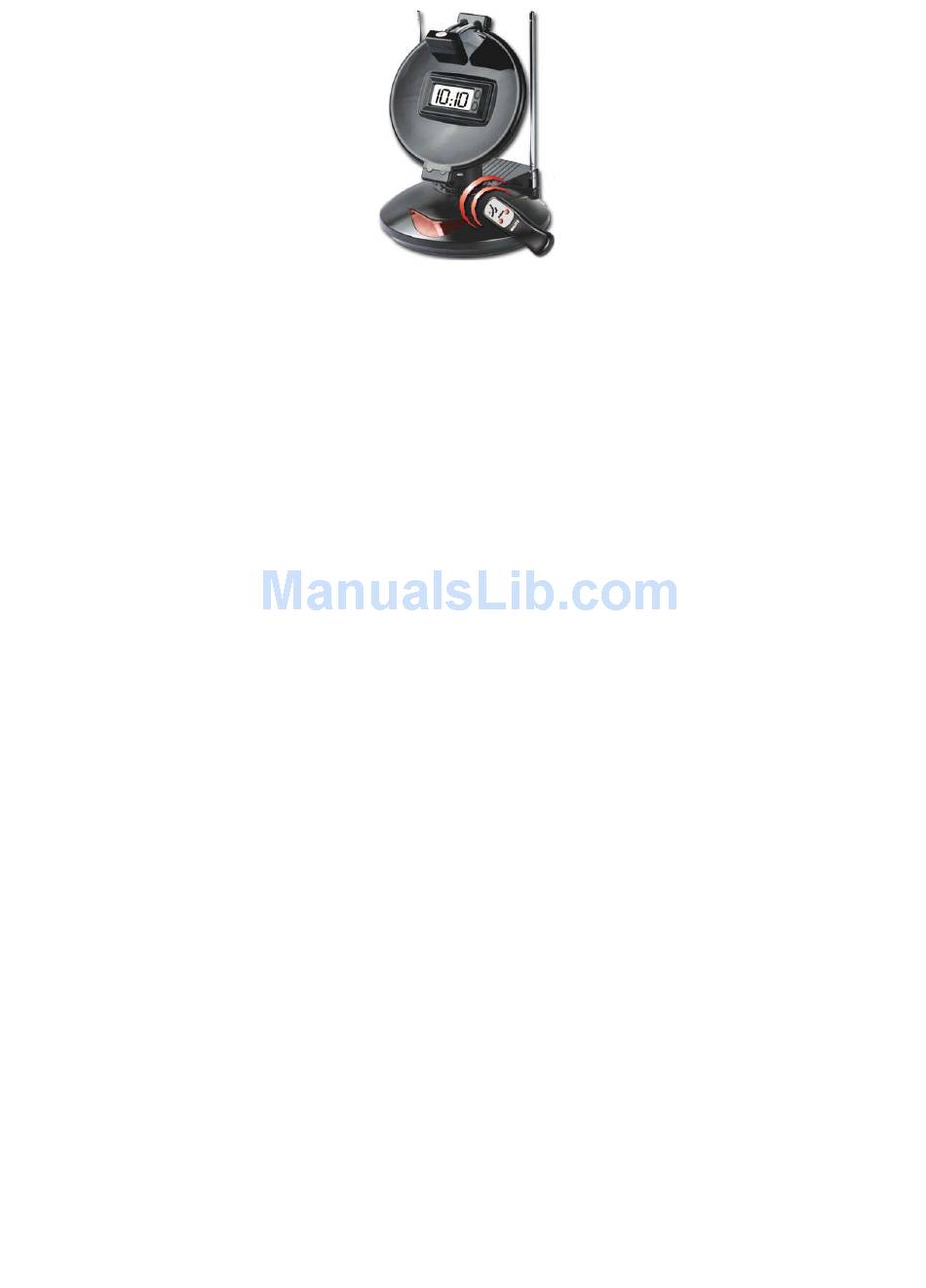

Antenna Pros AX-912 Indoor
Digital TV Antenna Manual
Features
•
Antenna supports multiple TV sets at the same time
•
Can be connected to an external outdoor antenna
•
Suitable for an analogue TV/radio reception
•
Works with all digital signals
•
Signal strength equivalent to outdoor antennas with +36gain
•
Fits all types of TVs
•
Infrared wireless remote to rotate antenna 180 degrees
•
Can be aimed in any direction
•
Parabolic focusing reception
•
Ideal for rural or suburban areas
•
Can receive reception ranging from up to 125 miles
•
100% DTV and HDTV ready
•
Has an optional manual operation
•
Built in electronic clock
•
Built in high gain booster and low noise circuit
•
Adjustable amplifier
•
Works anywhere in the world
•
Supports all OTA, FTA stations
Technical Information
•
15v operation possible
•
AC/DC power supply alternative
•
UHF/VHF TV and FM radio
•
VHF/UHF full TV signals reception
•
Input interface for external signal
•
SMD technology
•
VHF Gain: 25~25dB
•
UHF Gain: 32~36dB
What's in the box
•
Pre-assembled AX-912 antenna
•
Infrared Remote Control
•
AC adapter (pre-connected)
•
Co-axial cable (pre-connected)
•
Instruction booklet
•
Power: 3W
•
Frequency: 40~910MHz
•
Impedance: 75
•
Remote distance: 5M
•
Rotating speed: 4~6 round/min
•
Max rotation: 180 degrees
•
Max output level: 95dB
•
Maximum Signal Amplification
Advertisement
Related Manuals for Antenna Pros AX-912
Summary of Contents for Antenna Pros AX-912
- Page 1 Antenna Pros AX-912 Indoor Digital TV Antenna Manual Features What’s in the box • Antenna supports multiple TV sets at the same time • Pre-assembled AX-912 antenna • Can be connected to an external outdoor antenna • Infrared Remote Control •...
- Page 2 TV. 4. Optional: If you’d like to connect the AX-912 to an outdoor antenna for amplified strength, connect the coaxial cable from the outdoor antenna into “Antenna Ext” instead of your TV.
- Page 3 Alternatively, if you somehow lose the antenna remote and wish to rotate your antenna you can do so either manually or by pointing your TV remote at the red screen on the AX-912. On your TV remote hold down either the volume or channel up/down button, and you should see the green...
- Page 4 Q: I did not receive my DC Adapter, where is it? A: The AX-912 is not supposed to come with a DC (Direct Current) Adapter, because you are already provided with an AC (Alternating Current) adapter. They serve the same purpose – powering the antenna.
