NTSC SYNC GENERATOR
V I D E O
410BB
NTSC SYNC GENERATOR
GENERAL
The 410BB is an NTSC Sync Generator that provides
sync generator signals for other video equipment.
■

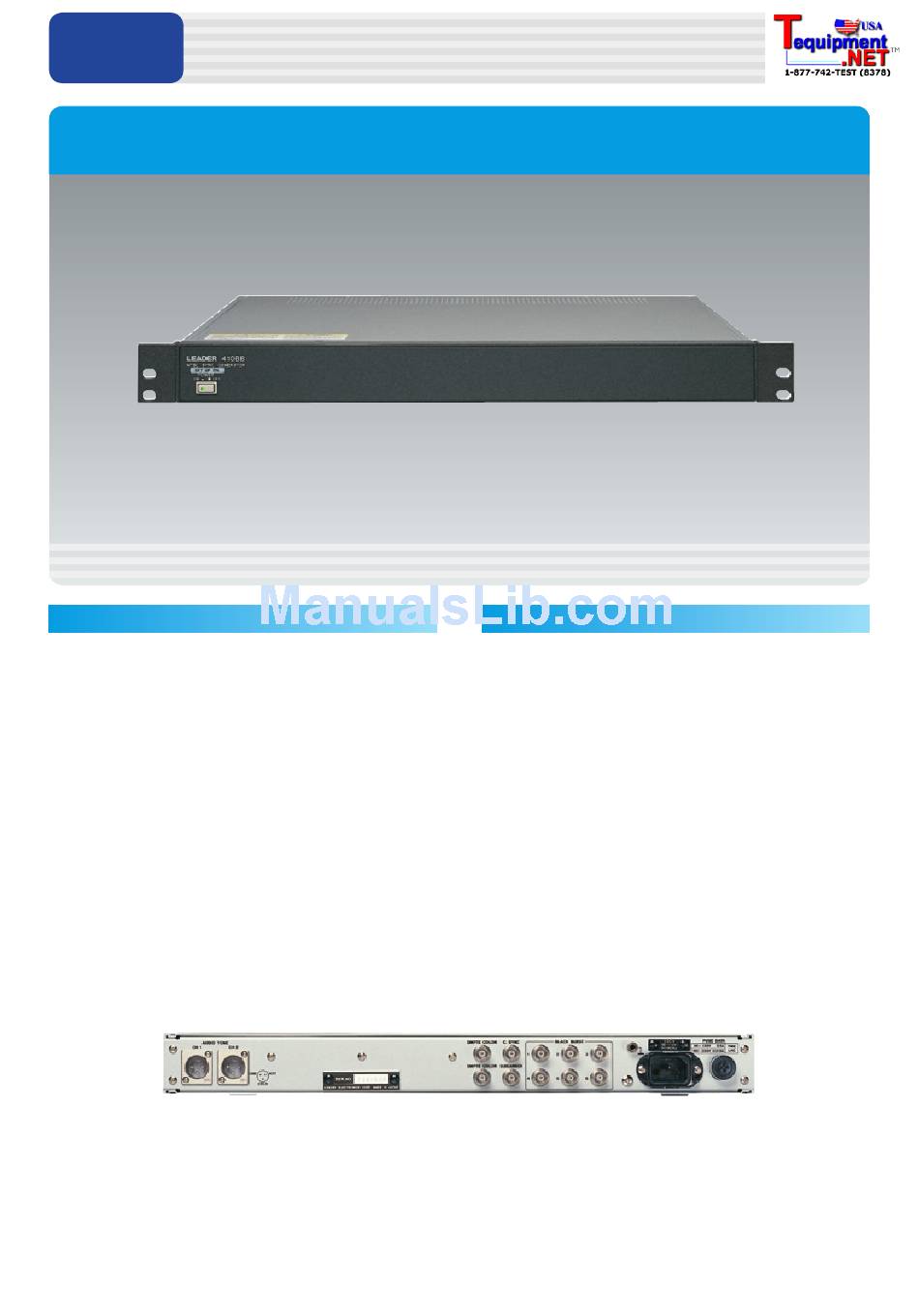

410BB REAR PANEL
Provides six black burst outputs
FEATURES
■
Provides six black outputs
■
Provides composite sync and subcarrier outputs
■
Provides SMPTE color bars output
■
Digital waveform generation provides highly ac-
curate and stable signals.
■
Supplies two 1 kHz outputs of audio tone
■
The low-profile rackmount size easily fits into
system configuration
Advertisement
Related Manuals for Leader 410BB
Summary of Contents for Leader 410BB
- Page 1 Provides six black burst outputs 410BB NTSC SYNC GENERATOR GENERAL FEATURES ■ The 410BB is an NTSC Sync Generator that provides Provides six black outputs ■ Provides composite sync and subcarrier outputs sync generator signals for other video equipment. ■...
-
Page 2: Specifications
410BB Subcarrier SPECIFICATIONS 2±0.2 Vp-p into 75 Ω Amplitude 75 Ω Output Impedance Black Burst 3.579545 MHz ±10 Hz Frequency (1) System and other System NTSC-M, conforms to SMPTE 170M standards ±10 °, compared with black burst Phase Number of Scanning Lines...
