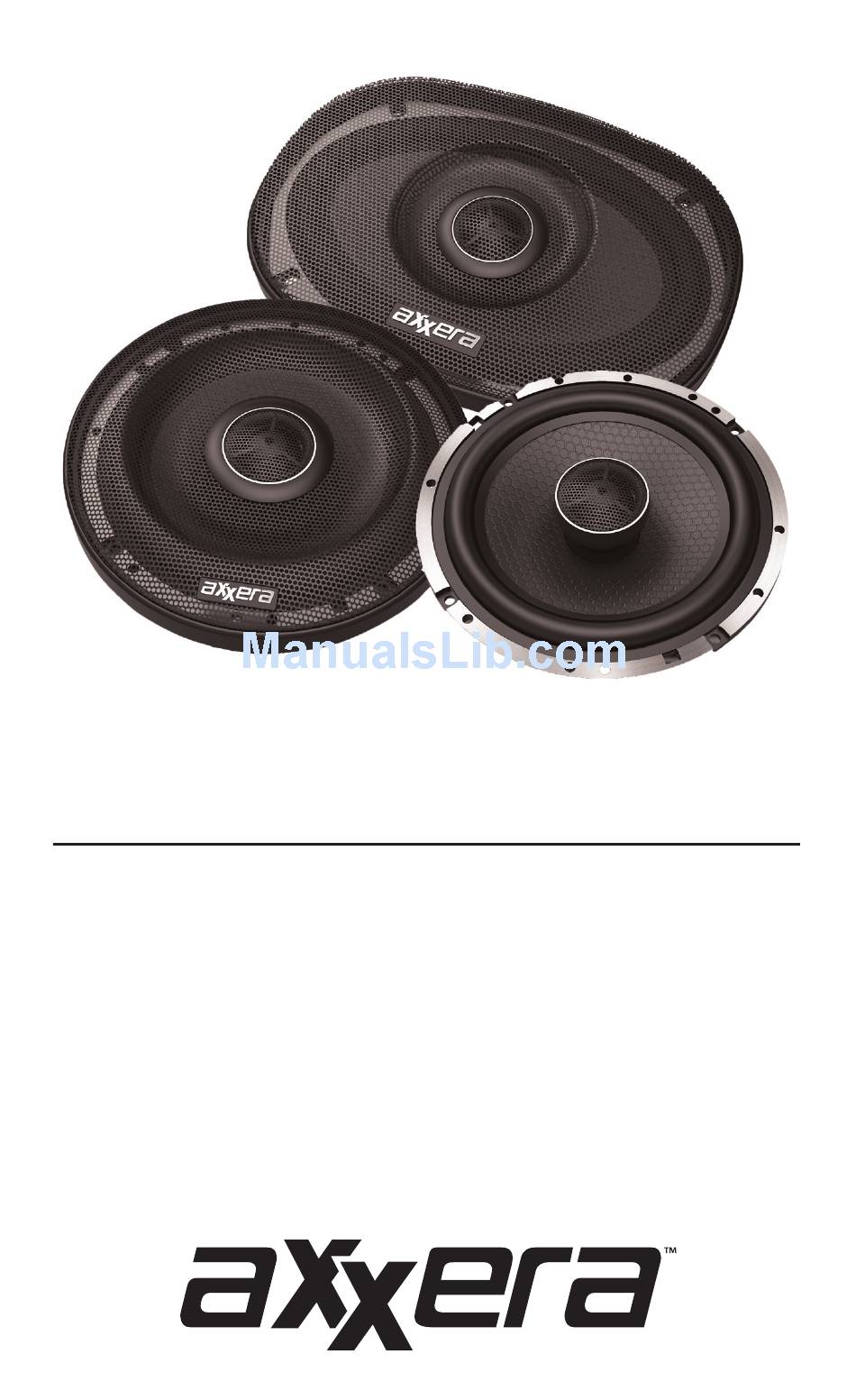

- Page 1 AS40 AS54 AS60 AS65 AS68 AS69 AS SERIES INSTALLATION/OWNER'S MANUAL Car Audio...
-
Page 2: Safety Guidelines
PREPARATION Safety Guidelines Thank you for purchasing the AS Series car speakers. Although we have attempted to make sure all of the information contained within this manual is accurate, please be aware that any part of it is subject to change without notice. The following instructions should be used a general guideline only. -
Page 3: Installation
INSTALLATION Wiring Important: Pay attention to the positive and negative polarity • Connect the speaker outputs from the head unit to the speakers. • In some vehicles, it may be possible to utilize the existing speaker wiring. When doing this, be cautious of the polarity (+/-) of the speaker wires, as these wire colors vary for each vehicle. - Page 4 INSTALLATION Mounting 1. Determine where the speakers will be mounted. Make sure the area is large enough for the speaker to mount evenly. Also ensure the mounting location is deep enough for the speaker to fit. 2. Refer to the specification chart to determine the proper diameter hole to cut for your speaker model.
-
Page 5: Specifications
Tweeter Model Size Type Sensitivity Mounting Mounting (RMS/Peak) Response Diameter Height Protrusion Depth Depth 3.68" 1.85" 2.01" .59" .43" AS40 4" 2-Way 45W/120W 84dB 100Hz-20kHz (93.5mm) (47mm) (51mm) (15mm) (11mm) 4.84" 2.13" 2.32" .67" .47" AS54 5.25" 2-Way 50W/150W 87dB... -
Page 6: Limited One-Year Warranty
What to do? rights. You may also have other rights 1. Before you call for service, check the which vary from state to state. Dual troubleshooting guide in your owner’s Electronics Corp. warrants this product manual. A slight adjustment of any custom to the original purchaser to be free from controls may save you a service call. - Page 7 OPERATION Registration Please keep your original sales receipt and be prepared For Your Records to provide it in the event you require service. Your original receipt is considered the best proof of purchase and indicates the date you purchased your Axxera product. Dealer Name Dealer Phone Purchase Date...
- Page 8 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.axxeraaudio.com ©2014 Dual Electronics Corp. NSA0314-V01...
