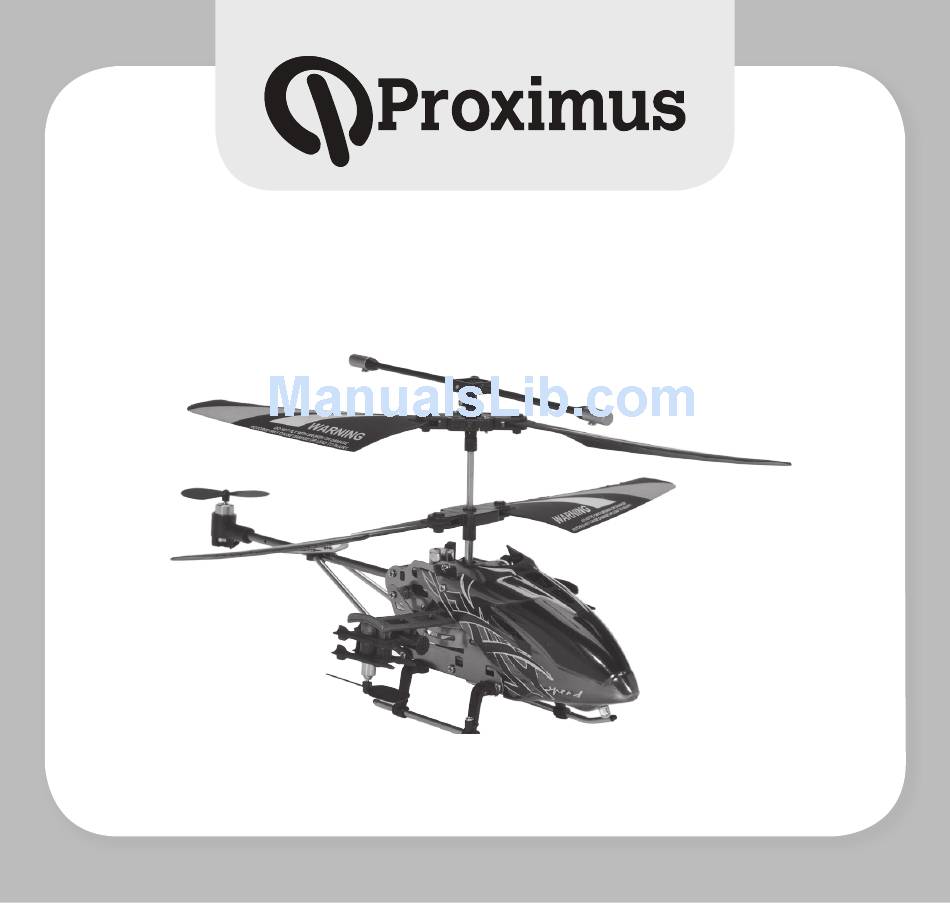

- Page 1 THUNDER STRIKE - P16-41460 4CH Indoor Helicopter w/ Gyro Ages User’s Manual and up...
-
Page 2: Table Of Contents
TABLE OF CONTENTS What’s in the Box ....................3 Helicopter Part List ....................4 Infrared Control Transmitter ................... 4 Installing the Batteries ................... 5 Charging the Helicopter ..................6 Pre-Flight ....................... 7 Troubleshooting ..................... 9 Care & Maintenance .................... 10 FCC Information .................... -
Page 3: What's In The Box
WHAT’S IN THE BOX a.- (1) Helicopter e.- (1) Spare Balance Bar b.- (1) Remote Control f.- (1) Spare Ascend and Descend Landing Gear c.- (4) Spare Screws g.- (2) Spare Tail Blades d.- (2) Spare Main Blades h.- (2) Spare Connection Buckle... -
Page 4: Helicopter Part List
HELICOPTER PART LIST Specifications Size: 7.87”x1.37”x4.13” Main Rotor: 6.81” Stabilizer Battery: Li-poly 3.7v 150mAh Main Rotor Blade Tail Rotor Light Light Gear INFRARED CONTROL TRANSMITTER Power Indicator Band Selector Trim Power Switch Directional Stick Throttle Stick (Forward/Backward/Left/Right) (Ascend/Descend/Left/Right) Running/Flying Mode Switch Charging Cable Cover... -
Page 5: Installing The Batteries
INSTALLING THE BATTERIES 1. Turn the remote control over to access the battery compartment on the back. 2. Remove the screw and remove the battery compartment cover 3. Insert 6 AA batteries making sure to orient them according to the illustrations on the inside of the battery compartment. -
Page 6: Charging The Helicopter
CHARGING THE HELICOPTER • Make sure to switch OFF the helicopter prior to charging. • Use the remote control’s charging cable located behind the front panel OR use the included USB cable to charge the helicopter using any available USB power port. -
Page 7: Pre-Flight
PRE-FLIGHT 1. Lay your helicopter on the ground at least 6 feet away from obstructions, animals or people. 2. Move the helicopter’s power switch located in the main housing to ON and make sure the throttle on the remote is in the down position. 3. - Page 8 Notes: • Do not fly in extreme temperatures above 113°F/45° C, or below 50° F/10° C as doing so will affect performance and may damage the helicopter. • Do not fly in strong wind as windy conditions will limit control ability. • Select a large, wide-open area and make sure there are no obstructions, ani- mals or people nearby.
-
Page 9: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE CHECK THIS The remote control The power switch on the Make sure the Power doesn’t work remote control is OFF switch is set to is ON The batteries are im- Confirm batteries are properly inserted correctly inserted. The remote control doesn’t work Batteries lack of power... -
Page 10: Care & Maintenance
CARE AND MAINTENANCE Warning 1. Recommended for indoor use only, and only in rooms without obstacles, breakable objects or fans. 2. If the helicopter becomes damaged or broken do not fly as it may lead to injury. FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. - Page 11 Warning: Changes or modifications to this unit not expressly approved by the party respon- sible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 12 Proximus Products Technical Support: 8300 West Flager St. 1(888) 222-5487 Suite# 121-106 Miami, FL 33144 Proximus™ is a registered Trademark of Streak Products, Inc. © 2011 Streak Products, Inc.
