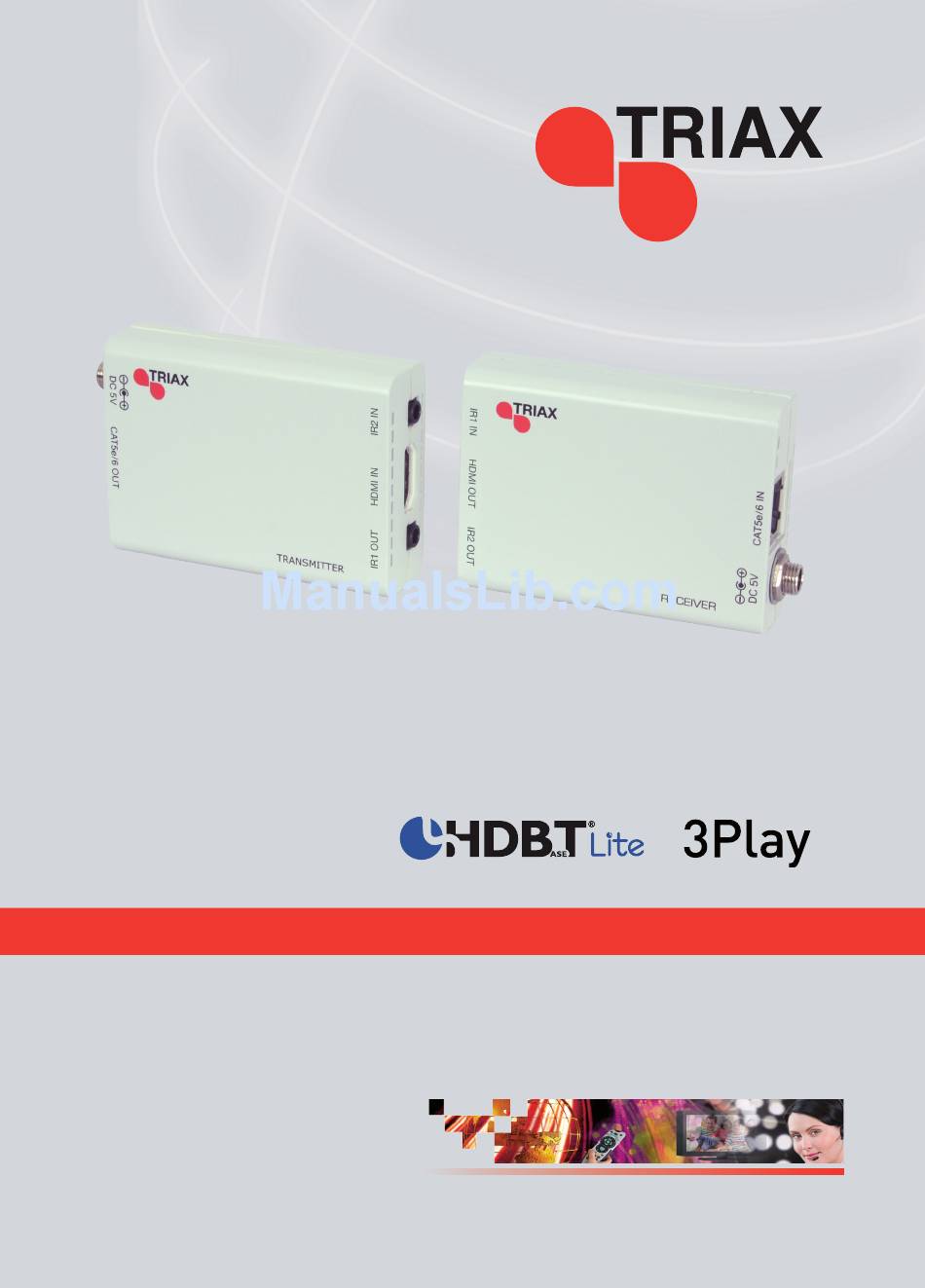

- Page 1 HES Lite TX and RX Extender Set Part No. 310021 Operating Manual TRIAX - your ultimate connection...
-
Page 2: Table Of Contents
The illustrations in this operation manual are for explanation and guidance purposes only. Dear Triax customer Thank you for purchasing the TRIAX HES Lite TX and RX Extender Set. To ensure safety and many years of trouble-free operation, please read the Important Safety Precautions carefully before using this product. -
Page 3: Safety Precautions
Important Safety Precautions • Cleaning - Unplug the AC power from the mains supply before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. • Use a soft damp cloth to gently wipe the product when it is dirty. To protect the product, do not use a chemical cloth to clean it. -
Page 4: Introduction
Introduction The HDMI/DVI over single CAT5e/6 with IR transmitter and receiver set can make your home or office set-up more efficient and easy to use. Uncompressed video and audio can be transmitted up to 70 meters with the added benefit of controls through the built-in IR ports (HDMI only). This family design of HDBaseT™ technology allows a full usage of HDMI and controls over CAT5e/6 cable. Applications • Household entertainment sharing and control • Lecture room display and control • Showroom display and control •... - Page 5 Transmitter Front and Rear View IR IN 1. IR Out: Plug the IR Emitter included in the package for IR signal sending from the receiver side 2. HDMI In: Connect with source equipment such as DVD/Blu-ray player 3. IR In: Connect the supplied IR Digital Eye for IR signal reception. Ensure that the remote being used is within the direct line of sight of the IR Digital Eye 4.
- Page 6 Transmitter and Receiver Top View 1. LINK LED: When both the transmitter and receivers are powered up the Green power LED will illuminate. When the transmitter and receiver are connected via the CAT5e/6 cable, the amber Data Link LED will illuminate and confirm the data connection. IR Pin Assignment Power 5V IR Emitter Signal IR Signal Power 5V Grounding...
-
Page 7: Specifications
Specifications Video Bandwidth 300MHz/9Gbps Transmitter Inputs 1 x HDMI Outputs 1 x RJ45, 1 x IR Emitter Receiver Inputs 1 x RJ45, 1 x IR Digital Eye Outputs 1 x HDMI Human Body Model: ± 8kV (air-gap discharge), ESD Protection ±... -
Page 8: Connections And Installations
Connections and Installation DC PSU or USB to Power RX IR Digital Eye (70m) HES Lite TX HES Lite RX Acronyms Acronym Complete Term CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-Bandwidth Digital Content Protection... - Page 9 Issue 2 *Triax reserves the right to change the specifications without prior notification...
