Summary of Contents for TanGO X3s

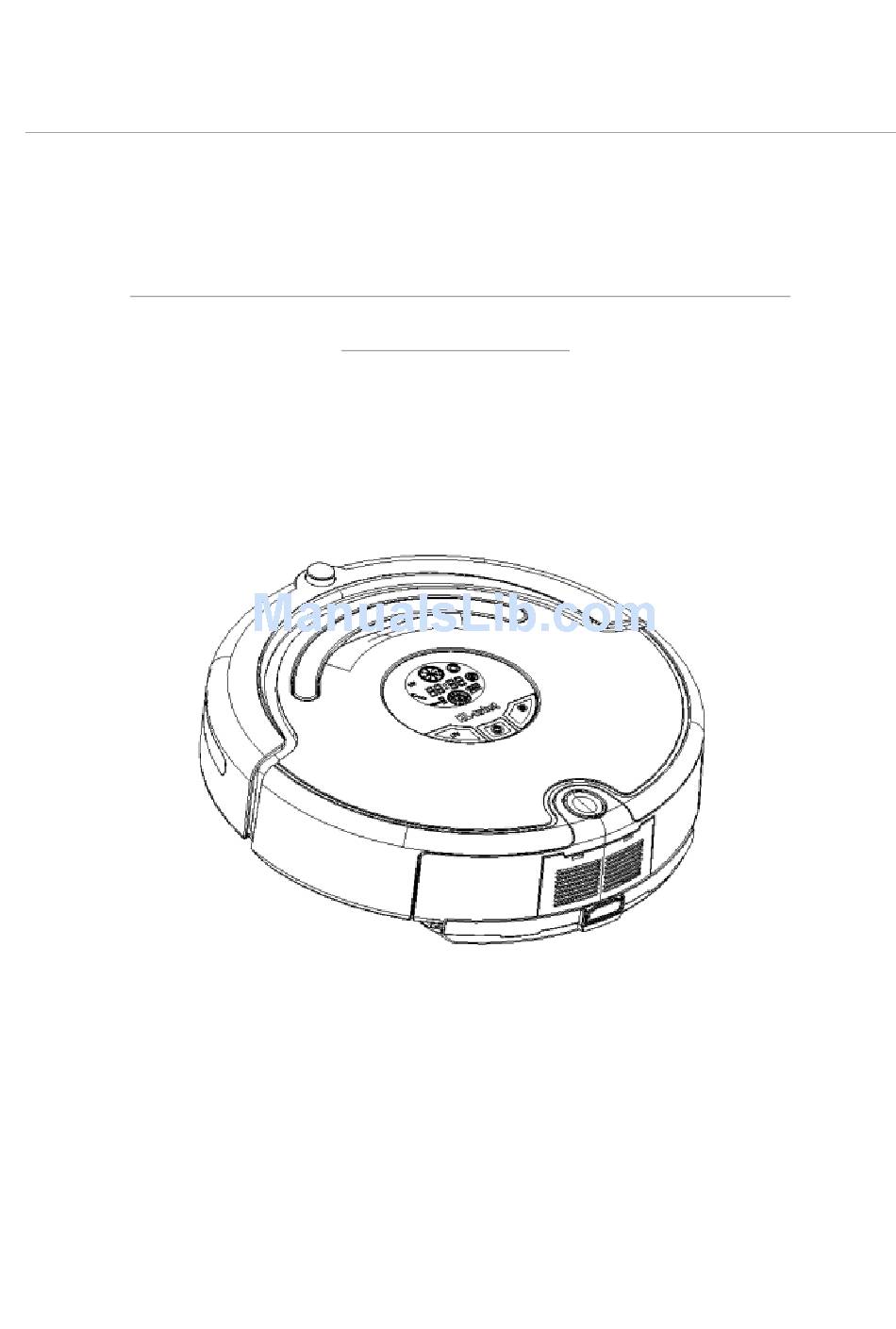

- Page 1 TanGO X3s MULTIFUNCTIONAL VACUUM CLEANER USER MANUAL MODEL NO.: TanGO X3s...
- Page 2 Thank you for purchasing our new robotic vacuum cleaner. Please read this manual carefully before using the product.
-
Page 3: Table Of Contents
Table of Contents Safety Tips ................4 Components of the cleaner ............. 5 Function Introduction ............. 5 Applicability ................5 Main body ................6 Control Panel of the main body ............................. 6 Usage of Control Panel ..............................7 Assembly & Disassembly and Cleaning of Dustbin ..................... 8 Assembly &... - Page 4 Technical Specifications of Remote Control ......................21 Technical Specifications of Docking Station ......................21 Technical Specifications of Virtual Wall ........................22...
-
Page 5: Safety Tips
Safety Tips Warnings No one else can disassemble, maintain or Don’t use other charger but the equipped transform product except one of the Robot, or it may cause product maintenance technicians designated by the damage, electric shock or fire due to high company, or it may cause fire, electric shock voltage. -
Page 6: Components Of The Cleaner
Components of the cleaner Cleaner Remote control Adaptor User Manual Auto charging docking station Virtual Wall Mopping part Dust brush Side bruch Filter Function Introduction It is the Robotic vacuum cleaner with rechargeable battery, controlled by microcomputer intelligent and integrated with automatic cleaning, dust absorption, mopping, sterilizing, timing, reservation cleaning, remote control, speed selection, various identification protection functions, various automatic cleaning modes and automatic charging. -
Page 7: Main Body
Main body Top of main body Bottom of main body UV sterilizing lamp Front wheel Left wheel Ground detection sensor Rubber brush Battery cover Side cleaning brush Main brush Ground detection sensor Mopping part Right wheel Dustbin Power switch DC socket Air outlet window Control Panel of the main body Display Interface... -
Page 8: Usage Of Control Panel
Usage of Control Panel 1. Check the batteries are installed correctly with enough power, and then turn on the power switch, the buzzer will ring once and icons will show as follows: Indicates the current date per week. Indicates malfunction, “88:88” displays the failure code from E001 to 034. Indicates the battery, three grids mean full power, or decreased power with less grids. -
Page 9: Assembly & Disassembly And Cleaning Of Dustbin
Assembly & Disassembly and Cleaning of Dustbin Assembly & Disassembly of Dustbin: Extract the dustbin by pressing the key on it. (Refer to Figure 1 and Figure Press the red button on it, and then blower will automatically. (Refer to Figure 3) Figure 3 Reverse the blower, release 2 fasteners and open the cover. -
Page 10: Assembly & Disassembly And Cleaning Of Brush
Cleaning of Dustbin and Blower: First dump the dust, and then clean it with Dust Brush. (Refer to Figure 1) Figure 1 Pop up the blower, and then clean the air inlet/outlet with brush cleaner. (Refer to Figure 2 and Figure 3) Figure 2 Figure 3 Don’t clean the blower in water! -
Page 11: Assembly & Disassembly And Cleaning Of Wheel
in assembly. Assembly & Disassembly of Side Brush: Release the screw in the main shaft of the side brush before changing the side brush. Press the side brush against the main shaft and then fasten the screw. (Refer to the figure) Cleaning of Brush and Floor Brush: Clear the hair or big dust particles on the brush and floor brush regularly to improve the cleaning... -
Page 12: Cleaning Of Sensor And Infrared Transparent Window
Assembly & Disassembly and Cleaning of Front Wheel: Pull out the front wheel with your finger and tools and then clean it. (Refer to the figure) Insert and press the front wheel into the right position while assembling. Cleaning of Sensor and Infrared Transparent Window Clean the sensor and infrared transparent window with the cotton swab or soft cloth. -
Page 13: Remote Control
The right place of battery. (Refer to Figure 3) Please take out the battery if it was unused Remote Control Overall Appearance Key Description Automatic cleaning key/Thursday Spot cleaning key/Friday Time set key/Tuesday Reservation key/Monday UV sterilizing key/Wednesday Automatic recharging key/Sunday Speed selection key/Saturday Turn off/cancel It will work automatically after the battery is full... - Page 14 Function Guide Function Information Press the key, the Cleaner will clean in the automatic mode as per the pre-set speed. Press Automatic Cleaning the key again, the Cleaner will stop running. The function cannot be memorized. Press the key, the Cleaner will clean in the timing mode as per the pre-set speed. Press the Spot Cleaning key again, the Cleaner will stop running.
-
Page 15: Auto Charging Docking Station
4． Press the key for more than 5s, you can delete all set and memory and return to the initial state before the Robot leaves the factory. 1． You should press “OK” to save the set and exit Reservation Date Set after finishing the reservation date setting. -
Page 16: Installation Of Auto Charging Docking Station And Charging For The Cleaner
decorative Turn on the decorative light to activate the atmosphere, and place in the glowing center light of the light a little essence, which will give off charming aroma after heating. Decorative light Press the switch to turn on/off while the decorative light is on. switch Power LED The Power LED will light when the Docking Station is connected with the power, or... - Page 17 4. Press DOCKING in the remote control if you want to charge for the main body, the Cleaner will search the Docking Station for charging within available scope automatically. Press any key in host panel or POWER OFF and DOCKING keys in the remote control while the Cleaner is searching for the recharger, the Cleaner will then stop searching.
-
Page 18: Virtual Wall
(Refer to Figure 5) Figure 5 Automatic charging: The Cleaner will search the Docking Station for charging automatically in case of low battery during cleaning. 1. The Cleaner may fail to find the Docking Station due to the obstacle, decreased battery and complex condition, so the Docking Station should be put in wide space as far as possible. -
Page 19: Installation Method Of Virtual Wall
The near-infrared transmitting signal makes the Cleaner run outside the virtual Near-infrared transmitting wall scope of 50-100cm without any impact to it. head The Power LED will flicker once every 8s until the low battery after you slide Power LED Low, Middle and High, and the Cleaner works normally. -
Page 20: Storage
Storage The Robot should be stored in dry place with good ventilation. Trouble shooting The Cleaner doesn’t work or clean poorly Check whether turning on the switch. Check whether the dust box, filter and intake are clean, and whether the side brush works. Check whether the battery voltage declines greatly. - Page 21 E004 Right ground detection The sensing head was blocked or the cleaner was jammed on the step. E005 Left collision The left of front housing was jammed and cannot return. E006 Right collision The right of front housing was jammed and cannot return. E007 Left wall detection The cleaner was jammed near the obstacle.
-
Page 22: Technical Specifications
Technical Specifications Model KL-XXX Rated Voltage 14.4V Battery Rechargeable battery (the charge time is about 3-4h) Working Hours About 60～90min Rated Power <24W Operating Temperature Range -10 ～45 Operating Humidity Range ≤85RH Input Voltage/Current Wireless Remote ISM Frequency Band 2.4GHz Specification 320×87mm (including the wheel height) Weight... - Page 23 Technical Specifications of Virtual Wall Models Parameters Remark Specification L×W×H: 102×71×106mm Weight 0.14kg Rated Voltage Operating Temperature Range -10 ～45 Operating Humidity Range ≤85RH...
