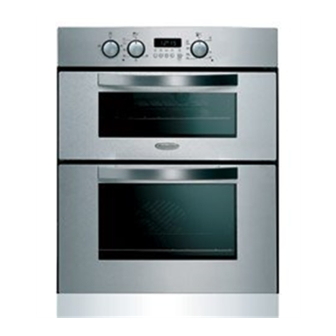

Hotpoint electric double oven instructions for installation and use ud47, ut47
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instructions for Installation and Use
UD47
UT47
To the Installer
Before installation fill in the product details on the back cover of this
booklet. The information can be found on the rating plate.
To the User
You must read the instructions prior to installing and using the appliance
and then retain them for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UD47 and is the answer not in the manual?

Questions and answers

Related Manuals for Hotpoint UD47

Summary of Contents for Hotpoint UD47

  • Page 1 Instructions for Installation and Use UD47 UT47 To the Installer Before installation fill in the product details on the back cover of this booklet. The information can be found on the rating plate. To the User You must read the instructions prior to installing and using the appliance...

  • Page 2: Table Of Contents

    Operation when using Top Oven for Grilling Guide for Grilling Using the Top Oven as a Convection Oven Operation when using the Top Oven as a Convection Oven Using the Main Oven for Fan Cooking Using the Main Oven for other Functions...

  • Page 3: Introduction

    To help remove the ‘new’ smell, heat up the empty ovens to maximum temperature for a minimum of two or three hours, keeping the oven doors closed. Ensure that the room is well ventilated (e.g. open a window or use an extractor fan) and that persons who may be sensitive to the odour avoid any fumes.

  • Page 4: Safety Advice

    Always make sure all controls are turned off when you have finished cooking and when not in use. Always stand back when opening an oven door to allow any build up of steam or heat to disperse. Always use dry, good quality oven gloves when removing items from the oven/grill.

  • Page 5: Never

    Never allow anyone to sit or stand on any part of the appliance. Never store items above the appliance that children may attempt to reach. Never remove the oven shelves whilst the oven is hot. Never heat up unopened food containers as pressure can build up causing the container to burst.

  • Page 6: The Main Parts Of Your Double Oven

    The main parts of your Double Oven GRILL SETTING CONTROL GRILL ELEMENT STAY CLEAN LINER TOP OVEN DOOR OVEN FAN STAY CLEAN LINER MEAT PAN & ANTI- SPLASH TRAY INNER DOOR GLASS TOP OVEN TEMPERATURE & GRILL SELECTION CONTROL CLOCK & OVEN TIMER RATING PLATE –...

  • Page 7: Controls

    The heating element and oven fan will not operate until the oven door is closed. Note: It is advisable to check that all oven controls have been switched off when you have finished using the appliance.

  • Page 8: Oven Timer Operation

    AUTOMATIC COOKING The Top Oven and Main Oven can be controlled by the automatic timer. When the timer control has been set for one oven, it is possible to use the other oven only during the same automatic cooking programme.

  • Page 9: Know Your Timer

    For Example: If you set a “Cook Period” for 2 hours, and “End Time” of 11:00. The timer will switch the oven(s) on at 9:00 and turn the oven(s) off at 11:00. You will hear an audible tone at 11:00, to indicate that the Auto Cooking Programme has finished.

  • Page 10: Setting The Minute Minder

    Operation SETTING THE TIME OF DAY Step 1 Make sure all oven controls are turned Off. Step 2 Check the electricity supply to the cooker is turned on. Step 3 When switched on the display will show 0.00 and the Auto symbol, Step 4 Press &...

  • Page 11: Auto Cooking Programmes

    (b) To set timer to switch on immediately and OFF automatically after a set cook period. a) TO SET THE TIMER TO SWITCH THE OVEN(S) ON AND OFF AUTOMATICALLY This allows you to cook at a specified time for a chosen period before the oven switches off Automatically.
  • Page 12 Check that the correct time of day is set, if not follow instructions for setting the time of day. Step 2 Place food onto the correct shelf position in the oven and close the oven door(s). Step 3 Turn the oven control(s) to the required temperature, and if necessary select the appropriate oven function.
  • Page 13 5. If at any time the display shows three flashing zero’s 0.00 and ‘Auto’, it is likely that the electricity supply to the oven has been interrupted. Reset the timer to the correct time of day. Food in the oven may, therefore, not have been cooked, before serving check food is thoroughly heated and completely cooked.

  • Page 14: Using The Top Oven For Grilling

    Using the Top Oven for Grilling Top Oven Shelf Positioning for Grilling The shelf can be inserted in two different ways for grilling. The grilling chart will indicate the correct orientation. Orientation A Orientation B Note There should always be at least 25mm (1 inch) between the top of the food and the grill...

  • Page 15: Grill Pan And Handle

    If a detachable handle is required, do not replace the screw and washers. Note: If a fixed handle is required, the grill pan cannot be kept in the main oven with the door closed but may be stored in the top oven with the door closed, when the top oven is not in use..

  • Page 16: Operation When Using Top Oven For Grilling

    Step 2 Turn knob (B) clockwise to select grill function setting: Set to: NOTE: As you turn past the end of the oven temperature scale you will feel resistance on the knob – continue turning clockwise until the grill setting position is selected.

  • Page 18: Using The Top Oven As A Convection Oven

    WARNING: Items stored in the top oven will get hot when the main oven is in use. DO NOT allow young children near to the appliance when the top oven is in use as the surfaces get extremely hot.

  • Page 19: Operation When Using The Top Oven As A Convection Oven

    Do Not use: Meat Pans and Baking Trays larger than – 225mm x 300mm (9”x12”) DO NOT use the grill pan or main oven meat pan as a meat pan in the top oven, as the air circulation will be seriously restricted.

  • Page 20: Using The Main Oven For Fan Cooking

    At the end of the cooking period there may be a momentary puff of steam when the door is opened. This will disperse in a few seconds and is a perfectly normal characteristic of an oven with a good door seal.

  • Page 21: Using The Main Oven For Other Functions

    (allowing 5-6 hours per lb.) or at room temperature (allowing 2-3 hours per lb.). Frozen meat or poultry must be completely defrosted before cooking in the oven. However, to decrease the amount of time required to defrost food items, a non-heating fan only setting may be selected for the main oven only.

  • Page 22: Using The Main Oven For Other Functions

    Extra care should be taken when warming bone china, as it may be damaged in a hot oven. DO NOT place food or plates directly on the oven floor as this could damage both the oven lining and the plates which are being warmed.

  • Page 23: Temperature Conversion Scale

    Temperature Conversion Scale Mark Main Conventional Oven – – Main Oven...

  • Page 26: Cooking Results Not Satisfactory

    Remember to reduce cooking temperatures by 10°C from standard recipes when using the top oven. Ensure that the cooking utensil used in the top oven is not larger than 300mm x 225mm (12"x 9"), e.g. Do Not use the main oven meat pan.

  • Page 27: Care And Cleaning

    Warning: Before cleaning, please ensure that the electricity supply to the appliance is switched off and the appliance is fully cold. 1. “STAYCLEAN” OVEN LINERS (Top Oven sides, Main Oven sides, rear TOP OVEN SIDE LINERS MAIN OVEN SIDE LINERS, REAR PANEL &...

  • Page 28: Oven Doors

    3. OVEN DOORS CONTROL PANEL TRIMS (a) Base & Rear of Top Oven and Base of Main Oven. Wipe out the oven with a damp soapy cloth. For more stubborn stains on the base of the oven use a well soaped fine steel wool soap pad.

  • Page 29: Replacement Of The Oven Lamp

    Open the oven door and remove the oven shelves. Using a thick cloth, grip the lamp lens, unscrew anti- clockwise and remove the lens.
  • Page 30 GROMMETS PANEL Fig. 4 1. Position top or main oven door as shown in fig. 1. Note: The door can be wedged open using a towel between the door and the side trim thus leaving your hands free. 2. Grip inner door panel and handle/outer glass assembly.

  • Page 31: Electrical Requirements

    Installation Electrical Requirements For your own safety, we recommend that your cooker is installed by a competent person such as one who is registered with NICEIC (National Inspection Council for Electrical Installation Contracting). The cooker should be installed in accordance with the latest edition of the IEE Regulations.

  • Page 32: Final Installation

    Check that the plinth can be fitted. If necessary re - adjust the feet and check that the cooker is level. h. Open the top oven door and fix the cooker to the brackets through the holes in the side trims.
  • Page 33 Installation 597mm min 720mm min 565mm 150mm min 170mm max A minimum distance of 25mm should be maintained between the front face of the cabinet side and the front face of the plinth.
  • Page 34 Installation Wall Fixing Bracket Cooker 1mm min Cabinet Doors Top View Double pole control switch Hob Cable 2.5mm Cable size to suit heat resistant cable to current BS 6141 Table 15 rating of appliance/s Connector Cable...

  • Page 35: Installation Instructions

    (a) Check If you find :- Display is blank. Then it is likely that there is no electricity supply to your oven. Check: (i) That the main cooker wall switch is turned on. (ii) Check other appliances to see if you have a power cut.

  • Page 36: Hotpoint Service Cover

    Hotpoint gives you a unique ‘Satisfaction Guaranteed’ promise – valid for ninety days after you have purchased your Hotpoint product. If there is a technical problem with your Hotpoint appliance, just call Hotpoint Service (see back page). If necessary we will arrange for an engineer to call.

  • Page 40: Repair Service

    Republic of Ireland: (01) 842 6836 08701 506070 For further product information All Hotpoint Services are offered as an extra benefit and do not affect your statutory rights. General Domestic Appliances Limited, Morley Way, Peterborough, PE2 9JB PRINTED BY SIMLEX . FOUR ASHES, WOLVERHAMPTON.
