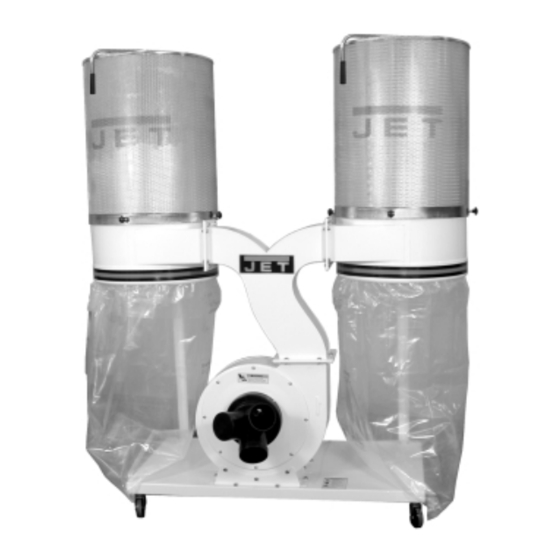

Summary of Contents for Jet EQUIPMENT & TOOLS DC-1900C

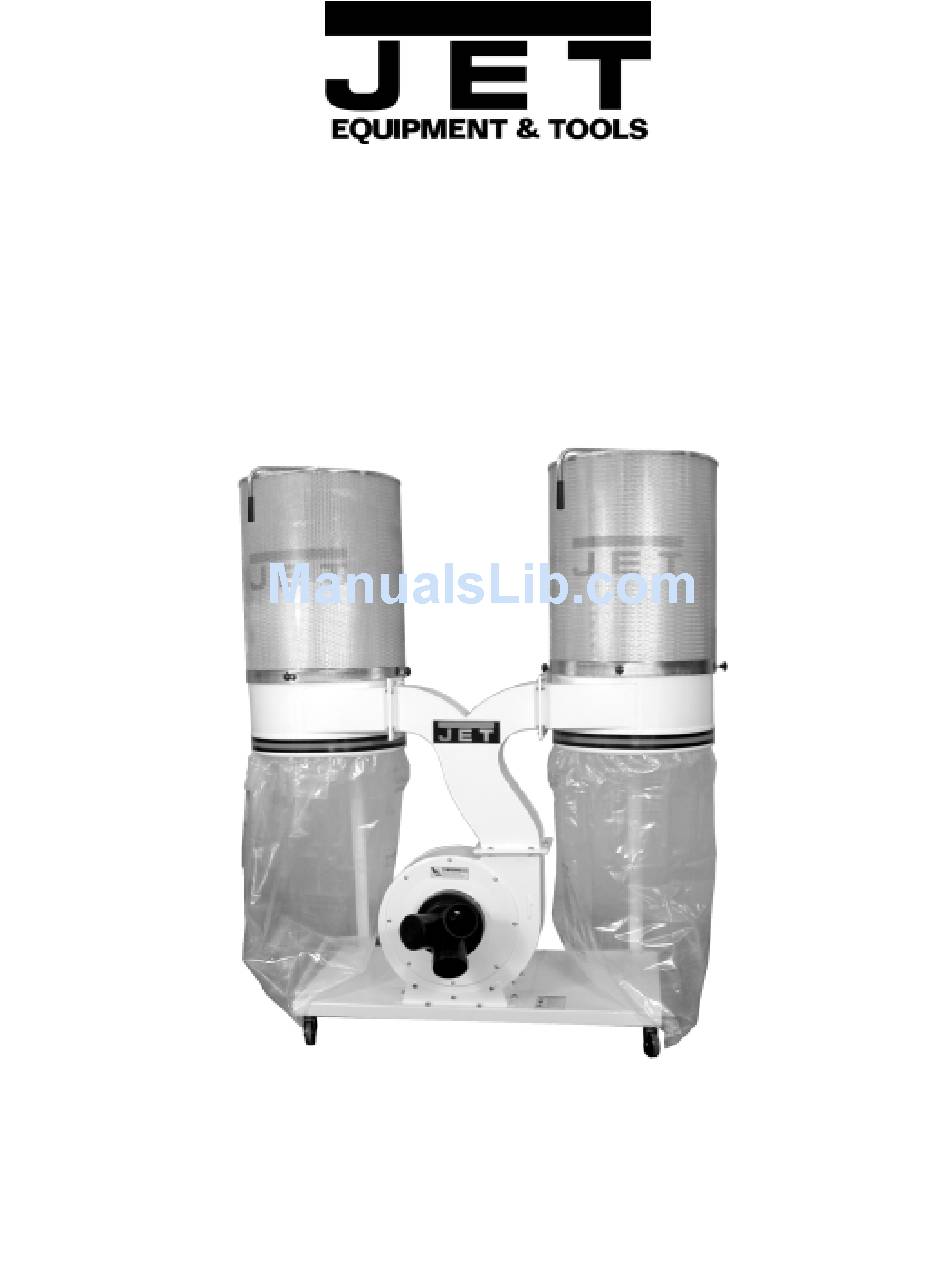

- Page 1 OWNER'S MANUAL DC-1900C Dust Collector JET EQUIPMENT & TOOLS, INC. P.O. BOX 1349 Phone:253-351-6000 A WMH Company Auburn, WA 98071-1349 Fax: 1-800-274-6840 www.jettools.com e-mail jet@jettools.com M-708637C 1/02...
-
Page 2: Warranty
This manual has been prepared for the owner and operators of JET’S DC-1900C. Its purpose, aside from machine operation, is to promote safety through the use of accepted correct operating and maintenance procedures. Completely read the safety and maintenance instructions before operating or servicing the machine. - Page 3 WARNING Read and understand the entire contents of this manual before attempting assembly or operation. Do not use this machine until proper training and knowledge has been obtained. Do not leave Dust Collector when plugged in. Unplug from outlet when not in use and before servicing.
-
Page 4: Table Of Contents
Specifications: DC-1900C Stock Number..........................708637C Blower Wheel Diameter........................14" Sound Rating at 3 feet ......................... 86-92 db Hose Diameter..........................4" & 8” Air Flow at 8” (CFM) ......................... 1,900 Velocity at 8” (FPM).......................... 5,629 Static Pressure (inch of water) ......................12.15 Bag Diameter ............................20"... -
Page 5: Warnings
1. Handle 1. Bag of Hardware for Handles 2. M10 Hex Nuts 2. M10 Flat Washers 1. M10 Lock Washer 4. Knobs DC-1900C 1. Base 1. Owner's Manual 1. Warranty Card 1. Motor/Fan Assembly 10. Collector Bags 2. Snap Rings 4. -
Page 6: Assembly
Assembly WARNING The dust collector must be disconnected from the power source during assembly, unplug. Failure to comply may result in serious injury! 1. Install four casters to the under side of the base as pictured in Fig. 1. Thread the hex nut (B, Fig. - Page 7 6. Place the gasket (A, Fig. 4) between the housing and connector tube. Line up the pegs on the gasket with the holes in the housing. 7. Attach the collector housing (B, Fig. 4) to connector tube with eight M8 x 20 hex cap bolts, sixteen M8 flat washers, and eight M8 hex nuts .
- Page 8 13. Place the ring over the top of the plastic bag and fold over the bag approximately three inches, Figure 7. 14. Insert the snap ring (A, Fig. 7) of the collector bag into the bottom of the housing at an angle. 15.
-
Page 9: Electrical Connections
Electrical Connections Removing the Collector Bag WARNING CAUTION All electrical connections must be done by a Wearing a particle mask/respirator for qualified electrician. All adjustments or protection against fine dust particles during repairs must be done with the dust collector cleaning is highly recommended. - Page 10 Parts Breakdown...
- Page 11 Parts List for the DC-1900C Canister Filter Index Part Description Size Qty. 1..708739......Filter..................... 2 2..331010......Shaft..................... 2 3..331012......Scraper....................4 4..331015......Plate..................... 4 5..331009......Support....................2 6..ST049200 ....Tapping Screw........M4x8........8 7..331050......Handle....................2 8..NH101700....
-
Page 12: Wiring Diagrams
Index Part Description Size Qty. 53 ..991213......Nut ............3/16” ........1 54 ..TS-1540061 ....Nut ............M8 ........30 55 ..TS-0561031 ....Nut ............3/8” –16 UNC ......4 56 ..TS-0561072 ....Nut ............5/8” –18 UNF ......1 57 ..TS-1490011 ....Hex Head Bolt ........M8x12........10 58 ..TS-1490031 ....
