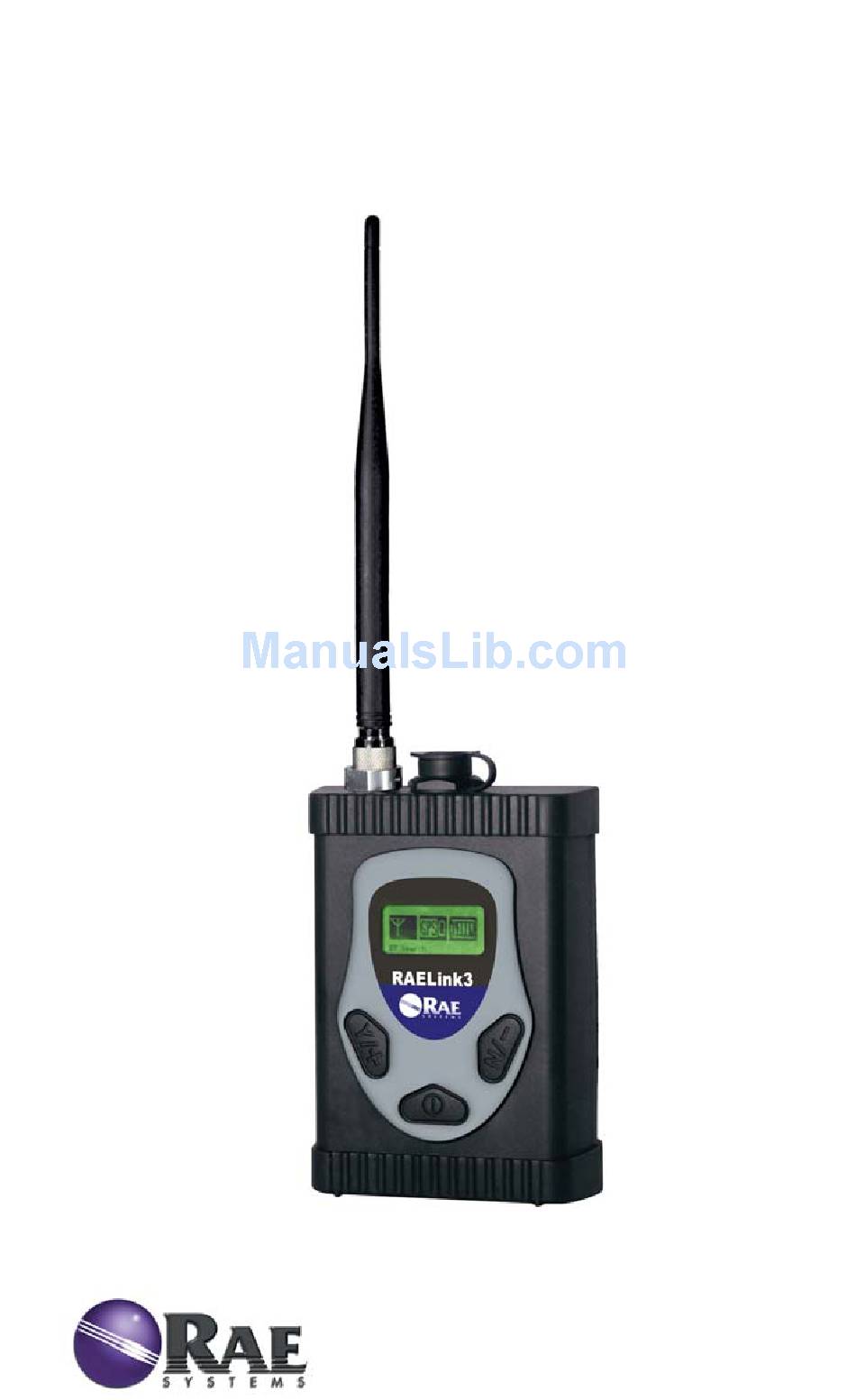

  • Page 1 RAELink3 User’s Guide Rev. B August 2010 P/N 029-4508-000...
  • Page 2 © Copyright 2010 RAE Systems, Inc.

  • Page 3: Table Of Contents

    Remote Mode..............17 Remote G Mode.............. 18 Repeater Mode ..............18 Third-Party Modes ............18 Turning The RAELink3 On............. 19 Turning The RAELink3 Off ............ 20 Configuring The RAELink3 ............ 20 12.1 Accessing Programming Mode........20 12.2 Setting The Network ID..........21 12.3...
  • Page 4 Connecting A RAELink3 Remote Via Bluetooth....29 Connecting A RAELink3 Remote Via Cable ......32 14.1 GPS And Unobstructed Line Of Sight......33 14.2 Cleaning The RAELink3 ..........34 14.3 Ordering Replacement Parts ........... 34 14.4 Special Servicing Note............ 34 Troubleshooting...............

  • Page 5: Regulatory Information

    This modem is certified to be used in Class I, Division 2 hazardous locations. WARNINGS Use only RAE Systems supplied charging adapter to charge the rechargeable battery pack inside the modem. Use only RAE Systems Lithium-Ion battery pack 029-3501-000 or alkaline battery pack, 029- 3502-000.
  • Page 6 Specifications Dimensions 4.73″ x 3.4″ x 1.85″ (120 mm x 86 mm x 48 mm) Weight 17.3 oz (490 g) Battery Rechargeable 7.4V Lithium-Ion battery pack Alkaline battery pack (7.5V, five alkaline batteries) LCD Display Backlit with icons and text Attachment Belt Clip Temperature -20 C to 55...
  • Page 7 Antenna Lock Caution: To reduce risk when operating in potentially explosive atmospheres, ensure the antenna is locked in place with set-screw to prevent inadvertent disconnection. Note: Antenna must be locked in place with set-screw...

  • Page 8: Standard Contents

    RAELink3s configured as Repeaters extend the effective reach of the system. Configuration Options The RAELink3 can be configured to act in one of the following three modes: 1. Remote. The RAELink3 Remote functions as a slave modem and communicates to a host modem with the same network ID.

  • Page 9: Connection With Third-Party Devices

    RAELink3 User’s Guide 2. Host. The RAELink3 Host functions as a host modem and communicates with multiple wireless modems (such as the RAELink3 Remote and RAELink3 Repeater, as well as AreaRAE products equipped with RAELink-family Remote modems) with the same network ID.

  • Page 10: Key Features

    Onboard LCD displaying radio signal strength, GPS tracking status, and battery life • Long operating time from built-in rechargeable Li-Ion battery pack (up to 18 hours of continuous operation) Note: Two RAE Systems monitors can connect to one RAELink3 using a Bluetooth and serial cable connection.

  • Page 11: Specifications

    RAELink3 User’s Guide 4 Specifications Dimensions 4.73″ x 3.4″ x 1.85″ (120 mm x 86 mm x 48 mm) Weight 17.3 oz (490 g) Battery Rechargeable 7.4V/1650mAh Lithium- Ion battery pack Alkaline battery pack (7.5V, five alkaline batteries) Operating Time Up to 18 hours of continuous operation.

  • Page 12: Charging The Battery

    Charging Adapter. Follow this procedure to charge the instrument: 1. Align the Charging Adapter with the back of the RAELink3 (two guides match indents on the back of the Charging Adapter. 2. Slide the Charging Adapter onto the back of the RAELink3.

  • Page 13: Detaching The Charging Adapter

    RAELink3 User’s Guide 5.1.1 Detaching The Charging Adapter To detach the Charging Adapter, press in on the latch. While pressing the latch, slide the Charging Adapter down. Press latch Slide down Release while pressing Side view...

  • Page 14: Replacing The Li-Ion Battery

    1. Turn off the instrument. 2. Located on the rear of the instrument are three screws. Loosen all three screws, and lift the battery out of the RAELink3. Remove the battery pack from the battery compartment by lifting it out.
  • Page 15 6. Set the alkaline battery adapter into the RAELink3. 7. Tighten the three Philips screws. IMPORTANT! Alkaline batteries cannot be recharged. If you place the RAELink3 in its Charging Cradle, the alkaline batteries will not be recharged. Note: When replacing alkaline batteries, dispose of old ones properly.

  • Page 16: User Interface

    RAELink3 User’s Guide User Interface The instrument’s user interface consists of the display and three keys. The keys are: MODE The LCD display provides visual feedback that includes the reading, time, battery condition, and other functions. Display N/- key Y/+ key...

  • Page 17: Backlight

    Shows number of GPS satellites that GPS Satellite RAELink3 is receiving data from. (It must see 3 satellites for proper mapping in ProRAE Remote. Indicates battery level via bar graph. Battery Charge Bluetooth Connection Status Shows which monitor the RAELink3 is connected to via Bluetooth.

  • Page 18: Operating The Raelink3

    The following section covers configuration and operation of the modem portion of the RAELink3. Refer to page 29 for information on establishing a link between a RAELink3 and a portable gas monitor or other detector.

  • Page 19: Host Mode

    20. Host Mode This mode designates the RAELink3 as Host (master) in a network. It can simultaneously communicate with numerous Remotes and Repeaters. Note: There can only be one Host in a network. It is typically connected to a computer (PC) running ProRAE Remote software for monitoring.

  • Page 20: Remote G Mode

    RAELink3 User’s Guide Remote Mode is designed so that a RAELink3 modem can be used as a drop-in replacement for an existing RAELink or RAELink2 modem without modification. Remote G Mode In this mode, the modem passes all data from a GammaRAEII R to the Host.

  • Page 21: Turning The Raelink3 On

    1. Press and hold [MODE]. 2. When the display turns on, release the [MODE] key. The RAE Systems logo should appear first. (If the logo does not appear, there is likely a problem and you should contact your distributor or RAE Systems Technical Support.) The firmware version is shown, along with the date of installation, and then the RAELink3’s serial number.

  • Page 22: Turning The Raelink3 Off

    [MODE], except when in the Set Network ID and Set Unit ID menu screens. With the RAELink3 turned on, press and hold both [MODE] and [N/-] for 3 seconds. The RAELink3 enters programming mode. The Bluetooth communication screen is displayed:...

  • Page 23: Setting The Network Id

    AreaRAE network need to be configured with the same Network ID. RAELink3 modems come from the factory programmed to a unique random network ID, or programmed to match an existing system as specified by the customer. To enable a different Network ID, the number must be set to a value between 1 and 4095, except 255.
  • Page 24 RAELink3 User’s Guide To accept the new Network ID, press and hold [MODE] for 2 seconds. A confirmation screen appears, as shown here: Network ID: 0001 1234 Save? Press [Y/+] to save, or press [N/-] to abort the change. If you save the Network ID, you see this display as it saves: Network ID: 1234 Saving...

  • Page 25: Set Operation Mode

    The Operation Mode designates whether the RAELink3 operates as a Host, Remote, or Repeater. IMPORTANT! There can only be one Host in a network. If more than one RAELink3 or earlier-generation RAELink wireless modem (or combination) is designated as a Host, the network will not function properly.

  • Page 26: Gps Power Control

    RAELink3 User’s Guide Once you have made your selection, press [Y/+] to save the change. OP Mode: Host Saving… After the change is saved, the display returns to the beginning screen for Operation Mode (your choice of Operation Mode is shown):...

  • Page 27: Gps Coordinates Check

    GPS Coordinates Check, by pressing [N/-]. 12.5 GPS Coordinates Check Check the RAELink3’s GPS location in this menu screen. If you want to have the coordinates checked and shown in the display, press [Y/+]. If not, press [N/-] to skip to the next menu screen.

  • Page 28: Bluetooth Power Control

    RAELink3 User’s Guide Press [Y/+] to quit. (Pressing [N/-] or [MODE] does not change the screen.) The first screen of GPS Coordinates Check is shown: GPS Coordinates Check? Press [N/-] to advance to the next screen, Bluetooth Power Control. 12.6 Bluetooth Power Control The onboard Bluetooth connection can be turned on or off.

  • Page 29: Setting The Unit Id

    MiniRAE3000 or MultiRAE Plus), and sometimes it is set on the RAELink3 attached to a monitor (such as a GammaRAEII R). Note: When RAELink3 is configured as a Repeater or Host, it does not require a Unit ID. Therefore, the Set Unit ID Menu is not applicable in this mode.
  • Page 30 RAELink3 User’s Guide To accept the new Unit ID, press and hold [MODE] for 2 seconds. A confirmation screen appears, as shown here: Unit ID: 01 21 Save? Press [Y/+] to save, or press [N/-] to abort the change. If you save the Unit ID, you see this display as it saves: Unit ID: 21 Saving...

  • Page 31: Modem Configuration Menu

    Do not enter and change any parameters in this menu unless directed to do so by authorized technical support personnel. Note: The RAELink3 must be connected to a computer with a cable, and a HyperTerminal program must be running. The Modem Configuration screen is shown here:...
  • Page 32 RAELink3 User’s Guide If you see this screen when you turn on the RAELink3 Remote, then you must turn on the Bluetooth. See page 26 for details that cover turning Bluetooth on and off. BT Power Off When Bluetooth is on and a link to a Bluetooth device is established, you see this screen (otherwise, you see “No Record”...
  • Page 33 Note: If multiple monitors will be in your network, it is fastest to turn one monitor and one RAELink3 on at a time for this initial pairing. When a successful pairing is made, the screen lists the monitor’s ID number and gives this message in the display:...

  • Page 34: Connecting A Raelink3 Remote Via Cable

    Via Cable Connect a portable gas monitor (PGM) such as a ppbRAE Plus, MiniRAE 2000, or MultiRAE Plus to the RAELink3 configured as a Remote using the optional Portable Coiled Cable (part number 400-0189-000). • Connect the serial cable’s 4-pin circular connector to the monitor.

  • Page 35: Gps And Unobstructed Line Of Sight

    If you need to operate a monitor under a roof or anything else that obstructs a clear view of the sky, you may need to take the RAELink3 outdoors into a nearby clear area, perform a manual GPS Coordinates...

  • Page 36: Cleaning The Raelink3

    Occasional cleaning with a soft cloth is recommended. Do not use detergents or chemicals. Visually inspect the contacts on the rear of the RAELink3, on the battery, and on the Charging Cradle to make sure they are clean. If they are not, wipe them with a soft, dry cloth. Never use solvents, abrasives, or cleaners.

  • Page 37: Troubleshooting

    Check the Network ID Host Controller Check battery charge on the Remote unit Make sure you have a unique Unit ID on each RAELink3 or device connected to a RAELink3. Check the cable or Bluetooth connection between the RAELink3 and the remote...

  • Page 38: Technical Support

    RAELink3 User’s Guide Technical Support To contact RAE Systems Technical Support Team: Monday through Friday, 7:00AM to 5:00PM Pacific (US) Time Phone (toll-free): +1 888-723-4800 Phone: +1 408-952-8461 Email: tech@raesystems.com Life-critical after-hours support is available: +1 408-952-8200 select option 9...

  • Page 39: Rae Systems Contacts

    RAELink3 User’s Guide RAE Systems Contacts RAE Systems World Headquarters 3775 N. First St. San Jose, CA 95134-1708 USA Phone: +1 408.952.8200 Fax: +1 408.952.8480 E-mail: customerserv@raesystems.com Web Site: www.raesystems.com RAE Systems Technical Support Monday through Friday, 7:00AM to 5:00PM Pacific Time Phone: +1.408.952.8461...
  • Page 40 RAELink3 User’s Guide RAE Systems UK Ltd D5 Culham Innovation Centre Culham Science Centre Abingdon, Oxon OX14 3DB United Kingdom Phone: +44 1865408368 Fax: +44 1235531119 Mobile: +44 7841362693 raeuk@raeeurope.com Email: RAE Systems France 336, rue de la fée des eaux...
  • Page 41 LOB 7, Ground Floor, Office 19, Jebel Ali Free Zone Dubai, United Arab Emirates Phone: +971.4.887.5562 Email: mesales@raesystems.com RAE Systems (Hong Kong) Ltd. Room 8, 6/F, Hong Leong Plaza 33 Lok Yip Road Fanling, N.T, Hong Kong Phone: +852.2669.0828 Fax: +852.2669.0803 Email: hksales@raesystems.com...
  • Page 42 RAE Systems Europe Kirstinehøj 23A, DK-2770 Kastrup • Denmark Phone: +45.8652.5155 • Fax: +45.8652.5177 Web: www.raesystems.eu • Email: sales@raeeurope.com RAE Systems (Hong Kong) Ltd. Units 1516-18, 15/F, Delta House, 3 On Yiu Street Shatin, N.T. Hong Kong Phone: +852.2669.0828 • Fax: +852.2669.0803 Web: www.raesystems.com.hk...
