Summary of Contents for ecobox Ecoboxx 1500
- Page 1 Solar Portable Generator SABS User Manual...
- Page 2 Never open the device. If maintenance on the unit is required, please contact the nearest service center. 1. INTRODUCTIOIN ECOBOXX 1500 is a solar portable generator, designed in Italy and assembled in China, by ProVista Technology Ltd. This unit allows users to use the power anywhere, for camping, outing, entertainment, lighting, or emergency use.
- Page 3 1.1 Open the box ECOBOXX 1500 main unit x 1 Battery connection cable Wall Mount System x 1kit PV connection cable LED lamp AC/DC Adapter (16V, 5A)

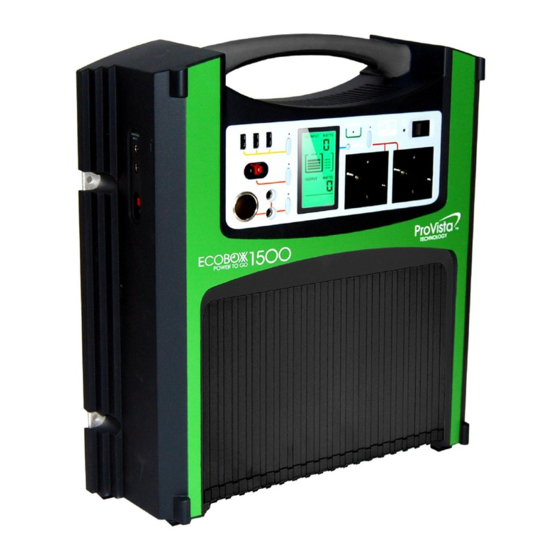

- Page 4 1.2 Solar portable generator-- ECOBOXX 1500 Master Power Front Panel Index Output Port Front View C: USB output: 5V, 1500mA (Max.) D: DC Power output: 12V, 33A (Max.) E: DC Power output: Cigarette Socket: 12V, 10A (Max.) DC jack (6.0mm): 12V, 6A(Max.)
- Page 5 2. Get Start 2.1 Battery connection 2.1.1 Prepare a 12V 100AH AGM Lead Acid battery (consult your distributor for battery detail) 2.1.2 Connect to the O-ring of the Battery Connection Cable with battery. Make sure the Red Cable is connecting to the Positive pole of battery and the Black Cable is connecting to the negative pole of battery.
- Page 6 2.2 Charging Plug in the AC/DC adaptor into “A2” port to charge the battery overnight until the battery is fully charged. The charging LED lamp on the front panel will be ON. The power “INPUT” indicator and the power meter will be shown on the LCD display when the master POWER Switch is ON.
- Page 7 Or charge by solar panel as below connection guide: 2.3 LCD Display...
- Page 8 A: Input status: INPUT or NO INPUT ： I nput charging power meter.(in Watt) B attery level: “FULL” means the battery is fully charged, and “20” means Battery very low, ： please charge the Battery B attery wrong or dead Alert: Check the battery or change a new battery ：...
- Page 9 D: ”USB” output Button: Press “USB” button to feed power to USB sockets. Plug in USB device to power it up. “USB” output button LED (green) to show USB power available. When USB output is overload or abnormal, the LED flashes red, it goes off 3 minutes later. Push the USB button again to restart the USB output power supply.
-
Page 10: Product Features
3. WALL MOUNTING Please refer to the mounting instruction manual PRODUCT FEATURES Solar panels 65Wp x 2pcs(10hr to full charge 100Ah battery) Power Input AC adapter 5A power adapter(20hr to full charge 100Ah battery) Suggested battery 12V dc,100AH, AGM lead Acid battery 1. - Page 11 Waste electrical products should not be disposed with household waste Please recycle where facilities exist Check with your local authority or retailer for recycling advice Specifications are subject to change without prior notice Copyright reserved by ProVista Technology Limited Version of Instruction manual 1.0...
