Summary of Contents for MicroBoards Technology PF-Pro Disc Printer

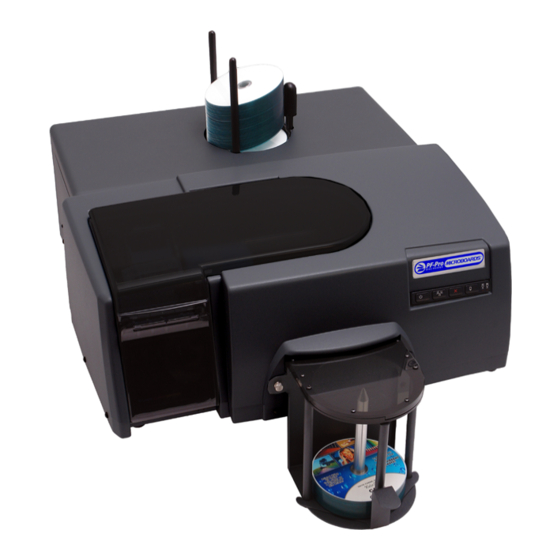

- Page 1 PF-Pro Disc Printer For Mac OS X Users Manual Microboards Technology LLC Version 1.01...
- Page 2 • Introduction...
-
Page 3: Table Of Contents
..............................11 EVICE NFORMATION .....................................11 LEAN Printhead Maintenance ..............................11 ..............................12 ANUAL LIGNMENT ..................................12 UPPORT ................................12 RINTING USING THE PF-PRO DISC PRINTER .........................13 ..............................13 REATING ABELS ................................13 OADING ISCS ................................13 RINTING ISCS Page Setup ..................................13 Changing Print Quality ..............................14 Changing Print Diameters............................14 TROUBLESHOOTING..............................15... - Page 4 • Introduction...
-
Page 5: Introduction
Flexibility and Speed for Any Application While the PF-Pro Disc Printer was designed to fill a need in the high-volume arena, it also has the ability to print at 4800 x 1200 dpi on both DVD and CD media. The PF-Pro Disc Printer can be used from any application, although it is recommended that any artwork you create is 12cm by 12cm in size. -
Page 6: System Requirements
Remove the PF-Pro Disc Printer system from the shipping box and confirm you received all of the items. Place the PF-Pro Disc Printer on a stable, flat surface. You will need room both in front and behind the system, as discs will be accessed from both locations. -
Page 7: Installing Ink Cartridges And Print Heads
Loading / Replacing Ink Cartridges Cartridges can be changed while the PF-Pro Disc Printer is on, but it should never be turned on without an ink cartridge in place. An LED will light above any cartridge that is below 25% capacity. -
Page 8: Loading Discs
DVD 120 mm (12 cm) inkjet printable discs. If the disc does not have an inkjet printable surface, the ink will not adhere to the surface of the disc. The PF-Pro Disc Printer will only accept 12 cm discs. Business card or 8 cm discs are not supported by this system. -
Page 9: Installation Of Drivers And Software
1. Install all 4 Ink Cartridges (see page 7). 2. Install both Printheads (see page 7). 3. Plug in the AC power cord to the back of the PF-Pro Disc Printer. Do not turn on power to the PF-Pro Disc Printer until an ink cartridge has been installed. -
Page 10: Setting Printer Alignment
Setting Printer Alignment Alignment The PF-Pro Disc Printer system has been aligned at the factory, but may need to be adjusted depending on the type of media and media print surface on which you are printing. Follow these steps to adjust the alignment: •... -
Page 11: Device Information
4. 6. Carefully replace the printhead in the PF-Pro Disc Printer once the heads have been cleaned. If you do not follow the above procedure exactly, you could damage your printheads! -
Page 12: Manual Pen Alignment
This function requires an internet connection. Disc Printing The PF-Pro Disc Printer system has been aligned at the factory, but may need to be adjusted depending on the type of media and media print surface on which you are printing. Follow these steps to adjust the alignment: •... -
Page 13: Using The Pf-Pro Disc Printer
These files do not need to be used, but are provided for an easy reference when creating labels. Loading Discs The next step is to load your PF-Pro Disc Printer with output discs. The system will accept CD or DVD 120 mm (12 cm) inkjet printable discs. -
Page 14: Changing Print Quality
Inner setting to leave less unprinted area at the center. Increase the Inner setting to leave more unprinted area at the center. You should never have the printer attempting to print off the printable surface. This will leave unabsorbed ink on the disc. • Using the PF-Pro Disc Printer... -
Page 15: Troubleshooting
Remove any discs that are left on the belt. 2. Lift the cover and check for any discs on the front deck of the PF-Pro Disc Printer. Remove any discs found on the belts. Close the cover. -
Page 16: Printing Specifications
Please have the Model and Serial Number of your PF-Pro Disc Printer available when contacting Technical Support. Any unauthorized modification to this equipment may result in the revocation by the FCC of the user’s authority to operate this equipment. - Page 17 MICROBOARDS TECHNOLOGY, LLC PF-PRO Disc Printer...
- Page 18 •...
