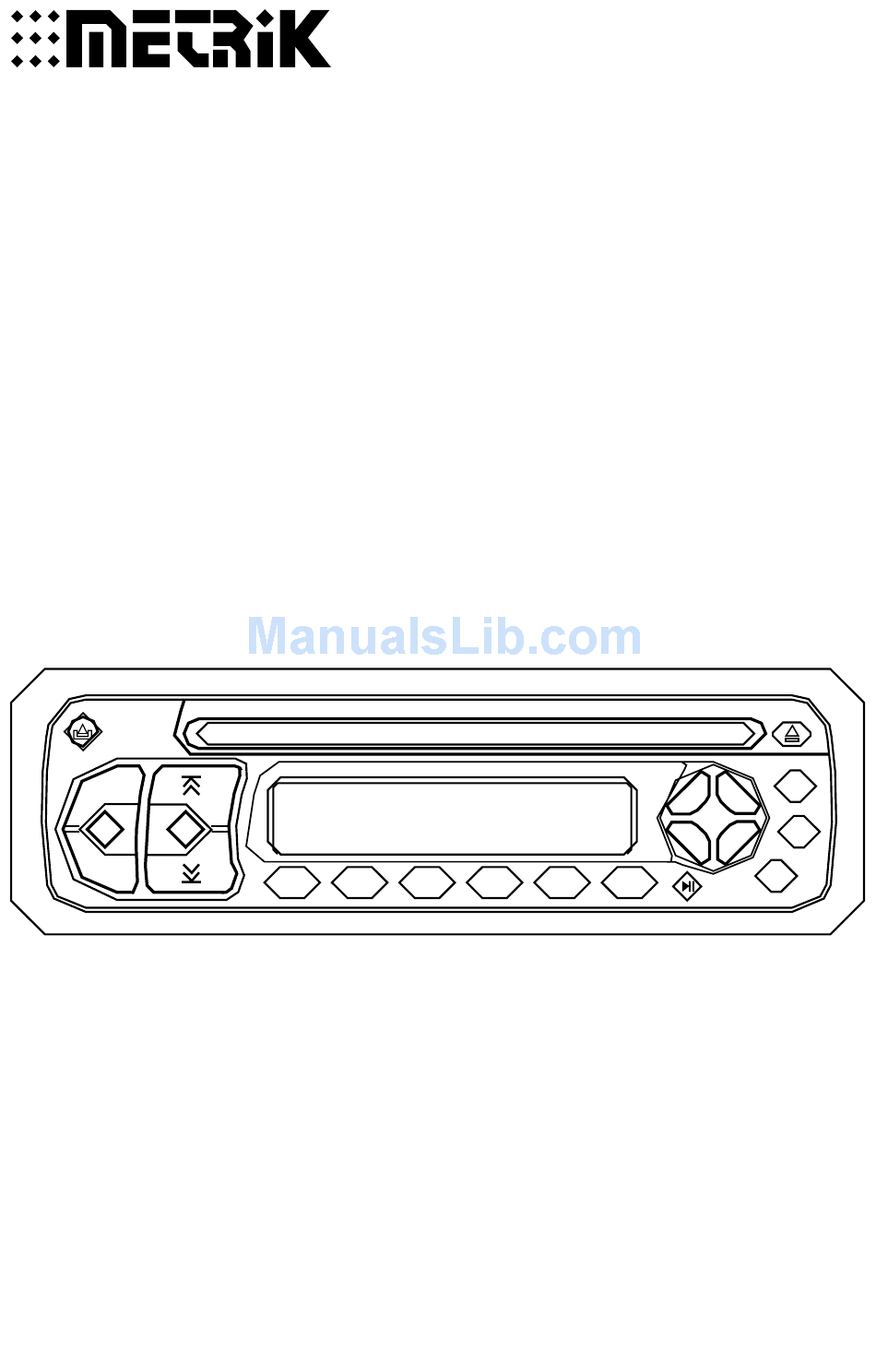

- Page 1 MCD-479 OWNER'S MANUAL – PLL SYNTHESIZER STEREO RADIO WITH COMPACT DISC PLAYER DIGITAL...
-
Page 2: Installation
INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before completly installing the unit, connect the wiring temporarily and make sure it is functioning properly. • Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. -
Page 3: Din Rear-Mount (Method B)
1. Dashboard 2. Nut (5mm) 3. Spring washer 4. Screw (5 x 25mm) 5. Screw 6. Strap Be sure to use the strap to secure the back of the unit in place. The strap can be bent by hand to the desired angle. 7. -
Page 4: How To Remove And Install The Front Panel
HOW TO REMOVE AND INSTALL THE FRONT PANEL 1. Press the release button and pull-off the front panel. Place the front panel into the supplied case to protect it. 2. To install the front panel, insert the right side of thepanel into the housing first, then press the left side in until it locks in place. -
Page 5: Wiring Connections
WIRING CONNECTIONS 1. All connections should be soldered and insulated with electrical tape. 2. Be sure to connect the red power input lead to + 12V power terminal after all the other leads have been properly connected. 3. Run all ground wires to a common ground. 4. -
Page 6: Basic Operation
Basic Operation – 1.0 ON/OFF Press PWR button (1) to turn on. Press PWR again to turn it off. 2.0 Select Mode Press SEL button (2) to move display through volume, bass, treble, balance and fader functions. Use + (3) and – (4) buttons to adjust the selected mode. When mode has not been adjusted for 3 seconds, display returns to normal radio or CD display. - Page 7 Mute Press MUTE (13) to silence the receiver. Press again to resume listening. Set the Clock 10.1 Press and hold DSP button (11) for three seconds until the display flashes. 10.2 Press (7) to change hours, (6) to change minutes. 10.0 Release Press REL button (25) until "tack"...
-
Page 8: Radio Operation
Radio Operation 1.0 Select a Band Press BND button (5) to change between three FM bands and AM/LW bands. Each band stores up to six preset stations. FMII FMIII 2.0 Select a Station Touch a TUNE button (7) or (6) for less than two seconds to move radio frequency number down or up on step. -
Page 9: Cd Player Operation
CD Player Operation 1.0 Insert and Eject CD Insert a CD into the loader slot. The CD will begin to play. Press (eject) (10) to stop CD play and eject the CD. The Receiver automatically switches to radio operation. 2.0 Skip Tracks Press TUNE (7) or (6) to advance CD to next track. -
Page 10: Specification
SPECIFICATION GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground ONLY Chassis Dimensions : 178 (W) X 155 (D) X 50 (H) Tone Controls - Bass (at 100 Hz) : +10 dB/–10 dB - Treble (at 10 KHz) : +10 dB/–10 dB Maximum Output Power : 25W X 4 (ch) CD PLAYER... -
Page 11: Troubleshooting
TROUBLE SHOOTING Before going through the check list, check all wiring connections. If any of the problems persist after check list has been completed, consult your Metrik dealer. Symptom Cause Solution No power. The car ignition is not If the power supply is properly connected to the car accessory terminal, switch the ignition key to "ACC". - Page 12 Some states or provinces have differing limitations. This warranty gives you specific rights and you may also have other rights, which vary depending of the state or province in which you reside. METRIK MOBILE ELECTRONICS a division of SAMSON ELECTRONICS, INC. 3400 E. SLAUSON AVE.; MAYWOOD, CA 90270...
