Cooler Master CM Storm Trooper SGC-5000-KKN1 Features & Specifications

Features
 The first full tower chassis with two 90 degrees
rotatable 4-in-3 HDD modules
 The first with an easy-to-carry handle, and hidden
tool box for storing private goods
 Removable dust filters on bottom and top intakes
 A built in fan controller for cool or quit operation
 Supports up to 14 hard-drives for future upgrades
 Convenient external 2.5" HDD/SSD X-dock
 Supports high-end hardware, includes XL-ATX
board, multiple GPUs in SLI or Crossfire
Package Information
EAN Code
UPC Code
Carton Size (L x W x H)
Pallet Size (L x W x H)
Container w/ pallet
20' 192
40' 432
40' HQ 468
45' HQ 520
4719512033951
884102013928
640 x 285 x 660 mm
(25.2 x 11.22 x 25.98 in)
1280 x 1140 x 120 mm
(50.39 x 44.88 x 4.72 in)
Cnt/pallet w/o pallet
24 243
26 495
26 588
26 664

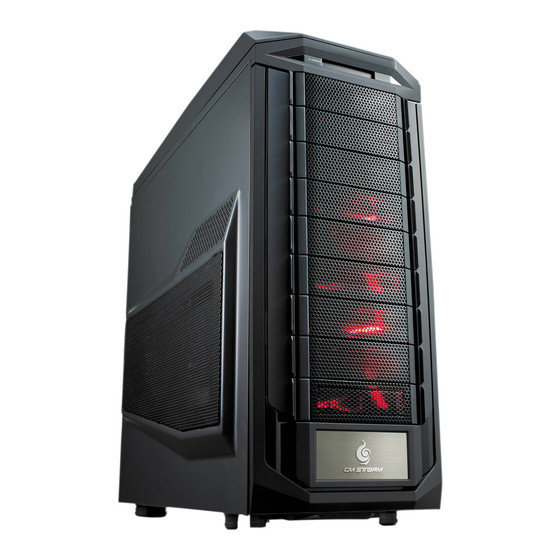

CM Storm Trooper
Continuing with its tradition of revolutionary design and cutting edge
technology, CM Storm surpasses the competition with the Trooper
chassis. The CM Storm Trooper contains a wealth of features coveted
by most gaming enthusiasts, including USB 3.0, external 2.5" and
two 90 degree rotatable HDD cages for easier hard-drive installation.
The CM Storm Trooper is the first full tower with a carrying handle for
easy transport.
Specifications
Available Color All Black
Dimensions 250 x 605.6 x 578.5 mm (9.8 x 23.8 x 22.8 in)
Net Weight 14.4 KG / 31.7 lbs
Motherboard Type Micro-ATX, ATX, XL-ATX
Case materials Steel body, Front Mesh / Plastic bezel
5.25" Drive Bay 9
8 (converted from 5.25" bay by two 4-in 3 HDD
3.5" Drive Bay
modules)
Expansion Slot 9+1
Maximum CPU cooler height: 186 mm / 7.3 in
Compatibility GPU card length: 322 mm / 12.7 in
13 (converted from 5.25" bay by two 4-in 3
2.5" Drive Bay
HDD modules)
USB 3.0 x 2 (internal), USB 2.0 x 2, e-SATA x 1,
I / O panel
Audio In and Out ( Supports HD audio)
Front : 120 mm LED fan x2, 1200 RPM, 17
dBA
Top: 200 mm fan x 1, 1000 RPM, 23 dBA
(converted to 2 x 120 / 140 mm fan)
Cooling System
Rear: 140 mm fan x1, 1200 RPM, 19 dBA
(converted to 120 mm fan)
Side: 120 mm fan x 2 (optional)
Bottom: 120 mm fan x 2 (optional)
Warranty
USA 2 years, EU 2 years, ROW 2 years
SGC-5000-KKN1
