INSTRUCTIONS FOR INSTALLATION & USE
GETTING STARTED:
STEP 1
Choose a location for your
freezer, away from any
heat sources and allow
adequate ventilation -
1
30mm (1
/
inches)
4
gap above.
STEP 3
Level the freezer by
adjusting the front feet.
This will stop rocking or
vibration and keep the
door aligned.
NB. The spanner is for illustration
only and is not supplied with the
freezer.
STEP 5
Plug in and switch on.
Allow the freezer to cool
before placing food
inside.
The high temperature
light will stay on until the
freezer has cooled down.
All food in the freezer
should be covered.
Read the rest of these instructions to get the best from your appliance
and remember to fill in your guarantee registration.

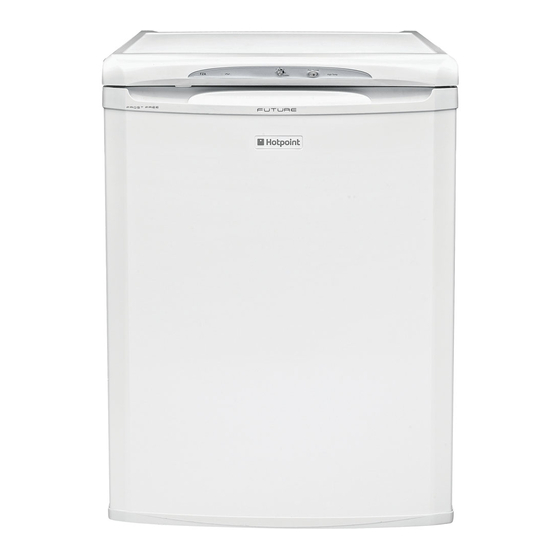

FREEZER - MODEL FZA34, FZM34
To ensure that your freezer runs reliably and efficiently follow these steps.
STEP 7
Your freezer is now
working.
If after 24 hours your
freezer is not operating as
you want, refer to the
TROUBLESHOOTING
section.
Keep this Book in a safe place for quick reference.
STEP 2
Move the freezer into
position, using the sides
of the cabinet. Take care
to avoid damaging the
refrigerant circuit pipe
work on the rear.
STEP 4
Before plugging in and
switching on, leave the
freezer in its final
location for at least 15
minutes to allow it to
settle.
STEP 6
If you are freezing fresh
food, turn on fast freeze by
pressing the switch 24
hours before placing the
food inside.
Place the fresh food
inside.
Remember to turn fast freeze off
after 24 hours, however if you
forget to do so it will automatically
cancel after 48 hours.
Advertisement
Table of Contents
Related Manuals for Hotpoint FZA34
Summary of Contents for Hotpoint FZA34
- Page 1 FREEZER - MODEL FZA34, FZM34 INSTRUCTIONS FOR INSTALLATION & USE GETTING STARTED: To ensure that your freezer runs reliably and efficiently follow these steps. STEP 1 Choose a location for your freezer, away from any heat sources and allow adequate ventilation -...
-
Page 2: For Your Safety
Take care when installing or moving the freezer to avoid damaging the pipes on the rear. If you suspect a leak, do not switch on the freezer, but open the windows and doors to ventilate the room. Do not use any electrical devices inside the freezer, for instance for defrosting. -
Page 3: Installation
If preferred the freezer can be positioned so that a gap is not left. This will restrict how far the door can be opened but the furniture can still be removed (see diagrams below). - Page 4 15 minutes to allow it to settle. Fitting a Freezer under a Work Top To minimise running costs Hotpoint recommend fitting a vent to the rear of your worktop, which is available from Hotpoint Genuine Parts & Accessories Mail Order Hotline (see KEY CONTACTS, back page).
- Page 5 This appliance is fitted with a special mains lead. If you need to replace the mains lead due to damage, one can be bought from Hotpoint Service (see KEY CONTACTS, back page). It is strongly advised that this work is carried out by a qualified electrician.
- Page 6 The internal freezer temperature should be -18˚C or colder. The setting of the control wheel will depend on the location of the freezer, the room temperature and how often the door is opened. The normal set point (marked by a 3 on the dial) is usually suitable.
- Page 7 Check the TROUBLESHOOTING section before calling for advice. The red light may come on for a short period when opening the freezer door to load or unload food, in this case storage times will not be affected.
- Page 8 Fast Freeze Button - Freezing Fresh Food The bottom compartment drawer should be used to freeze fresh food. Transfer already frozen food to one of the upper drawers. - Before loading 2kg or more of fresh food select fast freeze for the required pre-freeze time (see chart below).
-
Page 9: Useful Advice
Useful Advice FAST FREEZE Note: The Rating Plate, which lists the appliance Model Number and Serial Number can be found near the bottom of the interior wall. Frozen Food Storage Capacity Maximum Freezing Capacity in 24 hours Maximum Conservation Time from Failure 25kg 16 hours... - Page 10 How Frost Free works The frost free system completely eliminates the need for defrosting. A fan circulates air around the freezer. This helps to remove moisture from the compartment, therefore preventing the build up of ice. It is normal to hear the fan when the freezer is cooling.
- Page 11 Lollipops and water ices should not be given to children directly from the freezer the low temperature may cause ‘freezer burns’ . Store ice cream towards the top front of the freezer and remove from freezer 15-30 minutes before serving.
- Page 12 WARNING: The freezer drawers can become heavy when fully loaded with food. Care must be taken if attempting to lift or carry a full freezer drawer. It is recommended to remove the required food, rather than the whole freezer drawer.
- Page 13 WARNING: Do not use detergent, it will damage the seal. Going Away If you are going away and don’t want to use your freezer, switch off the electricity supply and pull out the mains plug. Remove food and follow the cleaning instructions above.
-
Page 14: Door Reversal
WARNING: Switch off electrical supply and pull out the mains plug. Remove loose items/fittings from inside the freezer. If you have previously set up and used the freezer and since decided to reverse the doors, you must remove stored food, wrap or cover and place into insulated containers to keep frozen whilst carrying out this operation. -
Page 15: Troubleshooting
The freezer is too warm 1. Turn the control wheel to a higher number. See CONTROLS section. 2. If the freezer is close to a heat source, move it to another location. 3. Check that there is enough ventilation around the freezer. - Page 16 Expansion and contraction of parts inside the freezer can produce a cracking noise as they rapidly change temperature. The circulating fan in the freezer can make a whirring or buzzing sound as it blows cold air around the compartment. Troubleshooting...
- Page 17 Notes...
-
Page 18: Hotpoint Guarantee
All Hotpoint appliances carry a fully inclusive 12 month parts and labour guarantee as well as free replacement parts for the first 5 years (except microwaves, selected integrated appliances and cooker hoods, which have a one year guarantee) provided that they are fitted by a Hotpoint engineer. -
Page 19: After Sales Service
Hotpoint appliance than us - the manufacturer” As part of our commitment to you, all Hotpoint appliances have the added benefit of a fully inclusive parts and labour guarantee for the first 12 months. In addition to this you also have the advantage of free replacement parts for the first 5 years when fitted by a Hotpoint engineer. -
Page 20: Key Contacts
Monday to Sunday, 8am to 8pm www.hotpointservice.co.uk Republic of Ireland: 1850 502 200 Genuine Parts and Accessories UK: 08709 077 077 Monday to Friday, 8.30am to 5pm Saturday, 8.30am to 12noon www.hotpointservice.co.uk Republic of Ireland: (01) 842 6836 www.hotpoint.co.uk 03/2005 195051335.00...
