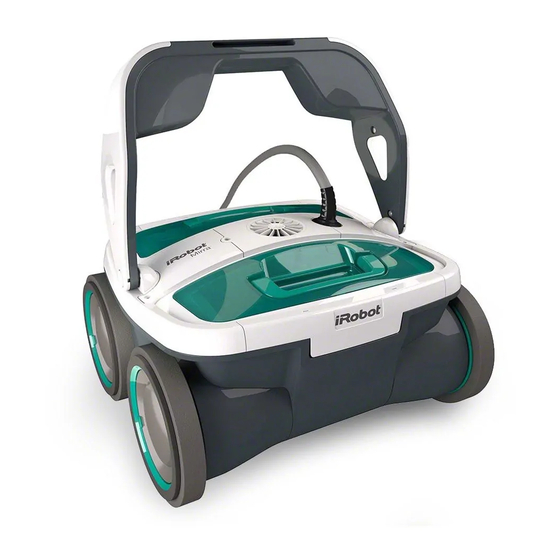

Pool cleaning robot

Hide thumbs

Table Of Contents

Mirra

Pool Cleaning Robot

Model 530 Owner's Manual

global.irobot.com

Table of Contents

Need help?

Do you have a question about the Mirra 530 and is the answer not in the manual?

Questions and answers

Summary of Contents for iRobot Mirra 530

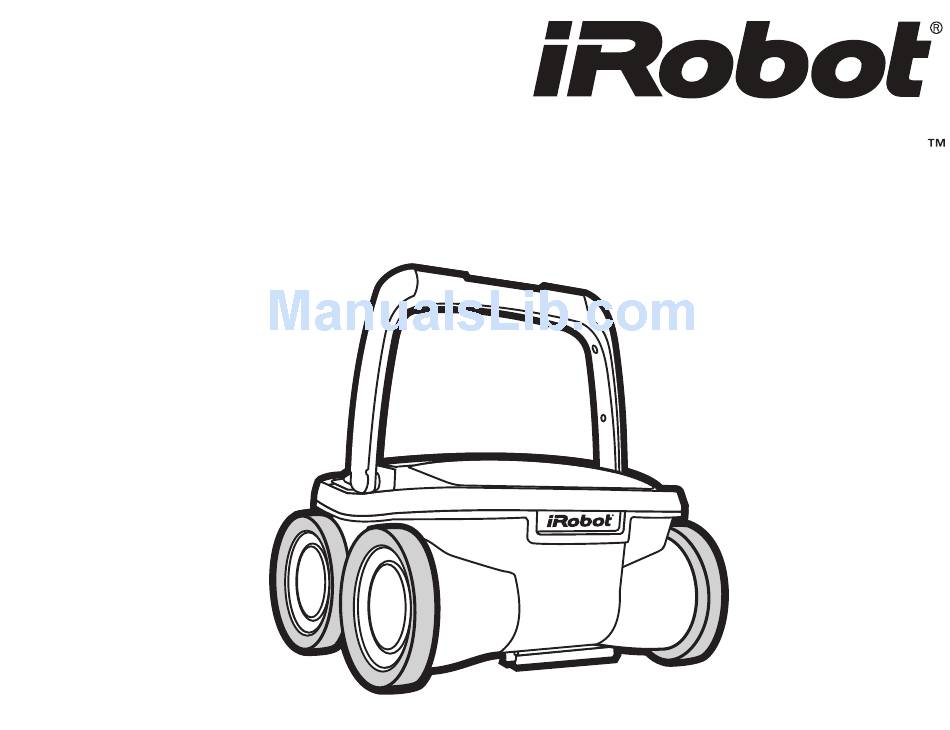

Page 1 Mirra Pool Cleaning Robot Model 530 Owner’s Manual global.irobot.com...
Page 2: Important Safety Instructions
Registration and Warranty IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL THE INSTRUCTIONS Please visit www.irobot.com/register to register your product and activate CAUTION: Do not plug the power supply into a grounded outlet or do not switch your warranty. the pool cleaner “ON” if it is not fully immersed in water.
Page 3 Welcome Dear Mirra Owner, Thank you for choosing a new generation iRobot Mirra pool cleaning robot. You’re joining a very special community of people - 7.5 million worldwide and growing - who are discovering just how useful, convenient and straightforward having a home robot is. In fact, owners tend to like their robots so much they’ve even given them nicknames.
Page 4: Table Of Contents
Maintenance and Adjustment ......... Cleaning the Filter/ Changing the Rolling Brush ..... Accessing and Cleaning the Propeller ......Operating Your Pool Cleaner ........... 10-12 Troubleshooting ............... Power Supply ..............Declaration of Conformity ..........iRobot Customer Care ............ iRobot Mirra 500 Series Owner’s Manual...
Page 5: Getting Started
Getting Started Soak wheels for 15 minutes 15min. 12 cm (4.7 inch) global.irobot.com...
Page 6: Maintenance And Adjustment
Maintenance and Adjustment INTAkE VALVES ADjUSTMENT Adjust filter valve to get best suction on ground. Adjust filter valve to get best clearance on ground. PVA WHEELS SOAkINg Soak wheels after extended period of storage. 15min. START iRobot Mirra 500 Series Owner’s Manual...
Page 7 Maintenance and Adjustment Continued FLOAT INSTALLATION Robot should turn 90 degrees on the first turn of a new cleaning cycle. Remove filter canister to access float block holder Adjust amount of float blocks to achieve desired turning behaviors. global.irobot.com...
Page 8: Cleaning The Filter/ Changing The Rolling Brush
Cleaning the Filter It is recommended to clean the filter after each working-cycle. Changing the Rolling Brush CLICK iRobot Mirra 500 Series Owner’s Manual...
Page 9: Accessing And Cleaning The Propeller
Accessing and Cleaning the Propeller DISCONNECT THE ROBOT FROM THE POWER-SUPPLY BEFORE PERFORMINg THIS ACTION Clean the propeller if experiencing poor suction. Pump motor Propeller Clean here global.irobot.com...
Page 10: Operating Your Pool Cleaner
Robot can be used in water with temperatures ranging from 13°C to 35°C asevenly as possible. (55°F to 95°F). However, the recommended optimal temperature is between 22°C and 32°C (72°F and 90°F) iRobot Mirra 500 Series Owner’s Manual...
Page 11 5. To remove the plug, first rotate the plug to the left to unlock it, then pull it out (Fig. F). slot slot Push and rotate right to lock Socket (B) cable power supply cable power supply Rotate left and Cable plug (A) plug socket plug socket pull to unlock global.irobot.com...
Page 12 • Save your cleaner’s packaging for off-season storage or for shipping the unit to your This will lengthen the service life of your cleaner. dealer if service is required. • Clean the propeller once a month. iRobot Mirra 500 Series Owner’s Manual...
Page 13: Troubleshooting
After following all of the above, if there is still a problem, b) Verify that the unit rotates by 90 degrees on the first turn of a new cycle. visit global.irobot.com If not - add or remove floats according to the instructions on page 7.
Page 14: Power Supply
0°C - 45°C (32°F - 113°F ) not be operated in direct sunlight or be exposed to water. The power supply should not be Ingress protection ___________ IP54 operated in an ambient temperature in excess of 40ºC. iRobot Mirra 500 Series Owner’s Manual...
Page 15: Declaration Of Conformity
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the manufacturer, dealer, or an experienced radio/TV technician for help. WARNING: Changes or modifications not expressly approved by iRobot could void your warranty. global.irobot.com...
Page 16: Irobot Customer Care
• Monday – Friday 9AM – 7PM Eastern Time • Saturday 9AM – 6PM Eastern Time © 2008-2013 iRobot Corporation, 8 Crosby Drive, Bedford, MA 01730 USA | All rights reserved. iRobot is a registered trademark of iRobot Corporation. Mirra is a trademark of iRobot Corporation.
